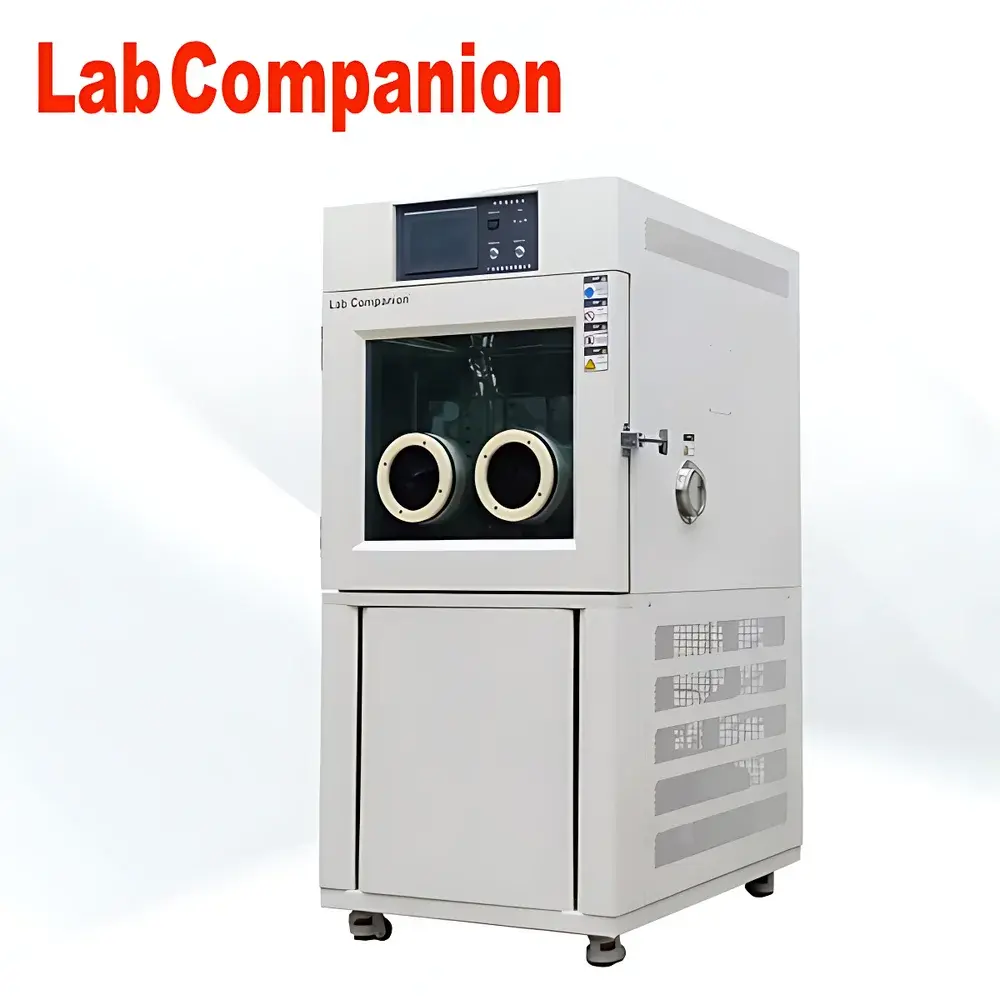

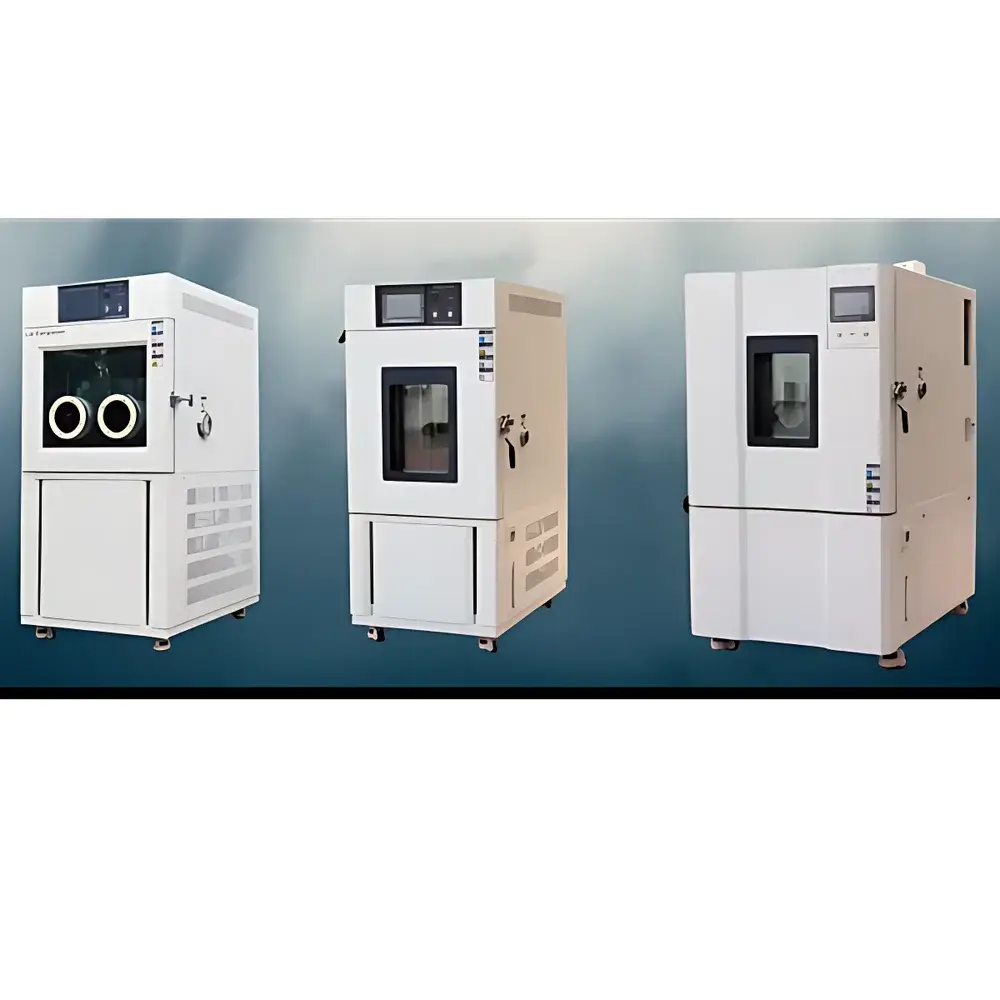

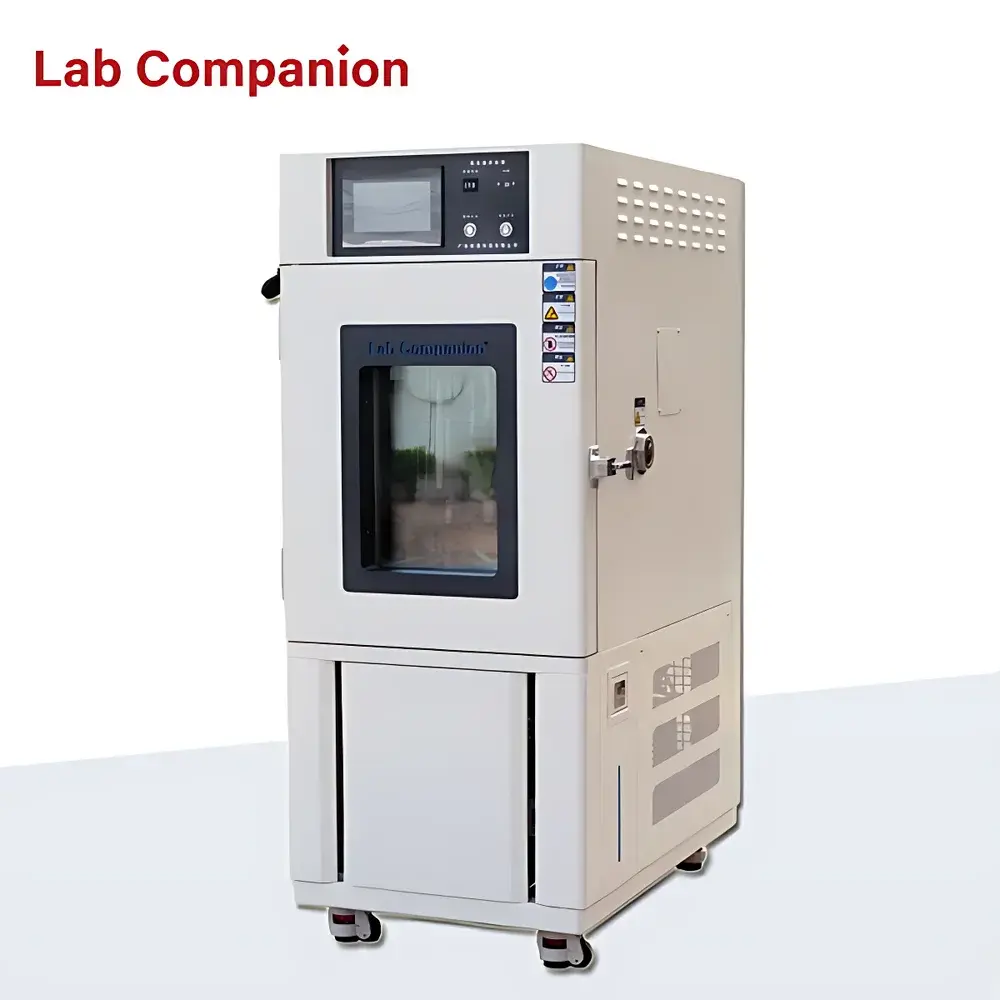

LabCompanion T-Series High-Low Temperature Environmental Test Chambers for Semiconductor Chip Reliability Testing

Overview

The LabCompanion T-Series High-Low Temperature Environmental Test Chambers are engineered for precision thermal stress validation of semiconductor devices under controlled, repeatable extreme temperature conditions. Designed specifically to meet the stringent requirements of wafer-level qualification, package reliability screening (e.g., JESD22-A104, A119), and failure analysis workflows, these chambers employ dual-stage cascade refrigeration with R404A — a zero-ozone-depletion-potential (ODP) refrigerant — to achieve stable operation across the full range of -70 °C to +150 °C. Unlike general-purpose environmental chambers, the T-Series integrates AI-assisted thermal field compensation and optimized honeycomb airflow architecture to minimize spatial thermal gradients, ensuring high reproducibility in electrical parameter drift measurements (e.g., threshold voltage shift, leakage current variation) during temperature cycling. The system supports both standard ramp-rate testing and accelerated thermal transient protocols, making it suitable for JEDEC-compliant temperature cycling (TC), highly accelerated temperature-humidity stress testing (HAST), and preconditioning per IPC/JEDEC standards.

Key Features

• Stainless steel (SUS304) interior chamber with surface roughness Ra ≤ 0.02 µm — minimizing particle generation and electrostatic charge accumulation critical for cleanroom-compatible semiconductor handling
• Dual-stage cascade refrigeration system using imported compressors and R404A refrigerant — enabling reliable deep-cold performance down to -70 °C without liquid nitrogen dependency
• AI-enhanced PID temperature control algorithm with real-time thermal field mapping — delivering stability of ±0.1 °C to ±0.3 °C and uniformity ≤ ±1.5 °C (≤ ±2.0 °C for large-volume models)
• 7-inch color touchscreen HMI with intuitive programming interface — supporting up to 100 user-defined test profiles, 999-cycle loops, and linear/nonlinear ramp configuration
• Standard 30 mm diameter cable/port access ports with silicone gaskets — facilitating in-situ electrical biasing and real-time parametric monitoring during thermal stress
• Comprehensive safety architecture including compressor overpressure/overcurrent/overheat protection, independent overtemperature cutoff, ground fault detection, and refrigerant leak monitoring

Sample Compatibility & Compliance

The T-Series accommodates diverse semiconductor sample configurations — from bare die and wafer fragments to packaged ICs (QFN, BGA, SOIC), optoelectronic modules, and MEMS sensors — via configurable internal fixtures and optional vibration-isolated mounting plates. All models comply with key international standards governing environmental testing of electronic components, including IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-14 (change of temperature), and MIL-STD-810H Method 502.5. For regulated industries, the system supports audit-ready data traceability aligned with FDA 21 CFR Part 11 requirements when integrated with optional Ethernet-enabled data logging and user-access-controlled firmware. Structural integrity is validated per ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018; factory calibration reports include NIST-traceable temperature sensor verification.

Software & Data Management

LabCompanion’s proprietary ChamberControl™ software provides remote supervision, real-time graphing, and automated report generation via Ethernet or RS-485 connectivity. Users can export timestamped CSV logs containing chamber setpoint, actual temperature (multiple probe inputs), ramp rate, cycle count, and alarm history — all embedded with digital signatures for GLP/GMP compliance. Optional integration with LIMS platforms enables direct ingestion into enterprise quality management systems (QMS). Firmware supports secure role-based access control (RBAC), electronic signatures for test initiation/approval, and immutable audit trails meeting ISO/IEC 17025 clause 7.7 and USP analytical instrument qualification (AIQ) criteria.

Applications

• Semiconductor reliability labs performing temperature cycling (TC), high-temperature operating life (HTOL), and early-life failure screening (ELFS)
• Fabless design houses validating thermal robustness of ASICs, power management ICs, and RF front-end modules prior to tape-out
• OSAT facilities conducting pre-seal and post-mold thermal shock assessment per JESD22-A106 and A110
• Automotive electronics suppliers qualifying ADAS SoCs and radar transceivers per AEC-Q100 Grade 0/1 requirements
• Research institutions studying thermally induced mechanical stress in advanced packaging (e.g., chiplets, 2.5D/3D ICs) and low-k dielectric degradation
• Third-party certification bodies executing accredited environmental testing for IEC 62380, ISO 26262, and UL 62368-1 compliance

FAQ

What is the minimum temperature stabilization time after reaching -70 °C?

Typical stabilization time is ≤ 15 minutes following attainment of target temperature, verified by internal Class A PT100 sensors calibrated to ±0.1 °C uncertainty.

Can the chamber be integrated with external power supplies and SMUs for real-time parametric monitoring?

Yes — standard 30 mm feedthrough ports support shielded cabling; optional EMI-filtered variants are available for low-noise DC/RF signal routing.

Is custom chamber geometry supported for non-standard wafer carriers or test boards?

Yes — LabCompanion offers full mechanical and thermal simulation-supported customization, including modified door hinges, reinforced floor loading (up to 200 kg), and multi-zone air distribution for asymmetric loads.

Does the system support automated pass/fail evaluation against predefined thermal excursion limits?

Not natively — however, ChamberControl™ exposes real-time temperature data via Modbus TCP, enabling integration with external SCADA or Python-based decision logic engines.

Are calibration certificates provided with each unit shipment?

Yes — each chamber ships with a factory calibration certificate covering at least nine spatial points across the working volume, traceable to national metrology institutes.
