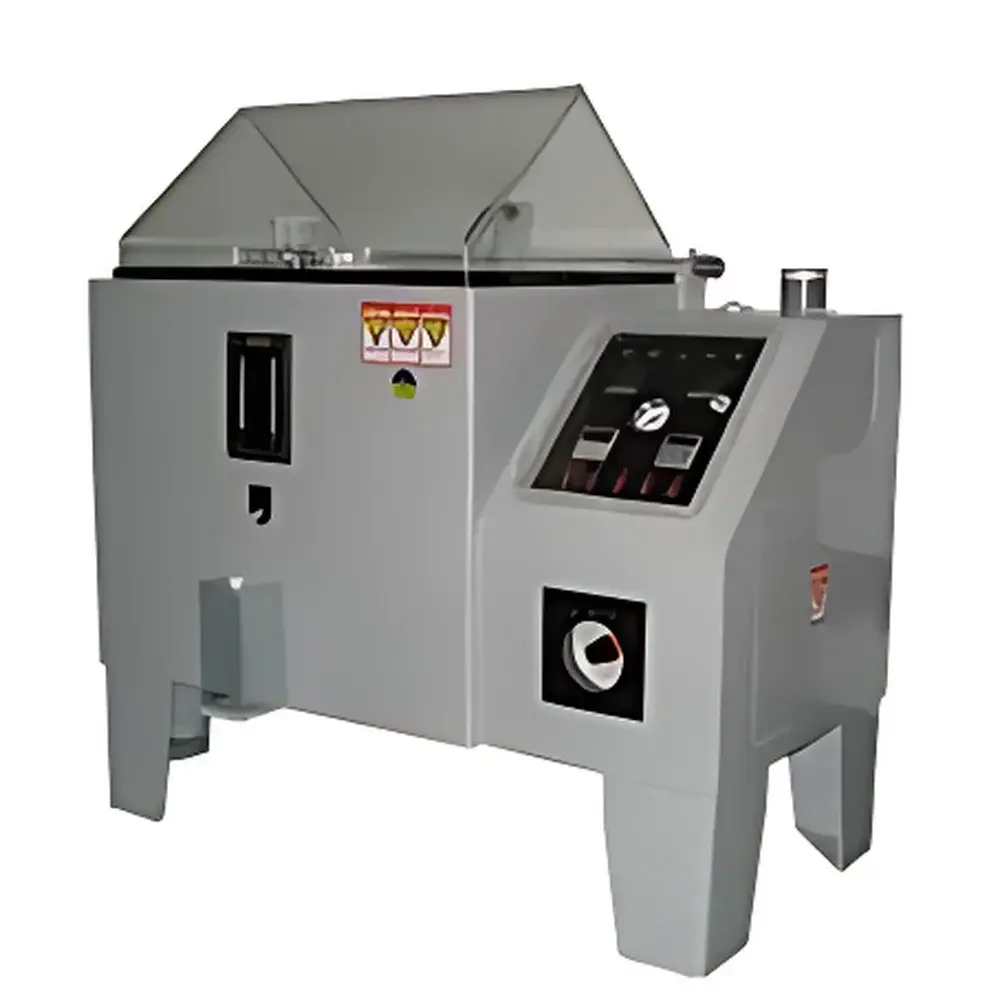

LabCompanion SH-90 Salt Spray Test Chamber

Overview

The LabCompanion SH-90 Salt Spray Test Chamber is an engineered environmental test system designed for standardized accelerated corrosion evaluation of metallic and coated substrates under controlled saline fog conditions. It operates on the principle of continuous or cyclic salt mist exposure—generating a stable, reproducible sodium chloride aerosol environment in accordance with internationally recognized test protocols including ASTM B117, ISO 9227, JIS Z2371, and GB/T 2423.17. The chamber employs a saturated air tank governed by Henry’s Law to precisely regulate humidity and temperature coupling, ensuring thermodynamic equilibrium between the saturated air and the test atmosphere. This enables consistent droplet size distribution, uniform deposition density, and minimal crystallization interference—critical parameters for inter-laboratory comparability and regulatory acceptance.

Key Features

• Precision borosilicate glass spray nozzle with conical diffuser design ensures uniform fog dispersion and sustained operational integrity for ≥4,000 hours without salt crystal blockage.
• Digital PID temperature controller with ±0.1°C stability and dual independent over-temperature cut-off relays for fail-safe thermal management.
• Direct steam injection heating system using corrosion-resistant titanium heating elements delivers rapid, uniform chamber warm-up and eliminates thermal lag.
• Automated water replenishment system with level-sensing circuitry maintains uninterrupted operation; low-level warning triggers visual and audible alerts prior to interruption.
• Integrated vapor-seal lid mechanism with water-trough sealing prevents fog leakage while enabling clear observation via optional auto-defogging system.
• Front-panel–mounted control interface consolidates timer, temperature setpoint, spray mode selector (continuous/cyclic), and status indicators for intuitive operation.
• Structural chassis fabricated from reinforced PVC with ring-strengthened geometry provides long-term dimensional stability, acid/alkali resistance, and zero deformation under thermal cycling.
• Electrical cabinet equipped with dehumidifying exhaust fan mitigates condensation-related component degradation in high-humidity ambient environments.

Sample Compatibility & Compliance

The SH-90 accommodates standard test specimens up to 600 mm in height and supports rack-mounted or suspended sample configurations per ASTM B117 specimen orientation requirements. Its internal volume (900 × 600 × 500 mm) allows simultaneous testing of multiple coating systems—including electroplated zinc/nickel, chromate conversion coatings, powder-coated steel, anodized aluminum, and organic primers—without cross-contamination. All operational parameters—including chamber temperature, saturation tank temperature, pH-adjusted NaCl solution concentration (5.0 ± 0.1% w/w), and collection rate (1.0–2.0 mL/80 cm²/h)—are traceable to NIST-calibrated instrumentation. The system architecture supports GLP-compliant documentation workflows through external data logging interfaces and satisfies baseline requirements for FDA 21 CFR Part 11–aligned audit trails when integrated with validated third-party software.

Software & Data Management

While the SH-90 operates as a standalone benchtop unit with embedded digital controls, it features RS-232 and analog voltage output ports for integration into centralized laboratory information management systems (LIMS). Time-stamped event logs—including start/stop timestamps, temperature excursions, low-water alarms, and end-of-test signals—can be captured externally for report generation. Optional LabCompanion DataBridge firmware enables real-time parameter streaming to cloud-based dashboards compliant with ISO/IEC 17025 data integrity guidelines. All calibration records, maintenance logs, and user access events may be archived in accordance with GMP Annex 11 and EU GMP Annex 11 expectations.

Applications

This chamber serves quality assurance laboratories in automotive OEM supply chains, aerospace component manufacturers, marine hardware producers, and electronics enclosure fabricators. Typical use cases include validation of zinc-nickel plating adhesion on brake calipers, comparative assessment of epoxy-polyester powder coating durability on outdoor enclosures, qualification of passivation layers on surgical stainless steel devices, and verification of chromate-free conversion coatings on aluminum extrusions. Its compliance-ready configuration facilitates submission of test reports to notified bodies under CE marking directives and supports IATF 16949-certified process audits.

FAQ

What standards does the SH-90 comply with?
ASTM B117, ISO 9227, JIS Z2371, GB/T 2423.17, and DIN 50021.
Can the SH-90 perform cyclic salt spray testing?
Yes—the control panel supports programmable on/off spray intervals and optional humidity/temperature cycling when paired with LabCompanion’s optional Cyclic Test Module.
Is the glass nozzle replaceable, and what is its expected service life?
The borosilicate nozzle is field-replaceable and rated for ≥4,000 operational hours under standard 5% NaCl solution conditions.
Does the system include calibration documentation?
Factory calibration certificates for temperature sensors and timers are supplied; users must perform periodic verification per ISO/IEC 17025 procedures.
What maintenance is required for the saturated air tank?
Weekly draining and refilling with deionized water is recommended; monthly inspection of heater elements and pressure relief valves is advised.
