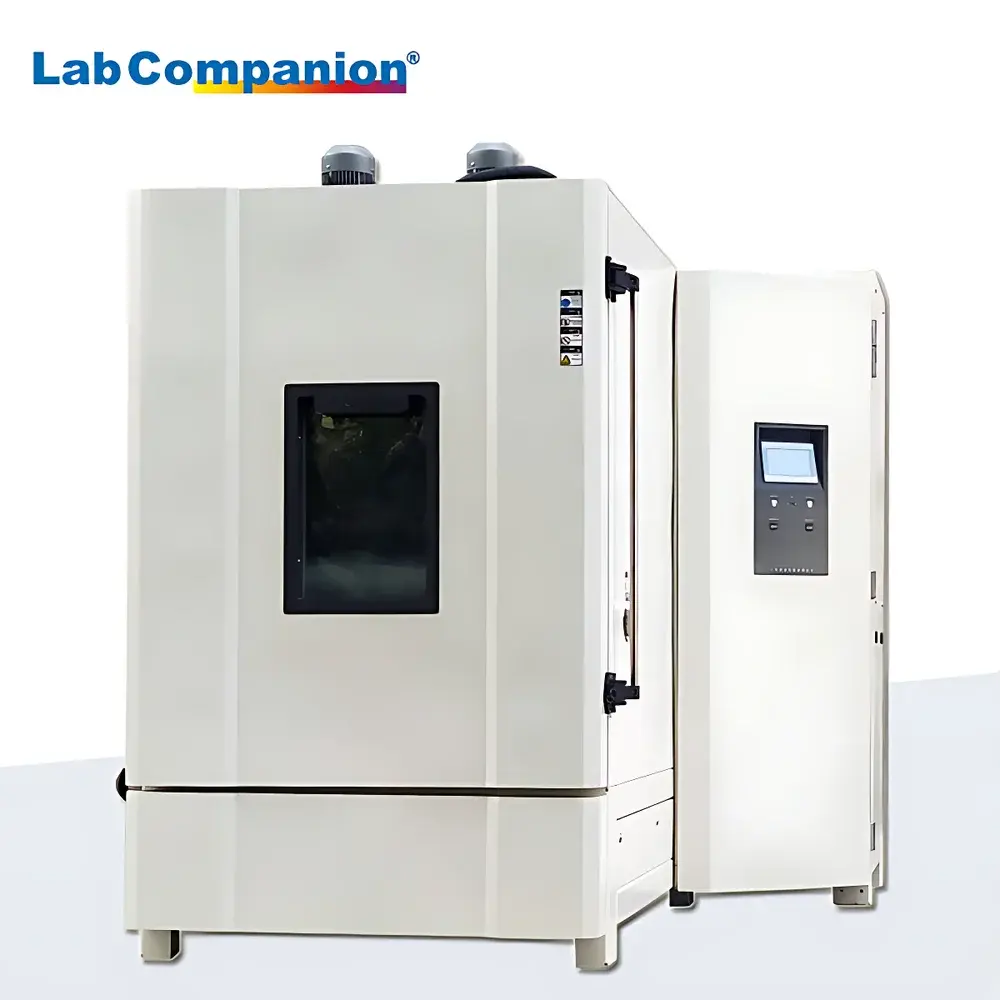

LabCompanion TC-1000 Thermal Cycling Test Chamber

Overview

The LabCompanion TC-1000 Thermal Cycling Test Chamber is an engineered environmental stress test system designed for accelerated reliability evaluation of electronic components, automotive modules, aerospace assemblies, and advanced materials under dynamically controlled temperature extremes. It operates on a dual-refrigeration architecture with independent heating and forced-air cooling circuits, enabling precise execution of programmable thermal profiles—including rapid ramping, dwell, and step-cycle sequences—across a wide operational range of −70 °C to +150 °C. Unlike static temperature chambers, the TC-1000 supports both linear and non-linear thermal transitions, allowing users to replicate real-world thermal shock conditions encountered during transport, storage, or field operation. Its structural integrity is reinforced with stainless-steel inner chamber walls, high-efficiency insulation, and a corrosion-resistant exterior housing suitable for long-term laboratory or production-line deployment.

Key Features

• Programmable thermal cycling with selectable ramp rates: 5, 10, 15, 20, or 25 °C/min—configurable as linear or custom non-linear profiles via embedded controller
• Optional liquid nitrogen (LN₂) auxiliary cooling module enables ultra-fast cooldowns up to 30 °C/min for high-fidelity thermal shock simulation (e.g., MIL-STD-810H Method 503.6)
• Temperature uniformity maintained at ±0.5 °C (measured per GB/T 5170.2–2008 at steady-state, no-load condition)
• Integrated humidity control (20–98% RH) available on TH-series variants; humidity deviation meets GB/T 5170.5–2008 specifications (±3.0% RH below 75% RH; ±5.0% RH at or above 75% RH)
• 1000 × 1000 × 1000 mm internal workspace accommodates large-format PCBs, EV battery modules, or multi-unit test fixtures
• Intuitive 7-inch color touchscreen HMI with onboard data logging (up to 10,000 data points), USB export, and password-protected parameter locking for GLP/GMP traceability

Sample Compatibility & Compliance

The TC-1000 is routinely deployed in qualification testing per international standards including IEC 60068-2-14 (Test N: Change of temperature), JEDEC JESD22-A104 (Temperature Cycling), and AEC-Q200 for passive and active automotive electronics. Its chamber geometry and airflow design ensure minimal thermal gradients across sample zones—even with heterogeneous loads—supporting repeatable pass/fail criteria in HALT/HASS protocols. All temperature and humidity performance metrics are verified against Chinese national standards GB/T 5170.2–2008 and GB/T 5170.5–2008, ensuring metrological consistency comparable to ISO/IEC 17025-accredited calibration practices. The system supports optional 21 CFR Part 11-compliant software add-ons for audit-ready electronic records in regulated pharmaceutical or medical device environments.

Software & Data Management

LabCompanion’s proprietary TC-Link™ software (Windows-based, optional) provides full remote supervision, multi-chamber synchronization, and automated report generation compliant with ASTM E2927 and ISO 17025 documentation requirements. Real-time graphing displays simultaneous temperature/humidity trajectories alongside user-defined alarm thresholds (e.g., deviation > ±2.0 °C triggers audible/visual alert and log entry). Raw time-stamped data is exported in CSV or Excel format with embedded metadata (operator ID, test plan revision, chamber serial number), facilitating integration into LIMS or MES platforms. Audit trails record all parameter modifications, start/stop events, and calibration interventions—fully supporting FDA and EU Annex 11 validation expectations.

Applications

• Accelerated life testing of solder joints, conformal coatings, and encapsulated semiconductors
• Thermal fatigue assessment of MEMS devices, LED packages, and power modules under repeated expansion/contraction cycles
• Validation of thermal interface materials (TIMs), phase-change pads, and heat sink adhesion under cyclic load
• Environmental screening of avionics hardware prior to DO-160 Section 4 qualification
• Material compatibility testing for polymer composites, battery electrolytes, and optical adhesives exposed to extreme thermal excursions

FAQ

What is the standard temperature deviation specification for the TC-1000, and how is it validated?
The TC-1000 guarantees a maximum temperature deviation of ±2.0 °C across its working volume under no-load, steady-state conditions, measured per GB/T 5170.2–2008 using nine calibrated PT100 sensors arranged in a 3×3 grid.

Can the TC-1000 perform non-linear thermal profiles, and how are they programmed?
Yes—users define segmented ramp/dwell sequences with independent slope, duration, and target setpoints via the onboard controller or TC-Link™ software. Each segment supports variable rate control, enabling realistic simulation of ambient diurnal cycles or vehicle cabin thermal transients.

Is humidity functionality integrated or optional—and what standards does it meet?
Humidity control is available only on TH-series configurations (e.g., TH-1000). When equipped, it complies with GB/T 5170.5–2008 and achieves ±3.0% RH accuracy below 75% RH, making it suitable for combined environmental stress screening per IEC 60068-2-30.

Does the TC-1000 support third-party calibration and IQ/OQ/PQ documentation?
Yes—LabCompanion provides factory-issued calibration certificates traceable to NIM (China National Institute of Metrology) and optional IQ/OQ/PQ protocol templates aligned with ISO 13485 and GMP Annex 15 requirements.
