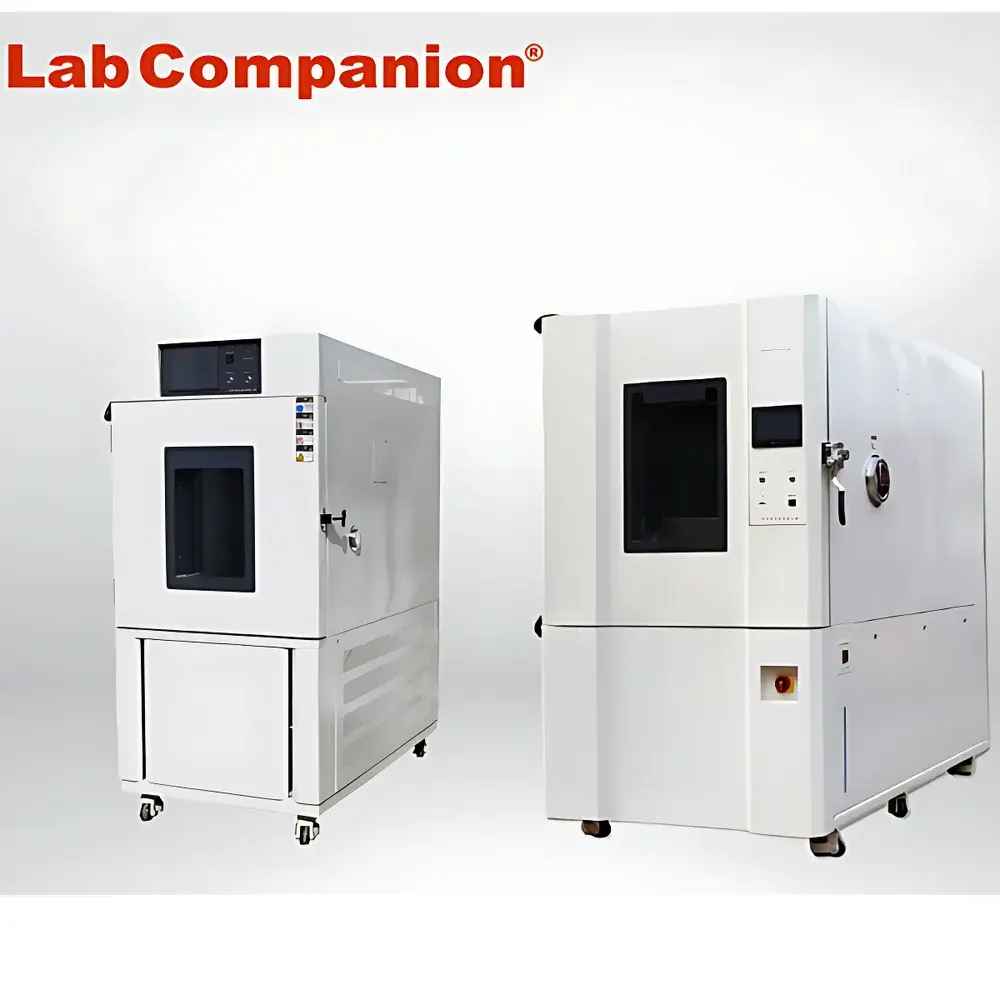

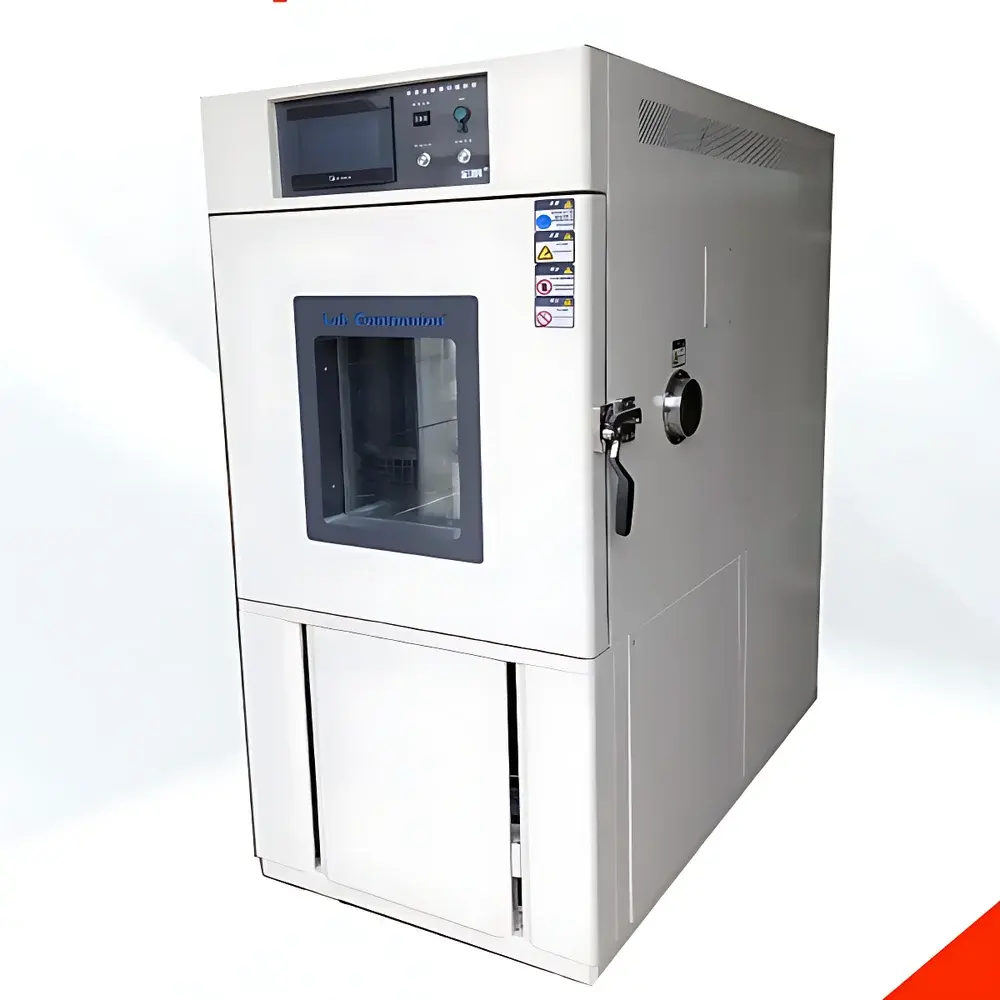

LabCompanion TC-150 High-Speed Thermal Cycling Chamber

Overview

The LabCompanion TC-150 is a high-performance thermal cycling chamber engineered for rapid, programmable temperature transitions across an extended operational range of −70 °C to +150 °C. Designed around dual-stage mechanical compression refrigeration and high-density resistive heating elements, the system delivers precise, repeatable thermal profiles with programmable ramp rates from 1 to 25 °C/min—enabling both linear and non-linear temperature trajectories. Its robust chamber architecture features insulated double-wall construction with stainless steel interior surfaces and forced-air convection for uniform thermal distribution. The TC-150 is intended for laboratory-based reliability validation, accelerated life testing, and qualification protocols in electronics, automotive components, aerospace materials, and advanced battery systems where thermal stress response must be quantified under tightly controlled, dynamically varying conditions.

Key Features

• High-speed thermal transition capability: Independent control of heating and cooling circuits enables bidirectional ramp rates up to 25 °C/min—optimized for HALT (Highly Accelerated Life Testing), thermal shock screening, and JEDEC JESD22-A104 compliant cycling.
• Precision temperature control: Equipped with PID-based digital controllers and platinum RTD sensors (Class A tolerance), maintaining temperature fluctuation within ±0.5 °C and spatial uniformity ≤2.0 °C across the full 1 m³ workspace.
• Stainless steel chamber construction: Seamless 304 stainless steel interior with rounded corners facilitates cleaning, prevents condensate pooling, and ensures long-term corrosion resistance under repeated thermal cycling.
• Programmable profile flexibility: Supports multi-segment thermal programs—including dwell, ramp, and soak phases—with user-defined rate constraints, hold times, and cycle repetition counts.
• Comprehensive safety architecture: Includes over-temperature cutoff, compressor high-pressure protection, door interlock, and real-time fault logging with audible/visual alerts.
• Modular service design: Front-accessible refrigeration components and plug-in sensor modules reduce mean time to repair (MTTR) and support on-site calibration traceable to national metrology institutes.

Sample Compatibility & Compliance

The TC-150 accommodates test specimens up to 1 m³ in volume, including PCB assemblies, EV battery modules, avionics enclosures, and polymer composite panels. Its internal geometry supports standard test fixtures, thermocouple feedthroughs, and optional humidity-resistant viewports. The chamber complies with ISO 16750-4 (road vehicles – environmental conditions), IEC 60068-2-14 (temperature cycling), MIL-STD-810H Method 503.5 (temperature shock), and ASTM D3418 (thermal transitions of polymers). All control firmware and data logs adhere to GLP and GMP principles; audit trail functionality and electronic signature support are available via optional software packages aligned with FDA 21 CFR Part 11 requirements.

Software & Data Management

The TC-150 integrates with LabCompanion’s WinTest Pro v4.2 control suite, offering Windows-based configuration, real-time monitoring, and automated report generation (PDF/CSV). Software supports multi-chamber synchronization, remote operation via Ethernet/IP, and secure data export with timestamped metadata—including setpoint history, actual chamber readings, alarm events, and system status flags. Calibration records, maintenance logs, and user access permissions are stored locally with SHA-256 hashing for integrity verification. Optional cloud gateway integration enables centralized fleet monitoring and predictive maintenance analytics using anonymized operational telemetry.

Applications

• Electronics reliability testing: Thermal cycling of solder joints, BGA packages, and flex-rigid PCBs per IPC-9701 and JEDEC standards.
• Battery cell and module qualification: Simulating extreme ambient conditions during charge/discharge cycles to assess electrolyte stability and SEI layer evolution.
• Aerospace component validation: Exposure of actuators, sensors, and composite housings to rapid thermal transients representative of stratospheric flight profiles.
• Automotive ECU endurance testing: Replicating under-hood thermal environments across seasonal extremes to evaluate long-term parameter drift.
• Materials science research: Investigating phase transitions, dimensional stability, and creep behavior in shape-memory alloys, thermoplastics, and ceramic matrix composites.
• Pharmaceutical packaging assessment: Evaluating seal integrity and barrier performance of blister packs and vial stoppers under cyclic thermal stress.

FAQ

What is the maximum achievable ramp rate for a full temperature transition from −70 °C to +150 °C?

The TC-150 achieves ramp rates up to 25 °C/min under no-load conditions; actual rate depends on specimen thermal mass, placement, and airflow obstruction. For full-range transitions, typical average ramp rates fall between 8–15 °C/min.
Does the chamber support external sensor inputs for product-level temperature monitoring?

Yes—four configurable analog input channels accept PT100, thermocouple (J/K/T), or voltage signals (0–10 V), enabling closed-loop product temperature control and synchronized data acquisition.
Is the system compatible with third-party LIMS or MES platforms?

Via OPC UA and Modbus TCP protocols, the TC-150 exposes all real-time process variables and event logs for seamless integration into enterprise lab informatics ecosystems.
Can the TC-150 be configured for nitrogen purge or inert atmosphere operation?

Optional gas purge kits (N₂ or dry air) are available with mass flow controllers and O₂ monitoring—certified for use up to 1 bar gauge pressure.
What documentation is provided for IQ/OQ/PQ validation support?

Factory-supplied validation templates, as-found/as-left calibration reports, sensor traceability certificates (NIM or NIST-traceable), and FAT/SAT checklists are included with each unit.
