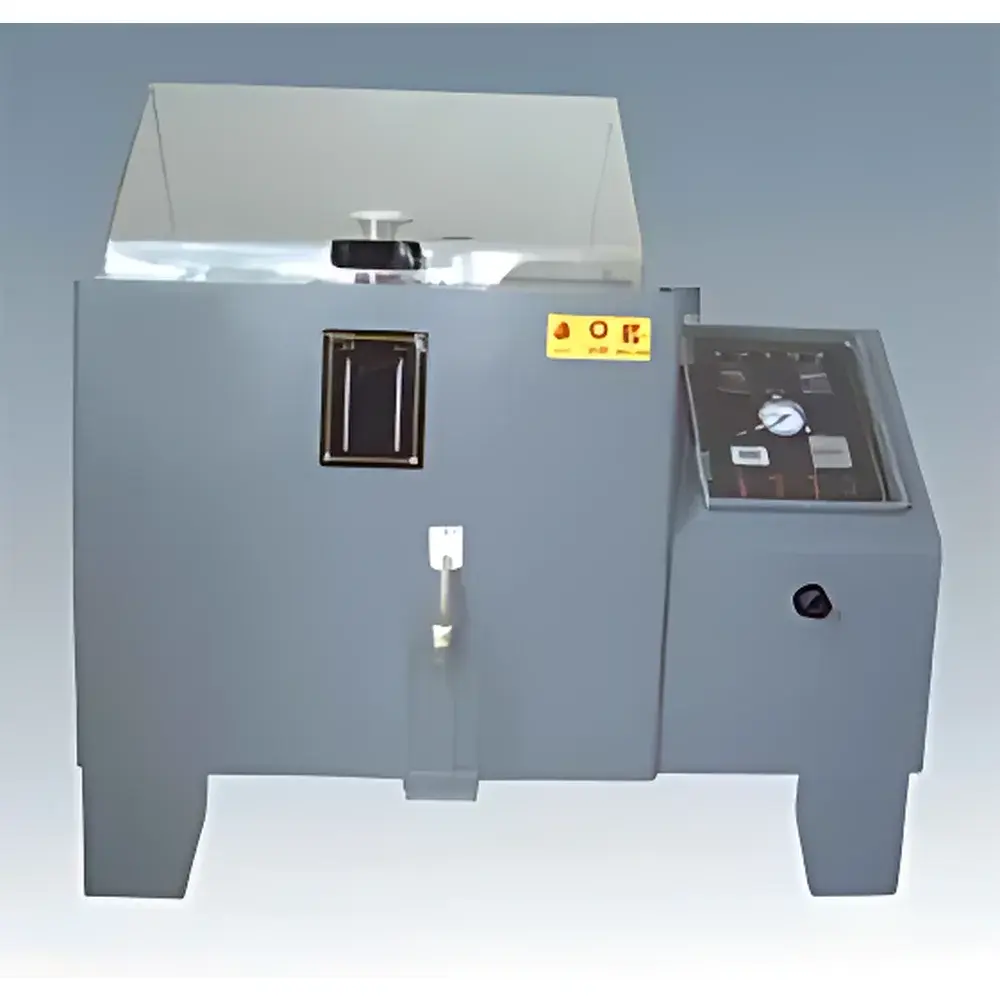

LabCompanion YWX Series Salt Spray Test Chamber

Overview

The LabCompanion YWX Series Salt Spray Test Chamber is an engineered environmental test system designed for accelerated corrosion evaluation of metallic coatings, electroplated finishes, automotive components, electronic assemblies, architectural materials, and industrial painted surfaces. It operates on the principle of controlled salt fog generation—atomizing a defined NaCl solution under regulated temperature and humidity conditions—to simulate aggressive marine or industrial atmospheric exposure. Unlike ambient corrosion testing—which may require months or years—the YWX chamber enables reproducible, standardized degradation assessment within days or weeks, supporting comparative material qualification, process validation, and quality assurance workflows in R&D, production, and third-party testing laboratories.

Key Features

• Corrosion-resistant chamber construction using imported high-purity PVC rigid board—chemically inert to acidic chloride environments, non-aging, and thermally stable up to 55°C.
• Precision PYREX glass nozzles ensure consistent, fine droplet dispersion (typical median diameter <10 µm) and uniform vertical salt fog deposition across the test specimen zone.
• Steam-direct heating system enables rapid thermal stabilization and superior temperature homogeneity (±2°C) throughout the working volume—minimizing thermal gradients that compromise test repeatability.
• Dual-zone microprocessor PID control: independent regulation of chamber temperature and saturated air tank temperature (via SUS304 stainless steel humidification vessel governed by Henry’s Law principles).
• Automated water level management with optical sensor feedback—triggers refill upon depletion and halts test execution if reservoir falls below operational threshold, preventing dry-heating damage.
• Integrated conical spray tower with adjustable dispersion baffle for directional fog control, enabling precise tuning of deposition rate (1–2 mL/80 cm²·h) per ASTM B117 and ISO 9227 requirements.
• Hermetically sealed transparent acrylic lid with watertight gasketing prevents salt fog leakage while permitting real-time visual monitoring without interrupting test cycles.

Sample Compatibility & Compliance

The YWX series accommodates flat coupons (e.g., ASTM G1, ISO 1462), complex-shaped parts (via custom rack fixtures), printed circuit boards, fasteners, weld joints, and coated substrates up to 2000 mm wide. Its design conforms to internationally recognized accelerated corrosion standards including GB/T 2423.17–2022 (equivalent to IEC 60068-2-11, Test Ka), GB/T 10587–1989 (technical specifications for salt spray chambers), and provides traceable alignment with ASTM B117 (Neutral Salt Spray) and ASTM G85 Annex A2 (Acetic Acid Salt Spray, AASS). While not certified to ISO/IEC 17025, the system supports GLP-compliant operation when integrated with validated SOPs, calibration logs, and audit-ready data records.

Software & Data Management

The embedded digital controller delivers real-time display of chamber temperature, saturated air temperature, elapsed time, and cycle status. All setpoints and runtime parameters are stored in non-volatile memory. For extended traceability, optional RS485/Modbus RTU interface enables integration with laboratory information management systems (LIMS) or SCADA platforms. When deployed in regulated environments (e.g., automotive Tier-1 suppliers or medical device manufacturers), users may configure manual logbooks aligned with FDA 21 CFR Part 11 principles—including operator ID entry, timestamped parameter changes, and immutable test summary reports.

Applications

• Qualification of zinc, nickel, chromium, and aluminum alloy coatings per ISO 4520 and ASTM B633.
• Validation of paint adhesion and blister resistance in OEM automotive body panels and under-hood components.
• Reliability screening of conformal-coated PCBAs used in telecommunications infrastructure and industrial controls.
• Comparative lifecycle assessment of galvanized vs. electrophoretic primed steel in building façade systems.
• Process capability studies for electroplating lines—correlating bath chemistry, current density, and post-treatment with corrosion resistance metrics.

FAQ

What standards does the YWX chamber support?
It meets GB/T 2423.17–2022, GB/T 10587–1989, and is operationally compatible with ASTM B117 and ISO 9227 protocols.
Can the chamber perform cyclic salt spray tests?
Yes—timer programming supports alternating phases of salt fog, drying, and humidification when paired with external climate modules (optional configuration).
Is calibration documentation included?
Factory calibration certificates for temperature sensors and spray deposition verification are provided; user-performed periodic verification follows ASTM D2247 guidelines.
What maintenance is required for long-term reliability?
Monthly cleaning of PYREX nozzles and saturated air tank, quarterly inspection of PVC seals and heater elements, and annual verification of PID control loop stability.
Does the system comply with electrical safety directives for export?
Units shipped to EU markets include CE-marked power distribution modules compliant with EN 61000-6-2/6-4; UL/cUL listing requires model-specific certification and is available upon request.
