Labman HTF-1000 Laboratory High-Throughput Vial Filling and Capping System

Overview

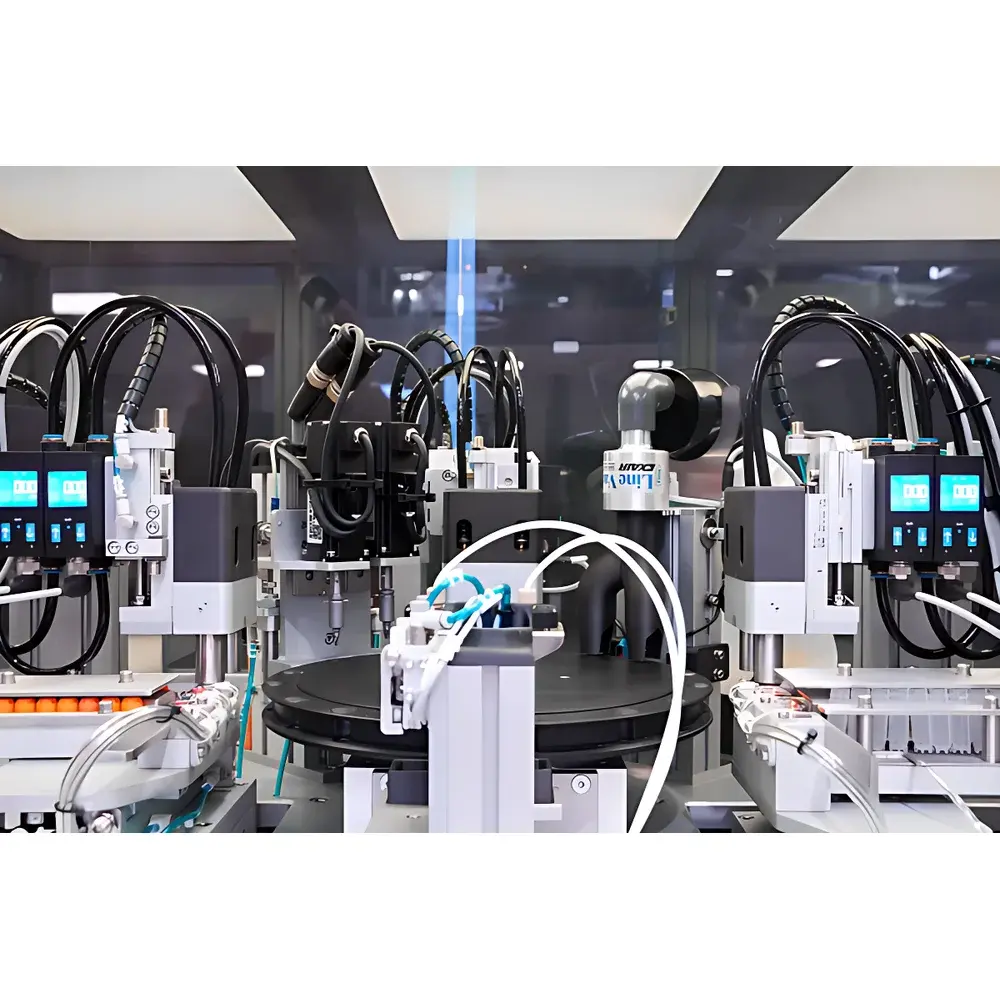

The Labman HTF-1000 is a floor-standing, fully automated laboratory-scale vial filling and capping system engineered for high-reproducibility liquid dispensing, cap application, and output handling in regulated R&D and preclinical manufacturing environments. Built upon a rotary indexing platform, the system operates on a continuous-motion principle—six functional modules (vial input, liquid dispensing, cap input, capping, vial output, and waste rejection) execute in parallel within a single 360° rotation cycle. This architecture eliminates sequential bottlenecks typical of linear robotic systems, enabling a sustained throughput of one filled and sealed vial every ~3 seconds under standard operating conditions. The core dispensing mechanism employs precision syringe pumps calibrated to ISO 8655-5 standards, ensuring gravimetric accuracy and volumetric repeatability across diverse liquid classes—including aqueous buffers, viscous formulations, suspensions, and low-surface-tension solvents. Designed for integration into GLP-compliant laboratories and early-phase GMP-aligned workflows, the HTF-1000 supports traceable process execution without requiring cleanroom-grade infrastructure.

Key Features

• Rotary-indexed architecture enabling true parallel processing across six synchronized stations
• Syringe-pump-based liquid delivery with programmable volume ranges from 10 µL to 50 mL per dispense, supporting multi-step or multi-reagent protocols

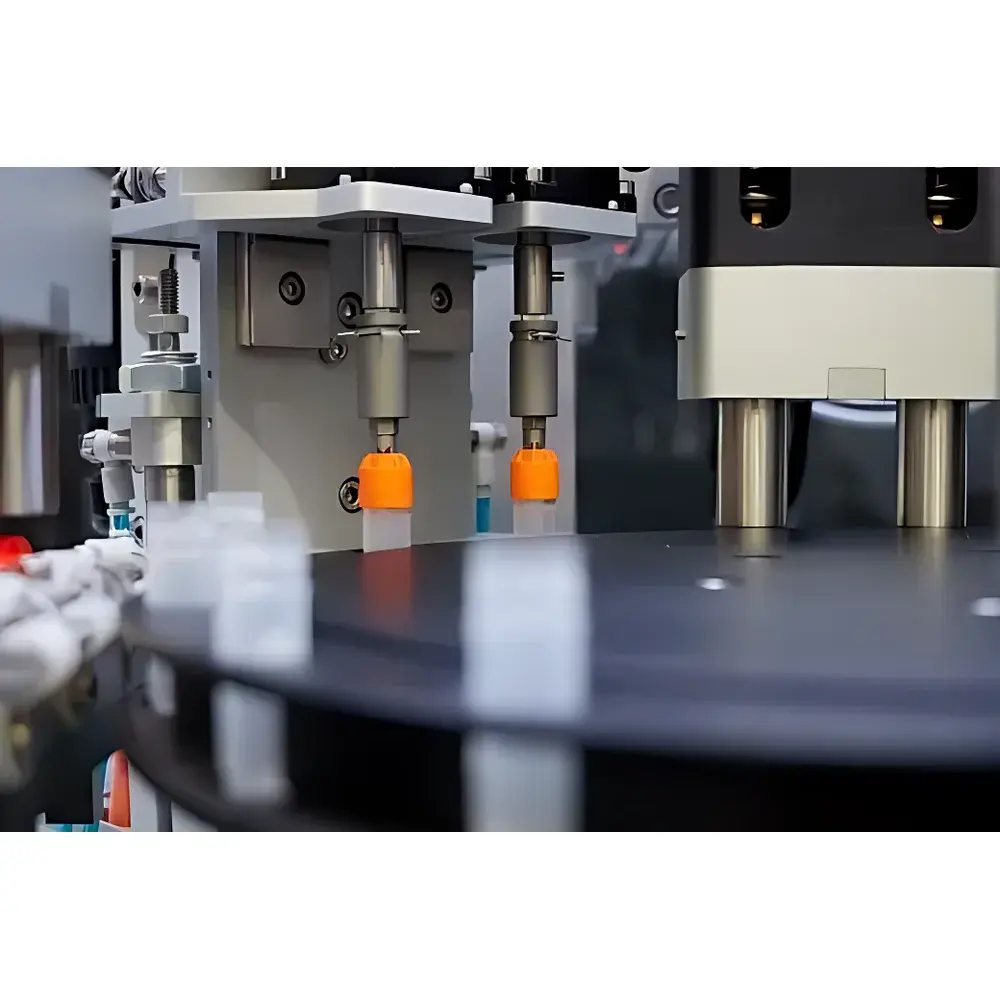

• Force-controlled capping module with real-time torque feedback and adjustable clamping pressure (0.5–15 N·cm), compatible with crimp, screw, and push-fit closures
• Integrated vision-assisted error detection: optical verification of vial presence, cap alignment, fill level consistency, and seal integrity at each station

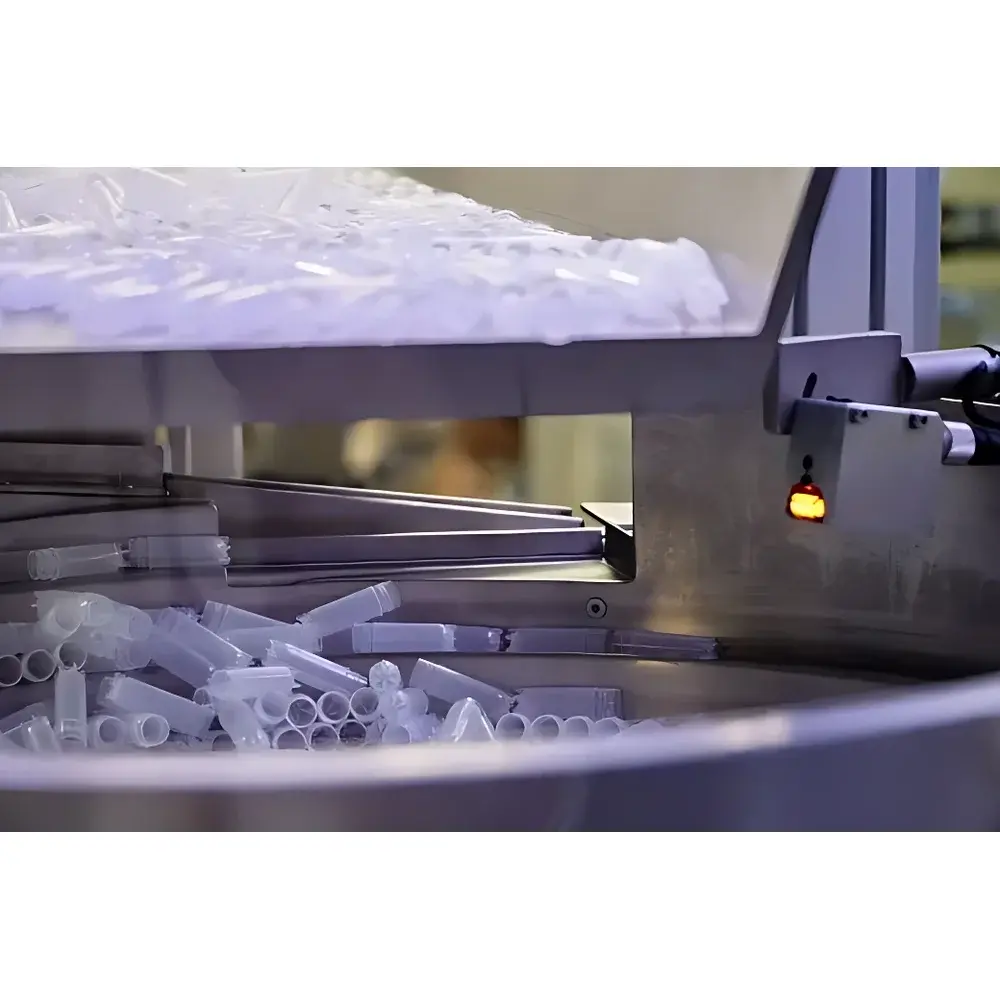

• Modular tray-based loading: accommodates up to 10,000 vials per run via stackable 96-well or 384-well compatible carriers (standard sizes: 12 × 75 mm, 16 × 100 mm, 20 × 120 mm)
• Self-diagnostics and fault logging with timestamped event records compliant with FDA 21 CFR Part 11 audit trail requirements

Sample Compatibility & Compliance

The HTF-1000 handles glass and polymer vials (borosilicate, polypropylene, PETG) with nominal volumes from 0.5 mL to 20 mL. It accepts standard closure types including aluminum crimp seals (with rubber stoppers), polypropylene screw caps (8–13 mm thread), and elastomeric push-on caps. All wetted components are constructed from USP Class VI-certified materials (e.g., PTFE, stainless steel 316L, borosilicate glass). The system meets CE Machinery Directive 2006/42/EC and complies with ISO 13849-1 for safety-related control functions. Optional IQ/OQ documentation packages support validation against ASTM E2500-13 and EU Annex 15 guidelines. Regulatory-ready configuration includes electronic signature capability, user role-based access control, and immutable process logs.

Software & Data Management

Controlled via Labman’s proprietary AutoScript™ software (Windows 10/11, 64-bit), the HTF-1000 provides a graphical workflow builder for defining dispensing sequences, capping parameters, and error-handling logic. All methods are saved as encrypted XML files with version control and digital signature authentication. Raw operational data—including pump actuation counts, motor current profiles, torque curves, and camera frame timestamps—are exported in CSV or HDF5 format for downstream analysis in MATLAB, Python (Pandas), or LIMS platforms. Audit trails record operator login/logout events, method modifications, calibration entries, and alarm acknowledgments—retained for ≥15 years per configurable retention policy. Remote monitoring via secure TLS 1.3 API enables integration with enterprise MES and ELN systems.

Applications

• High-throughput assay plate preparation for drug discovery screening (e.g., compound dilution series, enzyme kinetics buffers)
• Biobanking: standardized aliquoting of plasma, serum, or cell lysates into cryovials under controlled temperature conditions (when integrated with optional chill module)
• Vaccine formulation development: precise buffer exchange and adjuvant addition into vials prior to lyophilization trials
• Reference material production: certified reference standards for environmental testing (e.g., pesticide-spiked water samples)
• Food safety labs: rapid generation of QC sample sets for mycotoxin or heavy metal analysis
• Materials science: dispensing polymer precursors or nanofluid suspensions into reaction vials for combinatorial synthesis

FAQ

What is the minimum and maximum fill volume supported by the HTF-1000?

The system supports dispensing volumes from 10 µL to 50 mL per vial, depending on syringe size selection and fluid properties.
Can the HTF-1000 be validated for GMP use?

Yes—Labman provides full IQ/OQ documentation, calibration certificates traceable to UKAS-accredited standards, and 21 CFR Part 11 compliance packages upon request.
Does the system support integration with third-party LIMS or ELN platforms?

Yes—via RESTful API with JSON payloads; native drivers available for LabVantage, STARLIMS, and Benchling.
What maintenance intervals are recommended?

Syringe pump calibration every 6 months; vision system lens cleaning weekly; full mechanical inspection annually by certified Labman Field Service Engineers.
Is remote troubleshooting supported?

Yes—secure remote desktop access (AES-256 encrypted) is enabled with customer consent and governed by ISO/IEC 27001-aligned remote support policies.
