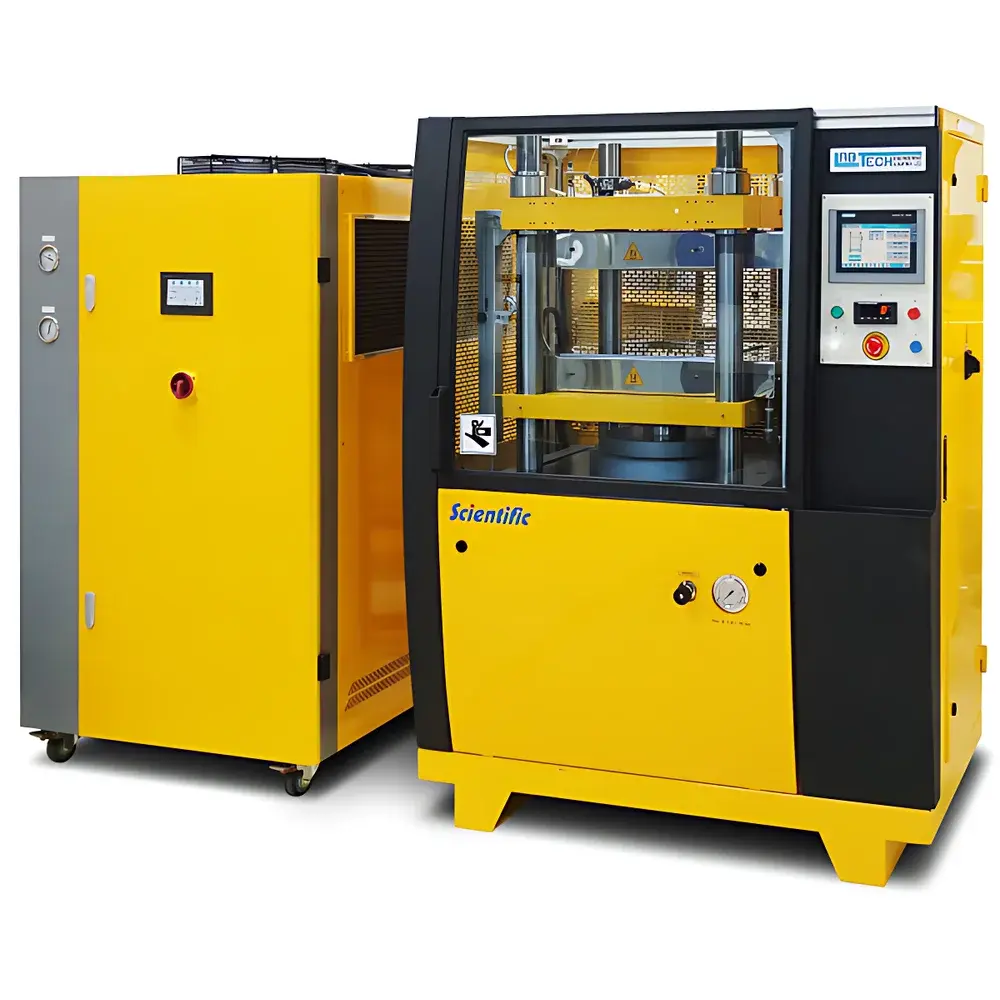

Labtech LP-S-50 ASTM Programmable Cooling Hydraulic Pellet Press

Overview

The Labtech LP-S-50 ASTM Programmable Cooling Hydraulic Pellet Press is an industrial-grade, fully automated hydraulic press engineered for standardized sample preparation in polymer, additive, and composite material characterization. Designed in strict compliance with ASTM D3124, D4703, and ISO 1872-2 protocols, the system integrates precision temperature-controlled heating and programmable active cooling into a single-cycle compression workflow. Its core operation relies on a dual-zone, symmetrically heated platen architecture coupled with a closed-loop hydraulic actuation system, enabling reproducible consolidation of thermoplastic and thermoset specimens under precisely defined pressure–temperature–time profiles. The press supports both hot-compression molding and controlled-cooling solidification—critical for generating ASTM-standard test plaques, IR-transparent KBr pellets, and homogenized polymer blends for rheological, mechanical, or spectroscopic analysis.

Key Features

• Hydraulic force delivery with real-time pressure feedback control, maintaining ±0.5% repeatability across full 50 MT (490 kN) capacity.
• Uniform platen temperature distribution (±1.5 °C across 300 × 300 mm surface) enabled by dual 5 kW independent heating circuits and embedded Pt100 sensors at four corners.
• Programmable cooling module featuring forced-air heat exchangers and PID-regulated airflow, delivering linear cooling rates from 0.1 to 20.0 °C/min within the 0–200 °C operational window.
• Integrated safety interlocks including overpressure cutoff, thermal runaway protection, emergency stop circuitry compliant with IEC 60204-1, and light-curtain guarded access zone.
• Modular platen configuration supporting interchangeable tooling—standard flat platens, engraved ASTM D638 dog-bone inserts, and custom cavity dies for tablet or disc formation.
• Stainless steel-reinforced structural frame and hardened steel platens ensure long-term dimensional stability and resistance to thermal cycling fatigue.

Sample Compatibility & Compliance

The LP-S-50 accommodates a broad spectrum of polymeric and inorganic feedstocks—including polyolefins (PP, PE), engineering thermoplastics (PC, PBT, PA6), elastomers, masterbatches, carbon black composites, and pharmaceutical excipients. It is routinely employed in QC laboratories to prepare specimens for tensile testing (ASTM D638), impact evaluation (ISO 179), melt flow index calibration (ASTM D1238), and FTIR transmission analysis (ASTM E1252). All thermal and pressure control algorithms are traceable to NIST-calibrated reference standards. The system meets CE machinery directive 2006/42/EC and carries conformity documentation for use in GLP-regulated environments; optional audit trail logging satisfies FDA 21 CFR Part 11 requirements when paired with Labtech’s certified software package.

Software & Data Management

Control is executed via Labtech’s Windows-based LPress Control Suite v4.2, offering intuitive graphical programming of multi-step cycles (heat → compress → hold → cool → eject). Each cycle stores full parameter metadata—including timestamped pressure/temperature curves, hydraulic oil temperature, and cooling rate deviation logs—in .csv and .tdms formats. Data export supports direct integration with LIMS platforms via OPC UA protocol. Optional features include electronic signature capability, user role-based access control (admin/operator/technician), and encrypted local database archiving with automatic backup to network drives. All firmware updates undergo ISO 13485-aligned validation and are delivered with release notes referencing relevant change control records.

Applications

• Production of ASTM D4703-compliant compression-molded plaques for mechanical property benchmarking in R&D and quality assurance labs.
• Preparation of homogeneous, void-free pellets for XRF and XRD quantitative analysis of catalysts, pigments, and fillers.
• Thermal history simulation for studying crystallization kinetics in semi-crystalline polymers under controlled cooling gradients.
• Standardized KBr pellet fabrication for mid-IR spectroscopy—enabling batch-to-batch consistency in pharmaceutical raw material identification.
• Hot-press consolidation of nanocomposite powders prior to DMA or DSC thermal profiling.
• Calibration substrate manufacturing for FTIR spectrometer performance verification per ASTM E1421.

FAQ

What ASTM standards does the LP-S-50 directly support?

The system is configured and validated for ASTM D3124 (KBr pellet preparation), D4703 (compression molding of thermoplastics), and D638 (tensile specimen conditioning), with preloaded method templates and documented uncertainty budgets.
Can the cooling rate be maintained linearly across the entire 0–200 °C range?

Yes—the active cooling subsystem maintains linearity within ±0.3 °C/min deviation over any selected ramp segment between 0 °C and 200 °C, verified per ISO/IEC 17025-accredited calibration procedure.
Is remote monitoring and control supported?

Ethernet-enabled operation allows secure remote access via TLS-encrypted VNC or Labtech’s web-based dashboard; all remote sessions are logged with IP address, timestamp, and user ID for audit purposes.
What maintenance intervals are recommended for hydraulic system integrity?

Hydraulic oil analysis and filter replacement are scheduled every 1,500 operating hours or annually—whichever occurs first—per OEM service manual revision 3.2, aligned with ISO 4406 cleanliness codes.
Does the system comply with GMP documentation requirements?

With optional 21 CFR Part 11 software add-on, the LP-S-50 provides full electronic record retention, audit trails, and signature authentication required for GMP-regulated pharmaceutical and medical device manufacturing environments.
