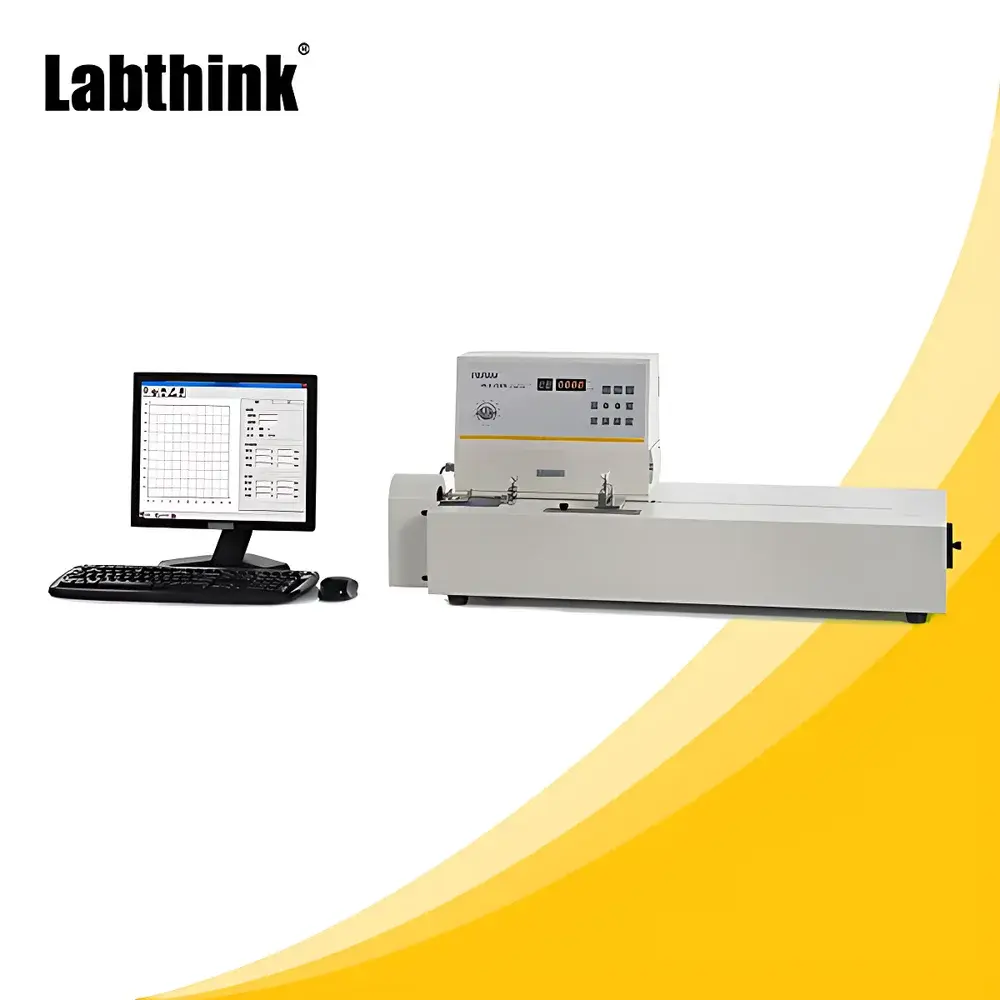

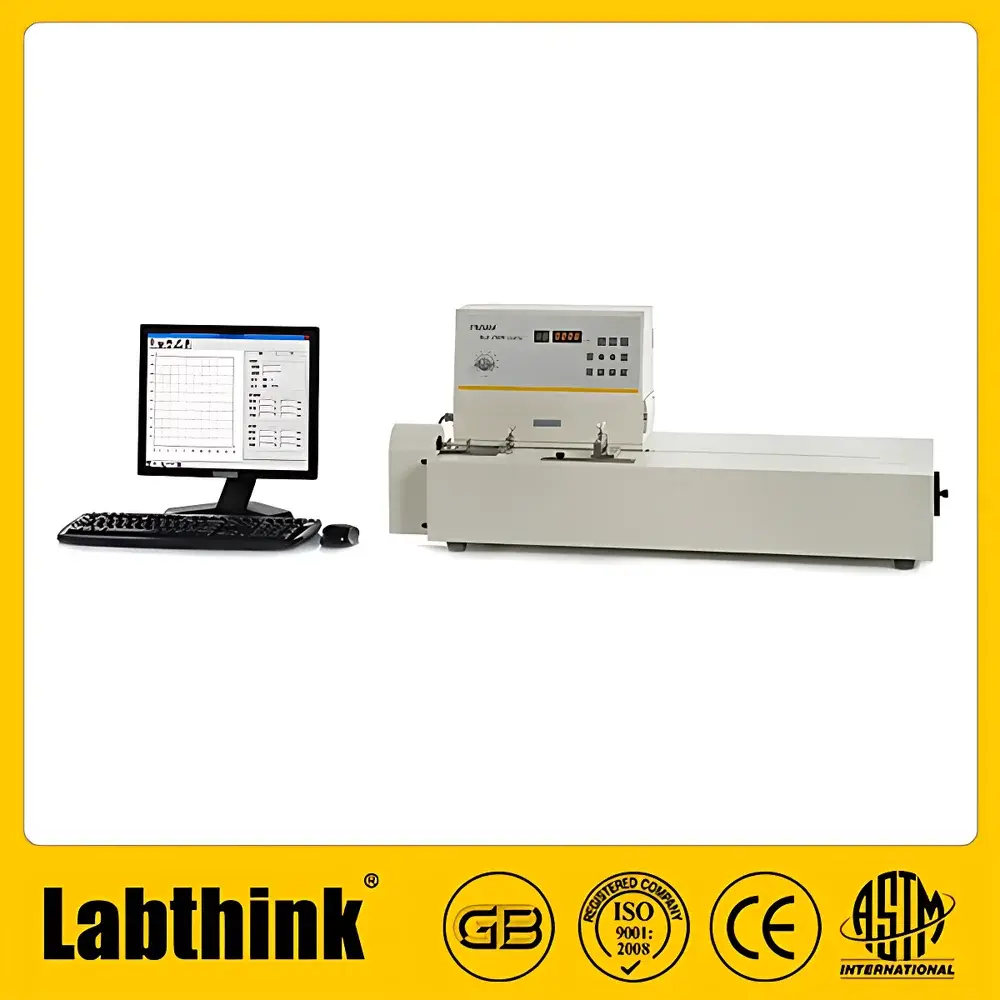

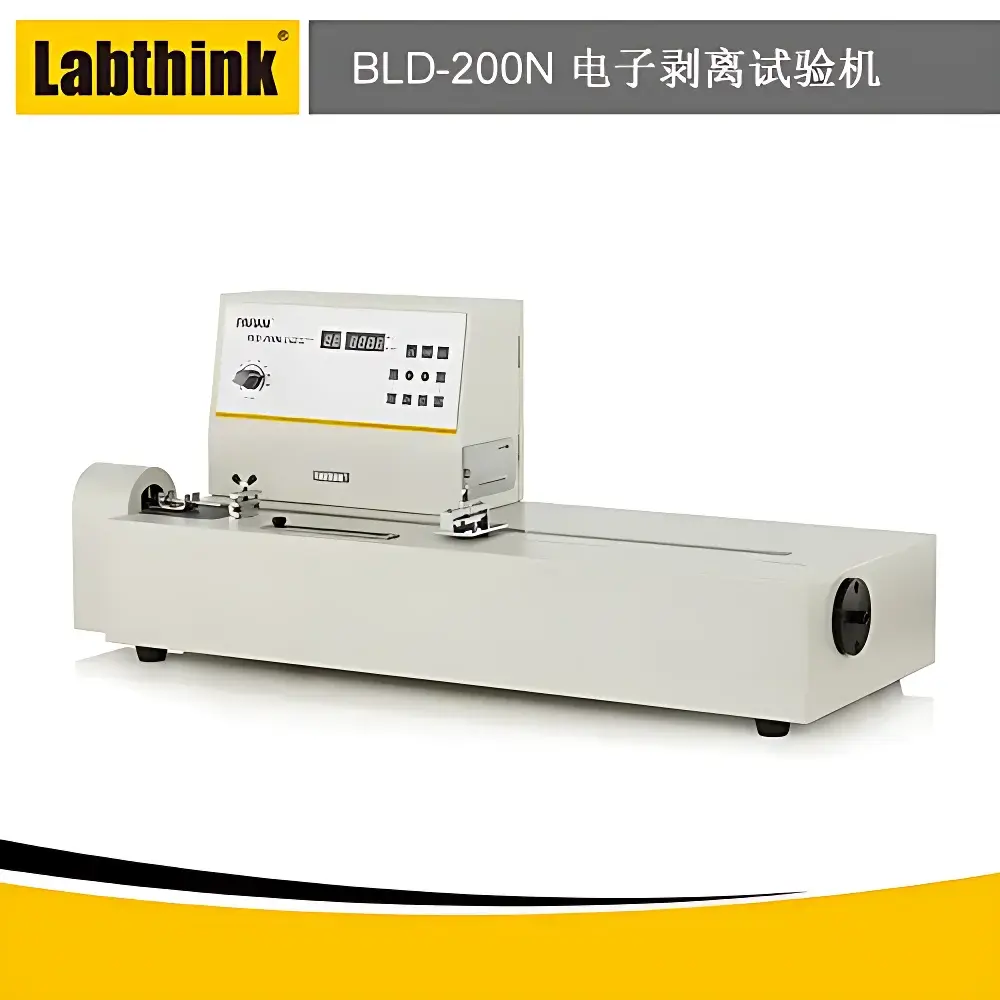

Labthink BLD-200N Electronic Peel and Tensile Tester for Medical Device Packaging

Overview

The Labthink BLD-200N Electronic Peel and Tensile Tester is a precision-engineered instrument designed specifically for mechanical performance evaluation of flexible packaging materials used in regulated medical device applications. It operates on the fundamental principle of controlled uniaxial force application—measuring peel resistance (e.g., 90° and 180° configurations), tensile strength, elongation at break, and related mechanical properties under standardized displacement-controlled conditions. The system complies with core international test methodologies for adhesive integrity and structural stability of multilayer composite pouches, including those sealed via heat, cold, or ultrasonic methods. Its architecture supports deterministic load-cell-based measurement with real-time digital acquisition, enabling traceable, repeatable quantification of interfacial adhesion strength—a critical parameter for sterile barrier system validation per ISO 11607-2 and FDA guidance on packaging integrity.

Key Features

• Microprocessor-controlled operation with LED numeric display and tactile PVC membrane keypad for intuitive local interaction and immediate result visibility
• Dual-mode capability: configurable for both peel testing (180°, 90°, T-peel) and tensile testing (ASTM D882, ISO 527-3) without hardware reconfiguration
• Seven programmable crosshead speeds (50–500 mm/min), each calibrated to ±0.5% accuracy, supporting dynamic and quasi-static regimes required by GB/T 2792, ASTM D903, and ISO 8510-2
• Class 1 force accuracy per GB/T 16491 and ISO 7500-1, validated across the full 10 N–500 N range using NIST-traceable reference standards
• Integrated safety architecture: electromechanical limit switches, overload cutoff, automatic zero-reset, and self-diagnostic fault reporting
• High-contrast precision scale ruler mounted adjacent to the test zone for manual verification of specimen elongation and delamination length
• Onboard thermal mini-printer and RS232 serial interface for direct data export; compatible with Lystem™ Laboratory Data Management System for centralized audit trail generation

Sample Compatibility & Compliance

The BLD-200N accommodates specimens up to 30 mm wide and 500 mm travel distance, making it suitable for standard strip samples cut from medical pouch laminates (e.g., PET/AL/PE, Tyvek®/PE, PP/PE composites). It meets mechanical testing requirements defined in ISO 11607-2 Annex C, ASTM F88 (seal strength), ASTM F903 (chemical resistance of seals), and GB/T 4850–2002 (peel strength of pressure-sensitive tapes). All test modes support GLP-compliant documentation when paired with Lystem™ software, which provides electronic signatures, user access control, and 21 CFR Part 11–compliant audit logs—including timestamped operator ID, method version, raw force-displacement curves, and statistical summaries (mean, min, max, SD, n≥5).

Software & Data Management

While the instrument operates autonomously via embedded firmware, optional Lystem™ software extends functionality into regulated laboratory environments. It enables method template creation, automated pass/fail evaluation against user-defined specification limits, batch-level statistical process control (SPC) charts, and PDF report generation with embedded metadata (test date, operator, equipment ID, calibration due date). Raw data files (.csv, .txt) retain full-resolution force vs. displacement time-series, permitting post-hoc analysis of peak load onset, plateau duration, and failure mode classification (cohesive vs. adhesive). Data integrity safeguards include write-protection, immutable archival, and role-based permissions aligned with ISO/IEC 17025 Clause 7.5.

Applications

• Peel strength assessment of sterile barrier seals (180° per ISO 8510-1, 90° per ASTM F88)
• Tensile properties of backing films and release liners (modulus, yield point, ultimate strength)
• Adhesive bond strength of medical device labels and transdermal patch carriers
• Delamination resistance of co-extruded multilayer structures under accelerated aging conditions
• Low-speed unwind force of silicone-coated release paper (per ASTM D3330)
• Cap removal torque simulation via linear-to-rotary conversion fixtures (customizable)
• Shear adhesion performance (modified loop tack configuration)

FAQ

What standards does the BLD-200N directly support out-of-the-box?
It executes GB/T 2792, GB/T 4850–2002, GB/T 2790, ASTM F88, ASTM D903, ISO 8510-2, and ISO 11607-2 Annex C test protocols with preloaded speed and fixture configurations.
Can the system be integrated into an existing LIMS environment?
Yes—via RS232 or optional Ethernet module, raw data and summary reports can be exported in structured CSV/JSON format for ingestion into third-party LIMS or ELN platforms.
Is calibration certification included with shipment?
Each unit ships with a factory calibration certificate traceable to CNAS-accredited standards; annual recalibration services are available with documented uncertainty budgets.
Are custom夹具 (fixtures) available for non-standard specimen geometries?
Labthink offers engineering consultation and CNC-machined fixture design for specialized applications, including T-peel jigs, floating roller assemblies, and micro-specimen holders.
Does the instrument meet electromagnetic compatibility (EMC) requirements for laboratory use?
Yes—it complies with IEC 61326-1:2013 for industrial, scientific, and medical (ISM) equipment, including radiated/conducted emissions and electrostatic discharge immunity testing.
