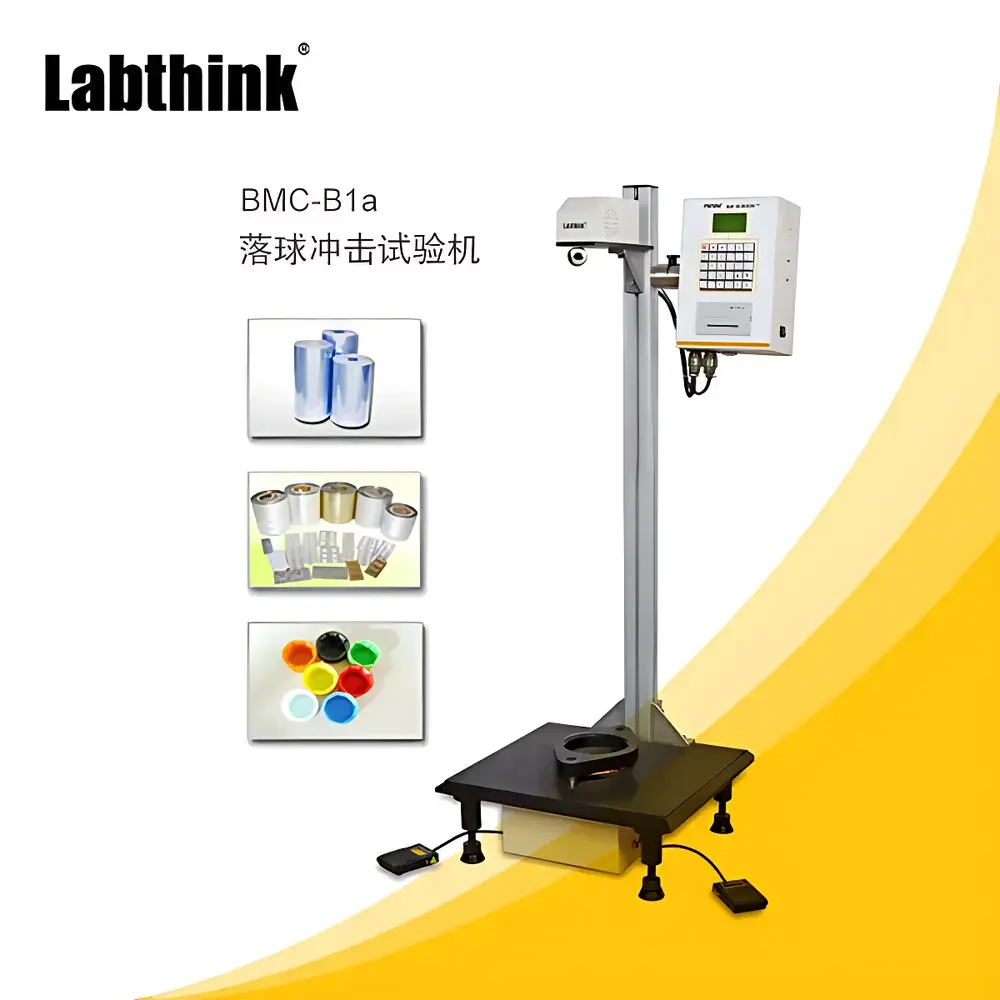

Labthink BMC-B1 PVC Hard Sheet Ball Impact Tester

Overview

The Labthink BMC-B1 PVC Hard Sheet Ball Impact Tester is a precision-engineered mechanical impact testing instrument designed specifically for evaluating the dynamic impact resistance of rigid polyvinyl chloride (PVC) sheets used in food packaging applications. It operates on the principle of gravitational energy transfer: a standardized steel ball is released from a precisely controlled height onto a horizontally clamped specimen, simulating real-world drop or handling impacts during packaging transport and storage. The test outcome—quantified as breakage rate—is determined by counting specimens that separate into two or more discrete fragments after impact, in strict accordance with the failure definition specified in GB/T 15267–1994, *Plastic Films and Sheets for Food Packaging — Polyvinyl Chloride (PVC) Hard Sheets*. This deterministic, pass/fail–oriented methodology ensures high reproducibility across laboratories and supports routine quality assurance protocols in packaging manufacturing and incoming material inspection.

Key Features

• Fixed-height release mechanism with calibrated drop tower (height adjustable per standard requirements)
• Standardized steel ball weights (e.g., 20 g, 50 g, or other masses defined in GB/T 15267–1994) supplied with traceable certification
• Robust clamping fixture ensuring consistent specimen tension and edge alignment across repeated tests
• Mechanical stop-and-hold design to prevent secondary impact or rebound interference
• Non-electronic, gravity-driven operation ensuring intrinsic measurement stability and minimal calibration drift
• Compliance-ready configuration validated against GB/T 15267–1994 Annex B (Impact Resistance Test Method for Rigid PVC Sheets)
• Modular base frame compatible with standard lab benches; footprint optimized for ISO/IEC 17025-compliant laboratory layouts

Sample Compatibility & Compliance

The BMC-B1 accommodates rigid PVC sheets with thicknesses ranging from 0.2 mm to 2.0 mm and planar dimensions up to 100 mm × 100 mm. Specimen conditioning follows ISO 291 (standard atmosphere: 23 °C ± 2 °C, 50 % RH ± 5 % RH) prior to testing unless otherwise specified by internal QA procedures. The instrument satisfies all mechanical and procedural requirements outlined in GB/T 15267–1994, including specimen mounting geometry, impact point location tolerance (±1 mm), and criteria for classifying “breakage” (i.e., clean separation into ≥2 physically detached pieces). While primarily aligned with Chinese national standards, its operational parameters are technically comparable to ASTM D1709 (Film Impact Resistance—Free-Falling Dart Method) for qualitative benchmarking, though direct cross-standard equivalence is not claimed. No electrical safety certification (e.g., CE, UL) is applicable, as the device contains no powered components.

Software & Data Management

The BMC-B1 is a manually operated, non-digital instrument and does not incorporate embedded software, data logging, or connectivity interfaces. All test records—including ball mass, drop height, specimen identification, number of impacts, and observed breakage count—are documented manually in laboratory notebooks or LIMS-integrated paper-based forms. To support GLP and GMP audit readiness, users are advised to implement standardized test record templates that include operator ID, date/time, environmental conditions (temperature/humidity logs), and signature verification. For enterprises operating under FDA 21 CFR Part 11 requirements, electronic data capture must be implemented externally via validated spreadsheet or LIMS platforms—not through the instrument itself.

Applications

This tester serves critical roles in quality control laboratories of food packaging converters, PVC sheet extruders, and contract manufacturers supplying rigid thermoformed trays, clamshells, blister bases, and pharmaceutical packaging substrates. Typical use cases include batch release testing of PVC hard sheets destined for bakery containers (e.g.,月饼盒), disposable food service ware (e.g., plastic meal trays), and pharmaceutical blister lidding materials. It also supports root-cause analysis during process validation—such as correlating extrusion line temperature profiles or plasticizer content adjustments with impact performance trends. In R&D settings, it enables comparative screening of alternative formulations (e.g., calcium-zinc vs. lead-based stabilizers) where mechanical toughness under sudden load remains a key functional requirement.

FAQ

What constitutes “breakage” per GB/T 15267–1994?
Breakage is defined strictly as complete physical separation of the specimen into two or more independent fragments. Cracks, crazing, or partial delamination without full disconnection do not qualify as breakage.
Is calibration required for the BMC-B1?
Yes—annual verification of drop height accuracy (±0.5 mm tolerance) and steel ball mass (±0.1 g) using NIST-traceable tools is recommended per ISO/IEC 17025 Clause 6.5.
Can this instrument test non-PVC materials?
While mechanically capable of impacting other rigid thermoplastics (e.g., PS, PETG), official compliance claims apply only to PVC sheets tested under GB/T 15267–1994; alternative materials require method validation.
Does Labthink provide installation or training support?
Labthink offers optional on-site commissioning and operator training sessions conducted by certified application engineers, delivered separately from instrument shipment.
Are spare steel balls and clamping fixtures available?
Yes—Labthink supplies certified replacement balls (20 g, 50 g), spare clamps, and alignment gauges under part numbers BMC-B1-SP-BALL-20G, BMC-B1-SP-CLAMP, and BMC-B1-GAUGE-ALIGN, respectively.
