Labthink BMC-B1A PVC Pharmaceutical Hard Sheet Ball Impact Tester

Overview

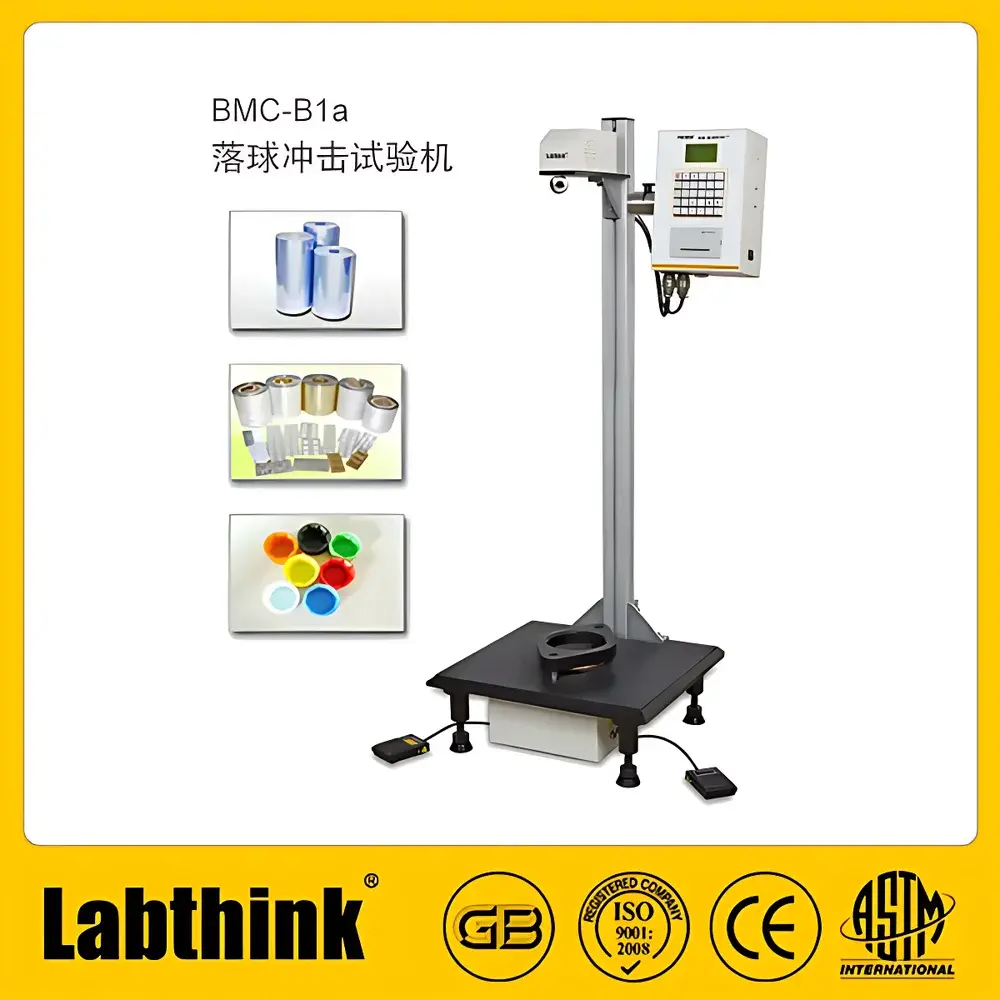

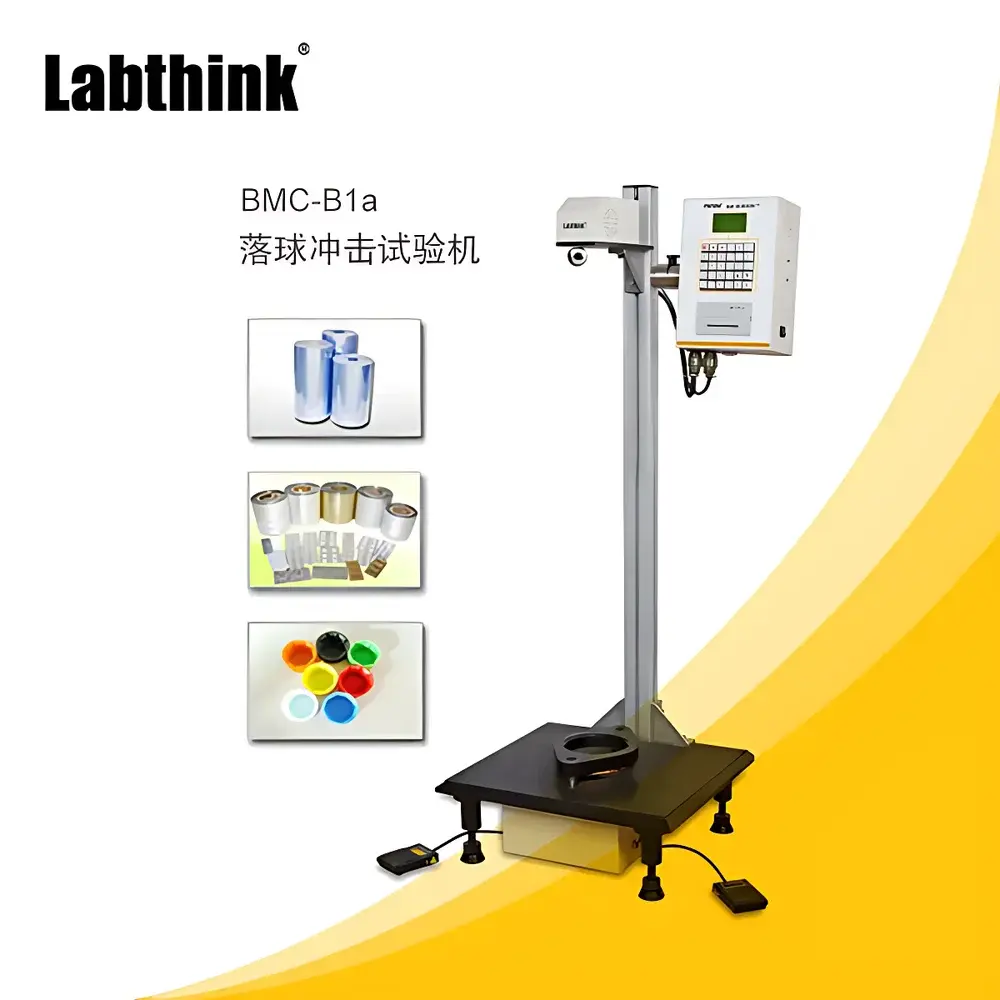

The Labthink BMC-B1A PVC Pharmaceutical Hard Sheet Ball Impact Tester is a precision-engineered instrument designed specifically for evaluating the impact resistance of rigid polyvinyl chloride (PVC) pharmaceutical packaging sheets in accordance with the Chinese Pharmacopoeia standard YBB00212005 “Polyvinyl Chloride Solid Pharmaceutical Hard Sheets.” It operates on the principle of free-fall impact testing, where a calibrated steel sphere is released from a defined height onto a horizontally clamped specimen spanning a fixed support distance of 100 mm. The test quantifies mechanical robustness by determining whether the specimen fractures under standardized impact energy—directly correlating to real-world handling, stacking, and transportation stresses encountered during pharmaceutical packaging lifecycle. Unlike generic dart impact testers, the BMC-B1A integrates purpose-built modifications—including electromagnetic release mechanism, pneumatic specimen clamping, and dual-mode (manual/foot-switch) initiation—to ensure high reproducibility and operator-independent measurement outcomes.

Key Features

• Electromagnetic ball release system ensures precise, repeatable timing and eliminates human-induced release variability.
• Pneumatic specimen clamping provides uniform, consistent pressure across the 150 mm × 50 mm test area, minimizing edge deformation and slippage.
• Dual activation mode: manual button and foot switch—enabling hands-free operation during high-throughput QC workflows.
• Integrated LED observation lamp positioned above the impact zone enhances visual assessment of fracture patterns and failure onset.
• Microprocessor-based control unit stores test parameters (drop height, ball mass, specimen orientation), supports sequential execution, and logs pass/fail status per specimen.
• Compliant mechanical design accommodates both longitudinal and transverse specimen orientation per YBB00212005 requirements—five specimens per direction required.

Sample Compatibility & Compliance

The BMC-B1A is validated for use with rigid PVC sheets conforming to thickness ranges specified in YBB00212005: 0.20–0.30 mm and 0.31–0.40 mm. For each thickness tier, the instrument supports two standardized impact configurations: (1) 23 mm diameter steel ball (~66 g) dropped from 600 mm for thinner sheets; (2) 28.6 mm diameter steel ball (~100 g) dropped from 600 mm for thicker sheets. Specimens must be preconditioned at 23 ± 2 °C and 50 ± 5 % RH for ≥4 hours prior to testing. The device meets essential mechanical and functional criteria aligned with ISO 7765-1 (plastics—film and sheeting—impact resistance—part 1: free-falling dart method), though its primary regulatory alignment remains with YBB00212005 for pharmaceutical packaging qualification in China’s NMPA-regulated environment.

Software & Data Management

The BMC-B1A operates via embedded firmware without external PC dependency. All test configurations—including drop height, ball selection, specimen count, and directional labeling (MD/TD)—are programmable via front-panel keypad. Test results are recorded as binary pass/fail outcomes per specimen, with cumulative statistics (e.g., number of failures per direction) displayed post-sequence. While the base model does not include USB or Ethernet connectivity, audit-ready data export is achievable via optional RS-232 interface (available upon request), enabling integration into LIMS environments compliant with GLP and GMP documentation standards. Full traceability—including operator ID, timestamp, environmental condition entry (manual), and instrument calibration status—is supported through configurable user-defined fields.

Applications

This tester serves critical quality control functions across pharmaceutical packaging manufacturing, R&D, and regulatory submission support. Typical applications include: verification of batch-to-batch consistency in extruded PVC hard sheet production; comparative evaluation of resin formulations (e.g., plasticizer type/concentration effects on impact toughness); stability assessment of aged or sterilized sheets; validation of secondary packaging line compatibility (e.g., carton loading impacts); and supporting technical dossiers for DMF submissions under ICH Q5C and Q5E guidelines. Its deterministic pass/fail output directly informs packaging integrity risk assessments required by USP and Annex 1 (EU GMP).

FAQ

What standards does the BMC-B1A comply with?
It is engineered to execute test procedures defined in YBB00212005 and aligns functionally with ISO 7765-1 for free-fall impact methodology.
Is calibration certification included with purchase?
Yes—each unit ships with a factory calibration report traceable to CNAS-accredited standards, covering drop height accuracy (±0.5 mm), ball mass tolerance (±0.5 g), and clamp force repeatability (±2 %).
Can the instrument accommodate non-PVC materials?
While optimized for rigid PVC pharmaceutical sheets, it may be used for other rigid thermoplastics (e.g., PVDC-coated PET, APET) provided thickness and support span remain within mechanical design limits and test rationale is scientifically justified.
Does the system support 21 CFR Part 11 compliance?
The base BMC-B1A lacks electronic signature or audit trail functionality; however, Labthink offers a validated software upgrade package (BMC-B1A-SW-V2) with role-based access control, electronic signatures, and immutable audit logs for regulated environments.
What maintenance is required?
Routine verification includes monthly drop-height gauge check, quarterly electromagnetic release timing validation, and annual pneumatic system leak test—procedures detailed in the included Maintenance & Verification Manual (EN/zh bilingual).
