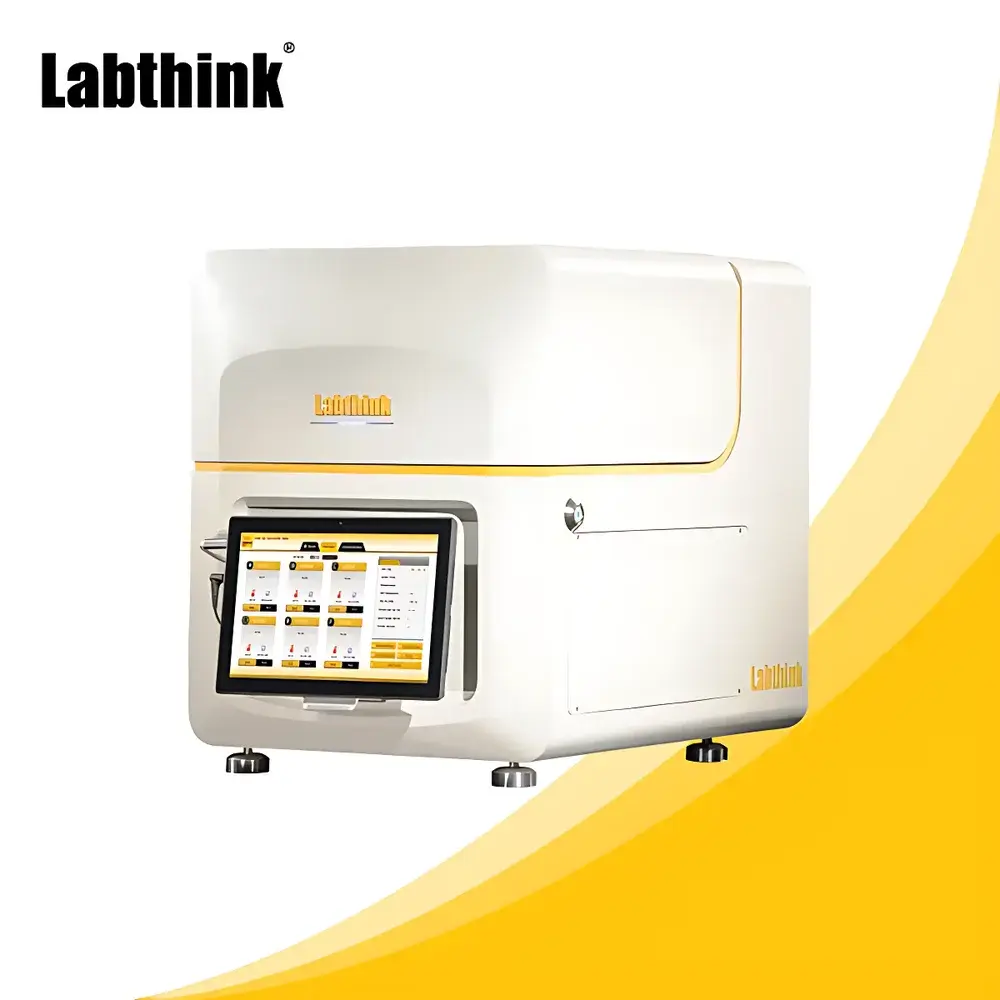

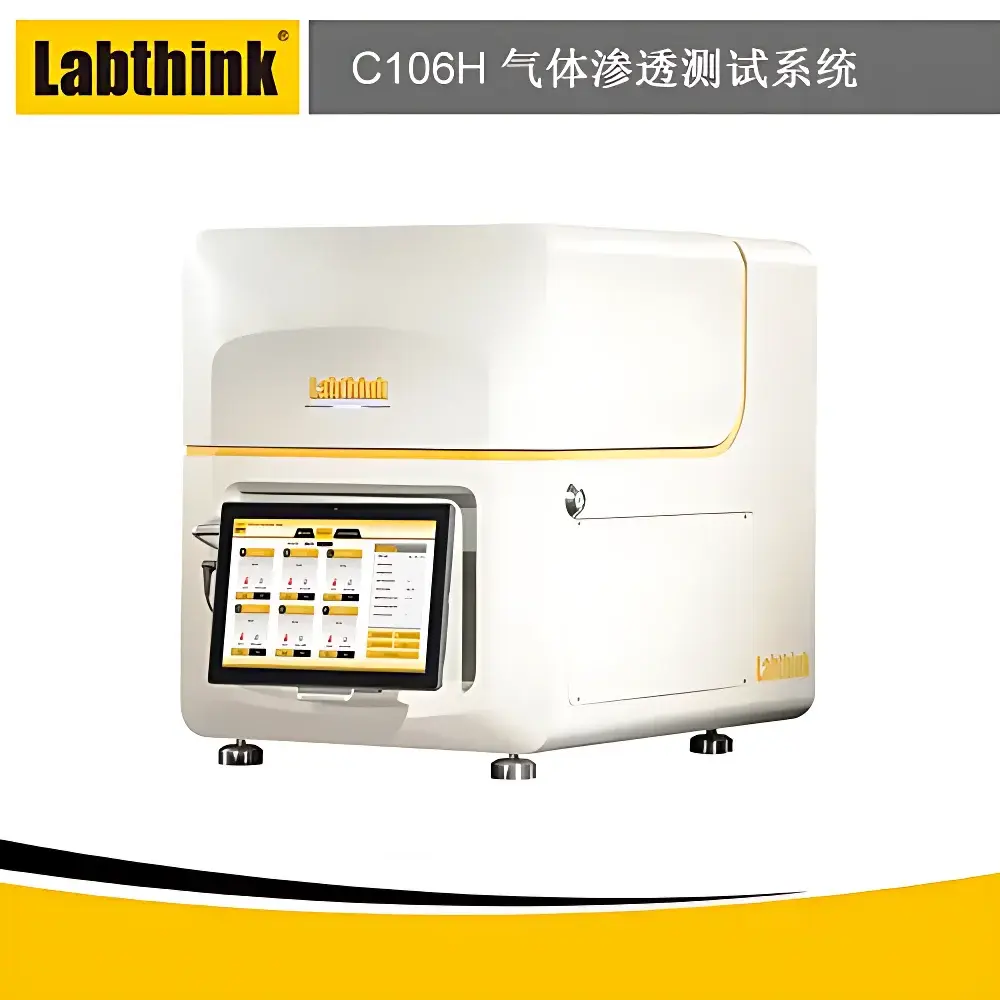

Labthink C106H Gas Permeation Tester for Rubber, Plastic, and Methane Barrier Analysis

Overview

The Labthink C106H Gas Permeation Tester is a high-precision, six-chamber differential pressure (manometric) system engineered for quantitative determination of gas barrier properties in polymeric, elastomeric, metallic, and composite sheet materials. It operates on the fundamental principle of Fick’s first law of diffusion under steady-state conditions: a controlled pressure gradient is established across a conditioned specimen sealed between two isolated chambers; gas molecules permeate from the high-pressure side (upstream) to the low-pressure side (downstream), where real-time pressure rise is measured via ultra-stable vacuum transducers. From this dynamic pressure response—recorded over time—the instrument calculates gas transmission rate (GTR), permeability coefficient (P), diffusion coefficient (D), and solubility coefficient (S) in accordance with ISO 15105-1 and ASTM D1434. Designed specifically for demanding R&D, QC, and regulatory environments, the C106H delivers trace-level resolution for ultra-high-barrier films (e.g., AlOx-coated PET, SiOx-laminates) while maintaining robust repeatability for conventional packaging polymers such as LDPE, PP, and EVOH blends.

Key Features

• Six Independent Test Chambers: Enables parallel evaluation of six specimens under identical environmental conditions—tripling throughput versus conventional single- or dual-chamber instruments without cross-contamination or thermal interference.
• Rainbow Bridge Test Chamber Architecture: Patented 360° circumferential air-circulation heating system ensures uniform temperature distribution across all six chambers, minimizing axial and radial gradients (<±0.15 °C deviation).
• High-Fidelity Vacuum Metrology: Factory-calibrated, imported vacuum sensors (0.01 Pa resolution) coupled with a high-efficiency vacuum pump (ultimate vacuum ≤0.2 Pa) guarantee stable baseline acquisition and accurate low-flux detection down to 0.01 cm³/m²·24h·0.1MPa.
• Active Pressure Regulation System: Proprietary auto-compensation algorithm maintains constant upstream pressure within ±0.2 kPa over extended test durations, eliminating drift-induced error in P and D calculations.
• Full-Automation Workflow: Integrated 12-inch Windows-based touch panel controls vacuum cycling, gas pressurization, data logging, and chamber actuation—including motorized sample clamping and acoustic/visual lid status alerts.
• Hazardous Gas Compatibility: Optional CH₄ and H₂ test configurations include explosion-proof solenoid valves, stainless-steel gas pathways, and leak-tight sealing certified to IP65 standards—fully compliant with OSHA 1910.120 and ATEX Directive 2014/34/EU requirements.

Sample Compatibility & Compliance

The C106H accommodates rigid and flexible planar specimens up to 3 mm thickness and 11.2 cm × 11.2 cm dimension—including vulcanized rubber sheets, thermoplastic elastomers (TPE), silicone membranes, metallized foils, laminated pharmaceutical blisters, and multilayer food packaging structures. All test protocols adhere to internationally recognized method validation frameworks: ISO/IEC 17025:2017 for laboratory competence; USP for container permeation; and FDA 21 CFR Part 11 when equipped with optional DataShield™ audit-trail software. The system supports full GLP/GMP documentation workflows—including electronic signatures, user access tiers, and immutable raw-data archiving—making it suitable for submissions to EMA, PMDA, and Health Canada.

Software & Data Management

Labthink’s proprietary PermeationSuite™ v4.2 provides comprehensive instrument control and analytical reporting. Real-time visualization includes synchronized GTR vs. time curves, Arrhenius plots for activation energy derivation, and multi-parameter overlays (e.g., temperature-dependent P and D coefficients). Export formats include CSV, PDF, and XML for LIMS integration. With the optional CFR 21 Part 11 package, users gain role-based authentication, biometric login support, full electronic record retention (≥25 years), and automated calibration certificate linking. All data are timestamped, digitally signed, and protected against tampering using SHA-256 hashing.

Applications

• Quantification of methane permeation through landfill liner geomembranes (ASTM D8199)
• Accelerated aging studies of fuel tank bladder materials exposed to hydrocarbon vapors
• Barrier validation of medical device pouches under ISO 11607-1
• Diffusion modeling of CO₂ in modified-atmosphere packaging (MAP) films
• Temperature-dependent permeability profiling of fluoropolymer coatings for semiconductor wafer carriers
• Regulatory batch release testing of child-resistant blister packs per ASTM D3475

FAQ

What gases can be tested on the C106H?
Standard configuration supports O₂, N₂, and CO₂. CH₄ and H₂ require factory-installed hazardous-gas option kits including specialized seals, pressure-rated fittings, and gas-specific calibration protocols.
Is humidity control available?
Yes—optional integrated RH module enables precise conditioning from 5% to 90% RH ±2% at temperatures between 15 °C and 50 °C, critical for evaluating hygroscopic polymers like PA6 or PVDC.
How does the C106H ensure measurement traceability?
Each unit ships with NIST-traceable calibration certificates for vacuum sensors and pressure transducers, validated annually per ISO/IEC 17025-accredited procedures performed by Labthink’s in-house metrology lab.
Can the system be integrated into an existing MES or ERP platform?
Yes—via OPC UA or RESTful API interfaces, enabling bidirectional data exchange with Siemens Opcenter, Rockwell FactoryTalk, or SAP QM modules without middleware.
What maintenance intervals are recommended?
Vacuum pump oil change every 2,000 operating hours; O-ring inspection and replacement every 12 months; annual full-system verification including thermal mapping and pressure decay testing.
