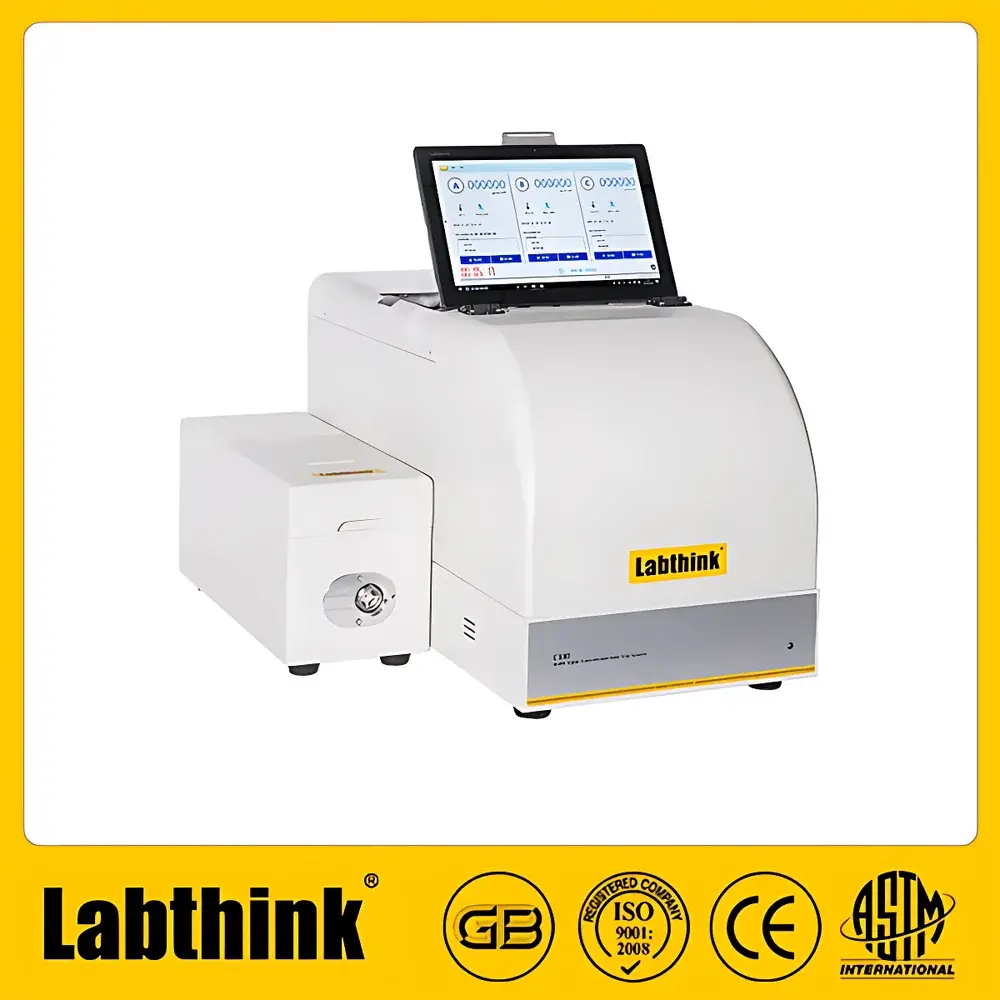

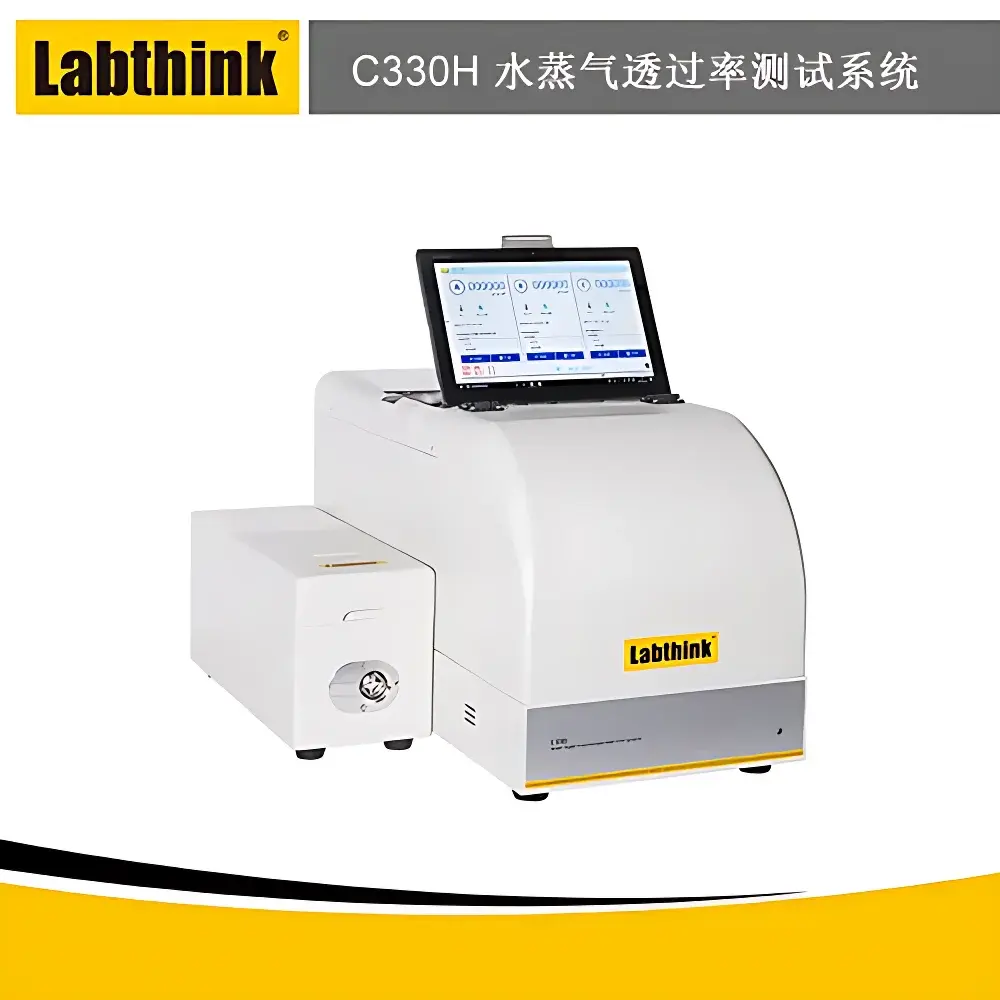

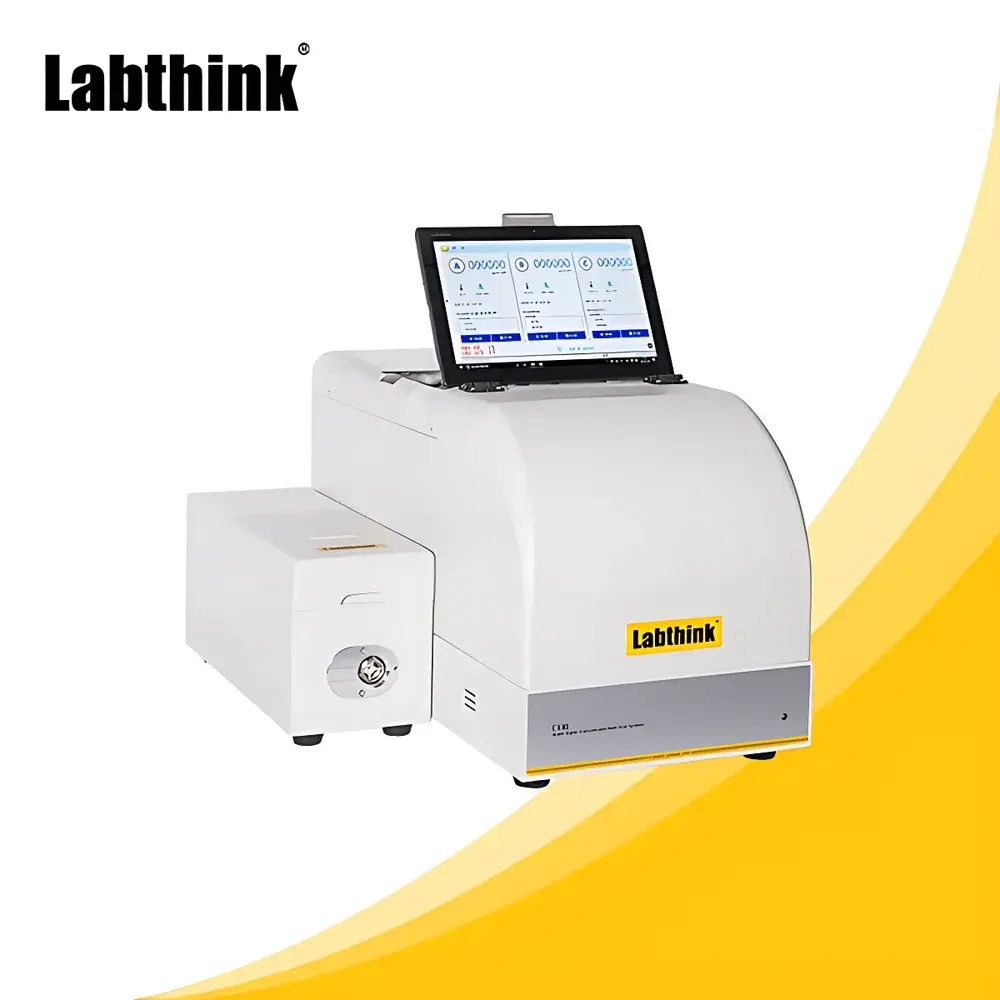

Labthink C330H Electrolytic Water Vapor Transmission Rate Tester

Overview

The Labthink C330H Electrolytic Water Vapor Transmission Rate (WVTR) Tester is a precision-engineered instrument designed for quantitative determination of water vapor permeation through polymeric films, laminates, foils, coated papers, and rigid packaging structures. It operates on the coulometric electrolytic detection principle defined in ISO 15106-3:2018 — where water vapor diffusing across a test specimen is swept by dry carrier nitrogen into an integrated electrolytic sensor. This sensor quantifies moisture concentration via Faraday’s law of electrolysis, converting water molecules into measurable electrical charge proportional to mass flux. The system delivers trace-level sensitivity (down to 0.005 g/(m²·day)), high thermal and hygric stability, and metrological traceability suitable for regulatory submission in pharmaceutical, medical device, food, photovoltaic, and advanced electronics packaging development and quality control.

Key Features

• Triple-chamber modular architecture enabling simultaneous testing of three identical specimens (for statistical validation per ASTM E177) or three distinct materials under identical environmental conditions — eliminating inter-test variability.
• Proprietary electrolytic moisture sensor developed in-house by Labthink, featuring long-term signal stability, sub-microgram-level detection limit, and >2-year operational lifetime without recalibration under routine use.
• Patented monolithic test block engineered using computational fluid dynamics (CFD) and thermodynamic modeling to ensure uniform laminar gas flow, minimal boundary layer disruption, and precise humidity gradient establishment across each test area (50 cm² standard).
• Spatially resolved climate control: independent Pt100 temperature sensors and capacitive RH sensors mounted directly within each chamber wall provide real-time feedback to dual-loop PID controllers — maintaining ±0.2 °C and ±1 %RH accuracy over full operating range (10–55 °C / 5–90 %RH).
• Integrated 12-inch industrial-grade Windows 10 touch interface with embedded high-performance ARM-based controller; supports both automated compliance-driven workflows and granular manual parameter tuning for R&D applications.
• DataShield™ secure data management system with AES-256 encryption, role-based access control, electronic signatures, and configurable audit trail generation — fully aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements when enabled.

Sample Compatibility & Compliance

The C330H accommodates flat sheet materials up to 108 mm × 108 mm and 3 mm thick, including metallized PET, SiO_x/AlO_x-coated films, multilayer barrier laminates, aluminum foil composites, and paperboard substrates. Optional fixtures enable testing of rigid or semi-rigid packages up to 3 L volume (e.g., blister packs, pouches, trays) using inverted humidity gradient configuration. All hardware and firmware comply with ISO/IEC 17025 calibration traceability frameworks. Method validation documentation supports alignment with USP <671>, ICH Q5C, and packaging qualification protocols under ICH Q5E and ASTM D3985/D1653. Regulatory-ready reporting templates are included for GLP/GMP environments.

Software & Data Management

The embedded software suite provides dual-mode operation: “Compliance Mode” enforces predefined SOPs, auto-generates raw data logs with timestamps, operator IDs, and instrument metadata; “Research Mode” unlocks adjustable ramp rates, custom humidity step profiles, and real-time permeation curve visualization. Data export supports CSV, PDF, XML, and SQL-compatible formats. When configured with CFR 21 Part 11 options, the system implements electronic signature enforcement, immutable audit trails, and user privilege escalation controls. Network integration supports wired Ethernet (10/100 Mbps), Wi-Fi 5 (802.11ac), and OPC UA connectivity for MES/SCADA interoperability.

Applications

• Accelerated shelf-life prediction of pharmaceutical blister packaging and cold-chain transport solutions.
• Barrier performance benchmarking of flexible OLED encapsulation films and perovskite solar cell moisture barriers.
• QC release testing of sterile medical device pouches per ISO 11607-1 and AAMI ST77.
• Development of sustainable biopolymer films requiring ultra-low WVTR (<0.1 g/(m²·day)) verification.
• Root-cause analysis of delamination or haze formation in high-barrier food packaging under accelerated aging conditions.
• Validation of coating uniformity and defect density in roll-to-roll ALD/CVD barrier layers.

FAQ

What standards does the C330H formally support?
ISO 15106-3:2018, ASTM F3299-22, GB/T 21529-2008, and YBB 00092003-2015 — with method equivalence documentation available upon request.
Can the system validate WVTR below 0.01 g/(m²·day)?
Yes — its coulometric detection limit (0.005 g/(m²·day)) and low-drift thermal management enable reliable measurement of ultra-high-barrier materials such as oxide-coated PET or glass-laminated substrates.
Is nitrogen purity critical for accurate results?
Yes — carrier gas must be ≥99.999% pure N₂; impurities (especially O₂ and H₂O residuals) directly impact sensor baseline stability and Faraday efficiency. Labthink recommends inline purification filters and dew point monitoring.
How is data integrity ensured during multi-day tests?
Continuous power-fail recovery, redundant non-volatile memory logging, and timestamped sensor health diagnostics prevent data loss. With DataShield™ enabled, all modifications are immutably recorded in the audit trail.
Does the system support IQ/OQ/PQ documentation packages?
Yes — Labthink provides vendor-qualified installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) templates compliant with ISO 13485 and GMP Annex 15, including protocol execution support and certified reference material traceability reports.
