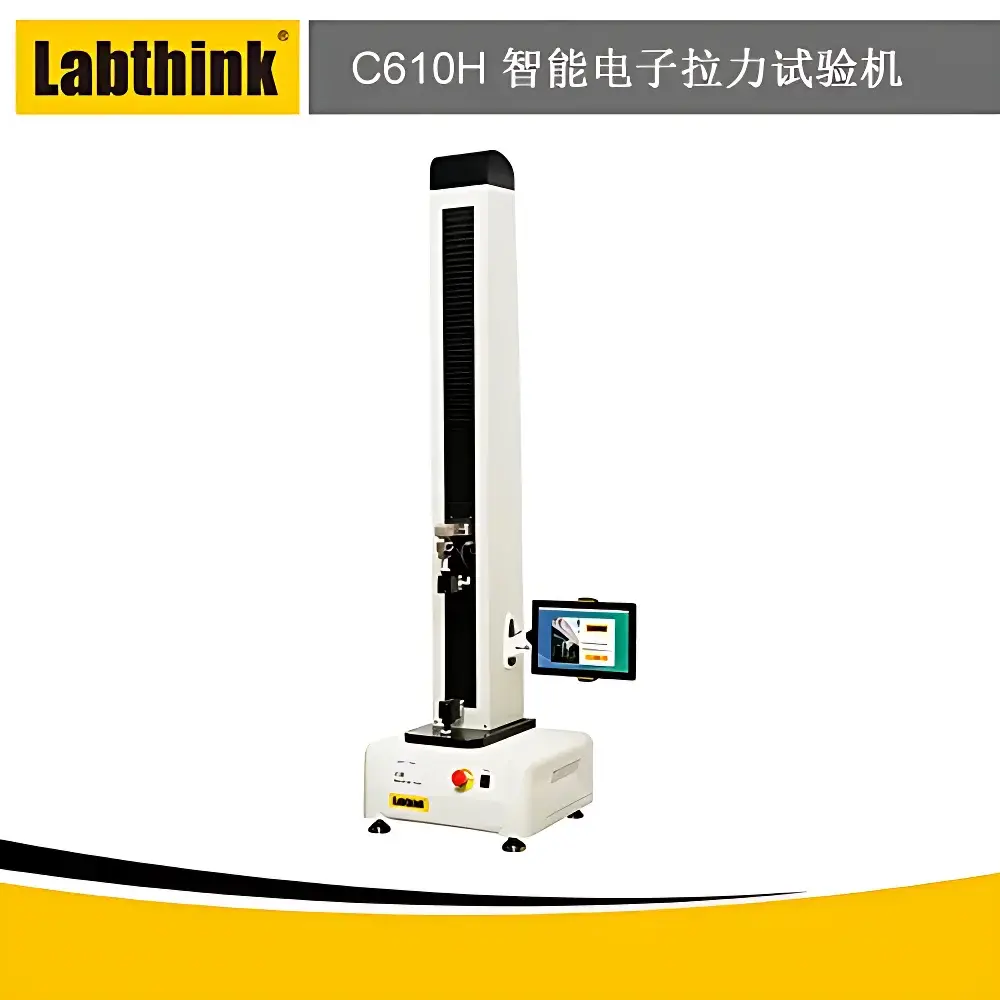

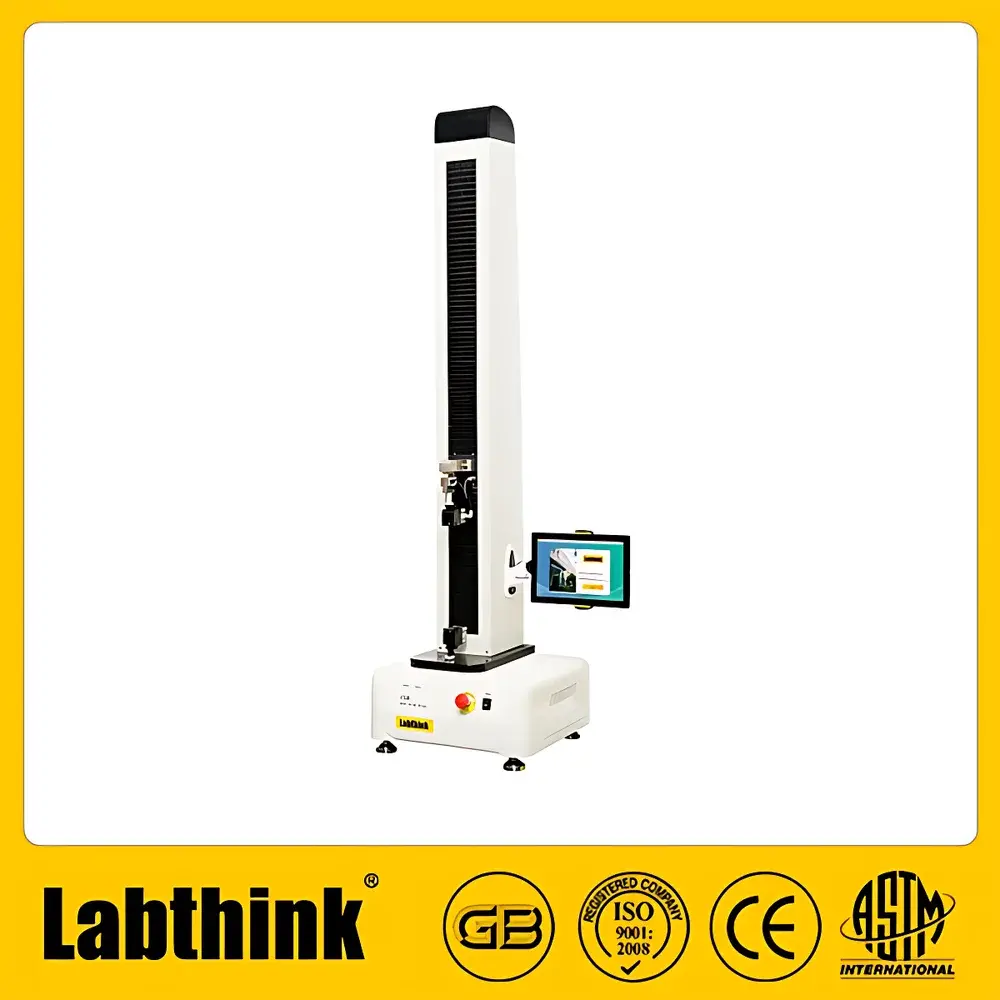

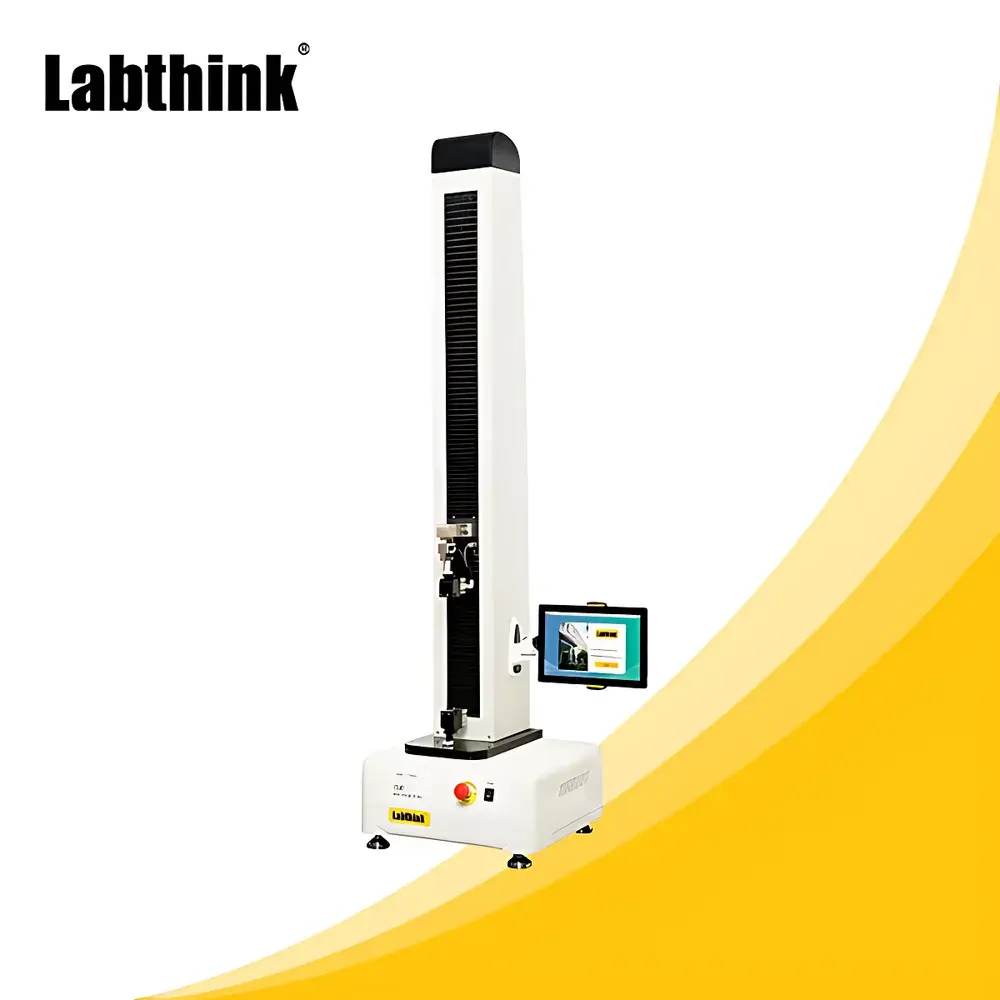

Labthink C610H Intelligent Electromechanical Tensile Testing Machine

Overview

The Labthink C610H Intelligent Electromechanical Tensile Testing Machine is a precision-engineered universal testing system designed for static mechanical property evaluation of flexible and semi-rigid materials in regulated industrial and R&D environments. Based on the fundamental principle of controlled uniaxial force application under programmable displacement conditions, the C610H implements high-fidelity electromechanical actuation to quantify tensile strength, elongation at break, peel adhesion, tear resistance, puncture force, seal integrity, and other critical physical parameters. Its architecture conforms to standardized test methodologies defined in ISO 37, ASTM D882, ASTM D1938, ASTM F88, GB/T 1040 series, and GB 8808—making it suitable for quality control laboratories operating under GMP, GLP, or ISO/IEC 17025 frameworks. The system delivers traceable, repeatable, and auditable mechanical data across diverse material classes including polymer films, laminates, medical packaging, pressure-sensitive adhesives, elastomeric components, and pharmaceutical primary packaging.

Key Features

• Modular software architecture with pre-validated, independent test routines—including tensile, 90°/180° peel, tear (trouser, Elmendorf), heat seal strength, compression, puncture, and burst—supporting both tension and compression modes.
• High-accuracy dual-circuit force measurement system with globally sourced load cells (50 N to 1000 N range); certified to ±0.5% accuracy over 2–100% full scale per ISO 7500-1 Class 0.5.
• Precision servo-driven motion control integrated with ground ball-screw transmission and multi-axis positioning; achieves displacement resolution of 0.001 mm and speed stability within ±0.5% across the full 0.05–500 mm/min range.
• Pneumatic clamping system with adjustable pressure (0.5–0.7 MPa) ensures consistent grip without specimen slippage or edge damage—critical for low-modulus or highly extensible substrates.
• Embedded industrial-grade touch-panel computer running real-time deterministic OS; eliminates dependency on external PCs and mitigates cybersecurity risks associated with Windows-based lab systems.
• Hardware-level data isolation architecture: test data are stored locally on encrypted onboard flash memory, physically decoupled from the user interface module—meeting FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with audit trail and user access controls.

Sample Compatibility & Compliance

The C610H accommodates specimens up to 50 mm wide and 1000 mm travel length, supporting standardized geometries per ASTM D638 Type IV/V, ISO 527-3, and GB/T 1040.3. Over 100 specialized fixtures—including floating roller peel, eccentric, angled peel (20°, 23°, 90°, 135°), catheter detachment, ampoule break, and simulated skin puncture jigs—are available as accessories or custom-engineered solutions. All mechanical tests comply with international regulatory benchmarks: ASTM E4 (force verification), ISO 7500-1 (static calibration), and USP for package integrity validation. Optional DataShield™ integration enables secure HL7/FHIR-compatible data export and centralized LIMS/SAP connectivity while preserving ALCOA+ data integrity principles.

Software & Data Management

The embedded C610H Control Suite provides intuitive workflow navigation, real-time curve visualization (force vs. displacement), automatic peak detection, and statistical reporting (mean, SD, CV%, min/max). It supports multi-group comparative analysis, unit conversion (N, kN, lbf, kgf, MPa), and customizable report templates compliant with internal SOPs. Audit trail logging records all operator actions, parameter changes, and calibration events with timestamp, user ID, and IP address. When equipped with GMP-compliant configuration, the system enforces role-based access control (RBAC), electronic signatures, and immutable data archiving—fully aligned with 21 CFR Part 11 Subpart B and EU Annex 11 requirements for computerized systems in pharmaceutical manufacturing.

Applications

The C610H serves as a primary mechanical characterization tool across packaging, medical device, and polymer R&D sectors. Routine applications include: seal strength validation of blister packs and pouches per ASTM F88; peel adhesion quantification of labelstocks and transdermal patches per ASTM D3330; puncture resistance of IV bag membranes and rubber stoppers per ISO 8536-5; tear propagation analysis of nonwovens and geotextiles per ASTM D1922; compression performance of collapsible tubes per ISO 11607-2; and opening force assessment of child-resistant closures per ISO 8317. Extended use cases cover catheter–connector separation, suture tensile failure, brush filament retention, and simulated mucosal adhesion testing—all supported by validated fixture sets and method-specific SOP libraries.

FAQ

What standards does the C610H support out-of-the-box?
It natively executes test protocols aligned with ASTM D882, ASTM F88, ISO 37, GB/T 1040.2, GB 8808, and ISO 11607-2, with method files preloaded and calibrated per ISO/IEC 17025 traceable standards.
Is the system compatible with existing LIMS or MES platforms?
Yes—via optional DataShield™ middleware, which supports secure RESTful API, OPC UA, and CSV/Excel batch export with configurable metadata tagging and digital signature embedding.
Can the C610H perform dynamic or cyclic testing?
No—it is optimized for quasi-static monotonic loading per ISO 6892-1 and ASTM D638; fatigue or creep testing requires complementary instrumentation.
How is force calibration maintained?
Calibration is performed using NIST-traceable deadweight standards; the system stores calibration coefficients with date/time stamp and operator ID, and auto-warns before expiry per predefined intervals.
What air supply specifications are required for pneumatic clamping?
Clean, dry compressed air at 0.5–0.7 MPa (72.5–101.5 psi); users must provide an external air source meeting ISO 8573-1 Class 3 particulate/oil/water specifications.
