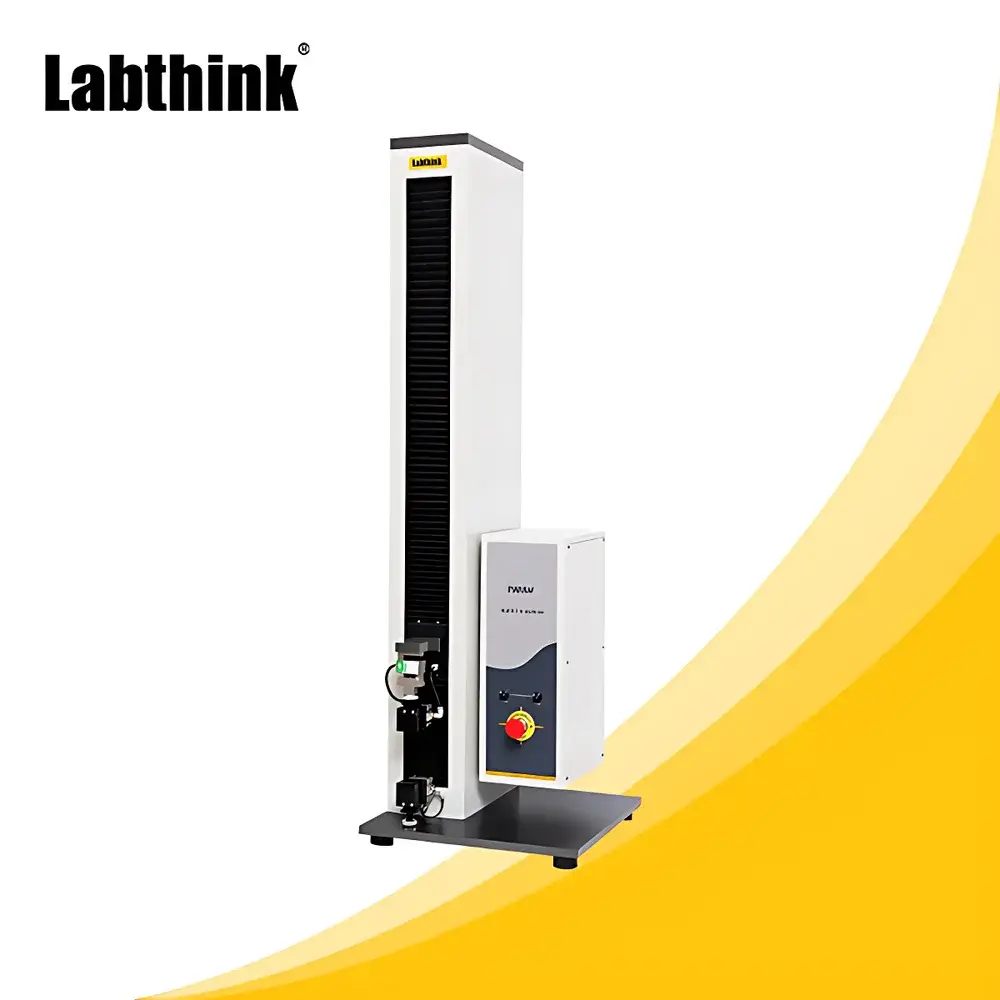

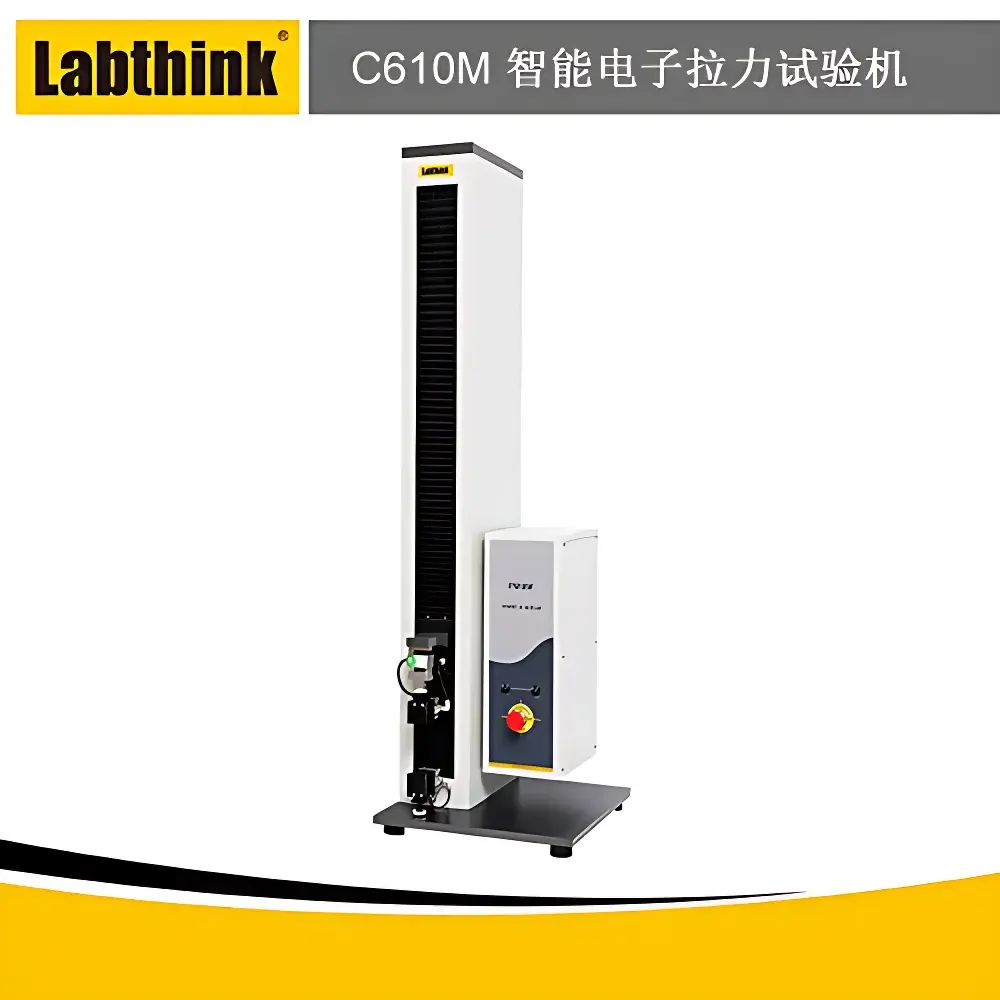

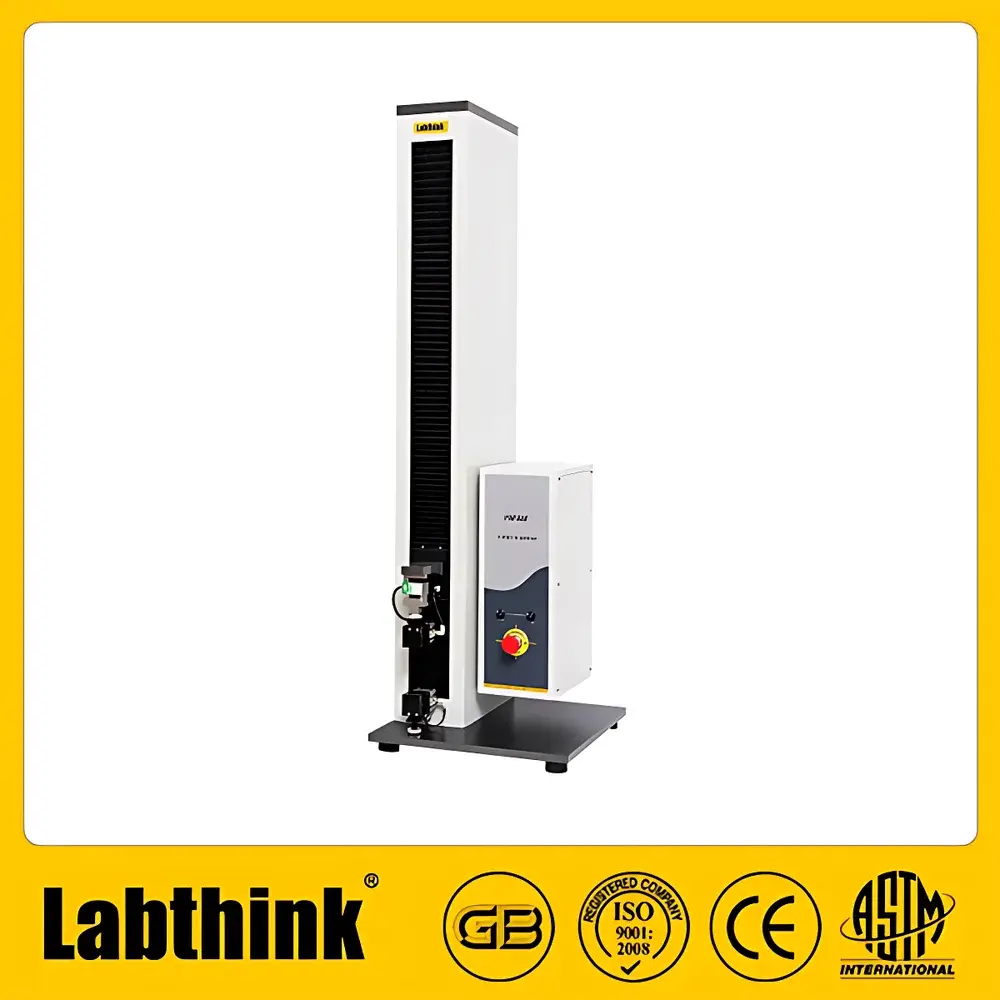

Labthink C610M Dual-Directional Tensile & Compression Testing Machine
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | C610M |
| Price Range | USD 7,000 – 14,000 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Test Load | 1 kN |
| Load Range | 2%–100% FS |
| Force Accuracy | Class 0.5 per ISO 7500-1 |
| Stroke | 950 mm |
| Displacement Resolution | 1 mm |
| Force Sensor Options | 5 N (custom), 50 N, 100 N, 250 N, 500 N (standard), 1000 N |
| Force Resolution | 0.001 N |
| Speed Range | 0–500 mm/min (adjustable in integer steps) |
| Speed Accuracy | ±0.5% of set value |
| Specimen Width | 30 mm (standard), 50 mm (optional) |
| Pneumatic Clamping | Air supply required (0.5–0.7 MPa) |
| Dimensions | 450 × 450 × 1410 mm (L×W×H) |
| Weight | ~95 kg |
| Power | 220 VAC ±10%, 50 Hz or 120 VAC ±10%, 60 Hz |
Overview
The Labthink C610M Dual-Directional Tensile & Compression Testing Machine is an electromechanical universal testing system engineered for high-reproducibility mechanical property evaluation of flexible and semi-rigid packaging materials, medical devices, and functional films. Based on servo-controlled linear actuation and precision load cell transduction, the C610M implements standardized uniaxial force–displacement measurement per ASTM E4, ISO 7500-1, and GB/T 16578.1. Its dual-directional architecture supports both tensile and compressive test modes—enabling not only conventional tensile strength, elongation at break, and modulus determination but also critical pharmaceutical and packaging applications such as stopper puncture resistance, ampoule breakage force, peel initiation/adhesion strength, and seal integrity validation under controlled displacement rates. Designed for compliance-driven environments—including pharmaceutical quality control laboratories operating under GMP and GLP frameworks—the instrument integrates hardware-level data integrity safeguards and embeds audit-ready traceability features.
Key Features
- Dual-mode mechanical testing platform supporting tension, compression, peel, tear, puncture, seal strength, and creep-hold protocols in a single instrument
- Ten preconfigured, standards-aligned test programs—including ASTM D882 (thin plastic film), ASTM F88 (heat seal strength), ASTM D1938 (tear propagation), ISO 37 (rubber tensile properties), and GB/T 1040 series—accessible via intuitive embedded interface
- Class 0.5 force accuracy across full sensor range (2–100% FS), validated per ISO 7500-1; extended low-force resolution down to 0.001 N with optional 5 N transducer
- Precision servo-motor drive coupled with ground ball-screw transmission ensures displacement linearity ≤±0.5% and speed stability within ±0.5% of setpoint
- Pneumatic specimen clamping system (0.5–0.7 MPa air supply) eliminates slippage and ensures consistent grip pressure across heterogeneous substrates including low-surface-energy films and hydrogel-coated medical components
- Integrated industrial-grade embedded computing platform—no external PC required—featuring USB 2.0, Ethernet (10/100 Mbps), and real-time OS for deterministic test execution and data logging
- Hardware-enforced data security architecture: test data stored locally on internal flash memory; optional DataShield™ module enables encrypted export, role-based access control, and LIMS/ERP integration
Sample Compatibility & Compliance
The C610M accommodates a broad spectrum of specimens—from 5 µm-thick polymer monolayers to 3 mm-thick composite laminates—via interchangeable pneumatic and mechanical fixtures (e.g., 30 mm standard film grips, 50 mm wide-specimen holders, floating roller peel fixtures, eccentric clamps, and custom-designed puncture probes). It meets regulatory expectations for data integrity under FDA 21 CFR Part 11 (when equipped with GMP-compliant software package), EU Annex 11, and Chinese GMP Annex 12. All test methods are traceable to referenced national and international standards, including GB 8808 (peel strength of composite films), GB/T 12914 (tensile properties of paper and board), ASTM D3330 (adhesive tape peel), JIS P8113 (paper tensile), and QB/T 2358 (heat seal strength of plastic films). Calibration certificates are provided with NIST-traceable force and displacement verification.
Software & Data Management
The embedded operating system delivers real-time graphing of force–displacement curves, automatic peak detection, and multi-curve overlay for comparative analysis. Raw data is saved in CSV and XML formats with embedded metadata (operator ID, timestamp, environmental conditions, calibration status). The system supports unit conversion across SI, imperial, and industry-specific units (e.g., N, lbf, kgf, MPa, psi, gf, mN). Optional GMP software adds electronic signatures, audit trail logging (user actions, parameter changes, data exports), and configurable report templates compliant with USP , ISO/IEC 17025, and ICH Q5. DataShield™ enables centralized database synchronization, automated backup to network storage, and API-based integration with SAP QM, LabVantage, or Thermo Fisher SampleManager.
Applications
The C610M serves as a primary mechanical characterization tool across regulated and industrial R&D settings. Routine applications include tensile strength and elongation testing of BOPP, PET, PE, and aluminum-laminated films; 180° and 90° peel adhesion assessment of medical tapes and wound dressings; puncture resistance of rubber stoppers per USP ; ampoule neck breakage force per Ph. Eur. 2.9.22; and seal strength of blister packs and pouches per ASTM F2054. Extended configurations support specialized tasks: simulated skin puncture using ISO 10993-10 compliant probes; catheter hub detachment force per ISO 80369; self-sealing bag opening force; protective film release force; and compression testing of foam gaskets and sponge matrices. Over 100 fixture options—including Japanese-style, British-standard, and custom-engineered tooling—enable method adaptation without hardware modification.
FAQ
Does the C610M comply with FDA 21 CFR Part 11 requirements?
Yes—when configured with the optional GMP software package, it provides electronic signatures, immutable audit trails, and role-based user authentication.
Can the instrument perform tests at sub-gram force levels?
Yes—by selecting the optional 5 N load cell, the system achieves a minimum resolvable force of 0.001 N with verified accuracy down to 2% FS.
Is an external air compressor required?
Yes—the pneumatic clamping system requires a clean, dry compressed air source delivering 0.5–0.7 MPa (72–101 psi); Labthink offers compatible oil-free compressors as accessories.
What standards does the C610M support out-of-the-box?
Preloaded methods cover ASTM D882, D1938, F88, F904; ISO 37, 1133, 1421; GB/T 1040.1–1040.5, GB/T 12914, GB/T 2792, and QB/T 2358—with additional standards available via firmware update.
How is calibration maintained over time?
The system supports periodic verification using certified reference weights and displacement gauges; calibration records are archived with date-stamped digital signatures and linked to test reports.
