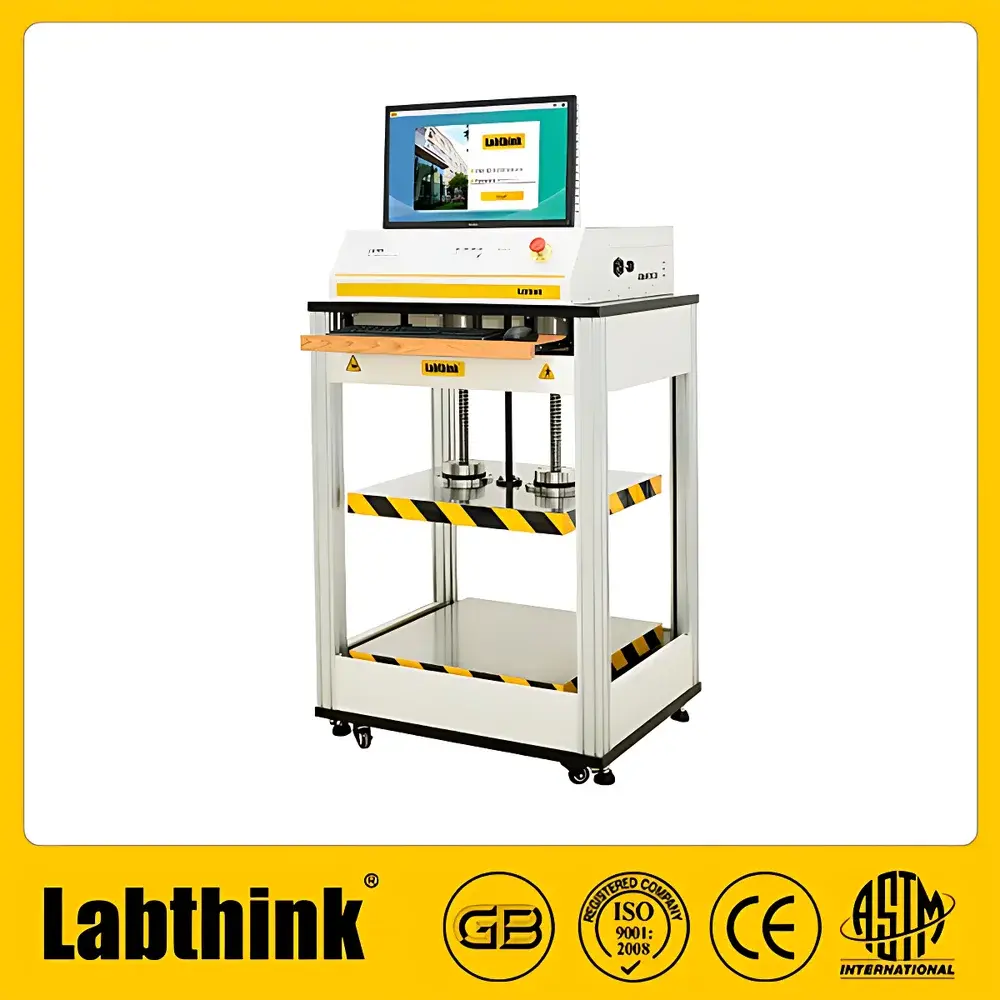

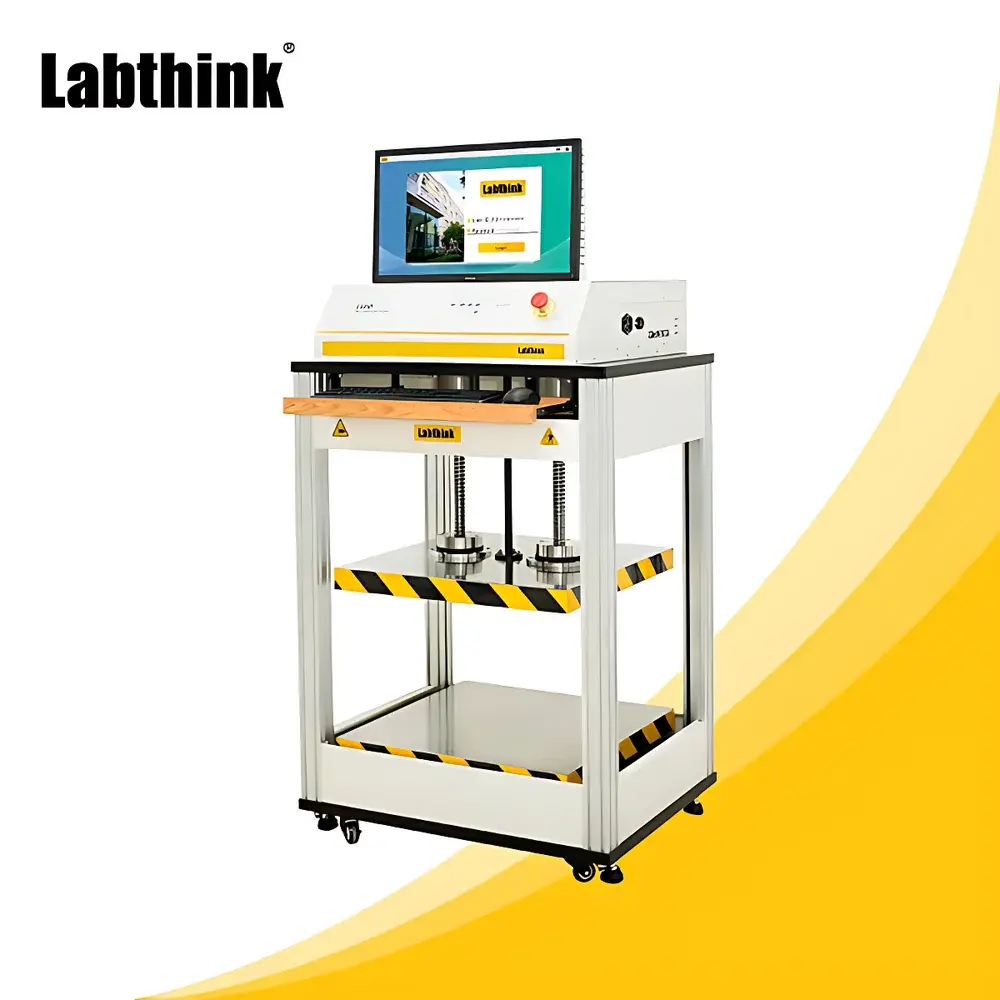

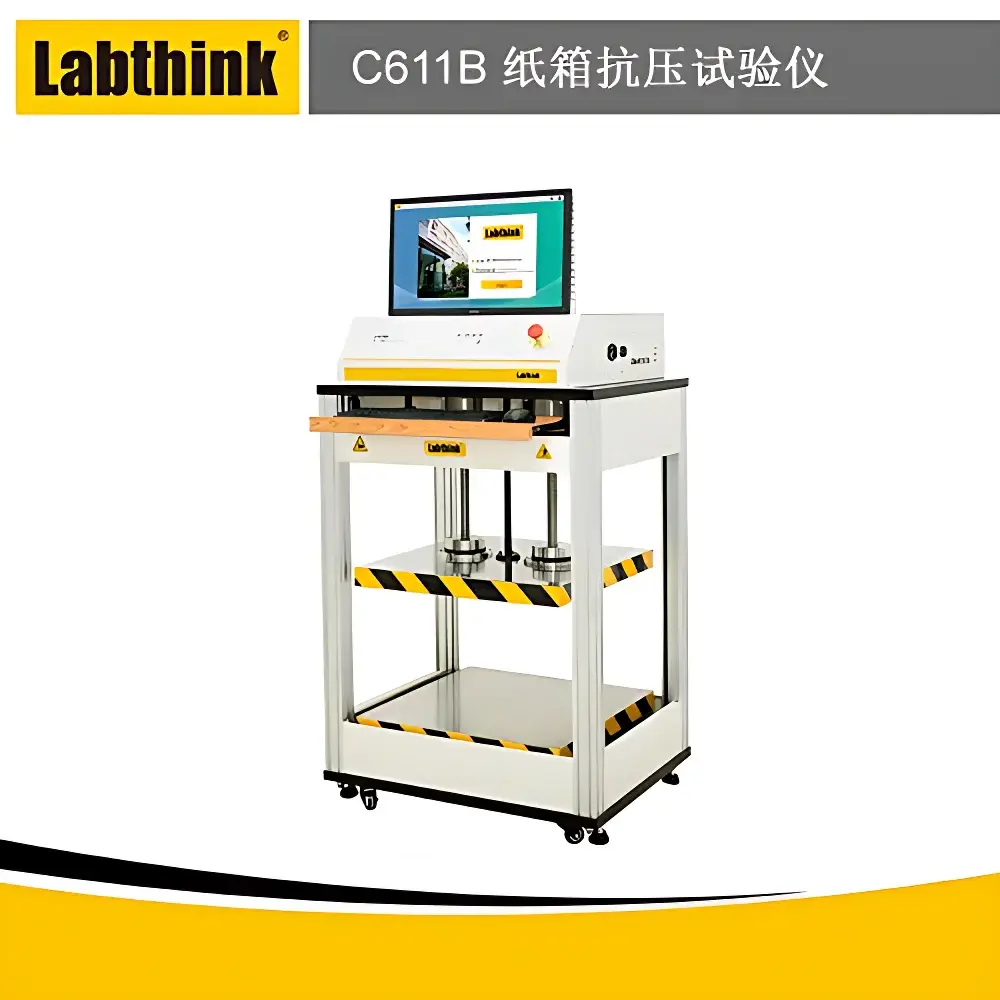

Labthink C611B Compression Tester for Packaging Containers

Overview

The Labthink C611B Compression Tester is an integrated, benchtop-grade mechanical testing system engineered for precise and repeatable compression performance evaluation of corrugated shipping containers, honeycomb packaging, and rigid hollow containers—including plastic drums, fiberboard cans, composite pails, and intermediate bulk containers (IBCs). It operates on the principle of controlled uniaxial compressive loading, applying a steadily increasing or sustained force to a specimen until deformation threshold or structural collapse occurs. The instrument conforms to internationally recognized static compression test methodologies defined in ASTM D642 (determination of compressive strength of shipping containers), ASTM D4169 (performance testing of distribution systems), and ISO 12048 (compression testing of corrugated fiberboard boxes). Its dual-purpose architecture enables both short-term crush resistance assessment and long-term creep-based stacking simulation—critical for validating packaging integrity across logistics cycles ranging from warehouse storage to multi-tiered palletized transport.

Key Features

• Triple high-precision load cells (9 kN total capacity) with dual-range calibration: ±1% accuracy over 10–100% full scale; ±0.1% full-scale accuracy in low-force regimes (0–10% FS), ensuring fidelity across both light-duty cartons and heavy-gauge industrial containers.
• Motor-driven dual precision ball-screw actuation system enabling programmable test speeds from 0 to 200 mm/min in 1 mm/min increments, supporting dynamic crush, quasi-static stack, and time-dependent creep protocols.
• Embedded Windows-based computing platform with native GUI interface—no external PC required. Supports keyboard/mouse operation, real-time graphical display of force vs. displacement curves, and synchronized digital logging of peak load, yield point, deformation at specified loads, and time-to-failure metrics.
• Comprehensive hardware safety architecture: electronic overload cutoff, mechanical end-of-stroke limit switches, automatic fault detection with audible/visual alarm, and emergency stop circuit compliant with IEC 61800-5-2 functional safety guidelines.
• Modular compliance-ready configuration options including GMP-compliant audit trail module (21 CFR Part 11–aligned electronic signatures, user access control, immutable raw data logs) and DataShield™ centralized data management gateway for ERP/LIMS integration via Ethernet or USB 2.0.

Sample Compatibility & Compliance

The C611B accommodates flat and upright specimens up to 600 mm in height and 600 mm × 600 mm in footprint—sufficient for standard RSC, HSC, and die-cut corrugated cases as well as cylindrical and rectangular hollow containers. Its universal platens and interchangeable compression plates (including optional 150 mm diameter flat and convex fixtures) ensure uniform stress distribution per ASTM D642 Annex A. All test methods—including Crush Test, Stack Test A (constant-rate deformation under increasing load), and Stack Test B (time-limited deformation under constant load)—are implemented per standardized procedural logic traceable to ISO/IEC 17025 calibration requirements. Optional metrological validation kits support third-party verification against national standards (e.g., CNAS-accredited calibration certificates).

Software & Data Management

The embedded test software provides full lifecycle data governance: automated metadata capture (operator ID, sample ID, environmental conditions, test method selection), real-time curve overlay, pass/fail decision logic based on user-defined acceptance criteria (e.g., minimum crush load ≥ X kN or deformation ≤ Y mm at Z kN), and export to CSV, PDF, or XML formats. With the DataShield™ add-on, raw datasets—including timestamped sensor readings at 100 Hz sampling rate—are encrypted, digitally signed, and synchronized to enterprise servers using TLS 1.2–secured HTTP(S) API endpoints. Audit trails record all user actions—including parameter edits, result deletions, and report generation—with immutable SHA-256 hashing for forensic traceability in regulated environments (pharmaceutical, medical device, food packaging).

Applications

Primary applications include compressive strength validation of consumer electronics packaging (e.g., refrigerator, washing machine, HVAC unit cartons), qualification of e-commerce fulfillment containers under ISTA 3A/6-FE protocols, and durability benchmarking of reusable transit containers used in automotive and aerospace supply chains. Extended use cases cover compression fatigue analysis of biodegradable molded fiber trays, comparative creep behavior of recycled-content corrugated board, and validation of moisture-barrier laminated structures under controlled RH conditions (when paired with optional environmental chamber integration). The system supports method development per internal SOPs aligned with ISO 9001 quality management system requirements.

FAQ

What standards does the C611B natively support?
ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, JIS Z0212, GB/T 16491, GB/T 4857.4, and QB/T 1048–2004—all implemented via preloaded test templates with auto-calculated pass/fail thresholds.
Can the C611B perform creep tests lasting more than 24 hours?
Yes—the embedded controller supports uninterrupted test durations up to 168 hours (7 days) with continuous data logging at configurable intervals (100 ms to 60 s), subject to stable ambient temperature and power continuity.
Is external calibration required before first use?
No—each unit ships with factory calibration certificate traceable to NIM (China National Institute of Metrology); however, annual recalibration using certified deadweight standards is recommended per ISO/IEC 17025 clause 6.6.
Does the system meet FDA 21 CFR Part 11 requirements out of the box?
The base configuration includes electronic signature capability and basic audit trail; full Part 11 compliance requires activation of the optional GMP Computer System Validation (CSV) package, which adds role-based access control, electronic records retention policies, and system validation documentation.
What is the warranty coverage and service response time?
Labthink provides 24-month limited warranty covering parts and labor; on-site technical support is available within 5 business days in North America and EU regions upon validated service request.
