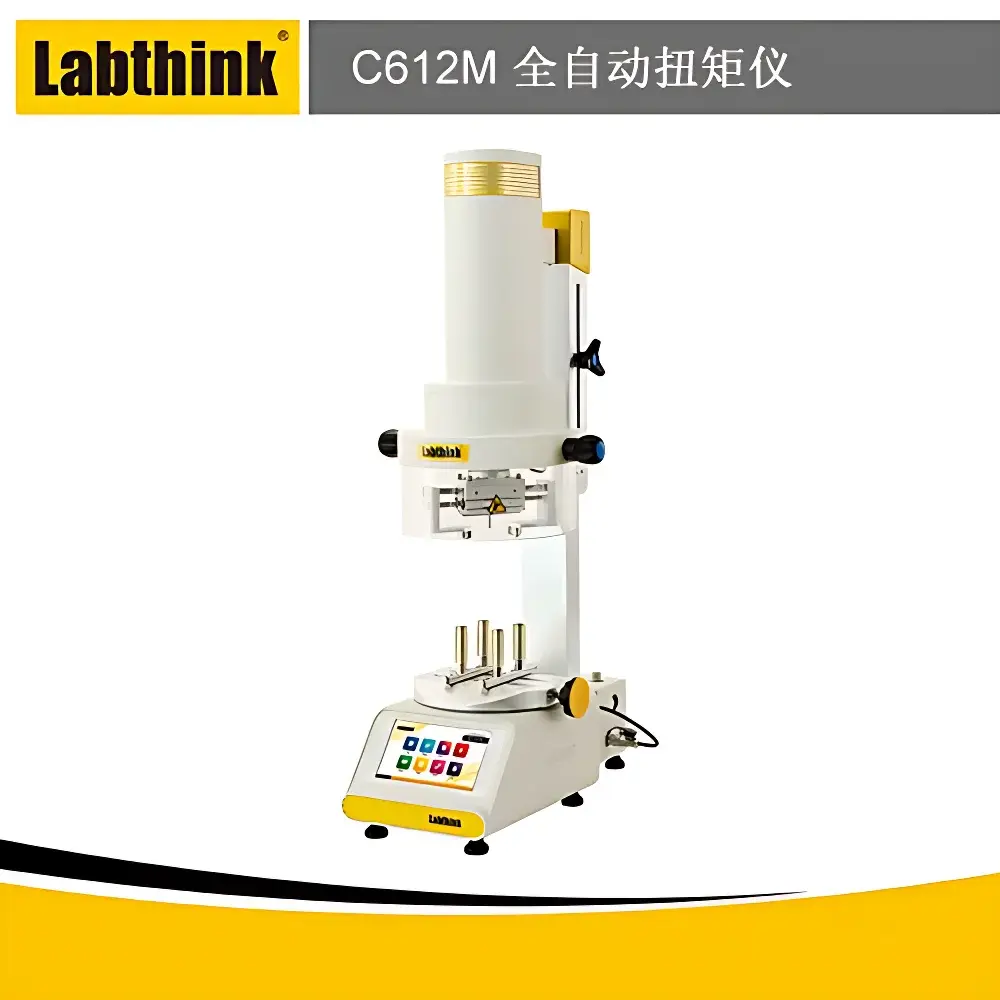

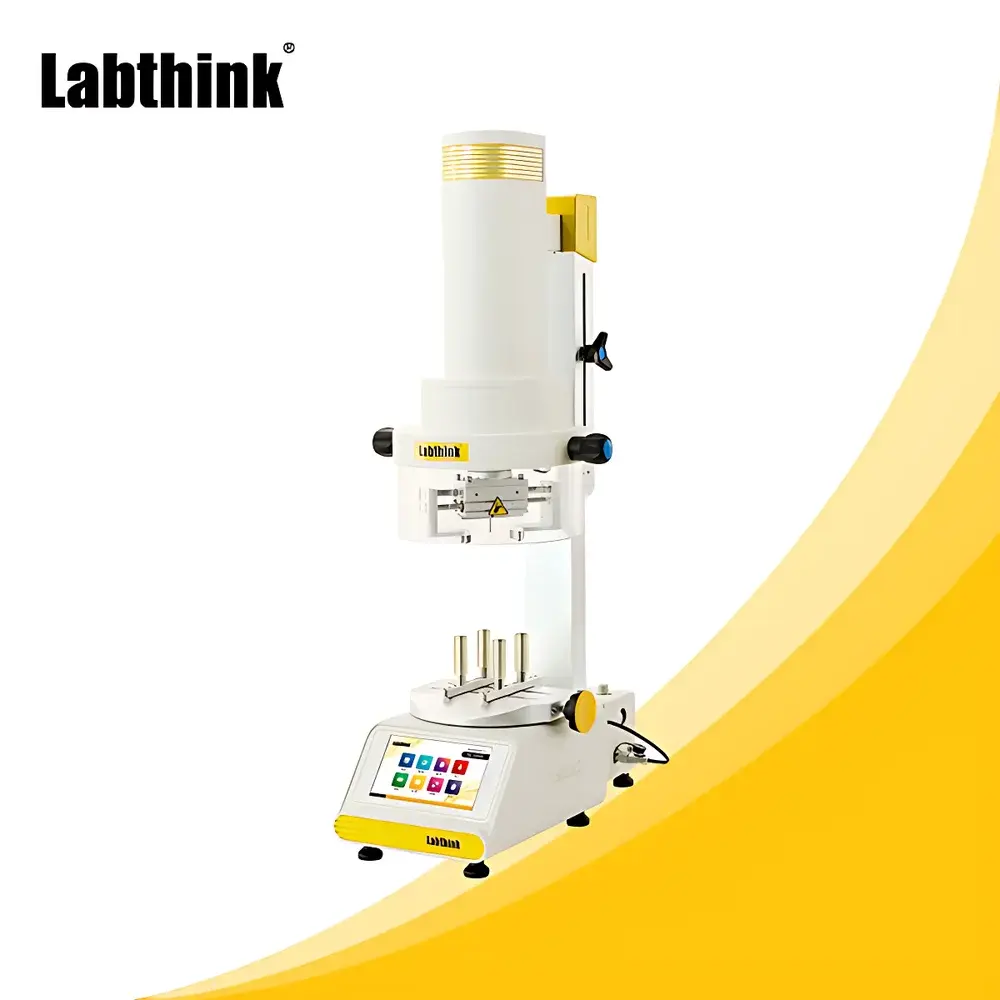

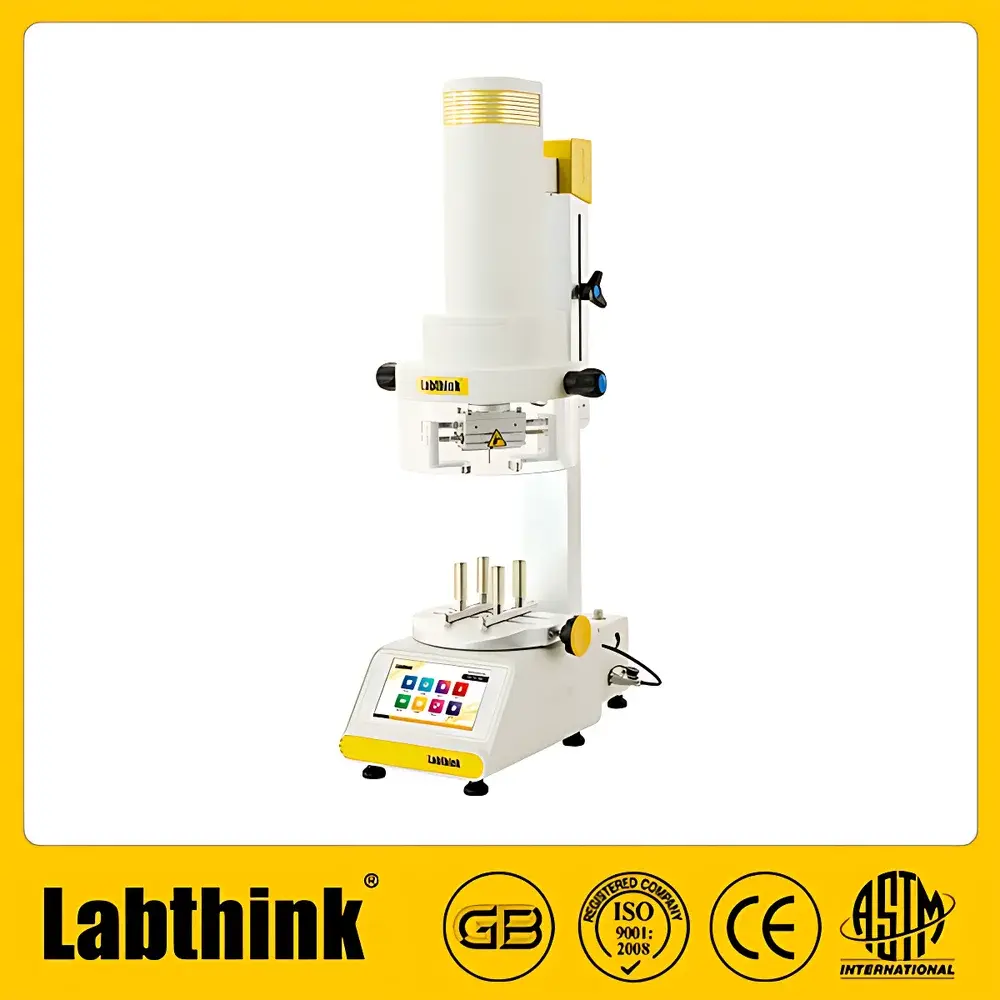

Labthink C612M Automatic Torque Tester for Aluminum Anti-Counterfeit Caps

Overview

The Labthink C612M Automatic Torque Tester is an industrial-grade, pneumatic-driven mechanical testing system engineered for precise and repeatable measurement of closure torque in aluminum anti-counterfeit caps and threaded packaging systems. It operates on the principle of controlled rotational force application—using a servo-assisted pneumatic actuator to apply calibrated angular displacement while capturing real-time torque response via a high-resolution load cell. Designed specifically for compliance with BB/T 0034 (Chinese standard for torque testing of bottle closures) and aligned with international benchmarks including ASTM D2063 (Standard Test Method for Measurement of Torque Required to Open or Close Rigid Containers), the C612M serves as a critical quality assurance tool in pharmaceutical, nutraceutical, beverage, cosmetic, and personal care manufacturing environments. Its dual-mode architecture supports both cap opening torque (removal torque) and cap sealing torque (application torque) measurements under programmable speed, dwell time, and target torque settings—enabling full validation of cap integrity across filling, capping, transport, and end-user interaction phases.

Key Features

• Dual-Mode Mechanical Hand Automation: Patented robotic gripper system performs fully automated cap clamping, rotation, and release without manual intervention—eliminating operator-induced variability and ensuring inter-laboratory reproducibility (CV < 1.2% per ISO 5725-2).
• Sub-mN·m Precision Capability: Capable of resolving torque values down to 0.0001 Nm with verified linearity across 0–10% full scale (±0.05% FS), enabling reliable evaluation of low-torque child-resistant and senior-friendly closures.
• Programmable Clamping & Torque Control: Independent adjustment of cap grip force, rotational speed (0.1–10 rpm), and target sealing torque (with deviation < 0.01 Nm)—ensuring consistent capping process simulation and validation.
• Industrial Touch Interface: 10.1-inch capacitive touchscreen with embedded real-time torque curve visualization, statistical summary (mean, SD, CV, min/max), and auto-save functionality—supporting both English and Chinese language modes.
• Robust Pneumatic Architecture: OEM-sourced pneumatic control unit with sealed solenoid valves and precision pressure regulators ensures long-term stability (>50,000 cycles) and minimal maintenance intervals.
• GMP-Ready Data Integrity Framework: Optional DataShield™ software enables audit-trail-enabled data export, role-based user access (admin/operator/auditor), electronic signatures, and 21 CFR Part 11-compliant reporting—fully traceable from test initiation to certificate generation.

Sample Compatibility & Compliance

The C612M accommodates a broad range of threaded closure geometries, including aluminum screw caps, plastic tamper-evident caps, flip-top closures, and dispensing pumps used in bottles (Φ5–Φ170 mm diameter), tubes (Φ10–Φ80 mm cap interface), and insulated vessels (e.g., thermos flasks). Its vertical Z-axis travel (20–400 mm) and adaptive jaw design allow seamless integration into QC labs handling diverse SKUs—from 5 mL ophthalmic vials to 2 L beverage containers. All test methods conform to BB/T 0034 (China Packaging Federation standard for torque testing of anti-counterfeit aluminum caps), GB/T 17876 (general method for measuring torque of plastic caps), and ASTM D3474 (standard practice for calibration of torque testers). Optional GMP computer system qualification packages include IQ/OQ documentation, calibration certificates traceable to NIM (National Institute of Metrology, China), and third-party verification against ISO/IEC 17025 requirements.

Software & Data Management

The embedded firmware supports local storage of up to 1200 test records with timestamp, operator ID, sample ID, torque curve metadata, and pass/fail flags. USB 2.0 host port enables direct transfer to external drives or networked PCs. Optional Labthink “TestMaster Pro” software provides advanced statistical analysis (SPC charts, capability indices Cp/Cpk), batch-level trend monitoring, PDF report generation with digital signature fields, and HL7-compatible data export for LIMS integration. When equipped with DataShield™, the system logs all user actions—including parameter changes, calibration events, and result deletions—in an immutable audit trail compliant with FDA 21 CFR Part 11 Subpart B and EU Annex 11 expectations for computerized systems in regulated environments.

Applications

• Pharmaceutical packaging: Verification of torque consistency for HDPE/PP prescription bottles, aluminum-sealed ampoules, and child-resistant closures per USP <661> and Ph. Eur. 3.2.1.
• Beverage industry: Validation of PET bottle cap tightness to prevent leakage during palletized transport and shelf-life testing.
• Cosmetic & personal care: Quantitative assessment of pump actuation torque, twist-off cap retention, and dropper assembly integrity.
• Contract manufacturing: In-process verification of capping machine performance across multiple production lines using standardized test protocols.
• Regulatory submission support: Generation of torque distribution profiles required for ANDA, NDA, or MAA dossiers addressing container-closure integrity.
• Extended use cases: With custom fixtures, the platform supports torque testing of small-diameter fasteners (M2–M8), medical device housings, and diagnostic cartridge latches.

FAQ

What standards does the C612M comply with?
The instrument meets BB/T 0034, GB/T 17876, ASTM D2063, ASTM D3198, ASTM D3474, and BB/T 0025. Optional configurations support ISO 8503-2 surface profile verification for metallic cap substrates.
Is external air supply mandatory?
Yes—the system requires a clean, dry compressed air source at 0.7 MPa (101.5 psi). A 4 mm polyurethane tube is provided; users must supply the air compressor and filtration unit.
Can the C612M perform both opening and closing torque tests on the same sample?
Yes—dual-mode operation allows sequential measurement of removal torque followed by reapplication torque without sample repositioning, supporting cap resealability studies.
How is calibration traceability ensured?
Each unit ships with a factory calibration certificate traceable to NIM. Optional annual recalibration services include uncertainty budgeting and ISO/IEC 17025-accredited reports.
Does the system support remote diagnostics or firmware updates?
Yes—via Ethernet or Wi-Fi (optional module), technicians can initiate secure remote maintenance, firmware upgrades, and configuration backups without onsite visits.
