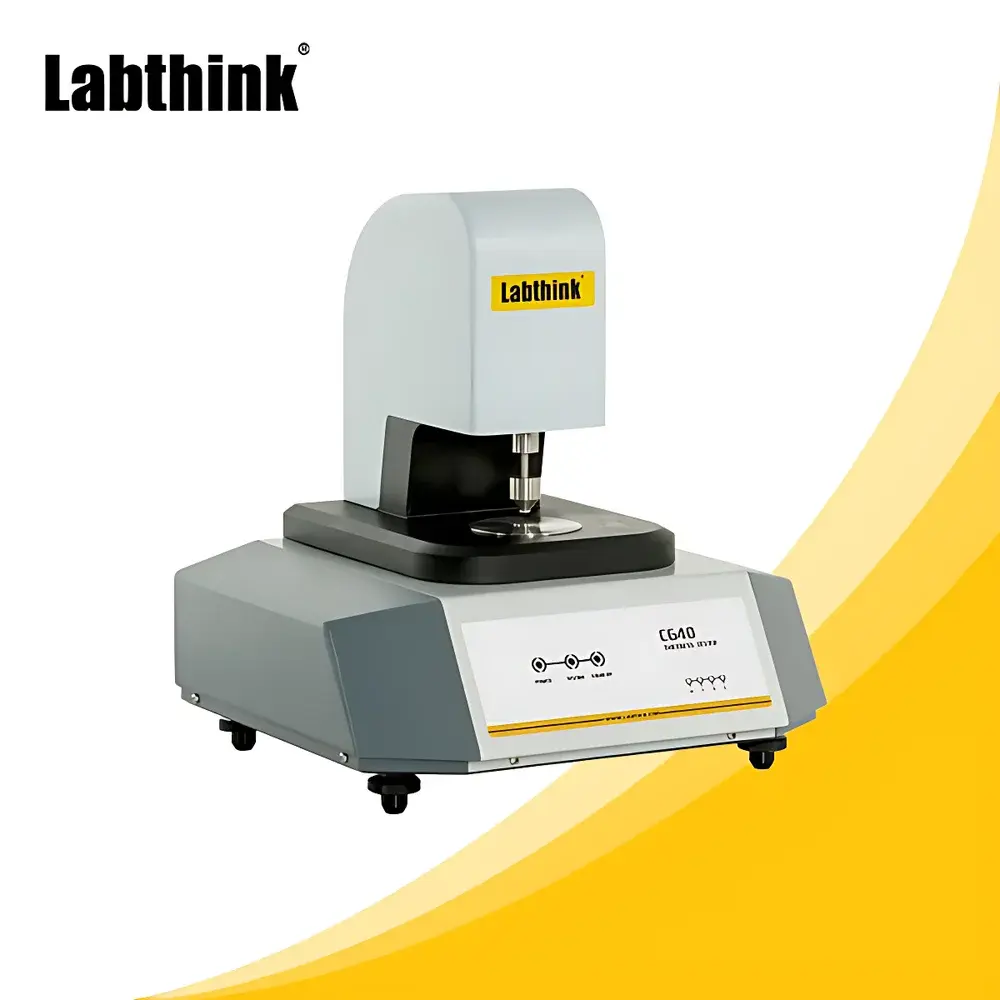

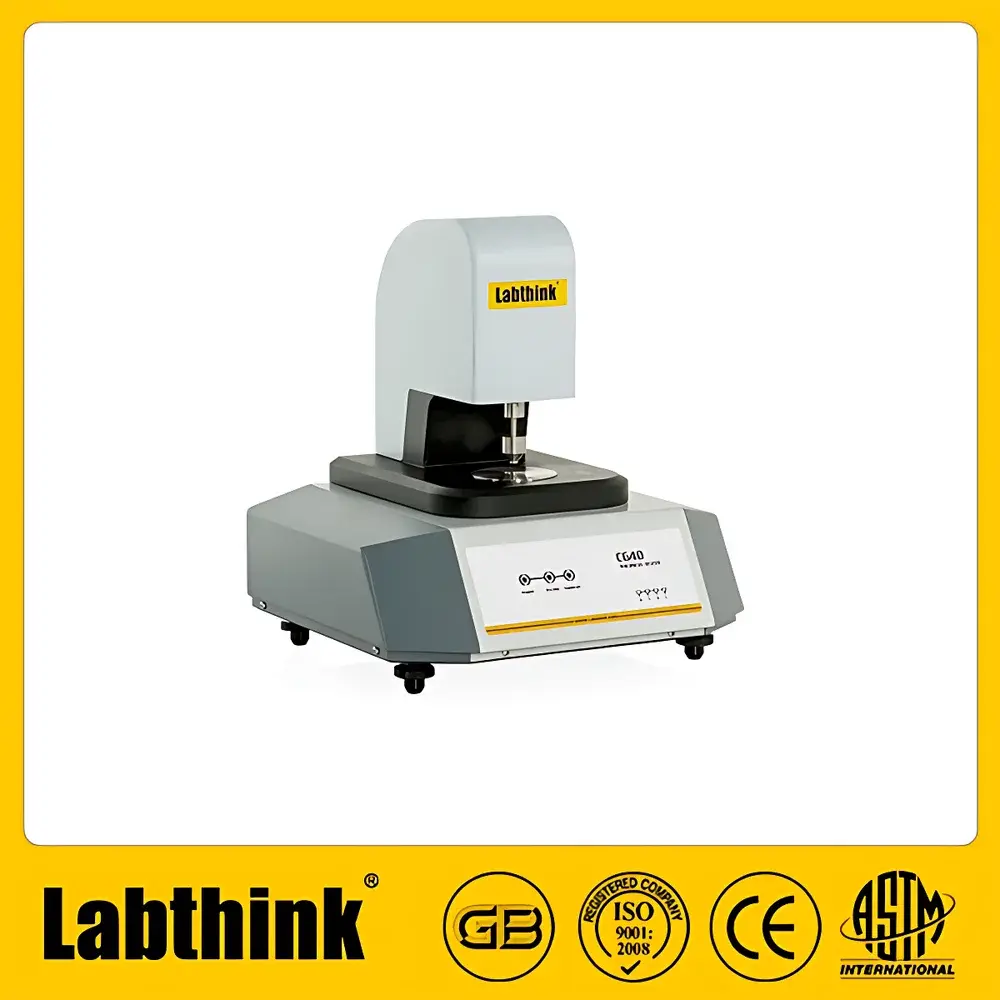

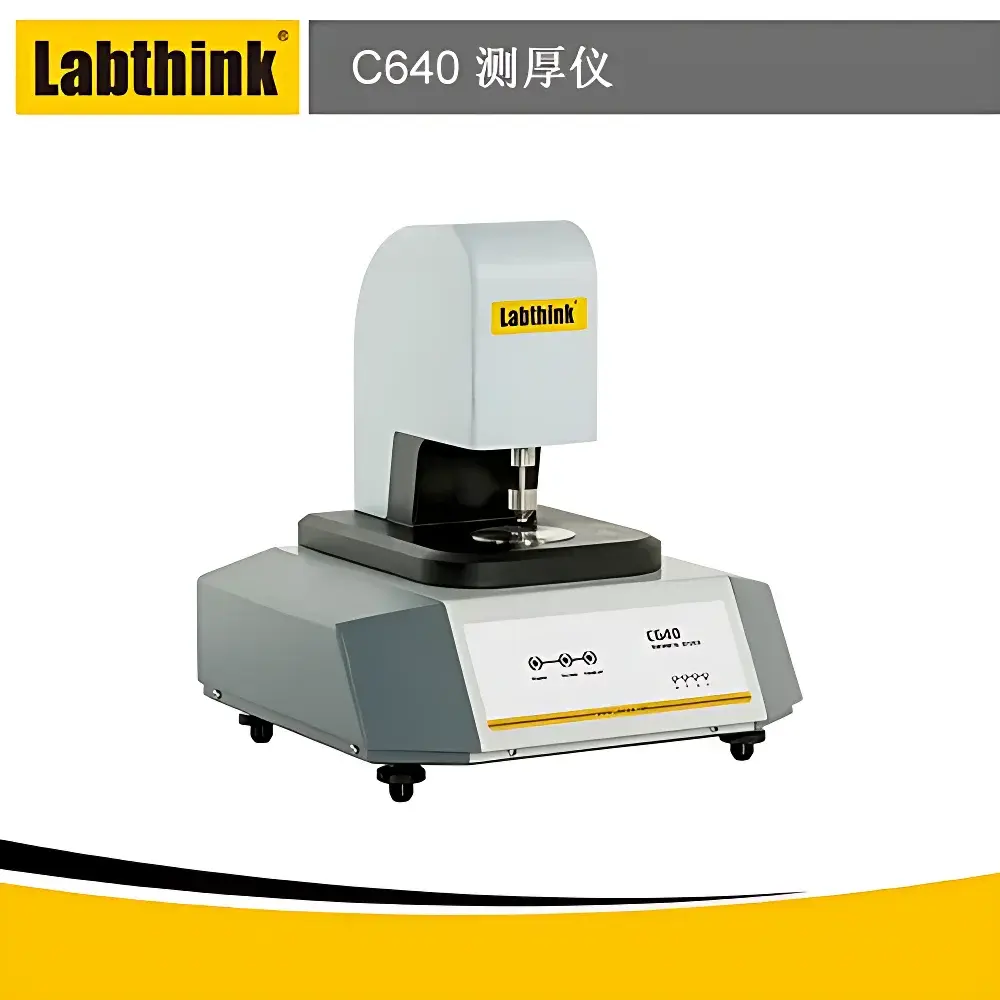

Labthink C640H Paper Thickness Tester Compliant with GB/T 451.3

Overview

The Labthink C640H Paper Thickness Tester is a precision mechanical contact-type thickness measurement instrument engineered for high reproducibility and metrological traceability in quality control laboratories across paper, packaging, and converting industries. It operates on the principle of controlled-force displacement sensing: a calibrated upper measuring anvil applies standardized pressure to the specimen surface while a high-resolution linear variable differential transformer (LVDT) sensor—integrated coaxially with the anvil—measures the vertical displacement between fixed lower and movable upper anvils. This method ensures direct, non-destructive, and geometry-independent thickness determination in accordance with internationally harmonized standards including GB/T 451.3, ISO 534, ASTM D6988, and TAPPI T411. The instrument’s rigid monolithic frame, thermally stable aluminum alloy housing, and anti-vibration base minimize mechanical drift and environmental interference, supporting consistent sub-micron resolution over extended operational cycles.

Key Features

• Ultra-high repeatability of ±0.4 µm under standard paper test conditions (100 kPa, 200 mm² contact area), validated per ISO 5725-2 guidelines.
• Modular pressure configuration: dual-standard load application (100 ± 1 kPa default; 50 ± 1 kPa optional) compliant with both ISO 534 (paperboard) and ISO 4593 (plastic film) requirements.
• Programmable measurement spacing (0–1000 mm) and feed speed (1.5–80 mm/s), enabling configurable multi-point scanning protocols across heterogeneous sheet formats.
• Integrated LVDT displacement sensor with 0.1 µm resolution and factory-traceable calibration certificate (NIST-traceable reference standards available).
• Optional automatic sample feeder unit reduces operator dependency, improves inter-operator consistency, and supports unattended batch testing of up to 100 specimens per run.
• Robust mechanical architecture designed for continuous operation in ISO 17025-accredited labs, with thermal drift compensation and ambient temperature monitoring (15–30 °C operating range).

Sample Compatibility & Compliance

The C640H accommodates a broad spectrum of planar, flexible, and semi-rigid materials within its 0–2 mm standard range—including uncoated and coated papers, corrugated board liners, tissue, filter media, nonwovens (e.g., surgical mask layers, absorbent cores), polymer films (BOPP, PET, PE), metallic foils, silicon wafers, rubber sheets, and geosynthetic membranes. Its compliance portfolio spans over 20 international and regional standards, with built-in test templates for GB/T 451.3 (Chinese national standard for paper thickness), ISO 534 (paper and board), ASTM D6988 (polymer film), TAPPI T411 (paper caliper), and EN 1942 (packaging material identification). Optional GMP-compliant software modules meet FDA 21 CFR Part 11 requirements for electronic records and signatures, including full audit trail, role-based access control, and electronic signature validation—essential for pharmaceutical primary packaging qualification and medical device manufacturing environments.

Software & Data Management

Controlled via Labthink’s proprietary NextGen™ Instrument Control Suite, the C640H delivers intuitive workflow management through a Windows-based GUI supporting multi-language localization (English, Chinese, Spanish, German). The software implements GLP/GMP-aligned data integrity protocols: all measurements are time-stamped, user-logged, and version-controlled; raw sensor data, calibration logs, and test reports are stored in encrypted SQLite databases with SHA-256 hashing. The optional DataShield™ module adds cryptographic signing of PDF reports, immutable blockchain-style ledger logging, and automated backup to network-attached storage (NAS) or cloud repositories (AWS S3, Azure Blob). Export formats include CSV (for LIMS integration), XML (ASTM E1382-compliant), and PDF/A-2b (long-term archival). All software updates undergo formal change control and are accompanied by validation documentation per ICH Q9/Q10 principles.

Applications

• Quality assurance of paper grades in pulp & paper mills: basis weight correlation, caliper uniformity mapping, and moisture-dependent thickness profiling.
• Corrugated board R&D: linerboard thickness verification, flute height validation, and compression resistance modeling inputs.
• Medical packaging compliance: sterile barrier system (SBS) film thickness verification per ISO 11607-1 and ASTM F1929.
• Nonwoven product development: layered composite thickness distribution analysis for hygiene products (diapers, feminine care) and filtration media.
• Regulatory submission support: generation of 21 CFR Part 11-compliant thickness dossiers for FDA premarket notifications (510(k)) and EU MDR technical files.
• Supplier qualification programs: third-party lab certification of incoming raw material thickness tolerances against ISO 2859-1 sampling plans.

FAQ

What standards does the C640H directly support out-of-the-box?
The instrument includes preloaded test methods for GB/T 451.3, ISO 534, ASTM D6988, TAPPI T411, ISO 4593, and EN 1942—with automatic parameter initialization (pressure, dwell time, contact area) upon method selection.
Can the C640H measure textured or embossed paper surfaces?
Yes—its programmable dwell time (0.1–10 s) and adaptive force control allow stable measurement on micro-embossed, creped, or laminated substrates without surface deformation artifacts.
Is calibration traceable to national metrology institutes?
All factory calibrations are performed using NIST-traceable gauge blocks and certified pressure standards; on-site recalibration kits with uncertainty budgets ≤0.2 µm (k=2) are available.
How does the DataShield™ module ensure data integrity during audits?
It generates tamper-evident digital fingerprints for every test record and report, enforces write-once-read-many (WORM) storage policies, and maintains immutable logs of all user actions—including deletions, edits, and export events.
What maintenance intervals are recommended for long-term accuracy?
Annual verification of sensor linearity and pressure transducer accuracy is advised; quarterly cleaning of anvil surfaces with isopropyl alcohol and lint-free wipes ensures optimal contact performance.
