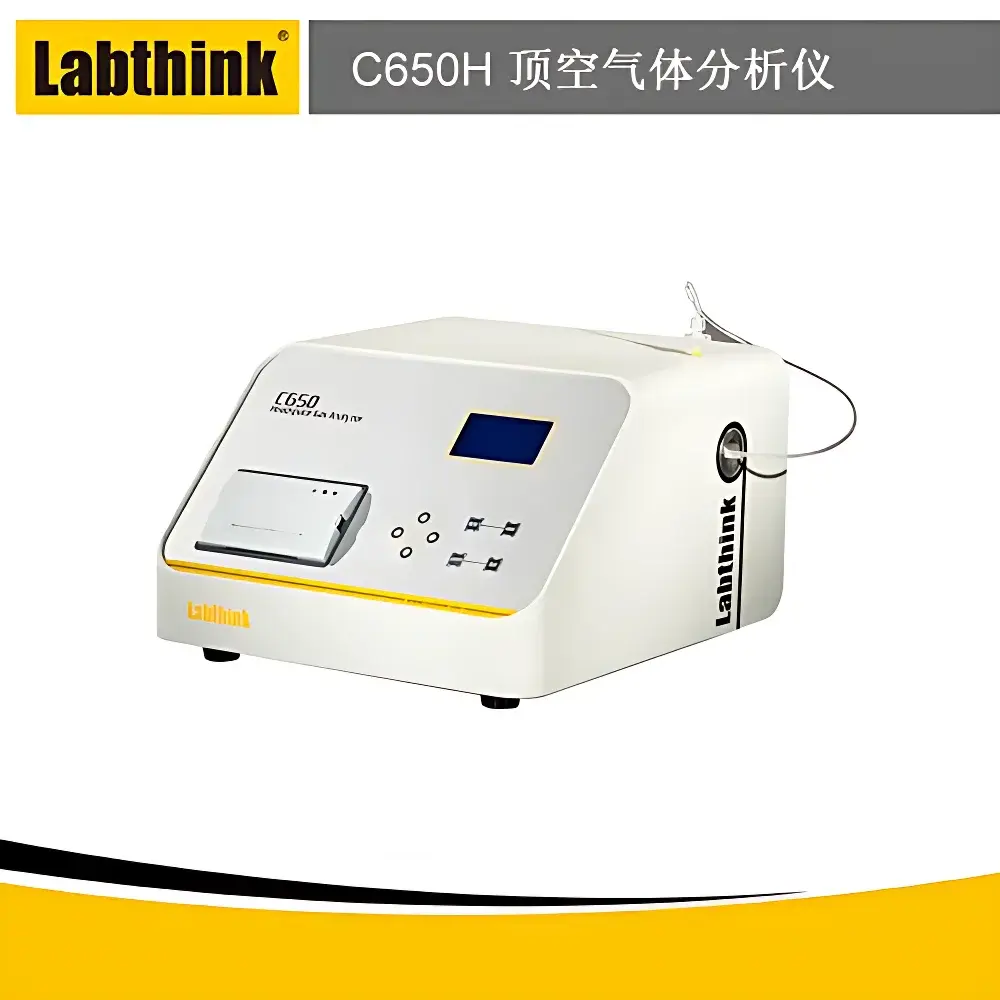

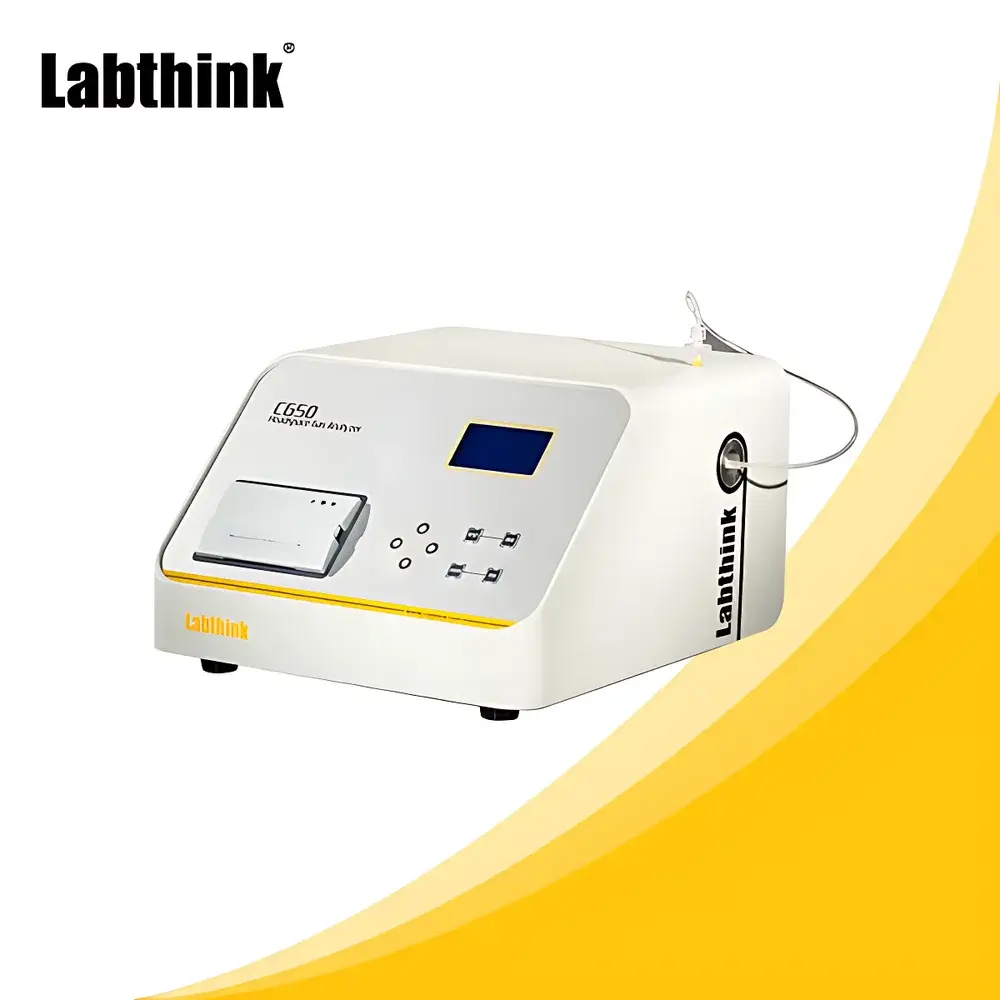

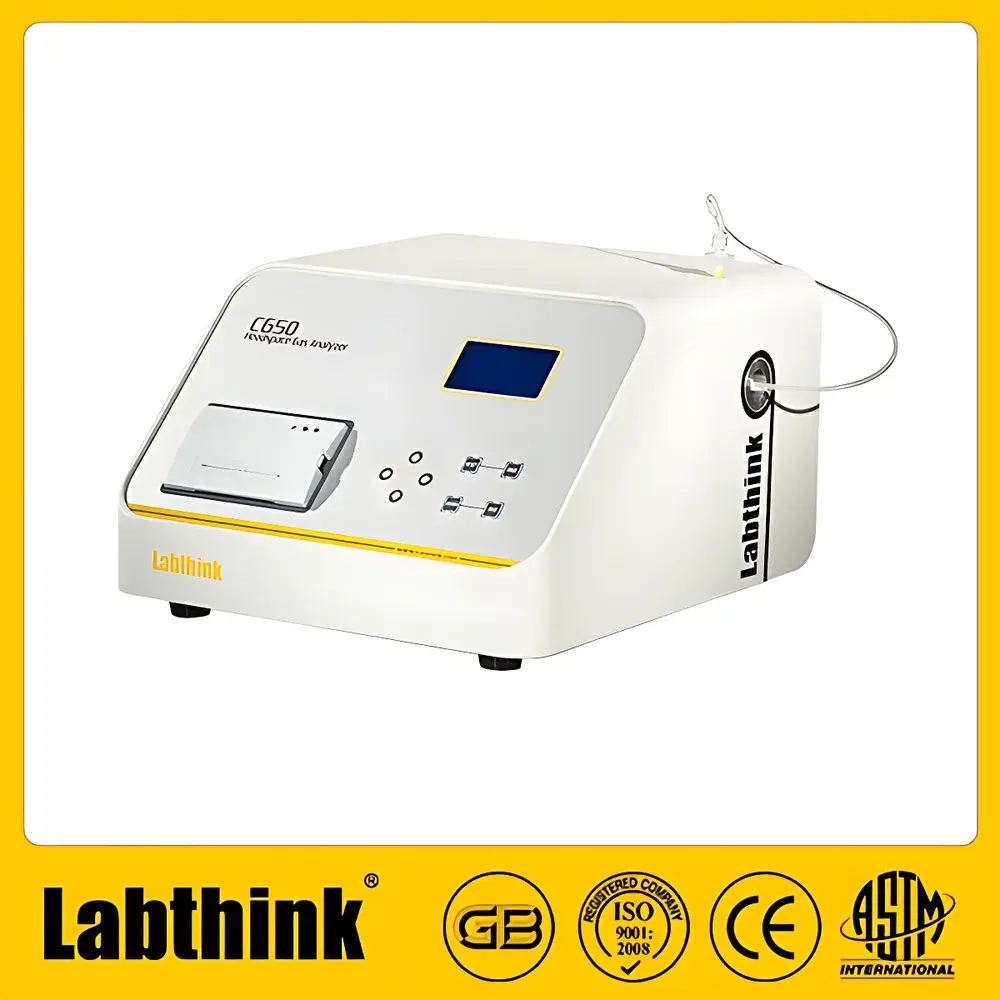

Labthink C650H Headspace Gas Analyzer for Modified Atmosphere Packaging (MAP)

Overview

The Labthink C650H Headspace Gas Analyzer is a dedicated benchtop instrument engineered for precise, non-destructive quantification of residual oxygen (O₂) and optional carbon dioxide (CO₂) concentrations in the headspace of sealed flexible and rigid packaging. Designed specifically for quality assurance in modified atmosphere packaging (MAP) applications, it operates on the principle of electrochemical gas sensing—where target gases diffuse through a selective membrane and undergo controlled redox reactions at a ceramic-based electrode assembly, generating a linear current proportional to gas concentration. This measurement architecture ensures high specificity for O₂ without cross-sensitivity to moisture, CO, or N₂, and—when equipped with the optional CO₂ sensor—enables dual-gas verification critical for shelf-life validation, process control, and regulatory compliance in food, pharmaceutical, and nutraceutical manufacturing.

Key Features

• Proprietary non-consumable ceramic electrochemical O₂ sensor with >2-year operational lifetime under routine use—eliminates frequent sensor replacement and calibration drift associated with traditional zirconia or galvanic cells.
• Modular sensor architecture supporting field-upgradable CO₂ detection (0–100% range), enabling single-instrument validation of both primary MAP gases without external analyzers.
• Integrated microprocessor-controlled vacuum sampling system with programmable draw rate and pressure stabilization—ensures consistent sample volume delivery (≥5 mL for O₂; ≥20 mL for CO₂) across diverse package geometries and barrier properties.
• Bilingual (English/Chinese) graphical LCD interface with intuitive menu navigation, real-time signal monitoring, and on-screen pass/fail thresholds aligned with internal QA protocols.
• Onboard data management: stores up to 1,000 test records with timestamp, sample ID, gas concentration, and environmental conditions; supports export via RS232 to LIMS or Excel-compatible databases.
• Compact, portable chassis (350 × 330 × 200 mm; 5.5 kg) certified for operation in ambient environments ranging from 10–35°C and 30–80% RH—validated for deployment in production lines, QC labs, and warehouse inspection stations.

Sample Compatibility & Compliance

The C650H accommodates a broad spectrum of commercial packaging formats—including stand-up pouches, pillow packs, vacuum-sealed trays, aluminum-laminated sachets, metal cans, glass jars, PET bottles, Tetra Pak® cartons, and pharmaceutical ampoules—via interchangeable sampling accessories (e.g., hardened stainless-steel puncture needles, underwater sampling kits for buoyant packages, and rigid-container adapters). All measurements comply with ISO 11607-2:2019 (Packaging for terminally sterilized medical devices) for headspace gas verification and align with ASTM F2476-22 (Standard Test Method for Oxygen Transmission Rate Through Plastic Film Using a Coulometric Sensor) for method traceability. When used with validated SOPs, the system supports GLP-compliant documentation and satisfies FDA 21 CFR Part 11 requirements for electronic records when paired with Labthink’s optional audit-trail-enabled software suite.

Software & Data Management

The C650H communicates bidirectionally with Labthink’s proprietary GasLab™ PC software (optional) via RS232 serial interface. GasLab™ provides advanced functionality including automated report generation (PDF/CSV), statistical process control (SPC) charting (X̄-R, Cp/Cpk), multi-user permission tiers, and full audit trail logging per FDA 21 CFR Part 11 Annex 11 guidelines. Raw sensor voltage outputs, temperature-compensated concentration values, and sampling event metadata are time-stamped and cryptographically signed upon export. Internal memory retains all results even during power interruption, and the integrated thermal printer produces tamper-evident hardcopy reports featuring instrument ID, operator login, calibration status, and test parameters—essential for ISO 9001:2015 clause 8.2.4 traceability.

Applications

This analyzer serves as a core tool for quantitative headspace verification across regulated and high-value supply chains. In dairy and infant nutrition, it validates O₂ < 0.5% in nitrogen-flushed奶粉 (infant formula) pouches to prevent lipid oxidation. For ready-to-eat meals and chilled meats, it confirms CO₂/O₂ ratios within specified MAP blends (e.g., 30% CO₂ / 70% N₂) to inhibit microbial growth while preserving texture. In pharmaceutical secondary packaging, it verifies O₂ ≤ 1.0% in blister cavities containing moisture-sensitive APIs—directly supporting ICH Q5C stability protocol adherence. Additional applications include shelf-life modeling input generation, incoming raw material container qualification, and post-sterilization ampoule headspace screening per USP .

FAQ

What gas types can the C650H measure simultaneously?
The instrument measures O₂ as standard; CO₂ requires installation of the optional sensor module—both cannot operate concurrently in a single test cycle.
Is calibration required before each test?
No. The ceramic O₂ sensor is factory-calibrated with NIST-traceable reference gases; periodic verification (every 30 days or per SOP) using zero air and 20.9% O₂ standard is recommended.
Can the C650H analyze headspace in foil-laminated or metallized packaging?
Yes—provided the sampling needle fully penetrates the laminate structure without clogging; Labthink supplies specialized tungsten-carbide-tipped needles for high-barrier films.
Does the system support IQ/OQ/PQ documentation packages?
Yes. Labthink provides full validation documentation kits—including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols—upon request for GMP-regulated facilities.
What maintenance is required for long-term reliability?
Annual sensor performance verification, biannual filter replacement (included in standard kit), and quarterly cleaning of the vacuum line and sampling port with isopropyl alcohol.
