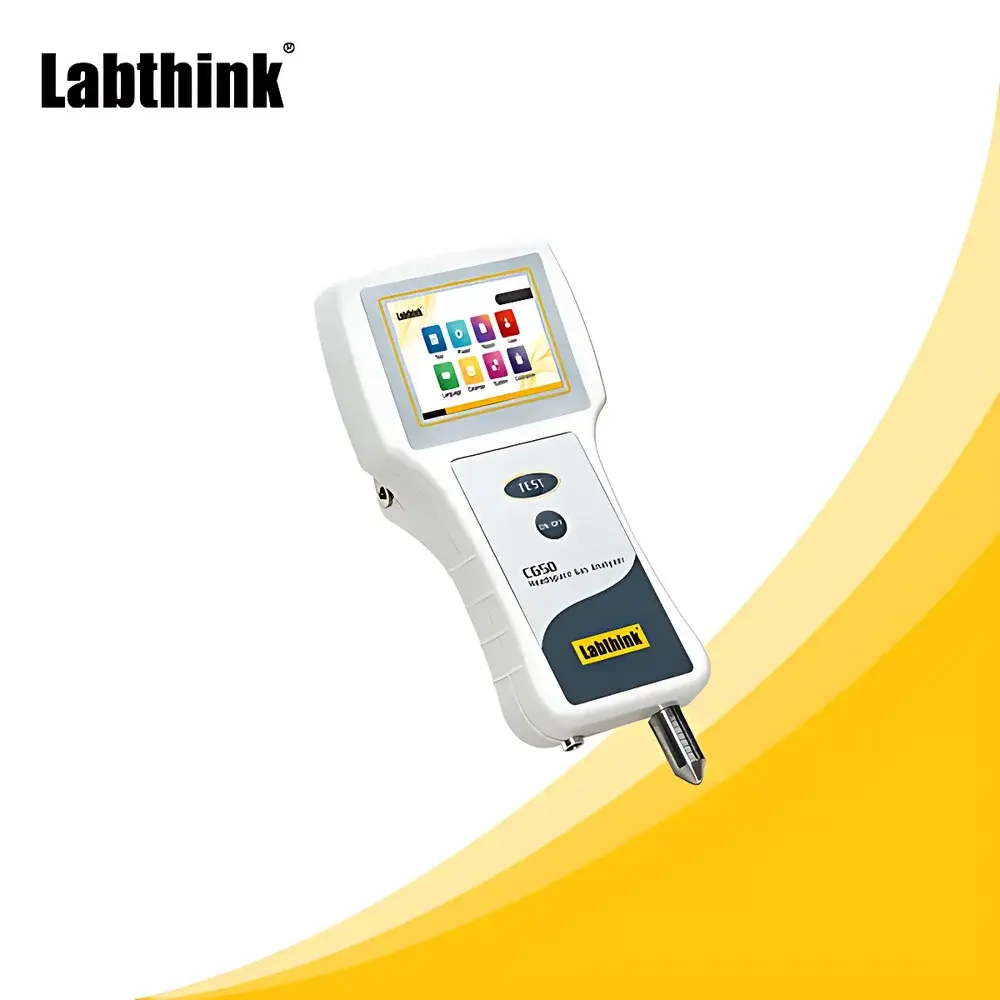

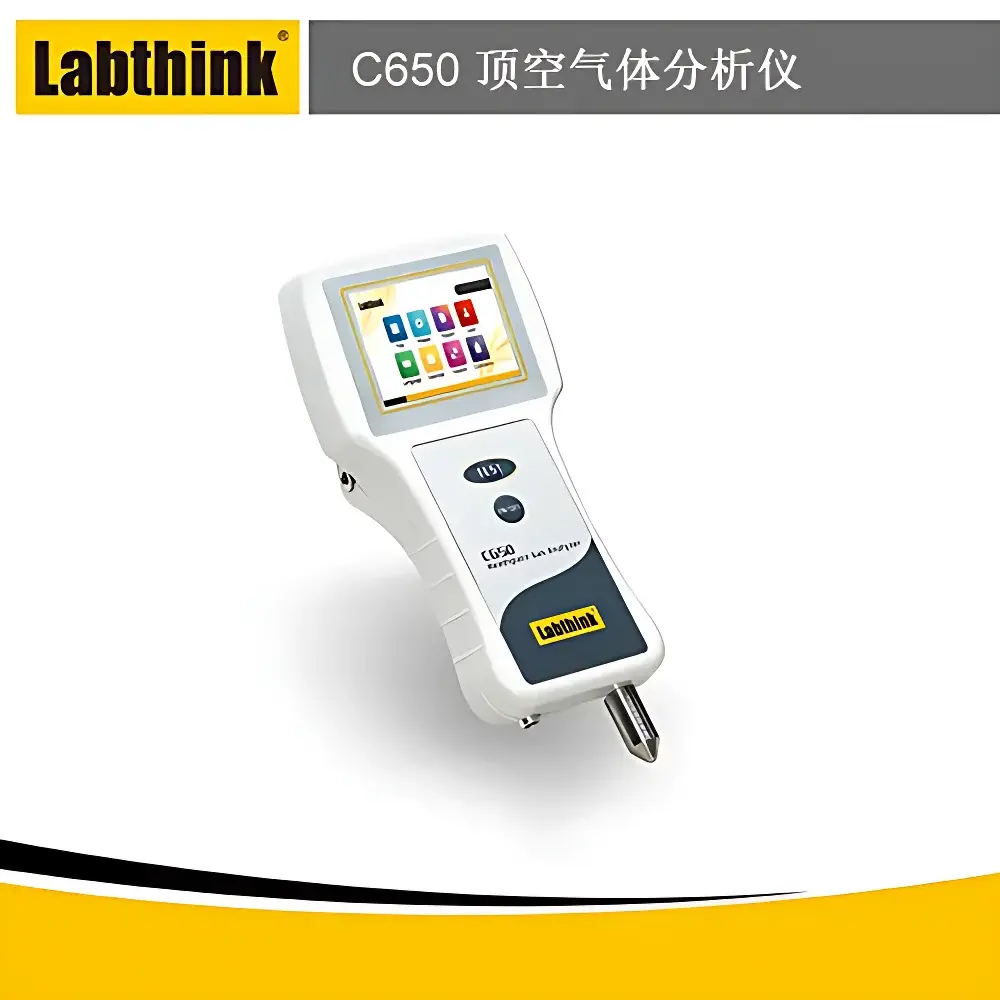

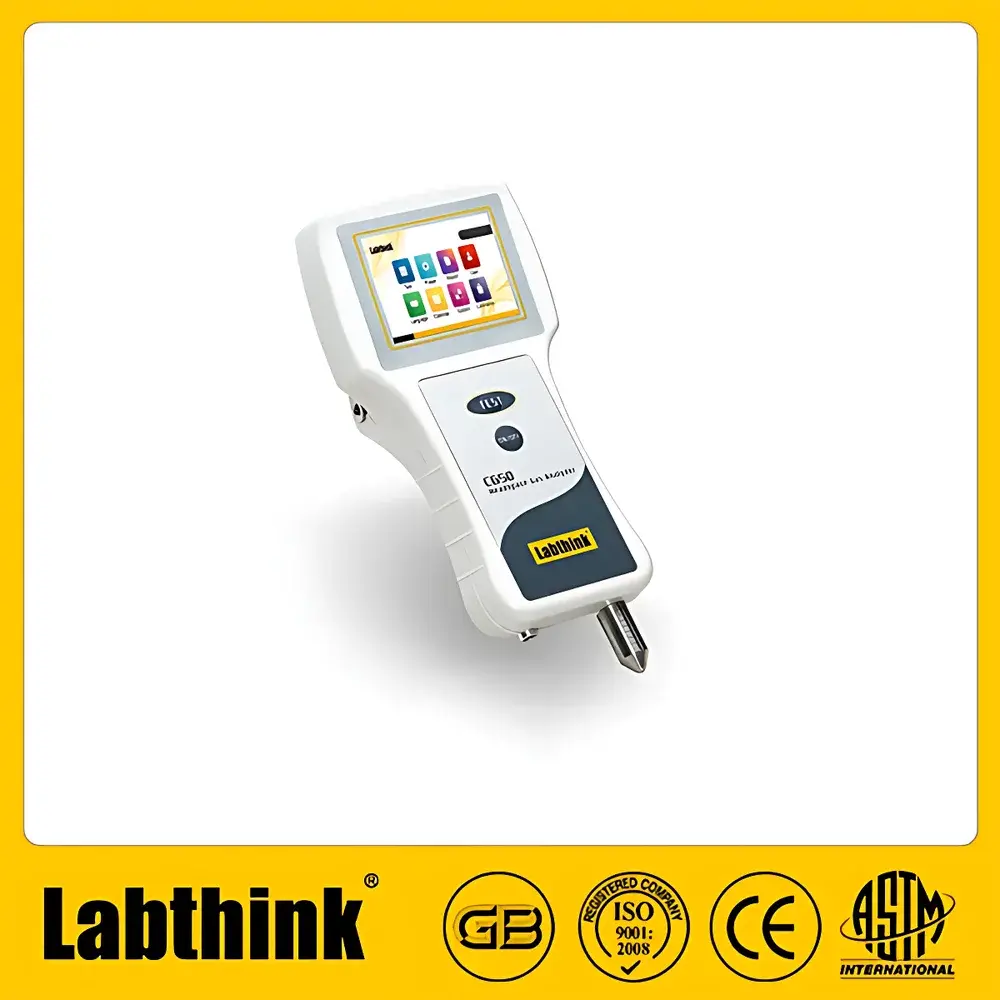

Labthink C650M Handheld Headspace Analyzer for Residual Oxygen and CO₂ in Packaging

Overview

The Labthink C650M Handheld Headspace Analyzer is an engineered solution for rapid, on-site quantification of residual oxygen (O₂) and carbon dioxide (CO₂) concentrations within sealed packaging headspaces. Designed specifically for quality assurance in food, pharmaceutical, and consumer goods packaging, the instrument operates on dual-sensor electrochemical (O₂) and non-dispersive infrared (NDIR) absorption (CO₂, optional) principles—ensuring trace-level sensitivity and high reproducibility across diverse container geometries. Its compact, ergonomic form factor enables direct deployment at production lines, cold storage facilities, warehouse inspection zones, and QC laboratories—eliminating reliance on benchtop gas chromatography or centralized lab analysis. The system draws a representative gas sample via integrated micro-vacuum pump and proprietary quick-connect sampling needle, delivering real-time voltage signals from calibrated sensors to an embedded microprocessor for stoichiometric concentration calculation. All measurements comply with internationally recognized headspace analysis protocols—including ASTM F2476 (Standard Test Method for Determination of Oxygen in Package Headspace Using Electrochemical Sensors) and ISO 11607-2 (Packaging for terminally sterilized medical devices), supporting regulatory alignment in GMP and GLP environments.

Key Features

• True handheld architecture: Weighing only 0.6 kg with dimensions of 220 × 110 × 70 mm, the C650M supports one-handed operation and field portability without sacrificing analytical integrity.
• Automated sensor calibration: One-touch zero-point and span calibration routines reduce operator dependency and ensure metrological traceability between tests.
• Dual-gas capability: Standard electrochemical O₂ sensor (0–100%, ±0.2% accuracy) with optional factory-integrated NDIR CO₂ module (0–100%, ±[0.03% + 5% of reading]), both featuring long-lifetime solid-state components (O₂: ~2 years in ambient air; CO₂: >15 years).
• Integrated vacuum pressure sensing: Built-in piezoresistive transducer measures internal package vacuum level concurrently with gas composition—critical for evaluating seal integrity and modified atmosphere packaging (MAP) efficacy.
• Industrial-grade touchscreen interface: 5-inch capacitive display with intuitive icon-driven navigation, bilingual (English/Chinese) firmware, automatic power-off, and battery-backed memory retention.
• Robust sampling hardware: Quick-release stainless-steel sampling needle with replaceable PTFE filter and silicone-sealed protective sleeve minimizes cross-contamination and ensures operator safety during puncture-based headspace extraction.

Sample Compatibility & Compliance

The C650M accommodates a broad range of rigid and flexible packaging formats without requiring custom fixtures. Validated applications include stand-up pouches, aluminum foil laminates, PET/PE trays, metal cans, glass jars, Tetra Pak® cartons, plastic bottles, and pharmaceutical ampoules. Its low-volume sampling protocol (<2 mL for O₂; 15 mL for CO₂) preserves package sterility and prevents false-negative results caused by excessive headspace depletion. Instrument validation documentation aligns with FDA 21 CFR Part 11 requirements for electronic records and signatures when used with optional Labthink Control Software. Data output meets audit-ready standards per ISO/IEC 17025 and supports compliance with USP (Package Integrity Evaluation), EU Annex 1 (Sterile Product Manufacturing), and China’s GB/T 28118-2011 (Flexible Packaging—Determination of Headspace Gases).

Software & Data Management

The C650M stores up to 1200 test records internally, each timestamped and tagged with operator ID, sample ID, and environmental conditions (optional external temperature/humidity input). USB 2.0 interface enables bidirectional data transfer to Windows-based Labthink Control Software (v3.2+), which provides statistical process control (SPC) charting, batch trend analysis, PDF report generation, and CSV export for LIMS integration. Optional wireless thermal printer support delivers immediate hardcopy verification at point-of-test. Firmware updates are performed remotely via USB or SD card—ensuring continuous conformance with evolving regulatory guidance without hardware modification.

Applications

• Food industry: Monitoring O₂ ingress in coffee pouches, dairy powder sachets, baked goods MAP packages, and chilled ready-to-eat meals to validate shelf-life models and prevent oxidative rancidity.
• Pharmaceuticals: Verifying inert headspace integrity in blister packs, vials, and ampoules containing oxygen-sensitive biologics or lyophilized formulations.
• Beverage sector: Quantifying CO₂ retention in carbonated soft drink cans and PET bottles to assess closure performance and carbonation stability.
• Medical device packaging: Confirming nitrogen flush efficacy in Tyvek®-sealed trays for sterile surgical instruments per ISO 11607-2 Annex D.
• Quality auditing: Performing unannounced line checks during packaging machine changeovers or after maintenance interventions to verify parameter consistency.

FAQ

What gases can the C650M measure simultaneously?
The instrument measures O₂ as standard; CO₂ measurement requires optional NDIR sensor installation—both gases cannot be analyzed in a single test cycle due to differing sampling volumes and sensor response times.
Is calibration required before every test?
No—automatic one-button calibration is recommended daily or after significant ambient temperature shifts (>5°C); full two-point calibration (zero/span) is advised weekly or per internal QA protocol.
Can the C650M analyze headspace in vacuum-packed products?
Yes—the integrated pressure sensor enables simultaneous vacuum level assessment (range: 0–100 kPa absolute) alongside O₂/CO₂ quantification, supporting leak detection and vacuum decay correlation studies.
Does the device meet FDA 21 CFR Part 11 requirements?
When operated with Labthink Control Software and configured with user authentication, audit trail logging, and electronic signature functionality, the system satisfies Part 11 technical controls for closed systems.
What is the minimum headspace volume required for reliable measurement?
For O₂ analysis: ≥3 mL total headspace volume is recommended to ensure representative sampling; for CO₂ (with 15 mL draw volume): ≥20 mL is advised to maintain stoichiometric equilibrium during aspiration.
