Labthink C650M Portable Headspace Gas Analyzer for Oxygen and Carbon Dioxide in Modified Atmosphere Packaging

Overview

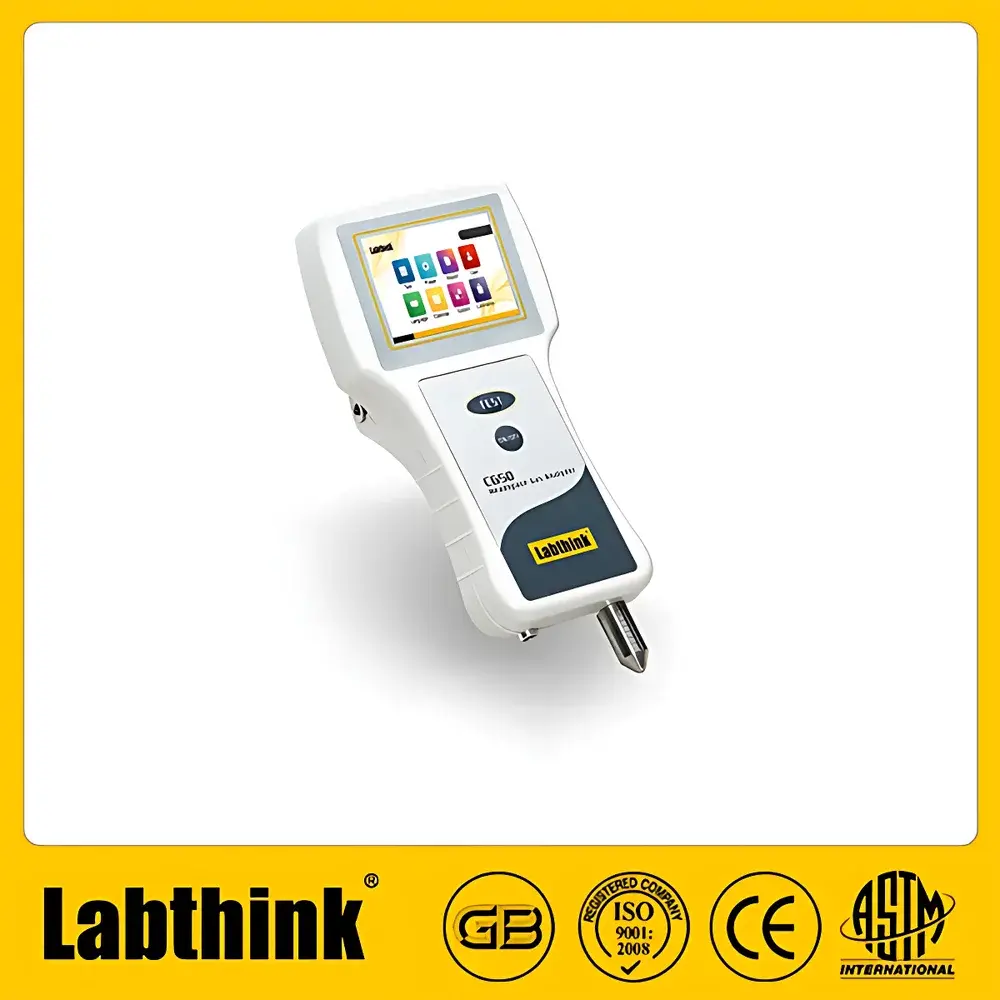

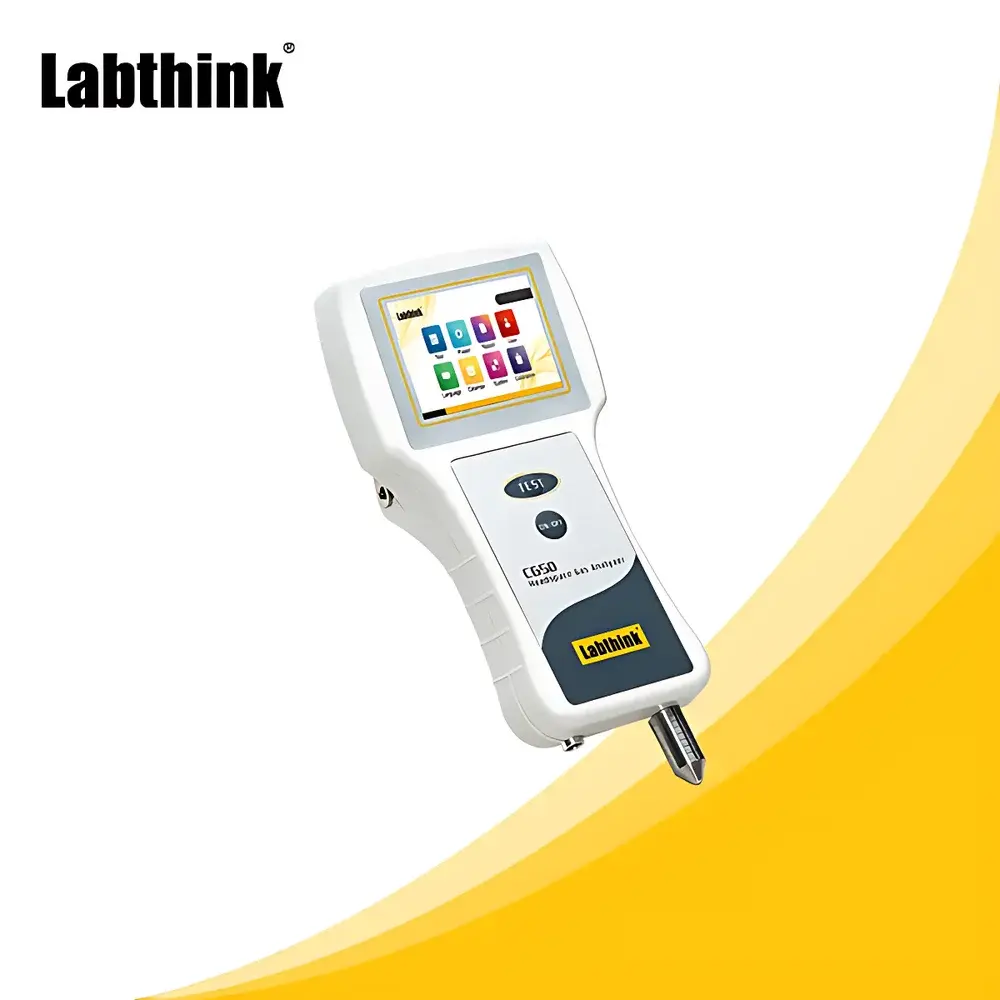

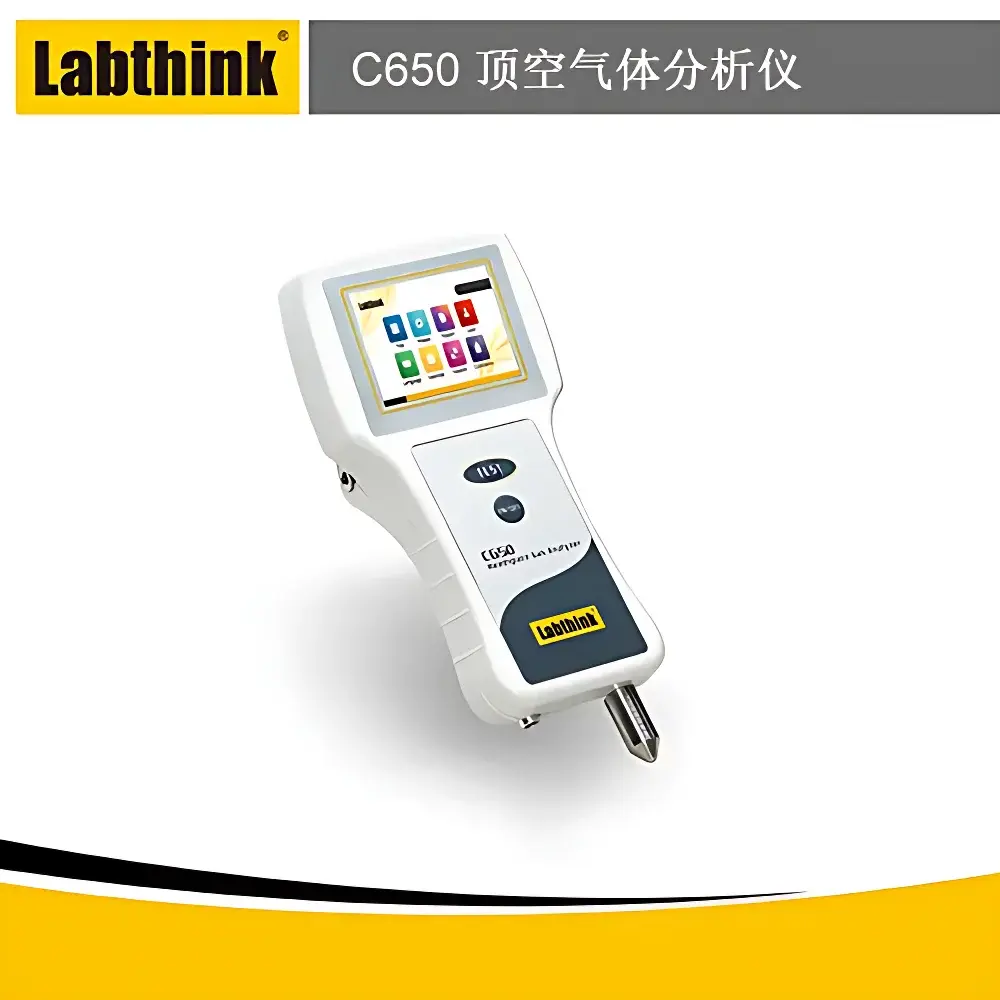

The Labthink C650M Portable Headspace Gas Analyzer is an engineered solution for rapid, field-deployable quantification of residual oxygen (O₂) and carbon dioxide (CO₂) concentrations within sealed packaging headspace—specifically designed for modified atmosphere packaging (MAP) validation in the food, pharmaceutical, and nutraceutical industries. It operates on two distinct, industry-accepted transduction principles: electrochemical sensing for O₂ and non-dispersive infrared (NDIR) absorption spectroscopy for CO₂. The instrument extracts a representative gas sample from the headspace of flexible pouches, rigid containers (e.g., cans, glass jars, Tetra Pak), or ampoules via integrated micro-volume vacuum aspiration, delivering real-time voltage signals proportional to analyte concentration. These signals are digitally processed using factory-calibrated algorithms traceable to NIST-certified reference gases, ensuring metrological consistency across operational environments—from production line checkpoints and warehouse QA bays to R&D laboratories.

Key Features

• True handheld architecture: Compact form factor (220 × 110 × 70 mm), 0.6 kg net weight, and ergonomic single-hand operation enable uninterrupted use in dynamic industrial settings without external support stands or power conditioning.
• Dual-sensor modularity: Standard O₂ electrochemical sensor with 0.01% resolution and ±0.2% absolute accuracy; optional CO₂ NDIR module featuring patented solid-state LED source, gold-coated optical path, and thermopile detector—delivering >15-year service life and immunity to cross-sensitivity from water vapor or hydrocarbons.
• Integrated vacuum pressure measurement: Built-in piezoresistive transducer enables concurrent assessment of internal package vacuum level (e.g., for retort pouches or vacuum-sealed cheese), supporting root-cause analysis of seal integrity failures.
• Intelligent embedded OS: Industrial-grade capacitive touchscreen with bilingual (English/Chinese) GUI, one-touch auto-calibration against ambient air (O₂) or certified zero gas (CO₂), automatic power-down after 10 minutes idle, and persistent memory retention during unexpected power loss.
• Robust sampling interface: Quick-release stainless-steel sampling needle with snap-on protective sleeve minimizes contamination risk and operator exposure during puncture-based headspace extraction from laminated films or aluminum foils.

Sample Compatibility & Compliance

The C650M accommodates a broad spectrum of commercially relevant packaging formats: flexible laminated pouches (e.g., coffee, snack foods, infant formula), rigid metal/glass containers (canned vegetables, powdered dairy, beverages), aseptic cartons (UHT milk), and sterile glass ampoules. Its low-volume sampling protocol (<2 mL for O₂, 15 mL for CO₂) preserves package integrity and avoids false-negative results due to excessive gas removal. The analyzer supports compliance workflows aligned with ISO 11607-2 (packaging validation), ASTM F2476 (O₂ permeation in medical packaging), USP (container closure integrity testing), and FDA 21 CFR Part 11 when paired with Labthink’s optional audit-trail-enabled PC software—providing electronic signatures, user access controls, and immutable data export in CSV or PDF format.

Software & Data Management

Onboard storage retains up to 1200 complete test records—including timestamp, sample ID, O₂/CO₂ values, vacuum pressure, operator code, and environmental temperature—accessible via scrollable history view. USB 2.0 port enables direct transfer to Windows-based systems running Labthink’s proprietary C650M Control Suite, which provides batch reporting, statistical process control (SPC) charting (X̄-R, Cp/Cpk), deviation alerts, and automated generation of GLP-compliant test certificates. Optional Bluetooth-enabled thermal printer delivers immediate hardcopy output with configurable headers (company logo, SOP number, analyst initials). Firmware updates are performed remotely via USB or cloud-synced OTA protocols, ensuring continuous alignment with evolving regulatory expectations.

Applications

• Production line verification: Real-time monitoring of MAP gas mixtures (e.g., 70% N₂/30% CO₂ for fresh-cut salads) post-fill and pre-case packing to confirm target atmospheres before palletization.
• Warehouse stability studies: Periodic headspace analysis of aged stock to detect O₂ ingress through barrier films or seal degradation over shelf life.
• QC release testing: Final acceptance of sterile pharmaceutical vials and lyophilized product containers per ICH Q5C guidelines on residual moisture and headspace composition.
• R&D formulation trials: Comparative evaluation of novel barrier coatings, adhesive systems, or film structures under accelerated aging conditions (40°C/75% RH).
• Supplier qualification: Objective assessment of third-party packaging vendors’ ability to meet contractual O₂/CO₂ specifications prior to full-scale procurement.

FAQ

What gas standards are required for calibration?
The O₂ sensor is calibrated automatically using ambient air (20.9% O₂) as the primary reference; no external gas cylinder is needed. For CO₂, a certified zero-gas standard (N₂ or synthetic air) is recommended annually for drift verification.
Can the C650M analyze nitrogen (N₂) directly?
No. N₂ is inferred by difference: %N₂ = 100% − %O₂ − %CO₂. This method is validated for binary and ternary MAP systems where argon or other inert gases are not present.
Is underwater sampling supported for leak-prone packages?
Yes—via optional B2226 Submerged Headspace Sampling Module, which enables bubble-free gas extraction from packages submerged in water, eliminating false positives caused by micro-leaks during needle insertion.
How often does the O₂ sensor require replacement?
Typical service life is 24 months under continuous use in ambient air; performance decay is monitored via built-in diagnostics and flagged when signal-to-noise ratio falls below ISO 17025-defined thresholds.
Does the device comply with electromagnetic compatibility (EMC) directives for industrial zones?
Yes—certified to IEC 61326-1:2013 Class A (industrial environment) for emission and immunity, including surge protection per IEC 61000-4-5 and ESD resistance per IEC 61000-4-2 Level 4.
