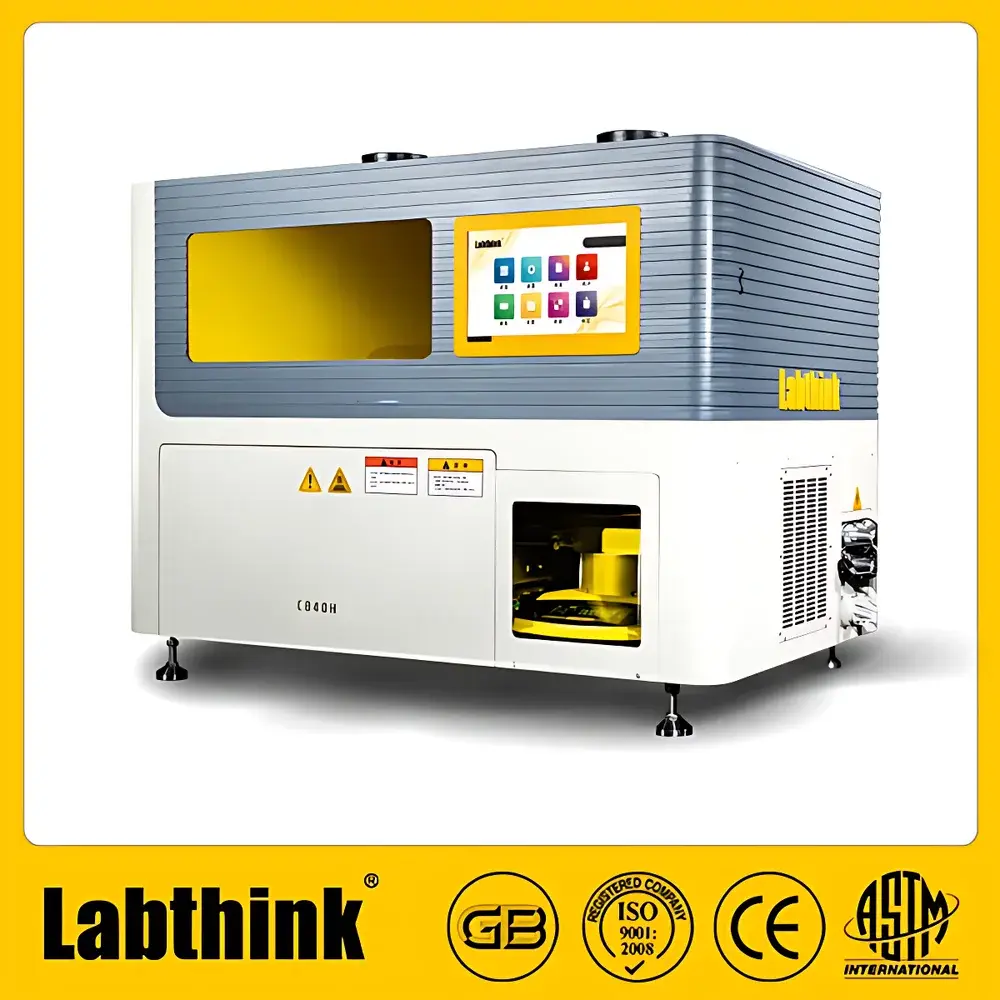

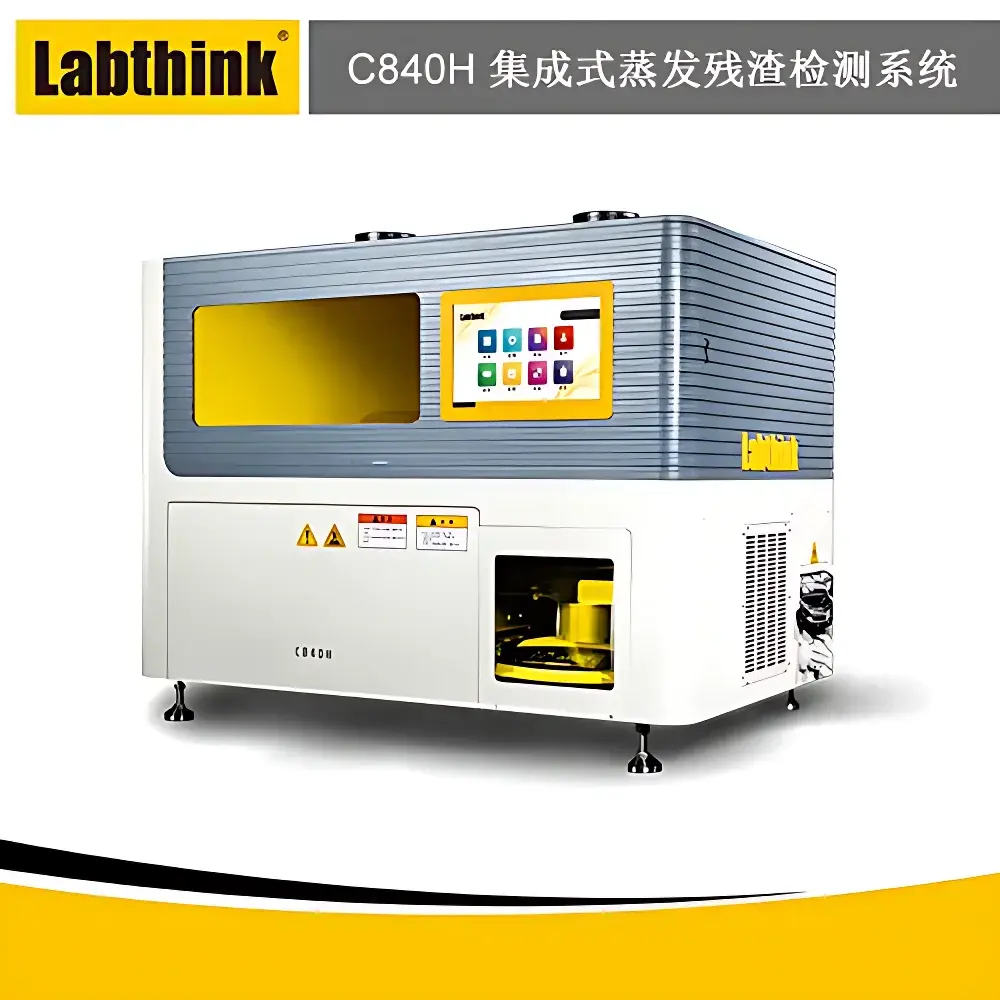

Labthink C840H Non-Volatile Residue (NVR) Determination Instrument for Pharmaceutical Packaging Materials and Containers

Overview

The Labthink C840H Non-Volatile Residue (NVR) Determination Instrument is a dedicated gravimetric system engineered for the quantitative assessment of non-volatile residue in purified water used to rinse pharmaceutical packaging materials and containers—per regulatory requirements outlined in Chinese Pharmacopoeia (ChP) General Chapter 0901, United States Pharmacopeia (USP) , and ISO 15378:2017. It operates on the principle of controlled evaporation followed by precision gravimetric analysis: a defined volume of rinse solution (typically purified water or other specified extractants) is evaporated under standardized temperature and airflow conditions, and the residual mass—representing non-volatile extractables—is measured using an integrated high-resolution analytical balance with automatic tare and drift compensation. The instrument ensures traceable, repeatable determination of NVR content (expressed in mg per unit surface area or per container), supporting critical quality control for primary packaging components such as glass vials, plastic syringes, rubber stoppers, and polymer-based blister films.

Key Features

• Integrated dual-zone thermal chamber with independent PID-controlled heating and forced-air convection for uniform, reproducible solvent evaporation across multiple samples simultaneously.
• Embedded high-precision analytical balance (0.01 mg readability, internal calibration with certified weights) synchronized with evaporation cycles to minimize handling-induced error.
• Automated gravimetric endpoint detection: real-time mass monitoring with configurable stability criteria (e.g., ≤0.02 mg change over 10 min) triggers automatic cycle termination and data logging.
• Stainless-steel sample platform compliant with ISO 14644-1 Class 5 cleanroom compatibility; removable, autoclavable evaporation dishes (borosilicate glass or inert quartz) included.
• Touchscreen HMI with guided workflow navigation, pre-loaded ChP/USP test protocols, and user-defined method storage (up to 50 methods).
• Robust mechanical architecture designed for continuous operation in QC laboratories—meets IEC 61000-4 electromagnetic compatibility standards and IP20 enclosure rating.

Sample Compatibility & Compliance

The C840H accommodates standard USP/ChP-compliant rinse volumes (e.g., 100 mL, 200 mL) and supports extraction solutions including purified water, 50% ethanol–water, and 0.9% sodium chloride injection—validated per ICH Q5C and Q5D guidance. Sample holders accept up to eight 100-mL evaporation dishes or four 250-mL dishes per run. All wetted parts are chemically inert (316L stainless steel, borosilicate glass, PTFE seals), eliminating leachable interference. The system facilitates full compliance with Good Manufacturing Practice (GMP) Annex 11, FDA 21 CFR Part 11 (when paired with Labthink’s optional audit-trail-enabled software), and ISO/IEC 17025 documentation requirements for method validation—including repeatability (RSD ≤3.0%), intermediate precision, and recovery studies (85–115%).

Software & Data Management

The instrument operates natively via embedded firmware but integrates seamlessly with Labthink’s WinCT-NVR software (v3.2+), a Windows-based application supporting electronic records, role-based user access control, and automated report generation in PDF/A-1b format. Raw mass data—including initial dish weight, post-rinse weight, post-evaporation weight, and calculated NVR—are timestamped and stored with full audit trail (user ID, action, time, IP address). Data export options include CSV, Excel, and XML formats compatible with LIMS integration. Software validation packages (IQ/OQ/PQ protocols) and 21 CFR Part 11 compliance kits—including digital signatures, electronic logs, and secure password policies—are available upon request.

Applications

• Quantification of non-volatile residue from primary packaging materials (e.g., cyclic olefin copolymer vials, silicone-coated stoppers, aluminum-plastic blisters) after simulated extractable studies.
• Batch release testing of sterile drug product containers per pharmacopoeial monographs and internal SOPs.
• Investigation of cleaning validation endpoints for reusable packaging components in biologics manufacturing.
• Supporting extractables and leachables (E&L) risk assessments per PQRI and USP guidelines.
• Method development and transfer for NVR testing across global QC sites, ensuring harmonized results under ChP, USP, EP, and JP regulatory frameworks.

FAQ

What pharmacopoeial standards does the C840H directly support?
The C840H is pre-configured for ChP 0901, USP , and EP 3.2.12; method parameters can be adjusted to align with JP 17 or other regional specifications.
Can the instrument be used for organic solvent-based extractions?
Yes—provided appropriate ventilation and safety interlocks are implemented; evaporation temperature and airflow must be optimized per solvent flash point and vapor pressure per OSHA and NFPA guidelines.
Is external balance calibration required?
No—the integrated balance performs automatic internal calibration at startup and user-initiated intervals; external verification with NIST-traceable weights is recommended quarterly.
How is data integrity ensured during power interruption?
The system features non-volatile memory retention for active method steps and mass readings; upon restart, it resumes from last stable checkpoint without data loss.
Does Labthink provide installation qualification (IQ) documentation?
Yes—factory-issued IQ templates, equipment specification sheets, and wiring diagrams are supplied standard; site-specific OQ/PQ support is available through certified field service engineers.
