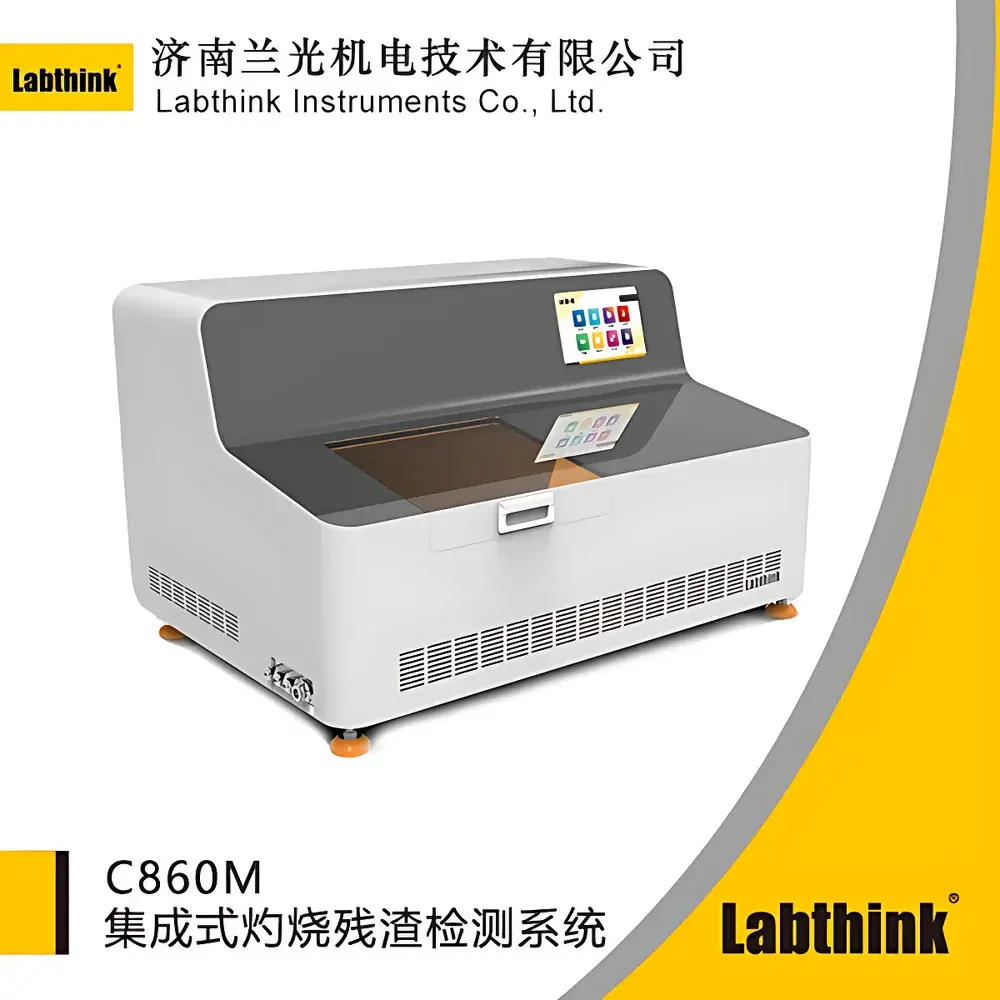

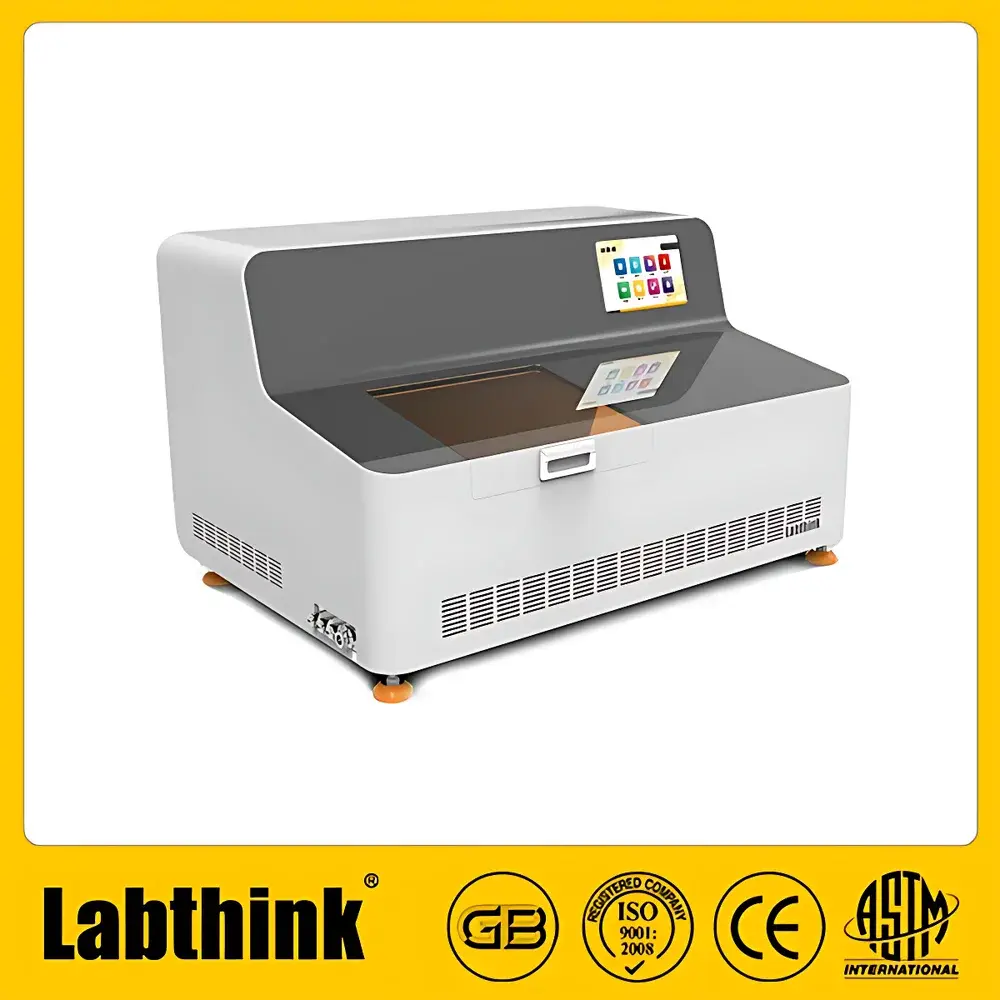

Labthink C860M Integrated Ash Residue Determination System

Overview

The Labthink C860M Integrated Ash Residue Determination System is a fully automated, benchtop thermal gravimetric platform engineered for precise and reproducible determination of non-volatile inorganic residue following high-temperature ignition—commonly referred to as “ash residue” or “residue on ignition” (ROI). Designed in strict alignment with pharmacopoeial methodologies—including Chinese Pharmacopoeia (ChP) General Chapter 0831 “Residue on Ignition”, United States Pharmacopeia (USP) , European Pharmacopoeia (Ph. Eur.) 2.4.15, and AOAC Official Methods for food ash analysis—the system executes controlled heating cycles (typically 500–800 °C), cooling, desiccation, and sequential mass measurements under inert or ambient atmospheric conditions. Its integrated architecture eliminates manual transfer between muffle furnace, desiccator, and analytical balance—minimizing operator error, contamination risk, and thermal shock-induced crucible fracture. The core measurement principle relies on differential mass loss tracking via high-resolution analytical weighing (0.01 mg resolution, internal calibration), coupled with programmable temperature ramping, dwell stabilization, and dynamic atmosphere control.

Key Features

• Fully integrated workflow: Combines high-precision microbalance, programmable muffle furnace chamber, automated crucible handling robot, and desiccation module within a single compact footprint.
• Pharmacopoeia-compliant thermal profiles: Preloaded ChP, USP, Ph. Eur., and AOAC methods with adjustable ramp rates (1–30 °C/min), hold temperatures (up to 1000 °C), and dwell durations (1–240 min).
• Crucible auto-positioning and tare synchronization: Robotic arm ensures repeatable placement on the balance pan; real-time tare compensation accounts for thermal drift during hot weighing.
• Dual-atmosphere capability: Optional nitrogen purge or air-controlled environment for oxidation-sensitive samples or reduction-prone matrices.
• GLP-ready operation: Audit trail logging (user ID, timestamp, method parameters, raw mass data, temperature profile), electronic signatures, and password-protected method editing.
• Thermal stability assurance: PID-controlled furnace with ±2 °C uniformity across 50 mm working zone; certified traceable to NIST-traceable thermocouples.

Sample Compatibility & Compliance

The C860M accommodates standard platinum, porcelain, or quartz crucibles (30–100 mL capacity) and supports solid, semi-solid, and dried powder samples up to 5 g nominal mass. It is validated for use across pharmaceutical active ingredients (APIs), excipients, herbal extracts, dietary supplements, infant formula, dairy powders, and mineral-fortified foods. Regulatory compliance includes full adherence to ChP 0831, USP , ISO 2171:2020 (“Cereals, pulses and milled cereal products — Determination of ash”), and FDA Guidance for Industry on Elemental Impurities (Q3D), where ROI serves as a critical pre-screening step prior to ICP-MS analysis. System validation documentation supports IQ/OQ/PQ protocols aligned with GMP Annex 15 and ASTM E2500-13.

Software & Data Management

Controlled via Labthink’s AshControl™ v3.2 software (Windows 10/11 compatible), the system provides role-based access control, customizable report templates (PDF/CSV/XLSX), and direct integration with LIMS via ASTM E1384-compliant HL7 or ODBC drivers. All raw data—including time-stamped mass readings at each thermal stage, furnace temperature vs. time curves, and environmental humidity logs—are stored in encrypted SQLite databases with automatic daily backup. Software meets FDA 21 CFR Part 11 requirements through electronic signature enforcement, audit trail immutability, and configurable retention policies (minimum 10 years). Exported reports include full metadata: instrument ID, operator, sample ID, batch number, method version, calibration certificate IDs, and uncertainty budget per ISO/IEC 17025:2017 Annex A.3.

Applications

• Quality control of pharmaceutical intermediates and final dosage forms per ChP/USP ROI specifications.
• Verification of inorganic impurity limits in APIs prior to elemental impurities assessment.
• Determination of mineral content in nutritional products (e.g., calcium, iron, zinc ash equivalents).
• Validation of cleaning effectiveness in multi-product manufacturing facilities (residue carryover screening).
• Stability-indicating testing: Monitoring inorganic residue changes under accelerated aging conditions.
• Regulatory submission support: Generating GLP-compliant ROI data packages for NDA, ANDA, and DMF filings.

FAQ

Does the C860M comply with FDA 21 CFR Part 11 for electronic records?
Yes—AshControl™ software implements full Part 11 controls including electronic signatures, audit trail integrity, and secure user authentication.
Can the system handle platinum crucibles without thermal drift artifacts?
Yes—proprietary hot-weighing compensation algorithms correct for buoyancy and convection effects; crucible-specific thermal expansion coefficients are user-configurable.
Is method validation support provided with the system?
Labthink supplies IQ/OQ protocol templates, performance qualification test scripts, and on-site PQ execution support by certified metrologists.
What is the maximum operating temperature and temperature uniformity specification?
Maximum setpoint: 1000 °C; temperature uniformity: ±2 °C over a 50 mm diameter zone at 750 °C, verified per ASTM E220-19.
How does the system ensure data integrity during power interruption?
Uninterruptible power supply (UPS) interface support; all ongoing runs automatically resume from last valid checkpoint with full audit trail continuity.
