Labthink CYZ-G Inclined Plane Ball Rolling Tester for Initial Tack Measurement of Pressure-Sensitive Adhesives

Overview

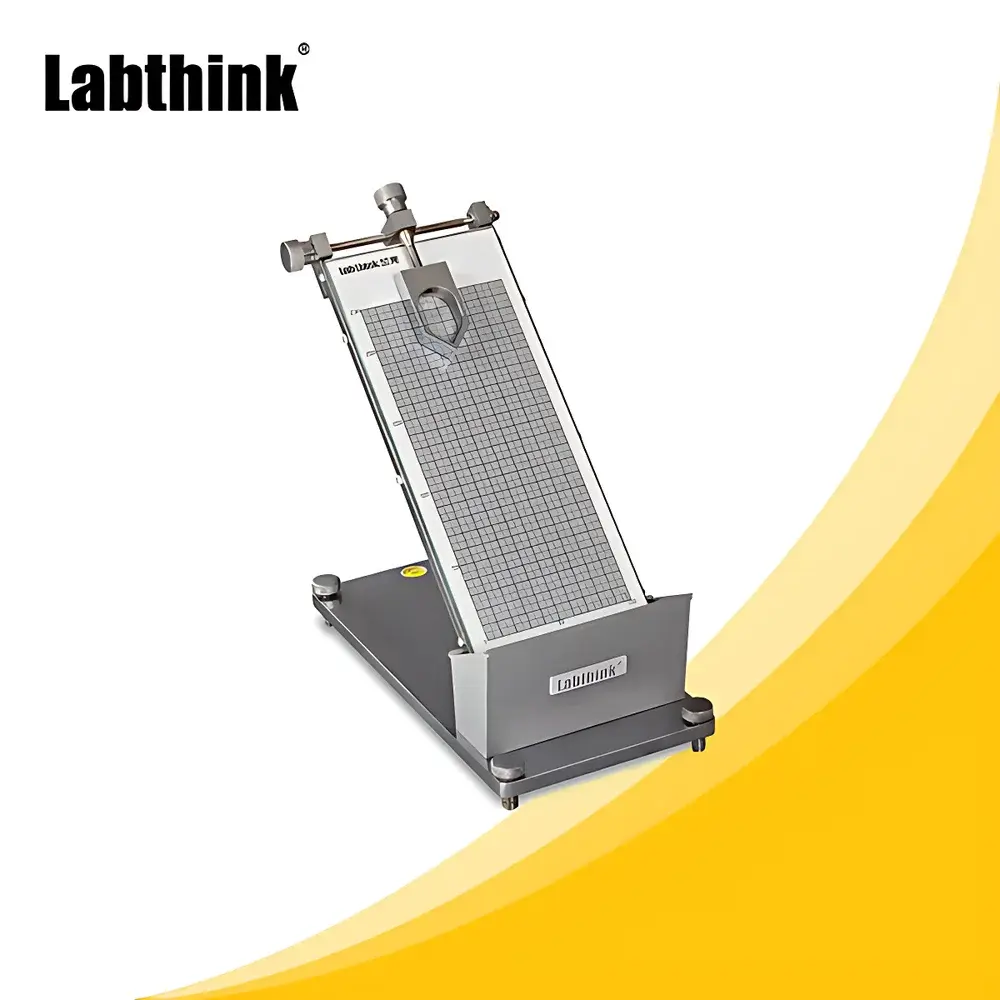

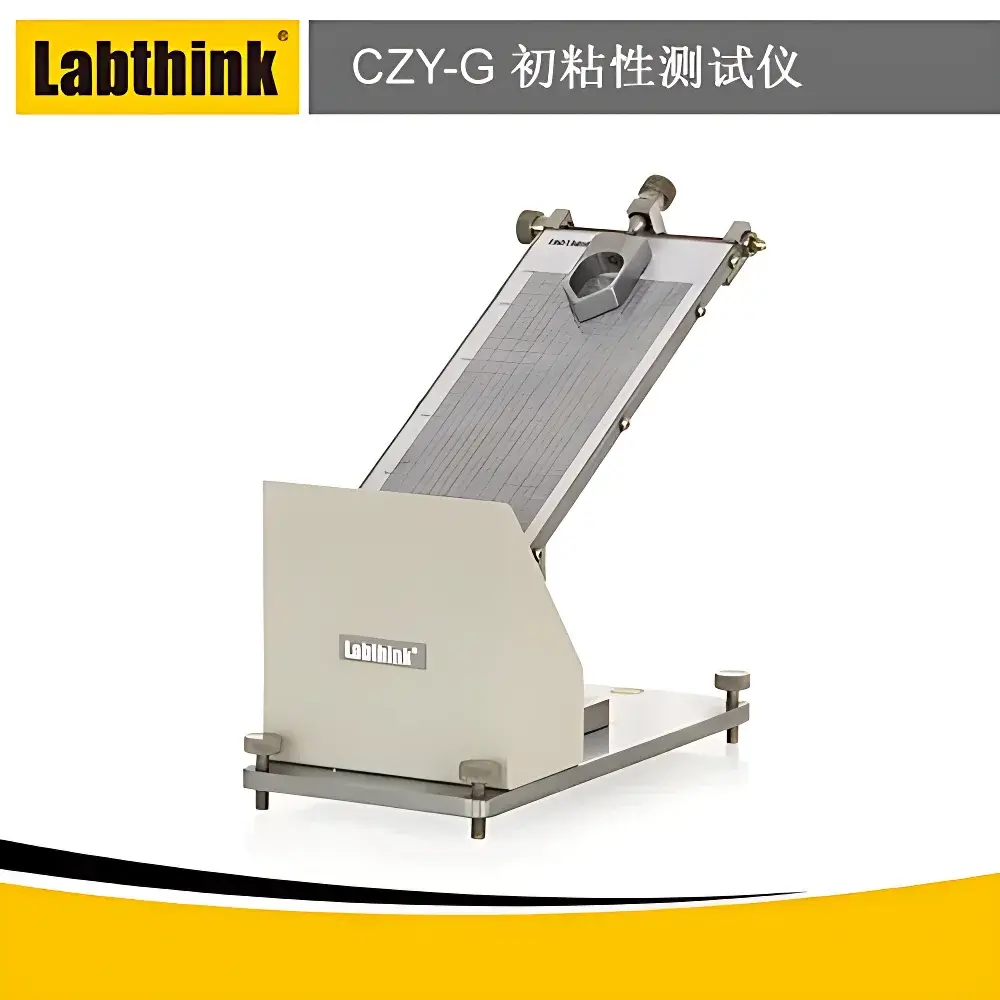

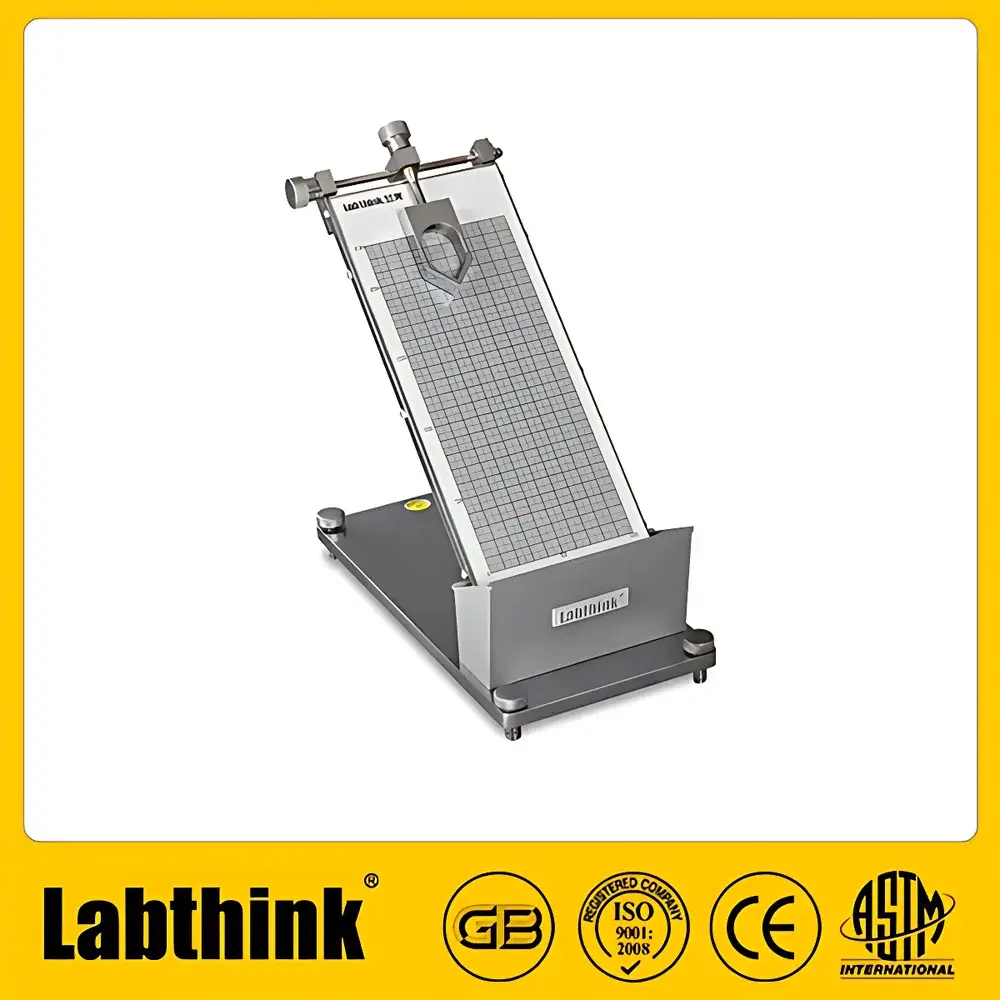

The Labthink CYZ-G Inclined Plane Ball Rolling Tester is a precision-engineered instrument designed for the quantitative evaluation of initial tack—the instantaneous adhesive attraction between a pressure-sensitive adhesive (PSA) surface and a smooth, rigid substrate—under controlled, standardized conditions. It operates on the well-established inclined plane ball rolling principle defined in GB/T 4852 and JIS Z 0237. In this method, a standardized steel ball is released from rest at the top of an adjustable incline and allowed to roll down under gravity. As it traverses the adhesive-coated test specimen placed on the inclined plane, the ball makes brief, low-pressure contact with the PSA surface. The maximum diameter of the steel ball that remains adhered to the sample upon reaching the end of the test zone—or the distance traveled before detachment—is recorded as the initial tack value. This empirical, reproducible measurement correlates directly with the adhesive’s ability to form rapid, transient bonds upon light contact—a critical performance parameter for labeling, packaging tape, medical tapes, and electronic die-cut adhesives.

Key Features

• Continuously adjustable incline angle from 0° to 60°, enabling precise control over applied normal force and facilitating comparative testing across diverse PSA formulations.
• Optimized test zone width of 80 mm ensures consistent alignment and full-width engagement of standard steel balls without edge interference.
• Robust aluminum alloy frame and precision-machined stainless-steel guide rail guarantee dimensional stability, long-term repeatability, and resistance to environmental drift.
• Compliant with internationally recognized reference ball diameters ranging from 1/32″ (0.794 mm) to 1″ (25.4 mm), covering the full spectrum of industrial PSA sensitivity requirements.
• Compact footprint (320 × 140 × 180 mm) and lightweight design (6 kg) support flexible placement in QC labs, R&D workbenches, or production line environments without requiring dedicated mounting.

Sample Compatibility & Compliance

The CYZ-G accommodates standard PSA specimens—including pressure-sensitive tapes, labels, transfer adhesives, and laminated films—mounted on rigid backing plates per GB/T 4852 specifications. Specimen preparation follows strict conditioning protocols (23 ± 2°C, 50 ± 5% RH, ≥2 h equilibration) to ensure metrological traceability. All mechanical components—including the incline base, ball release mechanism, and stop block—are manufactured to tolerances aligned with national metrological verification guidelines. The instrument is fully compliant with GB/T 4852–2002 “Test Methods for Initial Tack of Pressure-Sensitive Adhesive Tapes—Inclined Plane Rolling Ball Method” and JIS Z 0237:2019 “Testing Methods for Pressure-Sensitive Adhesive Tapes and Sheets—Part 2: Initial Tack (Rolling Ball Method).” Its design supports audit-ready documentation for GLP-compliant laboratories and facilitates integration into ISO/IEC 17025-accredited testing workflows.

Software & Data Management

While the CYZ-G operates as a manual, operator-driven mechanical tester—ensuring simplicity, reliability, and minimal maintenance—it is fully compatible with external digital data capture systems. Users may integrate calibrated high-speed imaging or position-sensing modules (e.g., linear encoders or machine vision systems) to automate ball trajectory tracking and detachment point detection. Raw test records—including ball size, incline angle, pass/fail outcome, and observed roll distance—are structured to align with LIMS or ELN platforms. For regulated environments, documented calibration logs, operator sign-offs, and environmental monitoring data (temperature/humidity) can be appended to each test report to satisfy FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with validated software infrastructure.

Applications

• Quality control of pressure-sensitive label stocks prior to converting and printing operations.
• Routine screening of hot-melt, acrylic, rubber-based, and silicone PSA formulations during new product development.
• Comparative assessment of aging effects—e.g., post-cure tack loss or UV-induced degradation—in accelerated stability studies.
• Supplier qualification and incoming inspection of masking tapes, protective films, and medical-grade adhesive dressings.
• Root-cause analysis of delamination events in multi-layer packaging structures where interfacial tack governs lamination integrity.

FAQ

What standards does the CYZ-G comply with?
It is fully aligned with GB/T 4852–2002 and JIS Z 0237:2019 for initial tack measurement using the inclined plane rolling ball method.

Can the instrument be calibrated traceably to national standards?
Yes—angle calibration is performed using certified inclinometers; steel ball diameters are verified against NIST-traceable gage blocks or optical comparators per ISO 3650.

Is operator training required to achieve repeatable results?
Minimal training is needed, but adherence to standardized specimen mounting, surface cleanliness, and environmental conditioning is essential for inter-laboratory reproducibility.

Does the CYZ-G support automated data export?
The base unit is mechanical and analog; however, it interfaces seamlessly with third-party sensors and SCADA/LIMS systems for digital data acquisition and reporting.

What maintenance is recommended for long-term accuracy?
Monthly cleaning of the stainless-steel guide rail with isopropyl alcohol and periodic verification of incline angle repeatability using a digital protractor are sufficient under normal use conditions.
