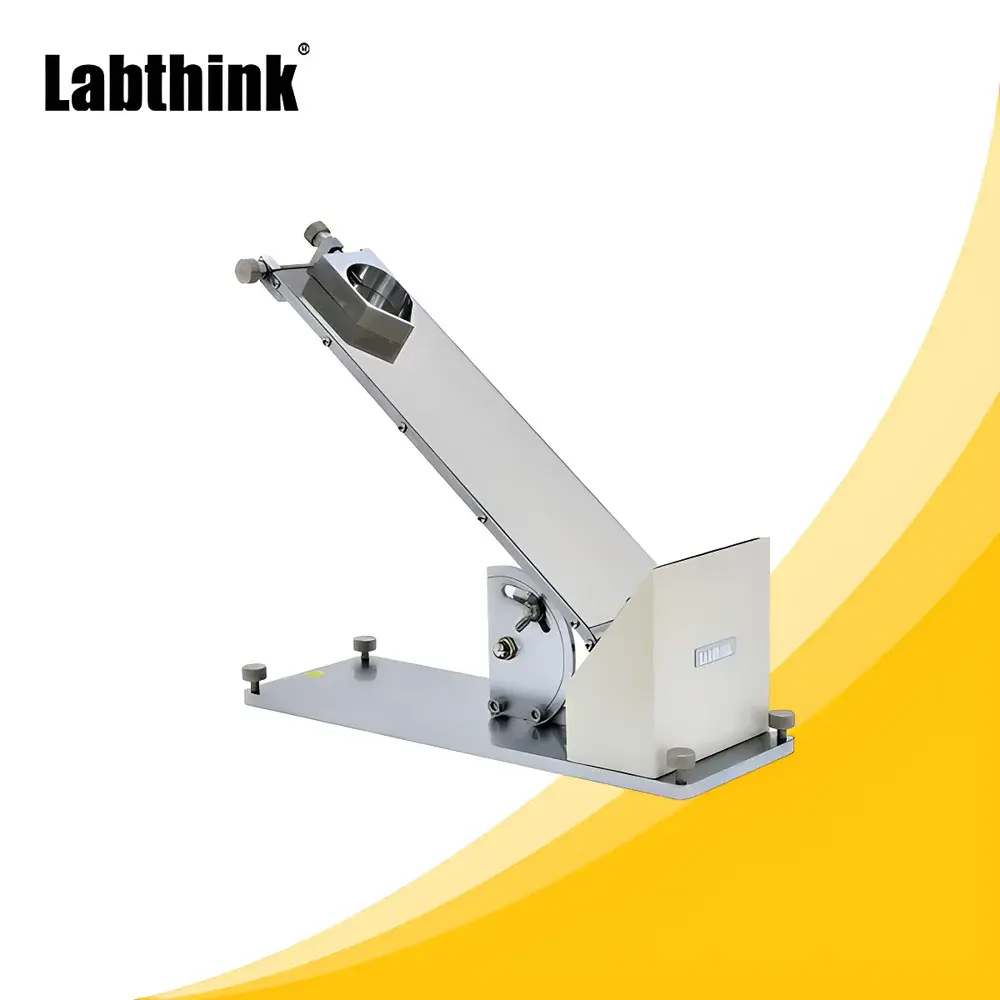

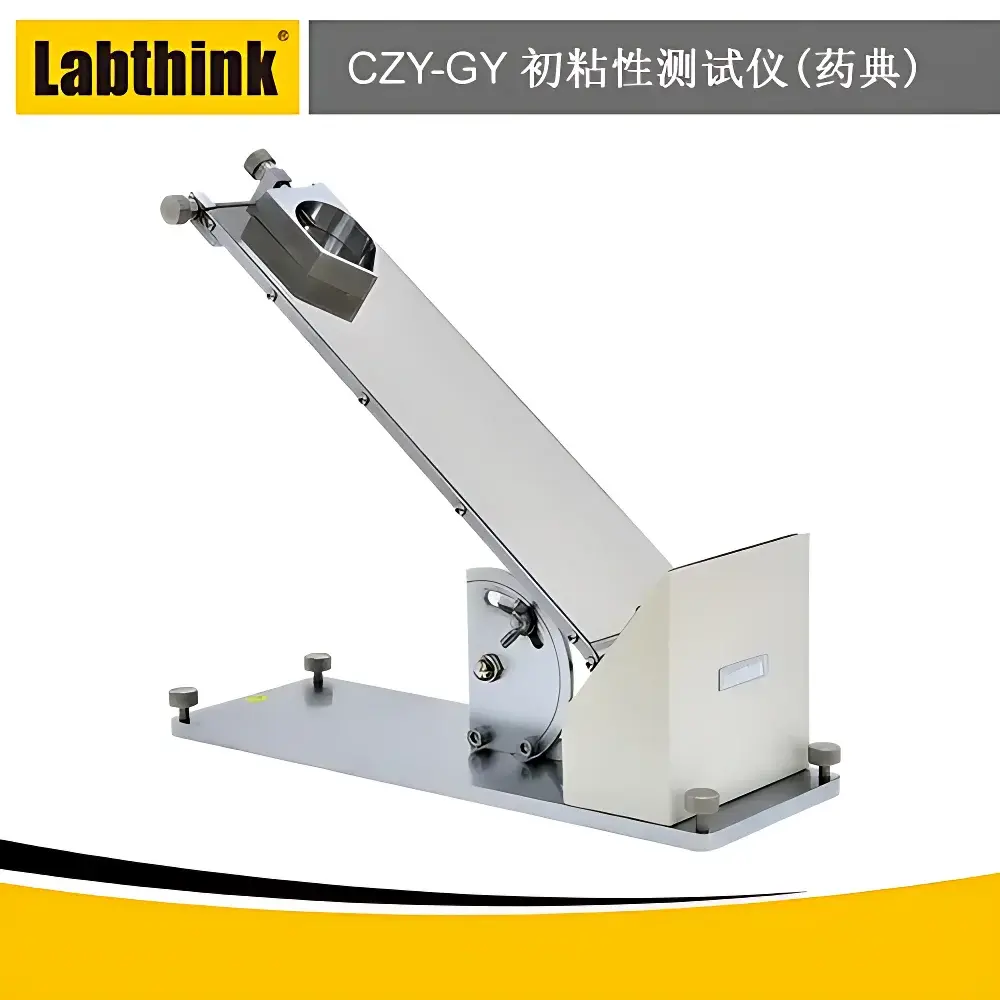

Labthink CZY-GY Pharmacopoeia Initial Adhesion Tester

Overview

The Labthink CZY-GY Pharmacopoeia Initial Adhesion Tester is a precision-engineered instrument designed in strict accordance with the Chinese Pharmacopoeia (2015 Edition), Section “Adhesive Force Determination Method”, and aligned with GB/T 4852–2002 “Test Method for Initial Tack of Pressure-Sensitive Adhesives—Rolling Ball Method”. It quantifies the initial tack—the instantaneous, low-pressure adhesion formed upon brief contact—of pressure-sensitive adhesive (PSA) materials used in pharmaceutical transdermal delivery systems. The device operates on the rolling ball incline principle: a standardized steel ball rolls down a calibrated inclined plane and makes momentary contact with the adhesive surface under controlled gravitational force. The largest ball diameter retained by the sample defines its initial tack rating, providing a reproducible, non-destructive, and operator-independent metric critical for batch release and formulation development.

Key Features

• Pharmacopoeia-compliant mechanical architecture: Inclined plane assembly, ball release mechanism, and test zone geometry precisely replicate the dimensional and procedural specifications mandated by ChP 2015 and GB/T 4852.
• Adjustable inclination angle (0°–45° in 0.5° increments): Enables method optimization across diverse PSA formulations—including hydrogel-based cataplasms (Babu Gao), acrylic matrix patches, silicone adhesives, and rubber-based plasters—without hardware modification.
• Full set of 46 NIST-traceable steel balls (1/32″ to 2″, ASTM E530-22 compliant): Supplied with calibration certificate; each ball meets sphericity tolerance ≤0.5 µm and surface roughness Ra ≤0.05 µm per ISO 3290-1.
• Rigid aluminum alloy frame with anodized finish: Ensures long-term dimensional stability, thermal inertia minimization, and resistance to solvent exposure during routine cleaning.
• Modular test zone (80 mm width × 100 mm active length): Accommodates standard 25 mm × 75 mm specimens while permitting edge-effect mitigation through central alignment fixtures.

Sample Compatibility & Compliance

The CZY-GY supports rigid and flexible substrates used in regulated pharmaceutical manufacturing, including polyethylene film-backed hydrocolloid patches, non-woven fabric-reinforced cataplasms, and solvent-cast acrylic films. It is routinely deployed in QC laboratories performing release testing per ICH Q5E and stability protocol execution under ICH Q1A(R2). Instrument qualification includes Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) documentation packages compatible with GLP and GMP environments. Data output satisfies ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and supports audit readiness for FDA 21 CFR Part 11 and EU Annex 11 compliance when integrated with validated electronic lab notebooks (ELN) or LIMS platforms.

Software & Data Management

While the CZY-GY operates as a manual, analog-digital hybrid system (angle adjustment via micrometer dial; ball retention assessed visually), it is fully compatible with Labthink’s optional AdhesionSuite™ v3.1 software module. This add-on enables digital logging of test parameters (inclination angle, ball grade, ambient temperature/humidity), automated pass/fail evaluation against pre-defined acceptance criteria (e.g., “must retain ≥1/8″ ball at 30°”), and PDF report generation with embedded metadata (operator ID, timestamp, instrument serial number, calibration due date). All data files are stored in vendor-neutral CSV and XML formats, facilitating traceability and statistical process control (SPC) analysis using Minitab or JMP.

Applications

• Release testing of transdermal patches per USP General Chapter <1711> and Ph. Eur. 2.9.40.
• Formulation screening of novel hydrophilic adhesives for pediatric or geriatric patch designs requiring reduced skin irritation.
• Stability-indicating assessment of adhesive degradation following accelerated aging (40°C/75% RH, ICH Q1A).
• Supplier qualification of PSA-coated release liners and backing films.
• Root cause analysis of delamination events in commercial-scale coating processes.

FAQ

What pharmacopoeial standards does the CZY-GY directly support?
It is engineered to meet the mechanical and procedural requirements of Chinese Pharmacopoeia 2015 Edition (Section “Adhesive Force Determination Method”) and GB/T 4852–2002.
Is calibration certification included with the steel ball set?
Yes—each set of 46 balls is supplied with a manufacturer’s calibration certificate referencing ISO/IEC 17025-accredited metrology.
Can the instrument be used for non-pharmaceutical applications, such as tape or label testing?
While optimized for ChP-compliant pharmaceuticals, it may be applied to industrial PSAs provided users validate method equivalence per ASTM D3121 or FINAT FTM 1.
What maintenance is required to maintain measurement integrity?
Monthly verification of incline angle accuracy using a certified digital inclinometer and quarterly visual inspection of ball surfaces for pitting or deformation per ISO 4287.
Does Labthink provide IQ/OQ documentation templates?
Yes—validated templates compliant with Annex 15 and ASTM E2500-13 are available upon request for integration into site-specific validation protocols.
