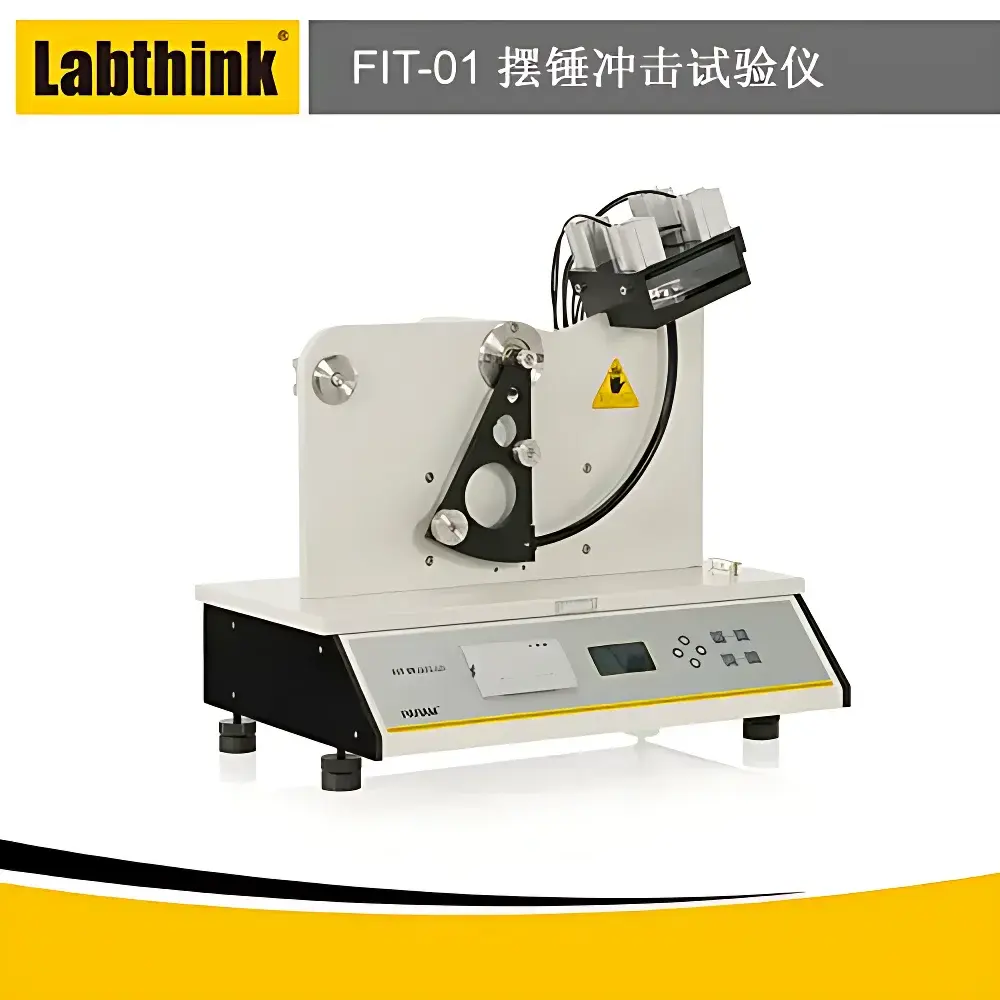

Labthink FIT-01 Pendulum Impact Tester for Food Packaging Films

Overview

The Labthink FIT-01 Pendulum Impact Tester is a precision-engineered instrument designed to quantify the resistance of flexible packaging materials—including plastic films, laminates, foils, and thin composite sheets—to dynamic puncture under controlled impact conditions. Based on the classical pendulum impact principle, the device employs a calibrated falling pendulum equipped with a hemispherical impactor tip that strikes a horizontally clamped specimen at a defined angular trajectory. The energy absorbed during perforation—calculated from the loss in pendulum swing amplitude—is measured with high-resolution digital transduction (0.001 J resolution) and directly correlates to the material’s toughness and ductile failure behavior. Unlike static tensile or tear tests, this method captures real-world performance under transient loading, making it especially relevant for evaluating seal integrity, drop resistance, and abuse tolerance in food pouches, stand-up bags, and retortable packaging.

Key Features

• Triple-range impact energy configuration (1 J, 2 J, 3 J) with interchangeable calibrated weights and standardized hemispherical impactors (Φ25.4 mm, Φ19 mm, Φ12.7 mm) to accommodate varying material thicknesses and stiffness levels.
• Pneumatically actuated specimen clamping and pendulum release system ensures repeatable positioning and eliminates operator-induced variability in trigger timing and clamp force.
• Microprocessor-controlled operation with backlit LCD interface and tactile PVC membrane keypad enables intuitive navigation through test setup, calibration, and result review without external software dependency.
• Integrated thermal-printing module outputs hard-copy reports containing test ID, energy absorption value, impactor geometry, clamp aperture, and timestamp—fully traceable for internal quality audits.

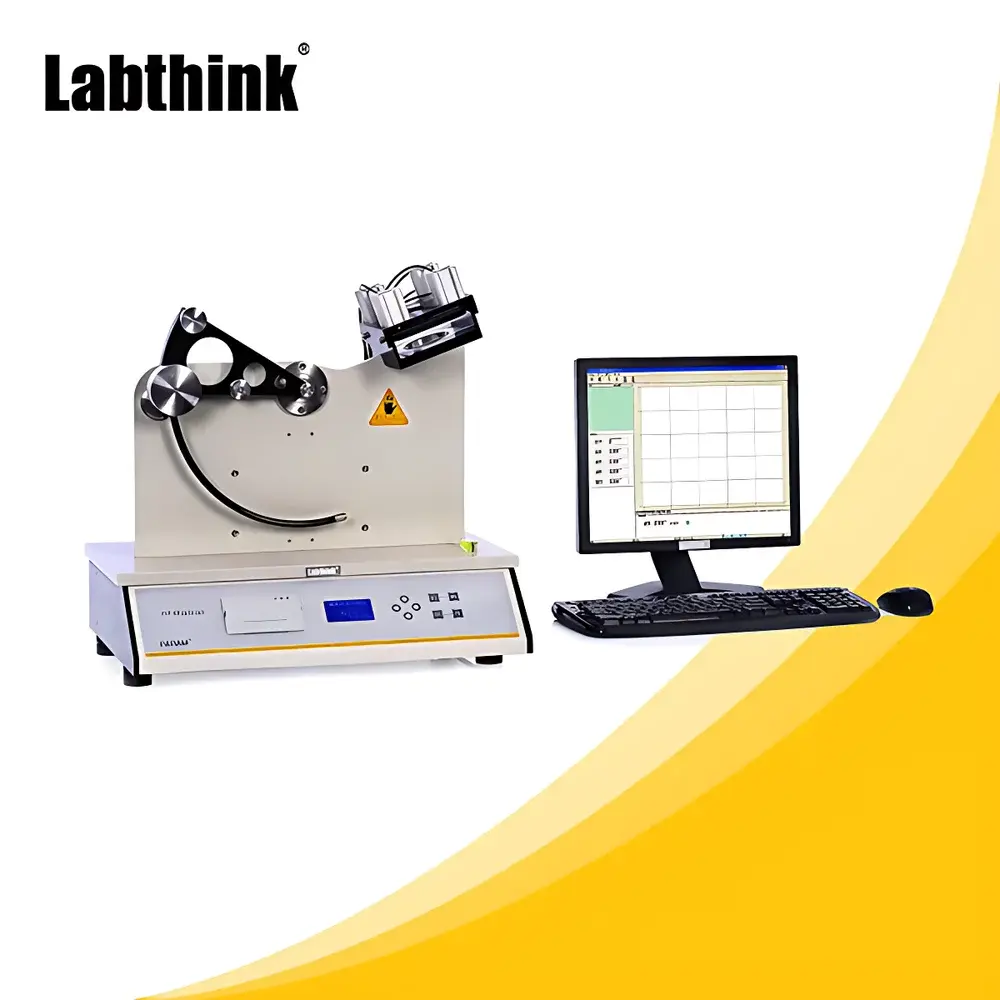

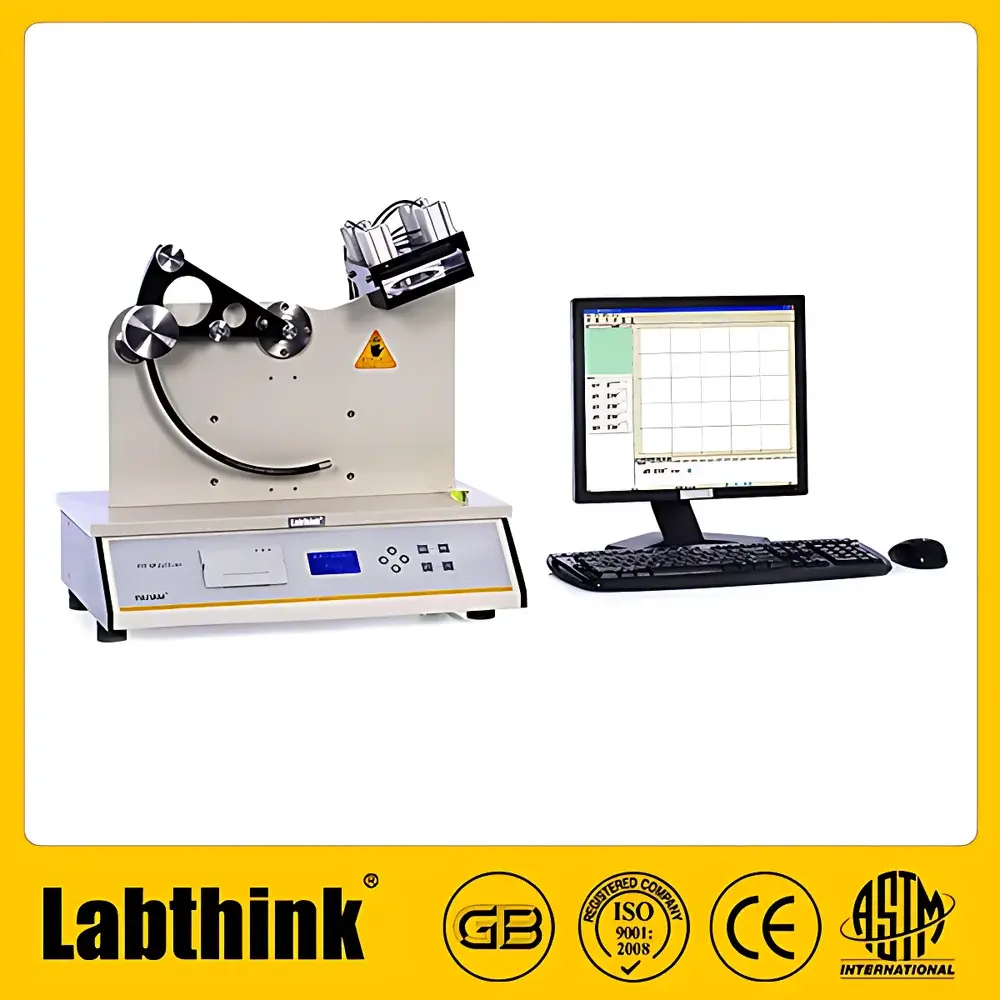

• Standard RS232 serial port supports bidirectional communication with laboratory PCs; compatible with Lystem™ Laboratory Data Management System for centralized storage, cross-instrument trending, and automated report generation compliant with GLP documentation requirements.
• Modular mechanical architecture with precision-machined cast-iron base and vibration-damped support frame minimizes environmental interference and sustains long-term measurement stability across daily QC workflows.

Sample Compatibility & Compliance

The FIT-01 accommodates flat, non-porous specimens up to 100 mm × 100 mm or Φ100 mm in diameter, including mono-layer PE/PP films, metallized PET/AL composites, coextruded barrier structures, and aluminum foil laminates. Its dual-clamp system (Φ89 mm and Φ60 mm apertures) allows comparative evaluation across standard and miniaturized sample formats—critical for R&D screening where material availability is limited. The instrument fully satisfies the geometric, kinematic, and metrological requirements of GB/T 8809–2014 (replacing GB 8809–1988), ASTM D3420–2008a, and NF T54-116–1973. All energy measurements are traceable to national standards via factory calibration certificates; optional NIST-traceable verification kits are available upon request. For regulated environments, the system supports audit-ready data logging with user authentication, electronic signatures, and immutable event timestamps—aligning with FDA 21 CFR Part 11 and ISO/IEC 17025 documentation expectations.

Software & Data Management

While standalone operation is fully functional via the embedded controller, the FIT-01 integrates seamlessly with Labthink’s Lystem™ platform—a secure, role-based web application for managing multi-instrument test data across geographically dispersed laboratories. Lystem™ enforces structured metadata capture (e.g., lot number, operator ID, environmental conditions), applies configurable pass/fail logic against predefined specification limits, and exports results in CSV, PDF, or XML formats compatible with enterprise QMS systems (e.g., TrackWise, MasterControl). Audit trails record all parameter modifications, calibration events, and report generations with IP-addressed attribution—ensuring full compliance with GMP/GLP data integrity principles. Optional PC-based software provides advanced statistical analysis (X̄-R charts, capability indices Cp/Cpk), batch-level summary dashboards, and automated deviation alerts.

Applications

• Quality control of snack, dairy, and frozen food pouches during incoming raw material inspection and finished goods release testing.
• Formulation development of high-barrier laminates, where impact energy absorption serves as a proxy for interlayer adhesion strength and delamination resistance.
• Validation of sterilization effects (e.g., retort, irradiation) on film mechanical integrity by comparing pre- and post-process impact energy profiles.
• Comparative benchmarking of sustainable alternatives (e.g., PLA-based films, cellulose nanocomposites) against conventional petroleum-derived substrates.
• Root cause analysis of field failures—such as puncture during palletized transport—by correlating lab-measured impact thresholds with simulated distribution stresses.

FAQ

What standards does the FIT-01 officially support?
The instrument is configured and verified to meet the procedural, dimensional, and metrological specifications of GB/T 8809–2014, ASTM D3420–2008a, and NF T54-116–1973.
Is pneumatic supply included with the system?
No—the FIT-01 requires an externally supplied clean, dry compressed air source at 0.6 MPa; users must provide a compatible regulator and Φ6 mm polyurethane tubing.
Can impactor tips be customized beyond the standard diameters?
Yes—Labthink offers OEM-designed impactor geometries (e.g., conical, flat-ended, custom radii) under non-disclosure agreement for proprietary material characterization protocols.
How is calibration maintained over time?
The system includes built-in zero-point verification and energy calibration routines; annual third-party recalibration services with ISO/IEC 17025-accredited certificates are recommended and available through Labthink’s global service network.
Does the instrument support 21 CFR Part 11 compliance out of the box?
When deployed with Lystem™ v3.2 or later and configured with role-based access controls, electronic signatures, and audit trail activation, the full workflow satisfies 21 CFR Part 11 Subpart B requirements for electronic records and signatures.
