Labthink FT-F1 Automotive Interior Fogging Tester

Overview

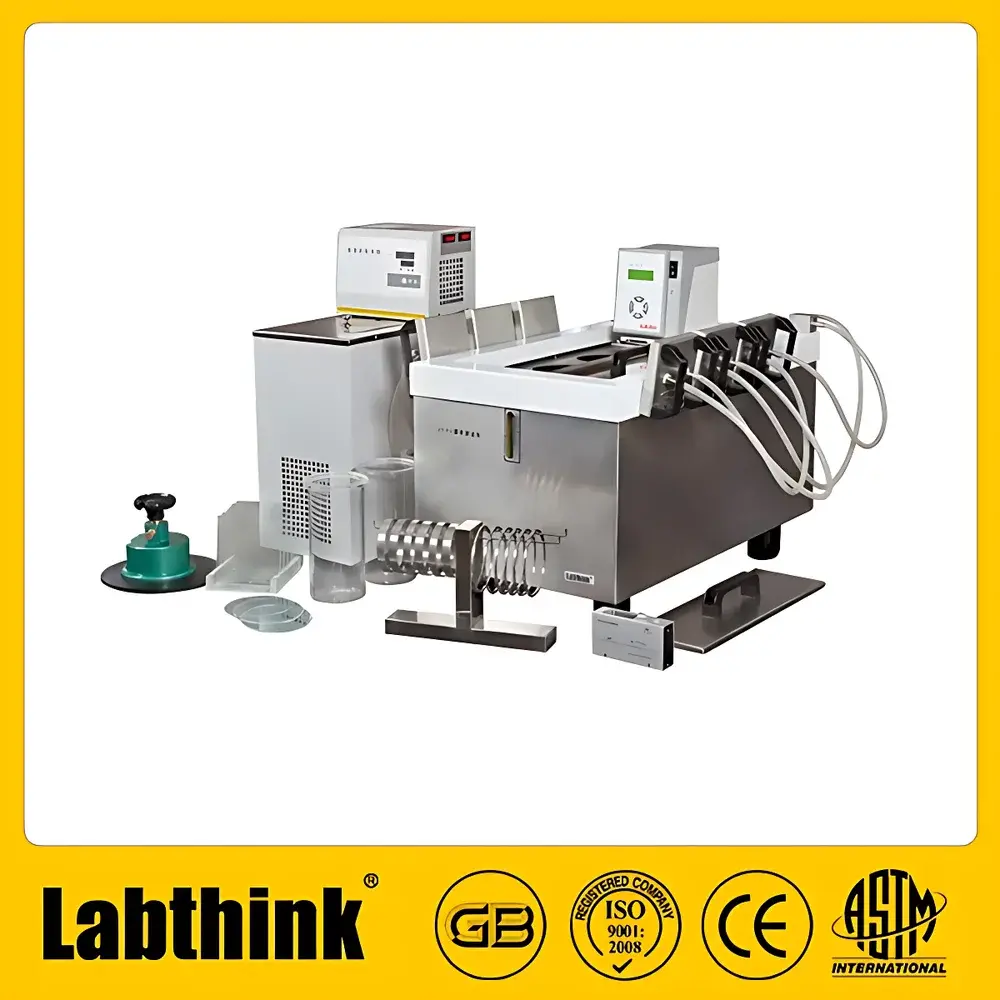

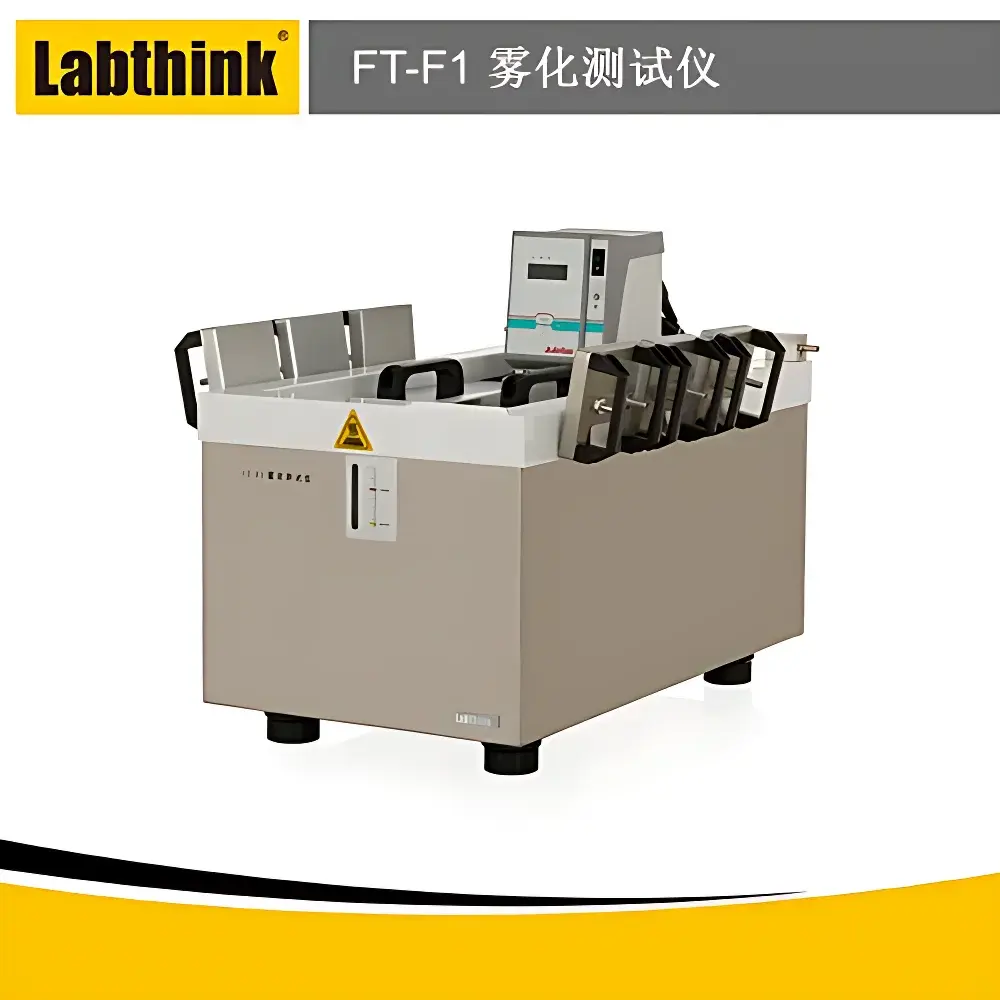

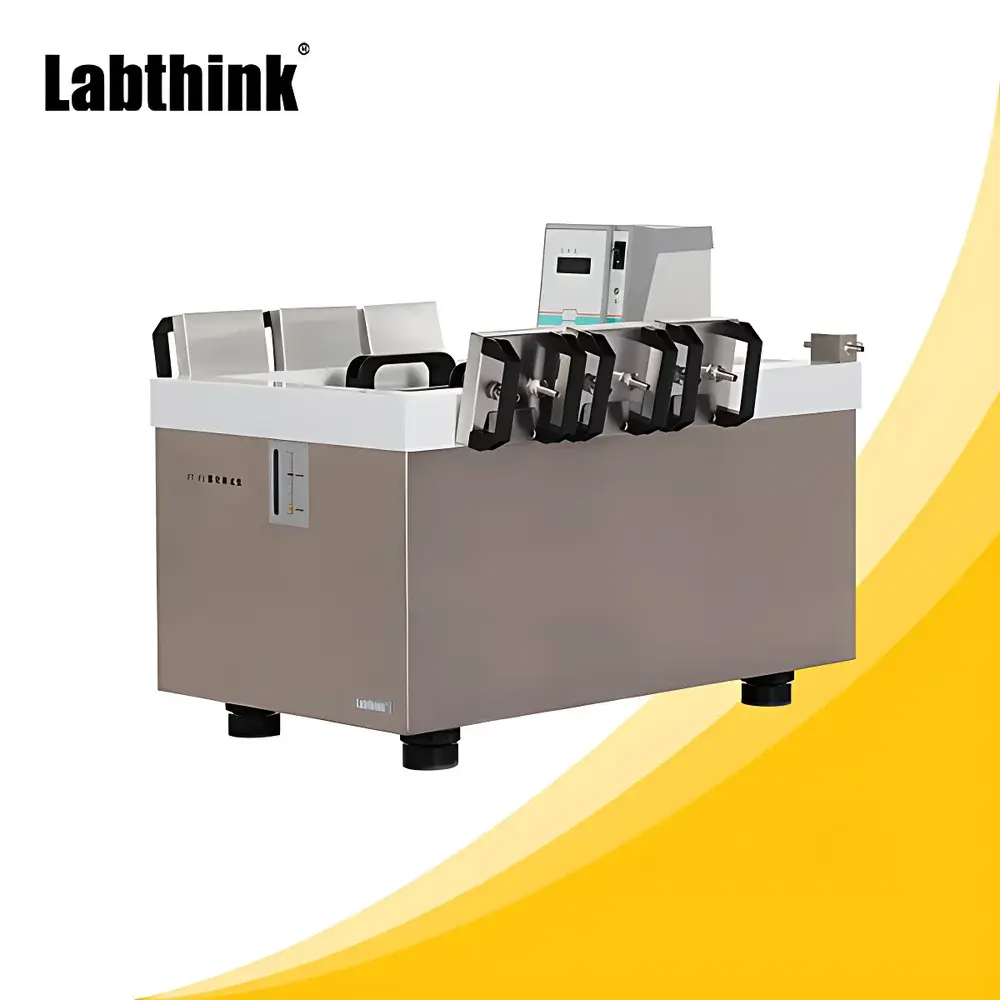

The Labthink FT-F1 Automotive Interior Fogging Tester is a precision-engineered instrument designed to quantify volatile condensable emissions from interior materials under controlled thermal stress—critical for evaluating fogging behavior in automotive, aerospace, and rail cabin components. It operates on the principle of thermal desorption followed by controlled condensation: test specimens are heated in sealed glass cups within a thermostatically regulated hot chamber; volatilized organic compounds migrate and condense onto a cooled substrate (glass plate or aluminum foil) mounted in an adjacent cold chamber. The degree of surface optical degradation—or mass gain—of the substrate quantifies the material’s fogging propensity. This physical measurement directly correlates with real-world phenomena such as windshield or instrument panel obscuration, headlamp lens hazing, and HVAC duct contamination. Unlike generic thermal analyzers, the FT-F1 implements dual independent temperature control loops—separately regulating hot and cold zones—to ensure strict adherence to international test protocols requiring precise thermal gradients and stable boundary conditions.

Key Features

• Dual-zone temperature control system: Independent hot chamber (ambient to 150 °C, extendable to 280 °C) and cold chamber (0–100 °C), both stabilized to ±0.1 °C at operating setpoints—meeting the stringent thermal accuracy requirements of ISO 6452 Annex A and DIN 75201 Type A/B.
• Six-position test configuration: Enables concurrent execution of up to six samples—including paired blank controls—enhancing statistical robustness and laboratory throughput without compromising inter-test reproducibility.
• Triple-method compatibility: Standard inclusion of gloss reduction measurement (per ISO 6452 Clause 6.2); optional haze-based evaluation (per DIN 75201-B); and gravimetric determination using pre-weighed aluminum foil substrates (per SAE J1756 Section 4.3).
• Modular thermal architecture: Hot chamber (670 × 490 × 540 mm, 32 kg net) and cold chamber (400 × 220 × 520 mm, 15 kg net) are mechanically decoupled to minimize thermal cross-talk and improve long-term calibration stability.
• Material-agnostic sample handling: Accommodates rigid plastics, PU foams, textiles, leather, adhesives, nonwovens, and thermoplastic elastomers via standardized sample cups, fluororubber sealing rings, and pressure rings—ensuring consistent vapor containment across heterogeneous substrates.

Sample Compatibility & Compliance

The FT-F1 supports testing of all major classes of automotive interior trim materials, including but not limited to polypropylene (PP), acrylonitrile butadiene styrene (ABS), polyvinyl chloride (PVC), thermoplastic olefins (TPO), polyurethane (PU) foams, silicone gels, and natural/synthetic leather composites. Its design conforms fully to the dimensional, thermal, and procedural specifications defined in ISO 6452:2023, DIN 75201:2020, and SAE J1756 Rev. 2021. For regulatory traceability, the system supports GLP-compliant documentation workflows when integrated with validated third-party data acquisition software. All temperature sensors are calibrated per ISO/IEC 17025-accredited procedures, and thermal uniformity mapping reports are available upon request. The instrument meets electromagnetic compatibility (EMC) requirements per IEC 61326-1 and electrical safety standards per IEC 61010-1.

Software & Data Management

The FT-F1 operates as a hardware platform compatible with Labthink’s optional FogTest Suite v3.x—a Windows-based application enabling automated test sequence definition, real-time temperature logging, substrate optical property capture (via integrated glossmeter interface), and report generation compliant with ISO/IEC 17025 clause 7.8. Raw data files are stored in CSV and XML formats with embedded metadata (operator ID, timestamp, chamber setpoints, ambient conditions). Audit trail functionality records all parameter modifications, result edits, and user logins—satisfying FDA 21 CFR Part 11 requirements when deployed with electronic signature modules. Calibration certificates, uncertainty budgets, and preventive maintenance logs can be archived within the same database structure for full lifecycle traceability.

Applications

• Qualification of new interior material formulations prior to Tier-1 supplier release.
• Root-cause analysis of field-reported fogging incidents on windshields or HUD displays.
• Validation of low-VOC adhesive curing profiles and outgassing mitigation strategies.
• Comparative assessment of alternative plasticizers (e.g., DIDP vs. DOP) in PVC compounds.
• Supporting PPAP submissions for OEMs requiring conformance to GM W3172, Ford WERCS, or Toyota TSB-0018.
• Research into thermal aging effects on polymer chain mobility and volatile organic compound (VOC) release kinetics.

FAQ

What standards does the FT-F1 support natively?
The instrument is configured to execute ISO 6452, DIN 75201 (Type A and B), SAE J1756, and QB/T 2728 without hardware modification. Additional standards—including PV 3920, NES M0161, and GM 9305P—are supported via user-defined test templates in FogTest Suite.
Is the gravimetric method fully automated?
No—the FT-F1 provides the cold chamber, aluminum foil substrates, and sample holders required for weight-based fogging measurement, but a Class I analytical balance (0.01 mg readability, ISO 17025-calibrated) must be sourced separately and integrated manually into the workflow.
Can the hot chamber operate continuously at 280 °C?
Yes—when equipped with the high-temperature option kit (including upgraded heating elements, ceramic insulation, and extended-range thermal fluid), the hot chamber maintains ±0.1 °C stability at 280 °C for durations up to 24 hours, as verified per ASTM E220.
How is temperature uniformity validated across the hot chamber?
Labthink performs nine-point thermal mapping during factory acceptance testing (FAT) per ISO/IEC 17025 Annex A. Uniformity is guaranteed to ±0.3 °C across the sample cup array at 100 °C and ±0.5 °C at 150 °C.
Does the system support multi-language UI and reporting?
FogTest Suite v3.x offers English, German, Japanese, and Chinese language interfaces. PDF reports are generated with configurable headers, footers, and corporate branding fields—fully compliant with internal QA documentation systems.
