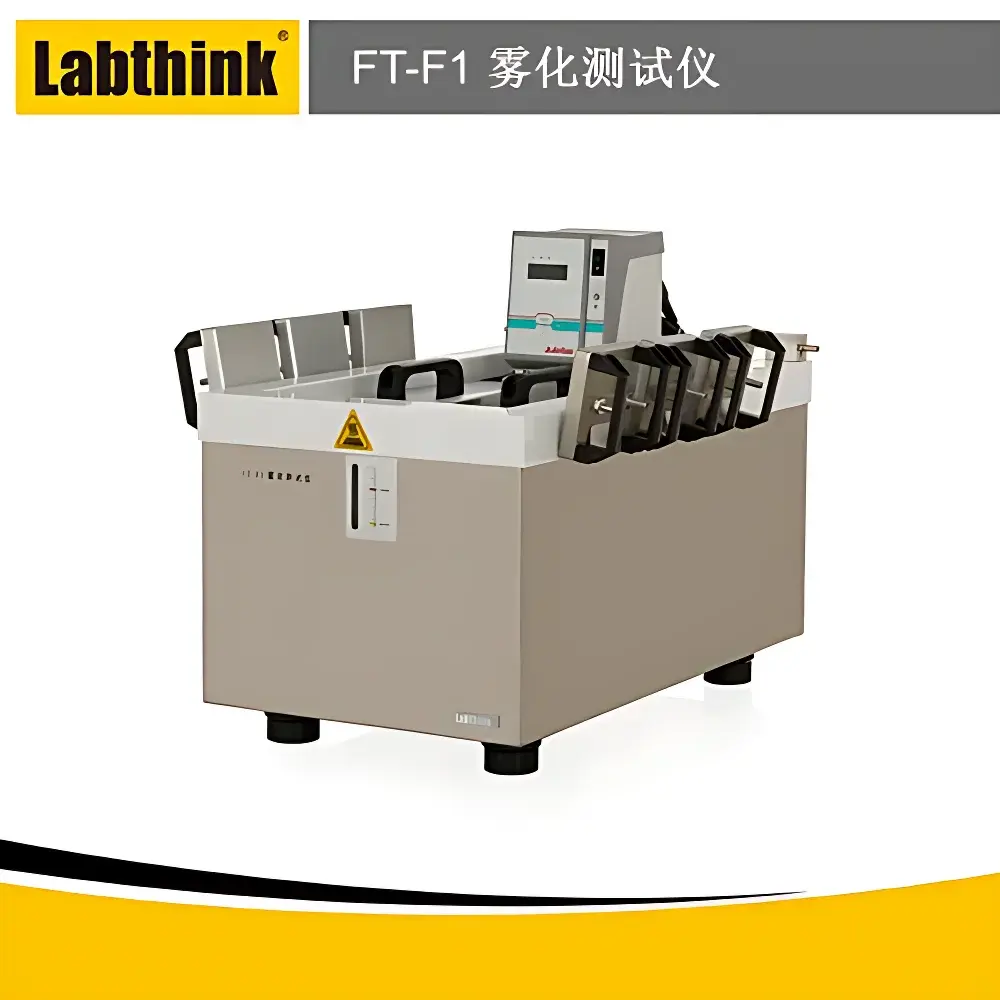

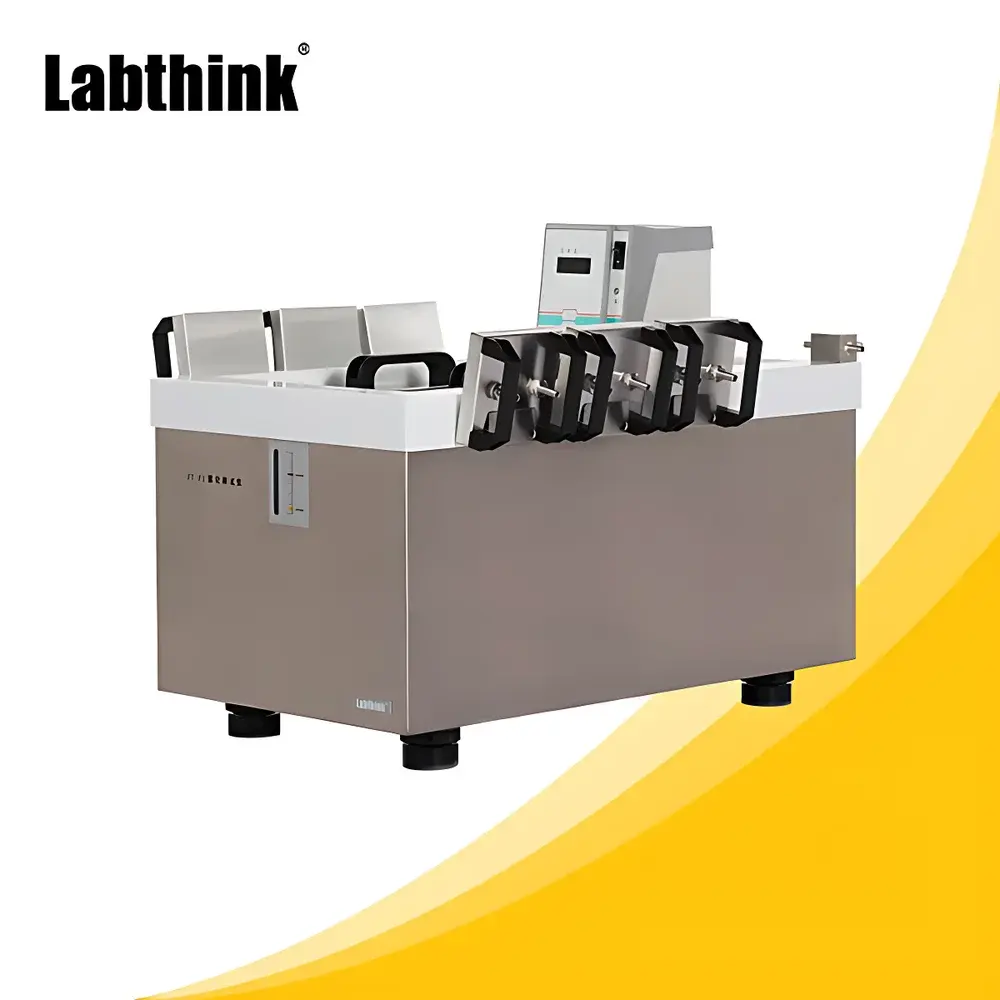

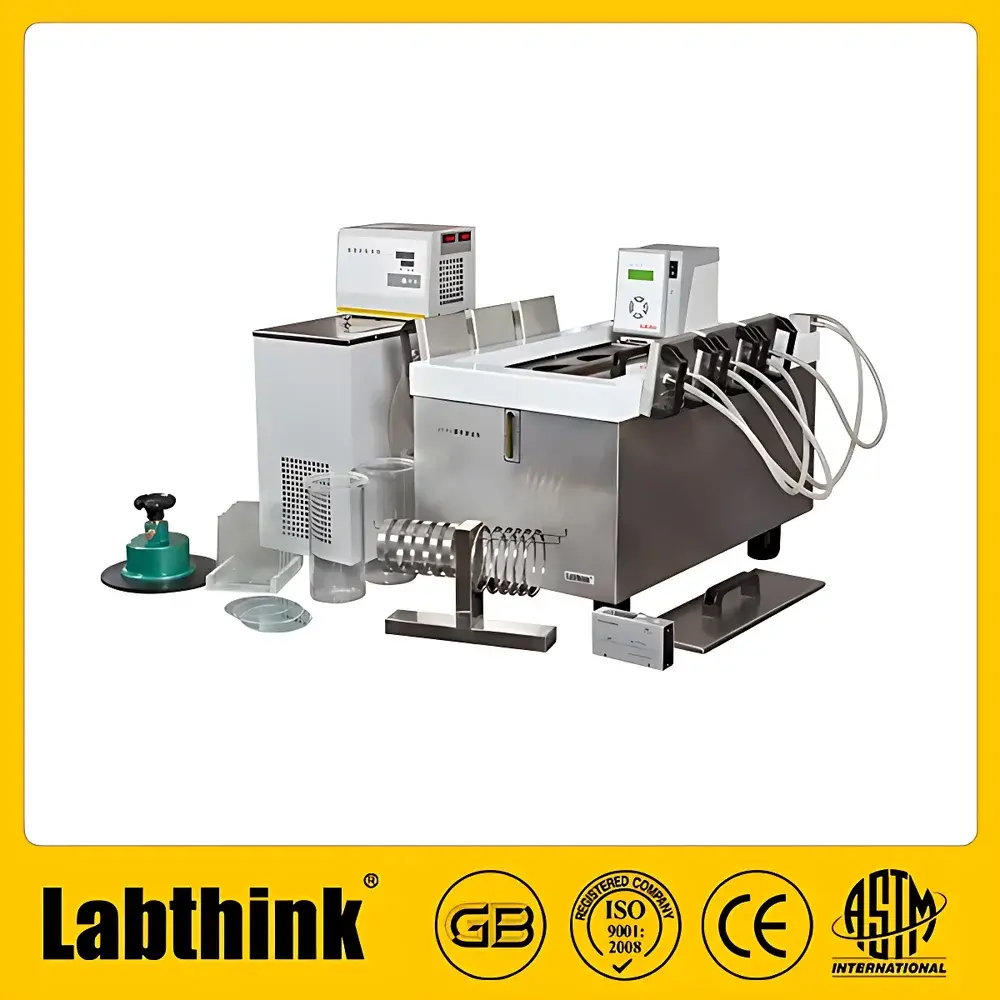

Labthink FT-F1 Automotive Interior Fogging Tester per QB/T 2728, DIN 75201 & ISO 6452

Overview

The Labthink FT-F1 Automotive Interior Fogging Tester is an engineered instrument designed for quantitative evaluation of volatile condensable emissions from interior materials under controlled thermal stress. It operates on the principle of thermal desorption followed by cold-surface condensation—mimicking real-world cabin conditions where elevated temperatures accelerate outgassing from polymers, adhesives, foams, and textiles. The device complies with internationally recognized automotive material fogging standards including DIN 75201 (Germany), ISO 6452 (International Organization for Standardization), SAE J1756 (Society of Automotive Engineers), QB/T 2728 (China Light Industry Standard), BS EN 14288 (British Standards), and multiple OEM-specific specifications such as PV 3920, GM 9305P, and TSM 0503G. Its dual-bath architecture enables precise independent control of sample heating (up to 150 °C) and condenser cooling (down to 0 °C), ensuring high reproducibility in fogging quantification across diverse substrate types.

Key Features

• Six-position test configuration supporting concurrent sample testing and blank control runs—enhancing throughput and statistical robustness.
• High-precision dual-zone temperature regulation: ±0.1 °C stability maintained at 150 °C in the high-temperature bath and across the full 0–100 °C range in the low-temperature bath.
• Triple-method measurement capability: standard glossmeter-based fogging value (FV) calculation; optional haze-based FV determination; and gravimetric analysis using pre-weighed aluminum foil (requires external analytical balance with 0.01 mg resolution).
• Modular design with thermally insulated baths, fluororubber sealing components, and standardized glass plates (square and circular) and aluminum foil substrates—all traceable to reference materials specified in ISO 6452 Annex A.
• Compliance-ready architecture: supports audit trails, user access levels, and data integrity protocols aligned with GLP and GMP environments when integrated with validated software platforms.

Sample Compatibility & Compliance

The FT-F1 accommodates a broad spectrum of automotive interior materials—including polyurethane foam, PVC, ABS, PP, TPE, leather, nonwovens, adhesives, and textile laminates—as defined in DIN 75201 Annex B and ISO 6452 Clause 5. Each test specimen (typically 10 g ± 0.1 g) is placed in a standardized borosilicate glass fogging cup and heated under inert atmosphere or ambient air per method requirements. Condensation occurs on optically calibrated glass plates (for gloss/haze methods) or pre-tared aluminum foil (for gravimetric method). All physical dimensions, thermal mass, and surface finish parameters adhere strictly to dimensional tolerances outlined in DIN 75201 Section 4.2 and ISO 6452 Section 6. The system meets essential safety and electromagnetic compatibility requirements per IEC 61000-6-3 and IEC 61000-6-2, and is suitable for installation in ISO/IEC 17025-accredited testing laboratories.

Software & Data Management

While the FT-F1 operates as a hardware platform with manual data entry, it is fully compatible with Labthink’s optional FogTest Suite—a validated Windows-based application that supports automated result calculation, trend analysis, report generation (PDF/Excel), and electronic signature workflows compliant with FDA 21 CFR Part 11. The software enforces role-based user authentication, change history logging, and secure export of raw sensor readings (temperature profiles, gloss/haze values, mass deltas). All calibration records—including bath temperature verification using NIST-traceable PT100 probes—and maintenance logs can be archived within the system for regulatory review. Exported datasets retain metadata such as operator ID, test date/time, environmental conditions (ambient RH and temperature), and instrument serial number.

Applications

• Pre-release validation of interior trim components for OEM Tier-1 suppliers seeking compliance with VW PV 3920 or Ford WSS-M99P1111-A.
• Root-cause analysis of hazing phenomena observed on instrument panels, HUD displays, or rearview mirrors during accelerated aging studies.
• Raw material screening of plasticizers (e.g., DOP, DIDP), flame retardants, and processing aids for volatility profiling prior to compound formulation.
• Comparative assessment of low-fogging alternatives in sustainable material development programs—e.g., bio-based polyols in PU foams or recycled PET nonwovens.
• Supporting technical documentation packages for IATF 16949-certified production sites requiring documented evidence of material conformance to customer-specific fogging limits (e.g., ≤ 2.0% haze increase or ≤ 0.5 mg condensate).

FAQ

What standards does the FT-F1 support natively?
The instrument is configured to meet the core procedural and dimensional requirements of DIN 75201, ISO 6452, QB/T 2728, SAE J1756, and BS EN 14288. Optional accessories (e.g., specific glass plate geometries or calibration kits) enable alignment with OEM-specific variants like PV 3015 or NES M0161.

Is the gravimetric method included in the base configuration?
Yes—the aluminum foil, foil cutter, and mounting fixtures are supplied standard. However, the analytical balance (0.01 mg resolution) must be procured separately and validated per ISO/IEC 17025 Clause 6.4.2.

Can the high-temperature bath operate above 150 °C?
An extended-range option (ambient to 280 °C) is available upon request, subject to additional thermal insulation, upgraded bath fluid (e.g., silicone oil), and revised safety interlocks per IEC 61000-6-4.

How is temperature uniformity verified across the heating block?
Labthink provides a factory calibration certificate documenting spatial temperature deviation (< ±0.3 °C across six sample positions at 100 °C and 150 °C) using nine-point mapping with calibrated PT100 sensors traceable to national metrology institutes.

Does the system support LIMS integration?
Yes—via ASCII or CSV export protocols. The FogTest Suite additionally supports direct ODBC connectivity to laboratory information management systems compliant with ASTM E1482-19 data exchange schemas.
