Labthink HST-H3 Heat Sealing Tester

Overview

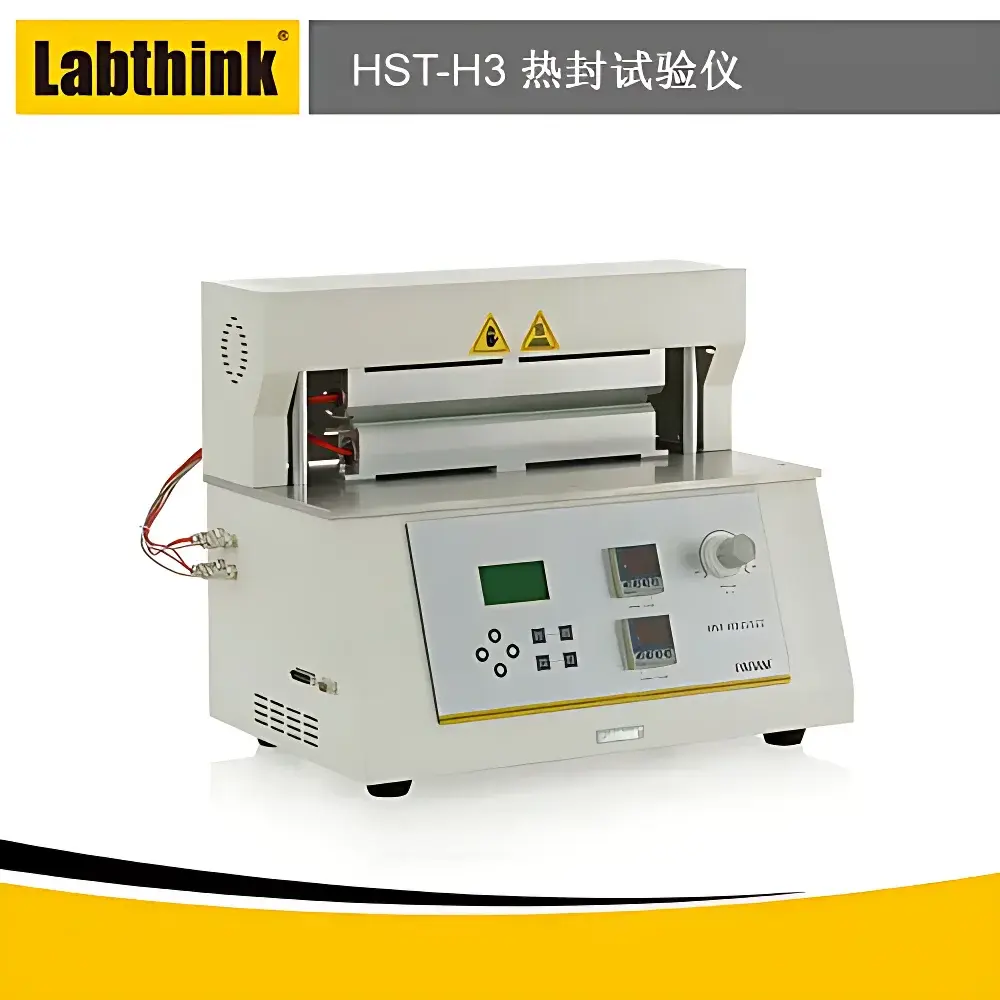

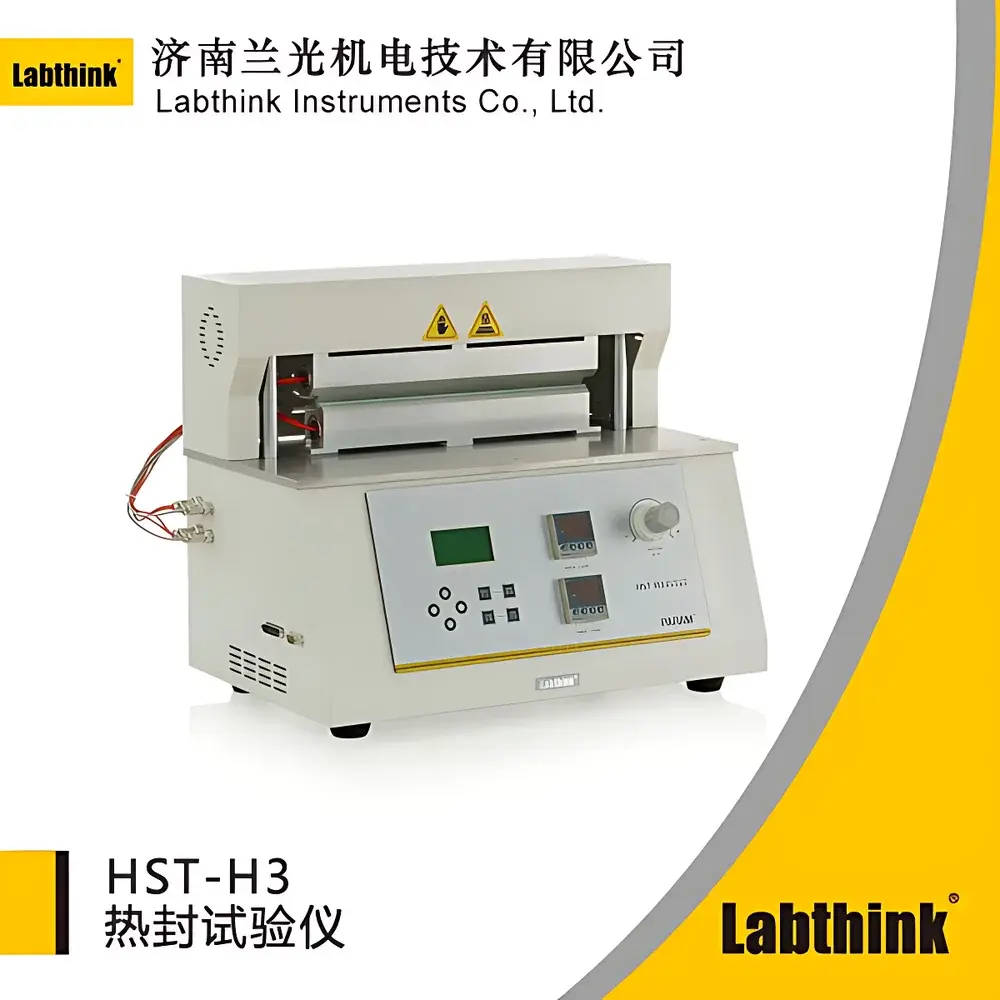

The Labthink HST-H3 Heat Sealing Tester is an engineering-grade thermal sealing evaluation instrument designed for precise, repeatable determination of optimal heat seal parameters—including temperature, dwell time, and pressure—for flexible packaging materials. It operates on the principle of controlled thermal compression sealing: a specimen is placed between two independently regulated heated jaws, subjected to pre-set pneumatic pressure for a defined duration, and then evaluated for seal integrity using standardized peel or burst testing methods. This methodology aligns with fundamental polymer physics—where seal formation depends on interfacial polymer chain diffusion across the melt zone, governed by material-specific melting point, melt viscosity, thermal stability, and thickness. The HST-H3 enables laboratories to systematically map sealability envelopes, supporting process validation, formulation development, and quality assurance in high-regulation environments such as pharmaceutical blister packaging, food pouch manufacturing, and medical device sterile barrier systems.

Key Features

• Independent dual-zone PID temperature control (±0.2 °C accuracy) for top and bottom sealing jaws, enabling asymmetric thermal profiling critical for dissimilar-material laminates.
• Wide-range pneumatic pressure regulation (0.05–0.7 MPa) with lower-mounted dual-synchronized cylinder circuitry, ensuring uniform force distribution across the full 330 mm sealing width and eliminating pressure drift during thermal expansion.
• Programmable dwell time resolution of 0.1 s over a 0.1–999.9 s range, supporting both rapid screening and extended aging-related seal studies.
• Aluminum-alloy sealing jaws with integrated cartridge heaters and quick-disconnect power interfaces for maintenance efficiency and thermal homogeneity.
• Human-centered operation interface: backlit LCD display, tactile PVC membrane keypad, menu-driven firmware, and dual activation modes (manual button + footswitch) with built-in thermal safety interlocks to prevent accidental contact during high-temperature cycles.
• Modular jaw design supports interchangeable sealing surfaces—including smooth, embossed, and custom-profiled configurations—for applications ranging from flat pouch films to contoured closures like jelly cup lids and tube tails.

Sample Compatibility & Compliance

The HST-H3 accommodates a broad spectrum of thermoplastic-based packaging substrates: monolayer films (e.g., LDPE, PP, PET), coextruded structures, metallized films (AlOx, SiOx, Al foil composites), paper-plastic laminates, and coated papers. Its mechanical and thermal specifications comply with internationally recognized test standards including QB/T 2358 (Chinese national standard for plastic film heat seal strength), ASTM F2029 (Standard Test Method for Making Heat Seal Joints for Testing), and YBB00122003 (Chinese pharmaceutical packaging standard for heat-sealable materials). When operated within validated parameter ranges and coupled with GLP-aligned documentation practices, data generated by the HST-H3 supports regulatory submissions under FDA 21 CFR Part 11 (when used with compliant software), EU Annex 11, and ISO 17025-accredited testing protocols.

Software & Data Management

Optional PC-based control software connects via RS232 serial interface, enabling remote instrument configuration, real-time parameter monitoring, automated test sequence execution, and timestamped data logging. All test records include operator ID, environmental conditions (if external sensors are integrated), raw parameter sets (T, P, t), and pass/fail flags per run. Export formats include CSV and PDF for integration into LIMS or QMS platforms. Audit trail functionality meets requirements for traceability in GMP-compliant environments, with user access levels, electronic signatures, and immutable record retention configurable per organizational SOPs.

Applications

• Baseline seal optimization for rollstock used in VFFS and HFFS packaging lines.
• Comparative evaluation of sealant layer formulations (e.g., EVA vs. ionomer vs. functionalized PE).
• Accelerated aging studies correlating initial seal strength with post-storage delamination behavior.
• Validation of seal integrity for child-resistant and senior-friendly packaging closures.
• Development support for sustainable mono-material pouches requiring narrow thermal processing windows.
• Custom fixture integration for non-planar geometries—including thermoformed trays, stick packs, and single-dose sachets.

FAQ

Does the HST-H3 support validation per IQ/OQ/PQ protocols?
Yes—its stable thermal architecture, calibrated pressure transducers, and traceable temperature sensors enable full qualification when executed with documented procedures and NIST-traceable reference standards.
Can the instrument be integrated into an automated production line?
While primarily a lab-scale R&D and QA tool, its RS232 interface and deterministic response timing allow synchronization with PLC-controlled staging systems for offline batch verification.
Is compressed air supply included with the system?
No—the HST-H3 requires an externally supplied clean, dry air source at 0.5–0.7 MPa via Ø6 mm polyurethane tubing; regulators and filters must be provided by the user.
What maintenance is required for long-term thermal accuracy?
Annual recalibration of temperature sensors and pressure transducers is recommended; heater elements and sealing jaws require periodic visual inspection for oxidation or surface wear.
Are jaw replacements available for specialized geometries?
Yes—Labthink offers OEM-engineered custom jaw sets (e.g., circular, stepped, or segmented profiles) with lead times aligned to ISO 9001 production scheduling.
