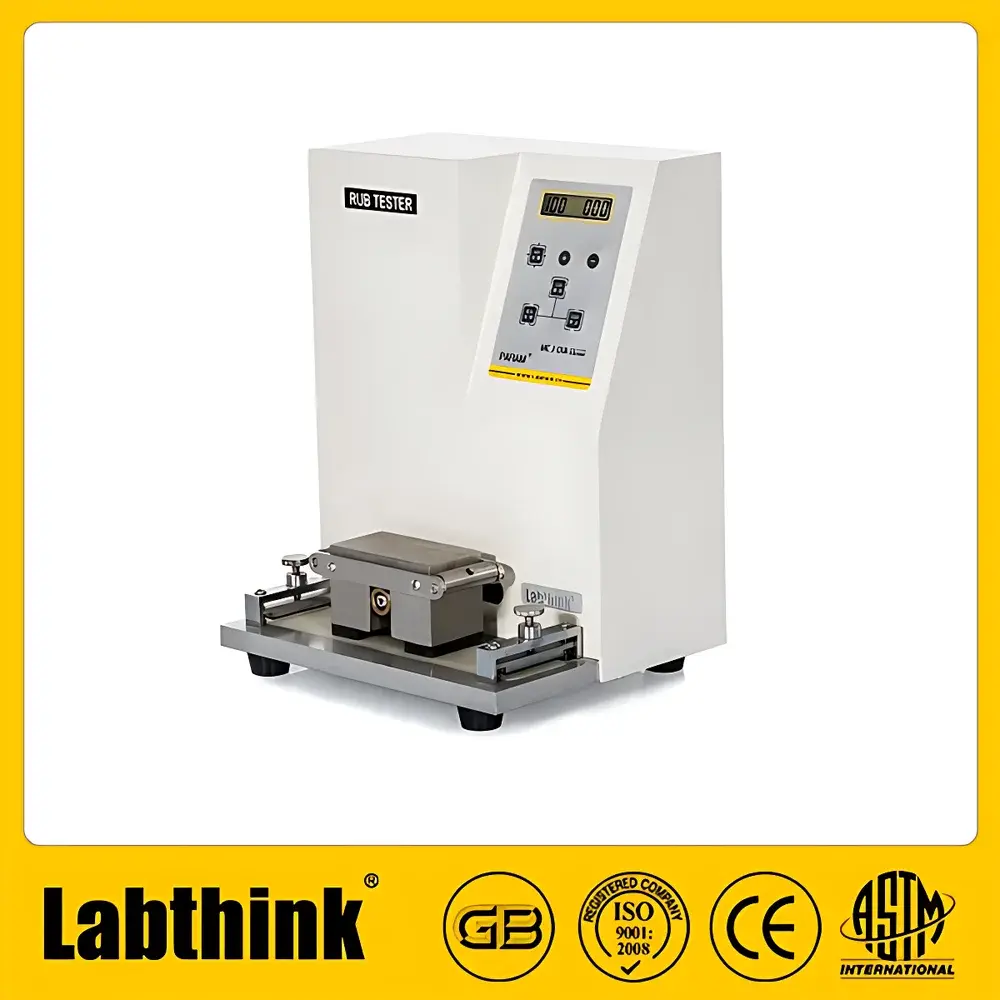

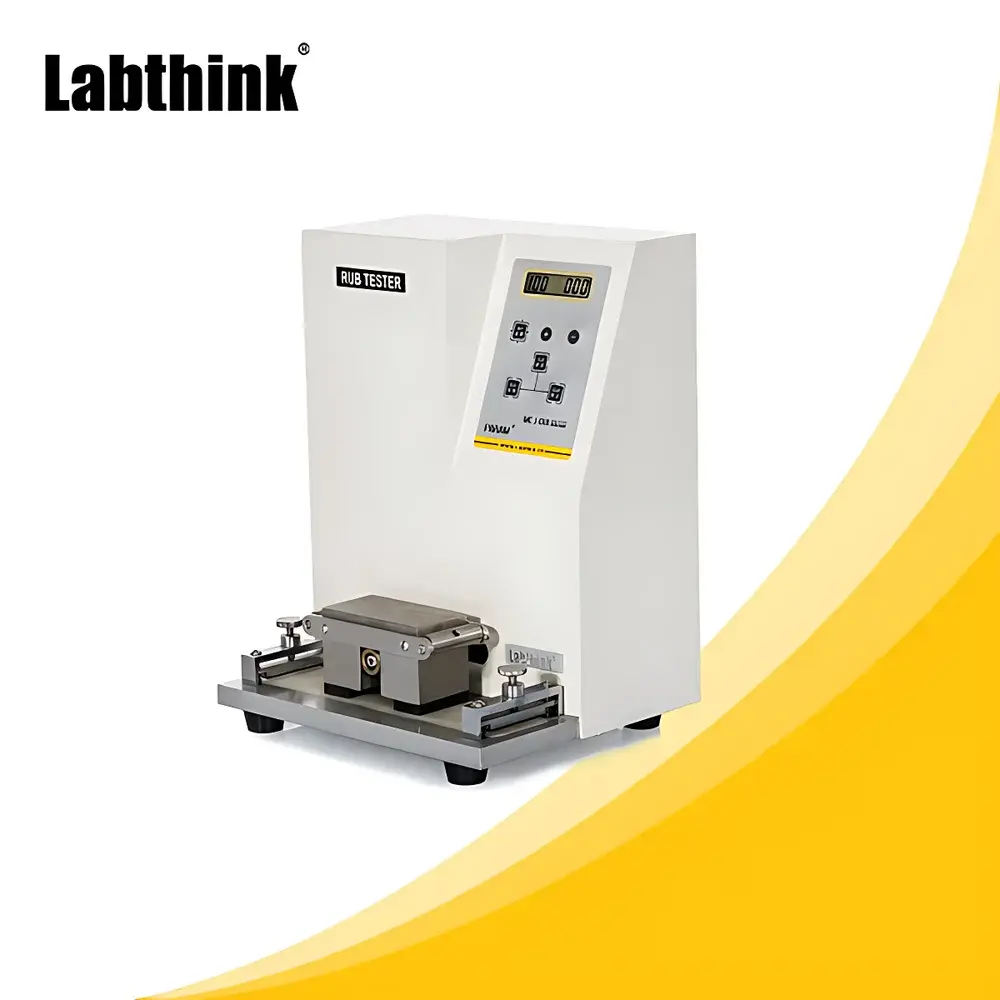

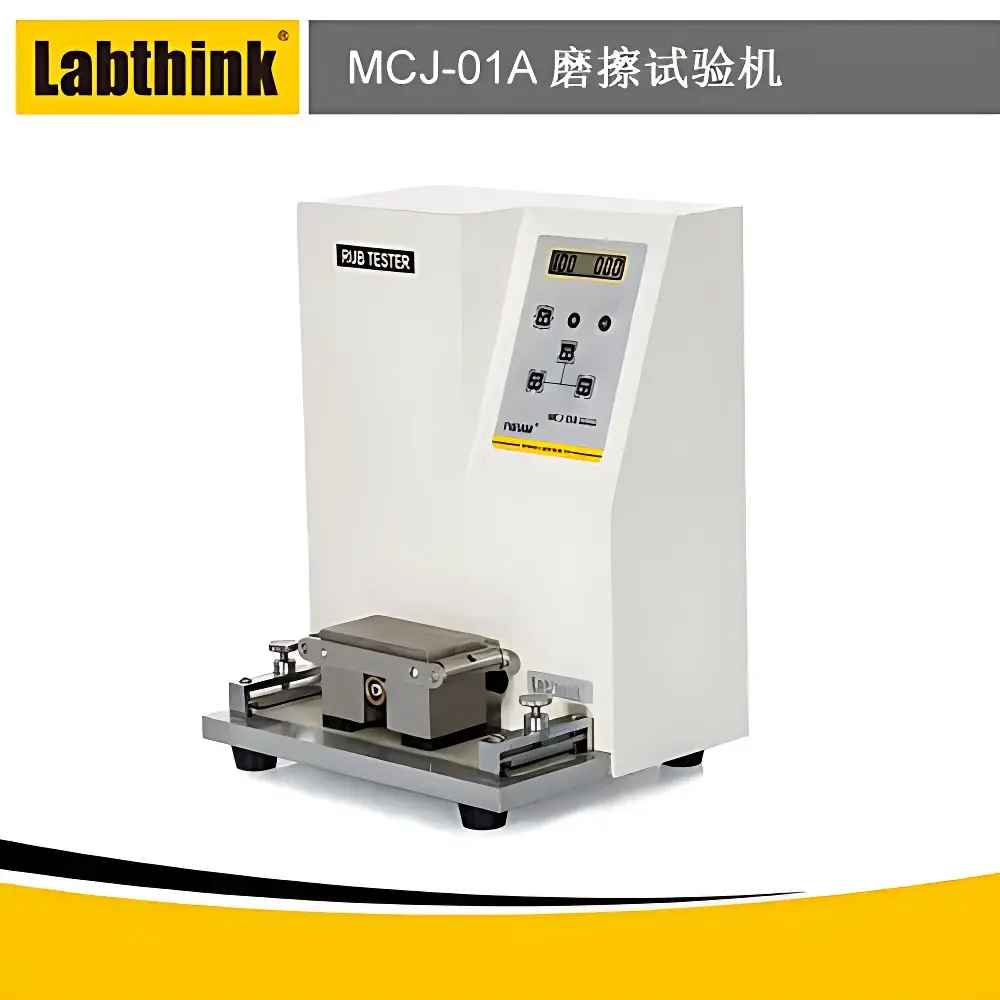

Labthink MCJ-01A Abrasion Tester for Ink Rub Resistance on Energy Labeling and Printed Surfaces

Overview

The Labthink MCJ-01A Abrasion Tester is an electromechanical instrument engineered for quantitative assessment of rub resistance—specifically, the mechanical durability of ink films, photosensitive layers on PS plates, and thin functional coatings applied to packaging substrates, energy efficiency labels, and printed media. It operates on a controlled linear reciprocating motion principle, applying a standardized normal load (20 ± 0.2 N) across a defined contact area (155 × 50 mm) at a fixed frequency of 3 cycles per minute. This methodology aligns with the fundamental requirements of gravimetric and visual evaluation protocols specified in GB/T 7706, enabling objective determination of ink transfer, pigment migration, or coating delamination under simulated handling and transport conditions. Unlike high-speed rotary abrasion systems, the MCJ-01A prioritizes low-velocity, high-fidelity surface interaction—making it particularly suitable for evaluating fine-detail printed labels (e.g., refrigerator or air conditioner energy rating tags), where localized abrasion-induced contrast loss directly impacts regulatory legibility and consumer compliance.

Key Features

• Microprocessor-controlled operation with embedded friction stage ensuring consistent stroke geometry and uniform pressure distribution across the full abrasion zone
• PVC membrane keypad interface paired with backlit LCD display for real-time cycle counting, parameter verification, and status monitoring
• Acoustically damped mechanical architecture delivering silent operation—critical for integration into QC laboratories adjacent to analytical instrumentation suites
• Power-loss memory function preserving active test parameters and accumulated cycle count during unexpected power interruption
• Modular specimen holder accommodating standard-sized strips (230 × 50 mm), compatible with pre-cut label stock, laminated film composites, and offset-printed cardboard substrates
• Calibration-traceable load application system verified against national metrological standards for force measurement

Sample Compatibility & Compliance

The MCJ-01A supports flat, rigid, or semi-rigid specimens up to 2 mm in thickness—including but not limited to: laminated PET/PP labels, coated paperboard used in appliance labeling, photopolymer PS printing plates, UV-curable inkjet-receptive coatings, and matte/gloss overprint varnishes. Its test protocol satisfies the physical testing requirements of GB/T 7706 for flexographic and letterpress ink systems. While not certified to ISO 11640 or ASTM D5264 (which govern rotary abraders), its operational parameters are functionally comparable for comparative benchmarking within internal quality control workflows. Data generated may be incorporated into GLP-compliant documentation when paired with Labthink’s optional audit-trail-enabled software module (sold separately), supporting traceability for ISO 9001:2015 and IATF 16949-certified manufacturing environments.

Software & Data Management

The base MCJ-01A operates as a standalone hardware platform with local display and manual result interpretation. For digital data capture and reporting, Labthink offers the optional CSD (Control & Statistical Dashboard) software suite—compatible via RS232 serial interface. CSD enables automated test logging, pass/fail threshold configuration (e.g., ΔE > 3.0 after 50 cycles), statistical summary generation (mean cycles to failure, coefficient of variation), and export to CSV or PDF formats. All electronic records comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when deployed under validated IT infrastructure. The software supports user-level access control and electronic signature functionality aligned with FDA 21 CFR Part 11 readiness requirements.

Applications

• Verification of ink adhesion performance on Class I & II energy efficiency labels mandated under China’s GB 12021 series standards
• Comparative evaluation of solvent-based vs. water-based ink formulations for high-volume appliance labeling lines
• PS plate qualification prior to press installation—quantifying photosensitive layer erosion limits under repeated blanket contact
• Coating hardness screening for anti-scratch topcoats applied to polymer-based smart appliance interfaces
• Root-cause analysis of field-reported label fading in humid tropical logistics corridors (e.g., Southeast Asia export shipments)
• Supplier qualification testing per OEM technical specifications requiring ≥200 rub cycles without visible ink transfer to white cotton cloth (per GB/T 7706 Annex A)

FAQ

Does the MCJ-01A meet international standards such as ISO or ASTM?
It is designed and validated per GB/T 7706, a nationally recognized Chinese standard. While not formally certified to ISO 11640 or ASTM D5264, its mechanical configuration allows direct correlation studies with those methods under controlled inter-laboratory validation.
Can the friction load be adjusted beyond 20 N?
No—the system employs a fixed-load cam mechanism calibrated to 20 ± 0.2 N. Custom load configurations require engineering modification and recalibration, voiding warranty and metrological validity.
Is specimen mounting tooling included?
Yes—a precision-machined aluminum clamp assembly with knurled thumb screws is supplied, ensuring repeatable lateral alignment and minimal edge deformation during cycling.
What maintenance is required for long-term accuracy?
Biannual verification of load cell output using certified deadweight standards and periodic cleaning of the linear guide rails with lint-free cloth and isopropyl alcohol is recommended.
Can test results be exported to LIMS platforms?
When used with the CSD software and optional OPC UA gateway module, structured test records (cycle count, pass/fail status, timestamp, operator ID) can be transmitted to compliant LIMS environments via secure TCP/IP handshake.
