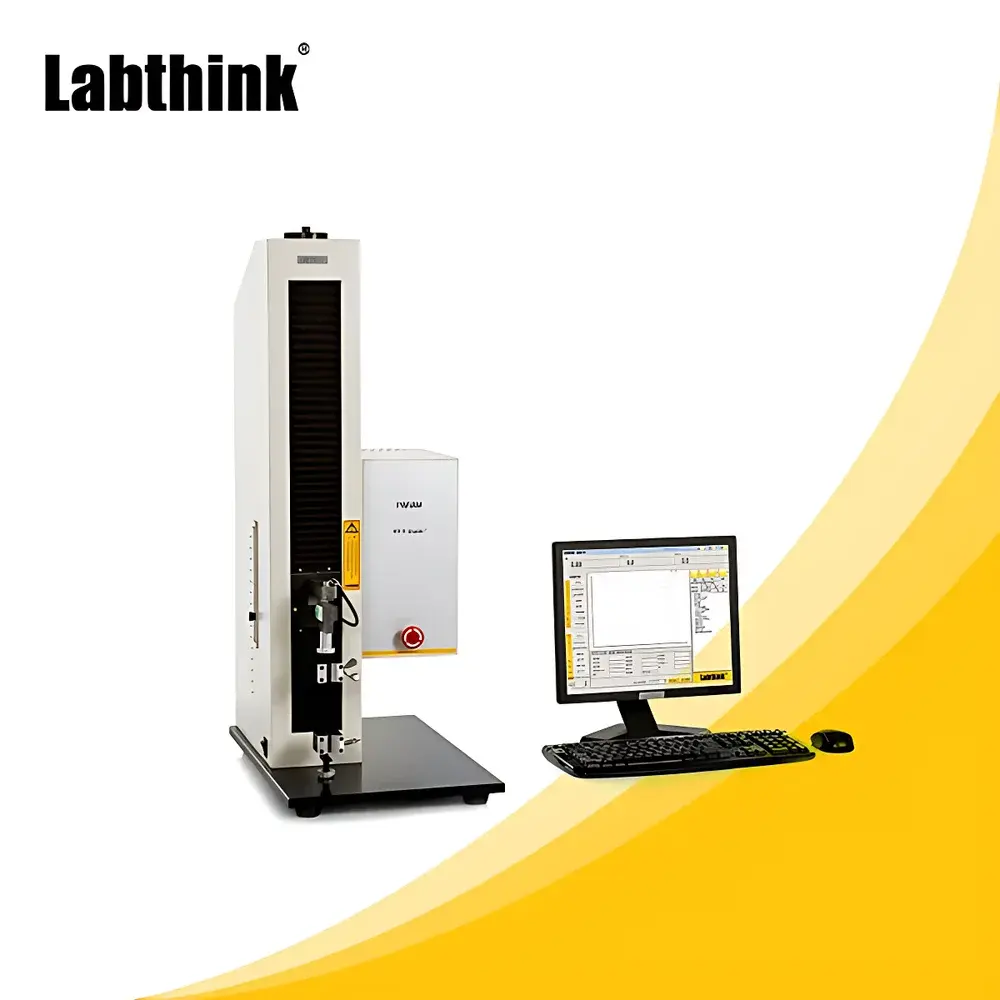

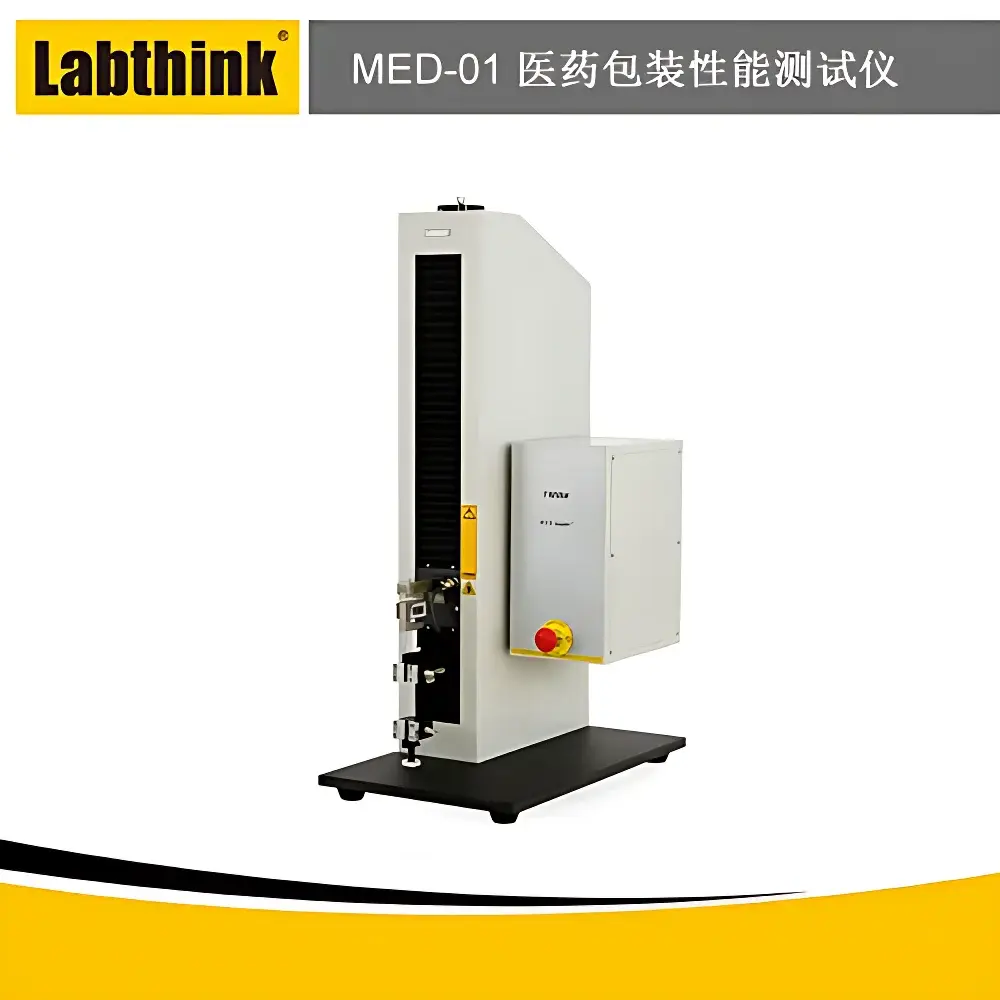

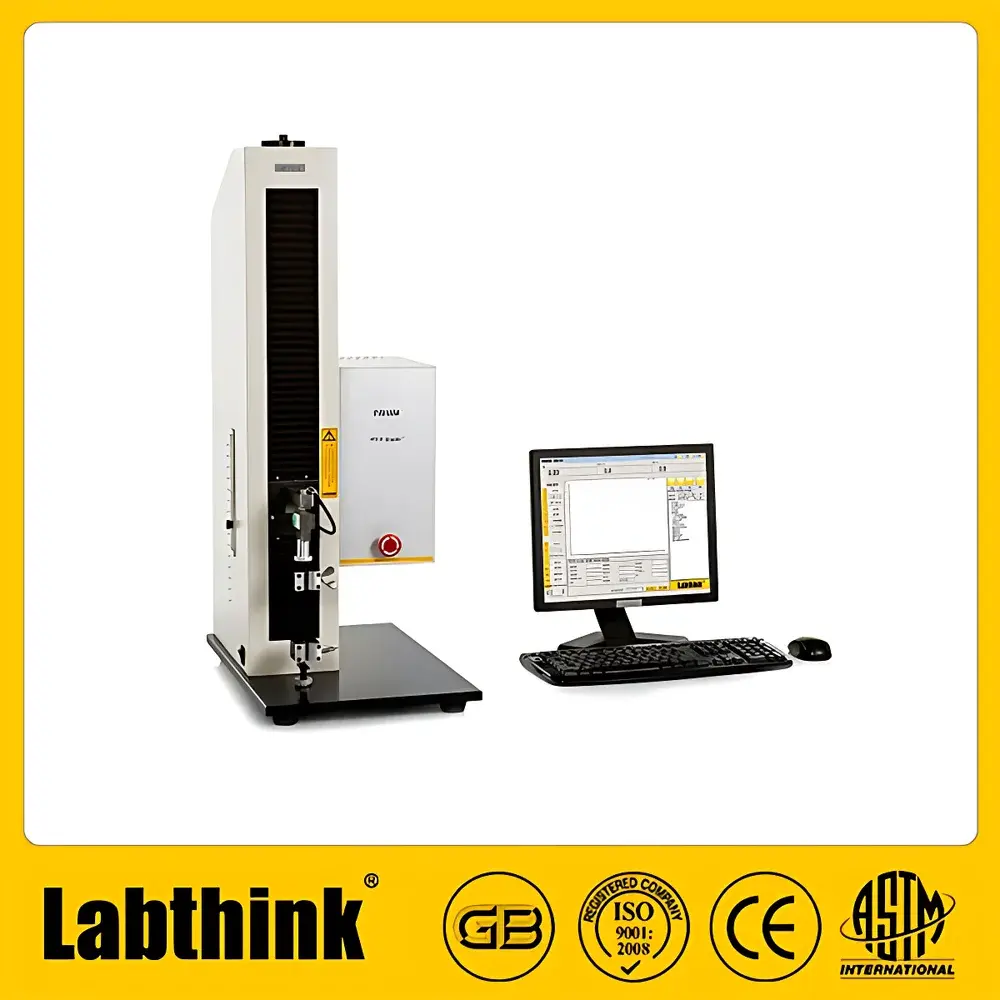

Labthink MED-01 Ampoule Break Force Tester

Overview

The Labthink MED-01 Ampoule Break Force Tester is a precision mechanical testing instrument engineered for the quantitative measurement of break force required to separate the neck from the body of glass ampoules used in pharmaceutical packaging. It operates on the principle of controlled uniaxial bending—applying a perpendicular load at the ampoule’s neck region until fracture occurs—thereby replicating the clinical or manufacturing handling conditions under which ampoules are manually opened. Designed in strict accordance with pharmacopoeial and regulatory test requirements—including Chinese Pharmacopoeia General Chapter YBB00332002 and national standard GB/T 2637—the MED-01 ensures compliance with internationally recognized quality control frameworks for parenteral packaging integrity. Its robust architecture supports routine QC/QA workflows in pharmaceutical manufacturing, contract testing laboratories, and R&D departments focused on container closure system optimization.

Key Features

• Modular force transducer configuration: Standard 250 N capacity with optional ranges (50 N–1000 N) to accommodate diverse ampoule geometries—from 1 mL micro-ampoules to 25 mL large-volume vials.
• High-accuracy load measurement: Load cell certified to better than Class 0.5 per ISO 376, ensuring traceable force resolution and long-term repeatability across calibration cycles.
• Programmable crosshead speed: Six discrete test speeds (10–300 mm/min) for both extension and retraction, enabling method development aligned with USP <1207> guidance on mechanical testing parameters.
• Dedicated ampoule fixtures: Precision-machined stainless-steel support brackets with adjustable spacing, designed to maintain consistent 90° loading geometry relative to the ampoule’s central axis—minimizing bending moment variability.
• Manual clamping system with ergonomic lever actuation: Ensures rapid sample loading/unloading while maintaining operator safety and positional reproducibility between tests.
• Universal power compatibility: Dual-voltage input (220 VAC 50 Hz / 120 VAC 60 Hz) facilitates seamless deployment in global laboratory environments without external transformers.

Sample Compatibility & Compliance

The MED-01 accommodates standard Type I and Type II borosilicate glass ampoules across common capacities (1 mL to 25 mL), including those with scored or non-scored necks. Fixture adaptability allows evaluation of both traditional “snap-off” and modern laser-scored ampoules. The system meets essential regulatory alignment criteria: it satisfies the mechanical test apparatus specifications outlined in YBB00332002 (China Pharmaceutical Packaging Association), GB/T 2637 (People’s Republic of China National Standard), and provides foundational data traceability compatible with GLP and GMP documentation requirements. While not inherently 21 CFR Part 11-compliant, the instrument’s analog output and optional digital interface support integration into validated LIMS or ELN systems when paired with compliant data acquisition hardware and SOP-defined audit trails.

Software & Data Management

The MED-01 operates as a standalone electromechanical tester with analog signal output (±10 V) and RS232/RS485 communication ports. When connected to Labthink’s proprietary TestMate software (sold separately), users gain access to real-time force–displacement curve visualization, automatic peak detection, statistical reporting (mean, SD, CV%), and export-ready CSV/PDF reports. All test metadata—including date/time stamp, operator ID, sample ID, and test parameters—is embedded in exported files. For regulated environments, software validation packages (IQ/OQ/PQ protocols) and electronic signature modules are available upon request to support FDA, EMA, or NMPA audit readiness.

Applications

• Quality control of ampoule batch release per internal specifications and pharmacopoeial monographs.
• Comparative evaluation of neck scoring depth, annealing profiles, and glass composition effects on break force consistency.
• Stability study support: Monitoring break force drift over accelerated aging conditions (e.g., 40 °C/75% RH).
• Supplier qualification: Objective assessment of incoming ampoule lots against pre-defined break force acceptance criteria (e.g., 20–60 N for 2 mL Type I ampoules).
• Root cause analysis of clinical opening failures or glass particle generation during manual breakage.
• Supporting design transfer activities for new ampoule formats undergoing regulatory filing (e.g., CMC sections of IND/MAA submissions).

FAQ

What standards does the MED-01 comply with?
The MED-01 fulfills the physical apparatus requirements specified in YBB00332002 and GB/T 2637 for ampoule break force testing. It also aligns with general principles referenced in USP <1207> and ISO 8536-1 for parenteral container performance evaluation.

Can the MED-01 test plastic or polymer-based ampoules?
While primarily optimized for glass ampoules, the instrument may be adapted for rigid polymer vials using custom fixtures—however, break behavior (ductile vs. brittle fracture) necessitates method revalidation per ISO 11607-2.

Is calibration certification included with delivery?
Yes—each unit ships with a factory calibration certificate traceable to CNAS-accredited national standards. Optional annual recalibration services with full uncertainty budgets are available through Labthink’s global service network.

How is sample alignment verified before testing?
The fixture incorporates engraved centerline indicators and vernier-adjustable support arms. A pre-test visual alignment protocol—documented in the user manual—ensures the ampoule’s longitudinal axis remains orthogonal to the applied load vector within ±1° tolerance.

Does the MED-01 support automated data archiving?
Not natively—but via RS232/RS485 integration with third-party SCADA or LIMS platforms, raw force/time data streams can be captured and archived in accordance with ALCOA+ data integrity principles.
