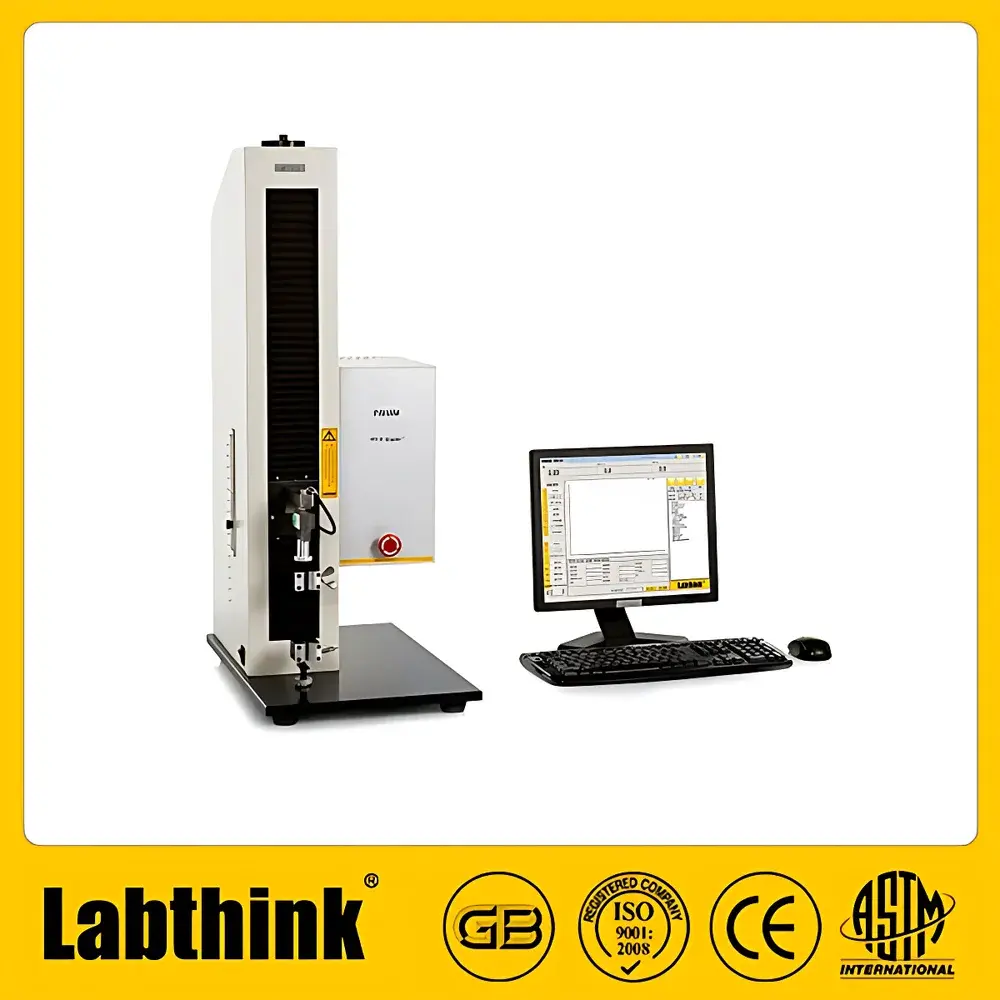

Labthink MED-01 Medical Glove Performance Tester

Overview

The Labthink MED-01 Medical Glove Performance Tester is a modular, standards-compliant mechanical testing platform engineered for precision evaluation of critical functional properties of single-use medical gloves—primarily natural rubber latex and synthetic elastomeric gloves. Designed in alignment with international regulatory frameworks governing personal protective equipment (PPE) and medical devices, the system implements standardized test methodologies rooted in ISO 37 (tensile properties), YY/T 0616.4–2018 (puncture resistance), and GB 10006–1988 (coefficient of friction). Unlike general-purpose tensile testers, the MED-01 integrates glove-specific fixturing, load-cell calibration traceable to national metrology institutes, and programmable motion control to replicate physiologically relevant stress conditions—including controlled crosshead speed (e.g., 200 mm/min for puncture), defined specimen geometry per ISO 37 Type 2 dumbbell cuts, and dual-surface friction measurement protocols. Its architecture supports GLP-compliant operation through audit-trail-enabled software, making it suitable for quality control laboratories, regulatory submission support, and supplier qualification workflows in ISO 13485-certified environments.

Key Features

• Modular test configuration: Interchangeable fixtures for tensile strength & elongation at break (per ISO 37), puncture resistance (per YY/T 0616.4–2018), and static/dynamic coefficient of friction (COF) on both inner and outer glove surfaces
• High-fidelity force measurement: 0.5-class load cell with ±0.5% full-scale accuracy, calibrated per ISO 7500-1, supporting force ranges from 1 N to 500 N
• Glove-specific specimen handling: Pre-aligned clamping jaws with serrated grip surfaces to prevent slippage during high-strain tensile testing; dedicated puncture probe assembly meeting YY/T 0616.4 dimensional tolerances (Ø1.0 ± 0.02 mm, 30° conical tip)
• Programmable motion control: Adjustable crosshead speed (0.05–500 mm/min), dwell time, and return-to-start functionality for repeatable multi-cycle testing
• Compliance-ready software interface: Real-time data acquisition, automatic calculation of mean puncture force (n = 12), COF differential reporting (inner vs. outer surface), and export of raw data in CSV/PDF formats compatible with FDA 21 CFR Part 11–aligned validation packages

Sample Compatibility & Compliance

The MED-01 accommodates standard medical glove sizes (S–XL) after specimen preparation per referenced standards: three Type 2 dumbbell specimens cut from each glove (GB 10213–2006 Annex A), flat-mounted puncture samples (25 mm × 25 mm, un-stretched), and COF test strips (63 mm × 100 mm). It supports natural rubber latex, nitrile, neoprene, and polyisoprene glove materials. Regulatory alignment includes direct methodological correspondence to GB 10213–2006 (Chinese national standard for rubber examination gloves), YY/T 0616 series (Chinese industry standards for medical gloves), ISO 37:2017, and ASTM D624 (for comparative elastomer characterization). The system meets mechanical safety requirements per ISO 12100 and electromagnetic compatibility per IEC 61326-1.

Software & Data Management

The embedded Windows-based control software provides guided test setup wizards for each glove-specific protocol, including automatic parameter loading based on selected standard (e.g., 200 mm/min speed + 12-cycle puncture sequence). All test sessions generate timestamped records with operator ID, environmental conditions (optional humidity/temperature input), instrument calibration status, and raw force-displacement curves. Audit trails log user actions, method changes, and data exports—enabling retrospective verification required under GLP and GMP quality systems. Data output complies with laboratory information management system (LIMS) ingestion protocols and supports integration into enterprise quality management systems (QMS) via secure API or batch file transfer.

Applications

• QC release testing of finished medical gloves against tensile strength ≥18 MPa and elongation ≥750% (GB 10213–2006 Class A requirements)
• Puncture resistance validation for surgical gloves subjected to sharp instrument contact (target mean puncture force ≥5.0 N per YY/T 0616.4)
• Friction optimization studies: Quantifying inner-surface COF ≤0.35 (to ensure donning ease) and outer-surface COF ≥0.55 (to maintain tactile grip under wet conditions)
• Supplier qualification and incoming material inspection for polymer film suppliers providing glove-grade compounds
• Stability studies assessing mechanical property degradation after accelerated aging (e.g., 55°C/7 days per ISO 11607–1)

FAQ

Does the MED-01 comply with FDA or EU MDR requirements for medical device testing?
Yes—the instrument’s test methods directly implement harmonized standards referenced in FDA guidance documents (e.g., ISO 37, YY/T 0616) and EU MDR Annex I General Safety and Performance Requirements (GSPR 10.2 on mechanical integrity). Full validation documentation (IQ/OQ/PQ protocols) is available upon request.
Can the system test both latex and synthetic gloves without hardware modification?
Yes—specimen fixtures are material-agnostic; only cutting templates and probe selection differ per standard. No recalibration is required when switching between glove types.
Is third-party calibration certification included with purchase?
Each unit ships with a factory calibration certificate traceable to CNAS-accredited standards. On-site calibration services and annual recalibration contracts are available globally.
How is data integrity ensured during long-term deployment in regulated labs?
The software enforces role-based access control, electronic signatures, and immutable audit logs compliant with 21 CFR Part 11 Subpart B. All data files include cryptographic hash verification to prevent tampering.
What additional instruments are needed for full glove compliance testing?

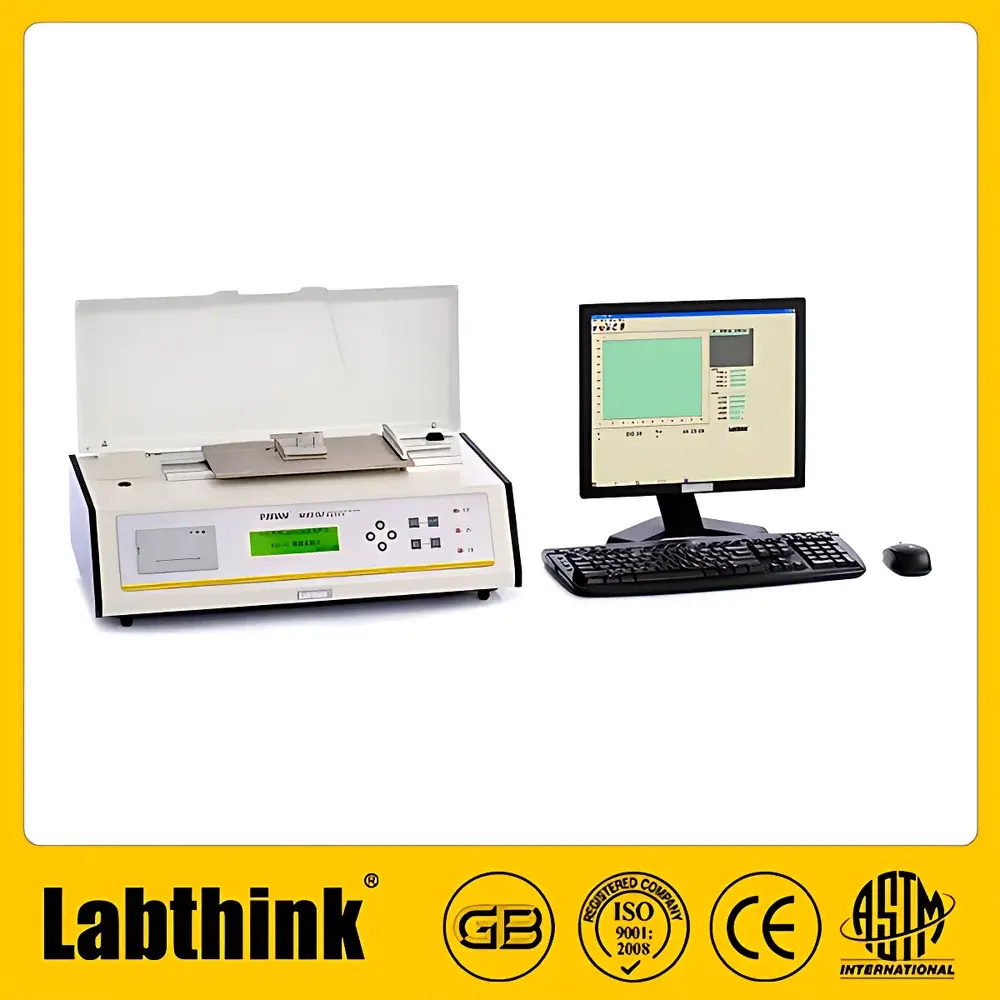

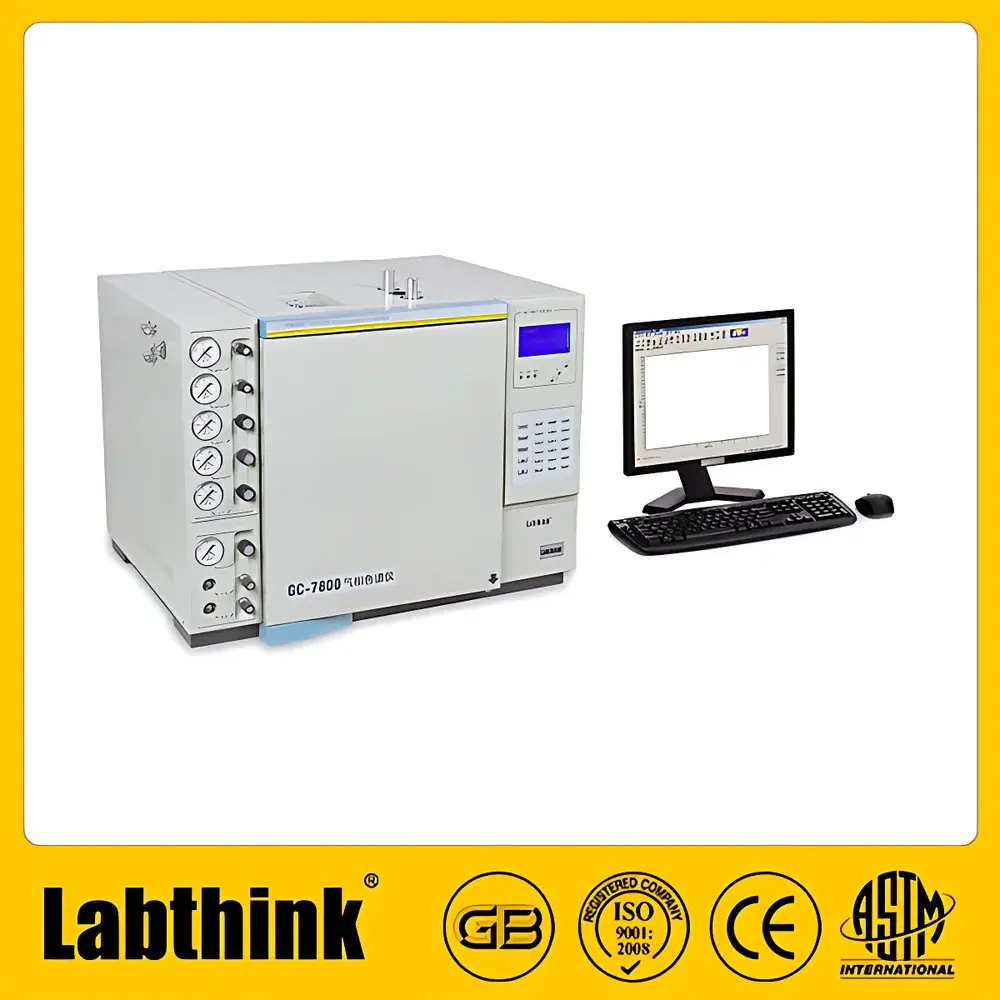

For comprehensive assessment per YY/T 0616, pairing with Labthink’s GC-7800 Gas Chromatograph (for EO residue per ISO 10993-7) and MXD-02 Coefficient of Friction Tester (for independent COF validation) is recommended—but the MED-01 alone satisfies mechanical performance testing requirements.
