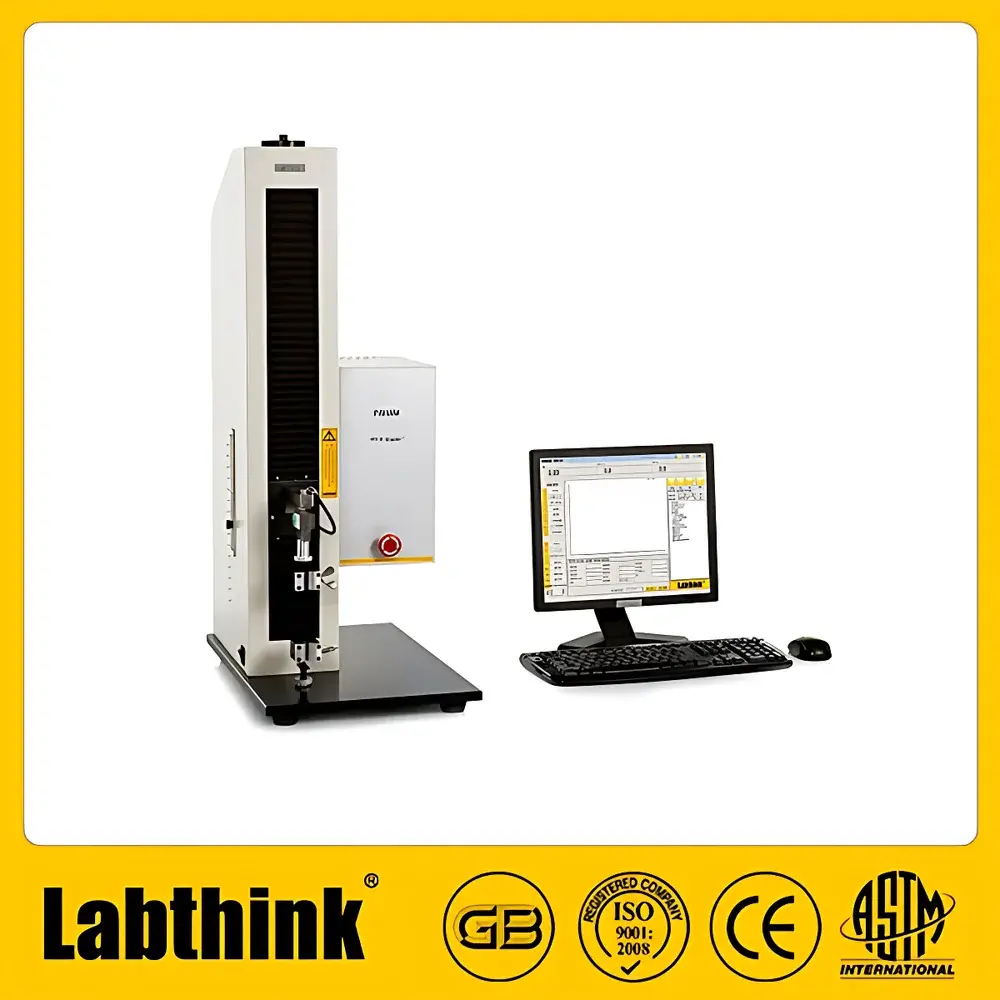

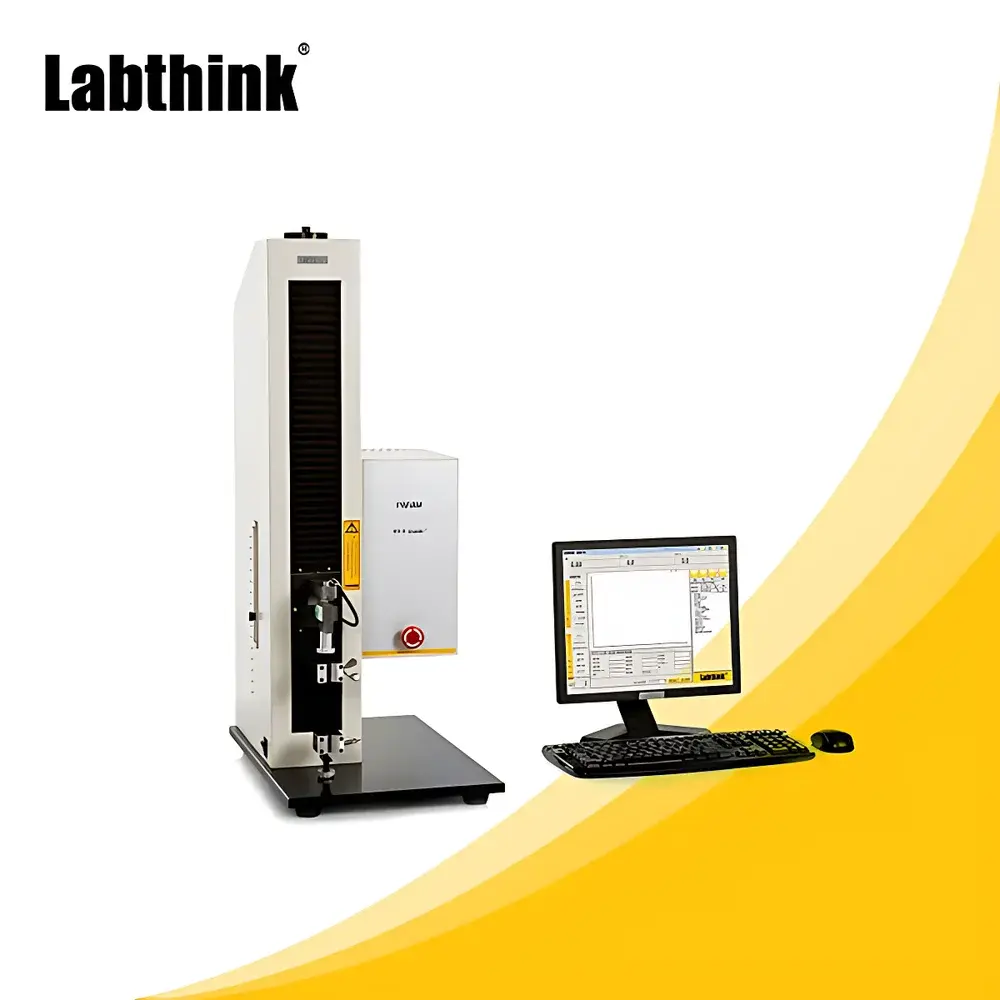

Labthink MED-01 Ring Tack Adhesion Tester
| Brand | Labthink |
|---|---|
| Model | MED-01 |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Category | Ring Tack Adhesion Tester |
| Compliance Standard | GB/T 31125-2014 Method A (Ring Tack), FINAT Test Method No.9 |
| Test Speed | 300 mm/min |
| Contact Area | 24 mm × 24 mm |
| Specimen Width | 24 mm |
| Holding Time | ≥3 s |
| Force Measurement Range | Compatible with Labthink XLW Series Universal Testing Machines (typically 1–500 N full scale) |
| Fixture Material | Stainless Steel (T-shaped ring tack test plate) |
Overview
The Labthink MED-01 Ring Tack Adhesion Tester is a dedicated mechanical testing system engineered for the quantitative evaluation of initial adhesion—commonly referred to as “tack”—of pressure-sensitive adhesive (PSA) tapes and labels. It implements the ring tack principle defined in GB/T 31125-2014 (Method A: Tensile Testing Machine Method) and aligns with FINAT Test Method No.9. Unlike probe tack or loop tack methods, the ring tack configuration isolates interfacial separation behavior under controlled geometry and kinematics: a pre-formed annular specimen—24 mm wide, with adhesive surface outward—is brought into defined contact with a standardized stainless-steel T-shaped test plate (24 mm × 24 mm active area), held for ≥3 seconds under zero load, then peeled vertically at 300 mm/min. The peak force recorded during detachment reflects the energy required to overcome interfacial bonding at the initial contact stage, providing a reproducible metric highly correlated with automatic labeling performance, especially on curved or high-speed packaging substrates.
Key Features
- Engineered for compliance with GB/T 31125-2014 Method A and FINAT No.9—fully traceable to international PSA characterization protocols.
- Stainless-steel T-shaped ring tack test plate manufactured to dimensional tolerances ≤±0.1 mm, ensuring consistent contact area and edge effects across repeated tests.
- Modular integration with Labthink XLW series universal testing machines—leveraging calibrated load cells (typical range: 1–500 N), closed-loop speed control (±0.5% accuracy), and programmable dwell timing.
- Specimen preparation support: includes alignment jigs for precise 24-mm-width ring formation and auxiliary fixation tape to secure specimen ends without interference to the active bond zone.
- No proprietary electronics or embedded firmware—designed for interoperability with third-party tensile testers meeting ISO 7500-1 Class 1 force calibration standards.
Sample Compatibility & Compliance
The MED-01 accommodates standard PSA tapes, transfer adhesives, label facestocks, and medical-grade adhesive films requiring quantification of early-stage bond formation. Specimens must be conditioned per ASTM D618 or ISO 291 (23 °C ±2 °C, 50% RH ±5%) prior to testing. All test plates and fixtures comply with material and surface finish requirements specified in GB/T 31125-2014 Annex B (Ra ≤ 0.8 µm). Data generated supports GLP-compliant reporting when paired with Labthink’s certified software modules (e.g., Labthink eTestSuite), including audit trails, electronic signatures, and 21 CFR Part 11–ready export formats (CSV, PDF/A-2).
Software & Data Management
When operated with Labthink XLW-series testers, the MED-01 utilizes eTestSuite v4.2+—a validated Windows-based platform supporting method-driven test sequencing, real-time force–displacement curve visualization, automatic peak detection, and pass/fail thresholding against user-defined specification limits. Raw data files include timestamped metadata (operator ID, environmental conditions, fixture ID, calibration certificate expiry), enabling full traceability. Export options conform to ISO/IEC 17025 documentation requirements and integrate with LIMS via ODBC or RESTful API. All software modules undergo annual verification per IEC 62304 Class B safety classification.
Applications
- Quality control of linerless labels and high-speed dispensing tapes where rapid initial grab is critical to application integrity.
- Formulation development of acrylic, rubber, and silicone PSAs—correlating ring tack values with peel adhesion (ASTM D903), shear resistance (ASTM D3654), and aging behavior.
- Root-cause analysis of adhesive delamination in pharmaceutical blister lidding or transdermal patch assembly.
- Comparative benchmarking between roll-to-roll coated tapes and solvent-free hot-melt extruded variants.
- Supplier qualification audits requiring documented adherence to FINAT or AFERA technical specifications.
FAQ
What distinguishes ring tack from loop tack or probe tack testing?
Ring tack measures vertical debonding of a geometrically constrained annulus, emphasizing cohesive integrity and interfacial stress distribution under uniform contact pressure—making it more predictive for automated applicator performance than lateral peel-based methods.
Can the MED-01 be used with non-Labthink testing machines?
Yes—provided the host tester delivers stable 300 mm/min crosshead speed, ≥3 s dwell capability, ≤0.5% force linearity, and analog/digital output compatible with eTestSuite’s trigger interface.
Is calibration of the T-shaped test plate required?
No—the plate is a passive mechanical fixture; however, its dimensional conformity (24 mm × 24 mm active area, Ra ≤ 0.8 µm) must be verified annually using certified surface metrology equipment per ISO 25178.
How does humidity affect ring tack results?
Relative humidity directly influences PSA chain mobility and substrate moisture absorption; therefore, all testing must occur in an ISO 17025-accredited environment with continuous monitoring and logging per ASTM E145.
Does Labthink provide validation documentation for GMP environments?
Yes—IQ/OQ/PQ protocols, calibration certificates traceable to NIM (China) and NIST (USA), and software validation reports are available upon request for regulated pharmaceutical and medical device manufacturing sites.
