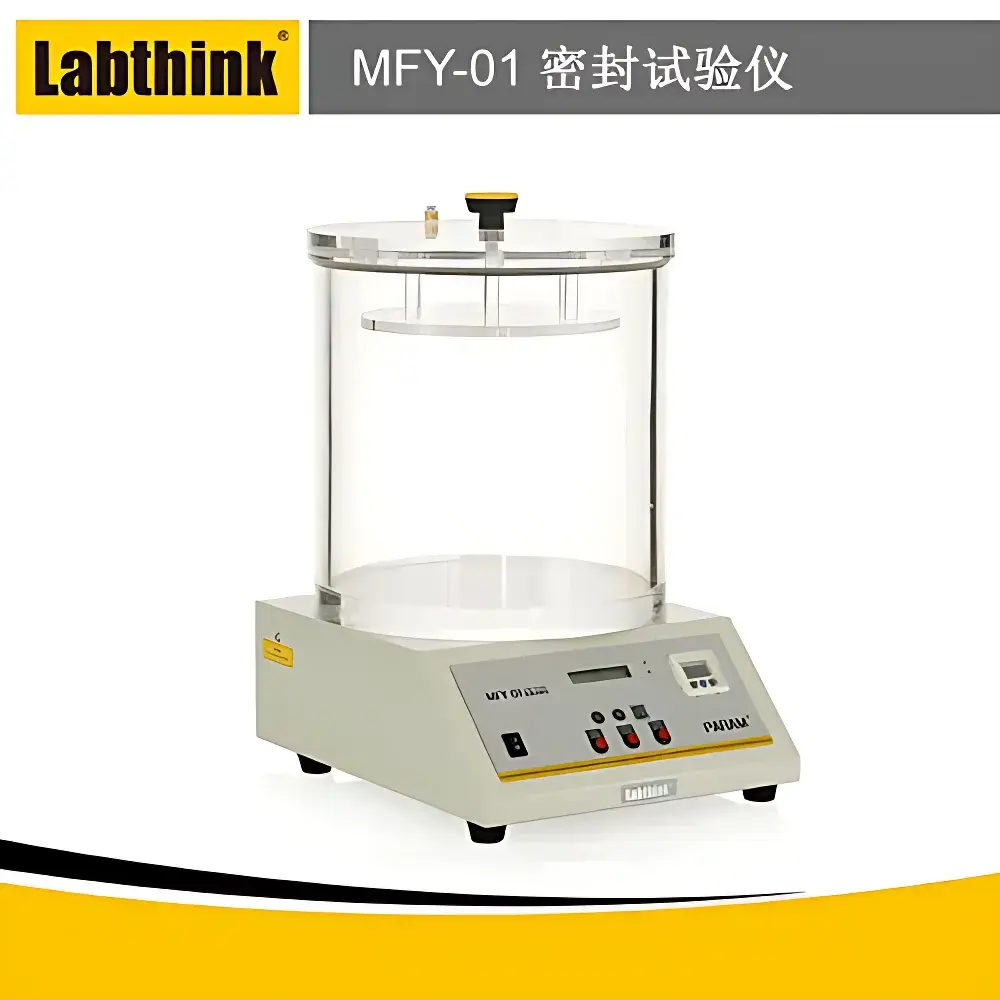

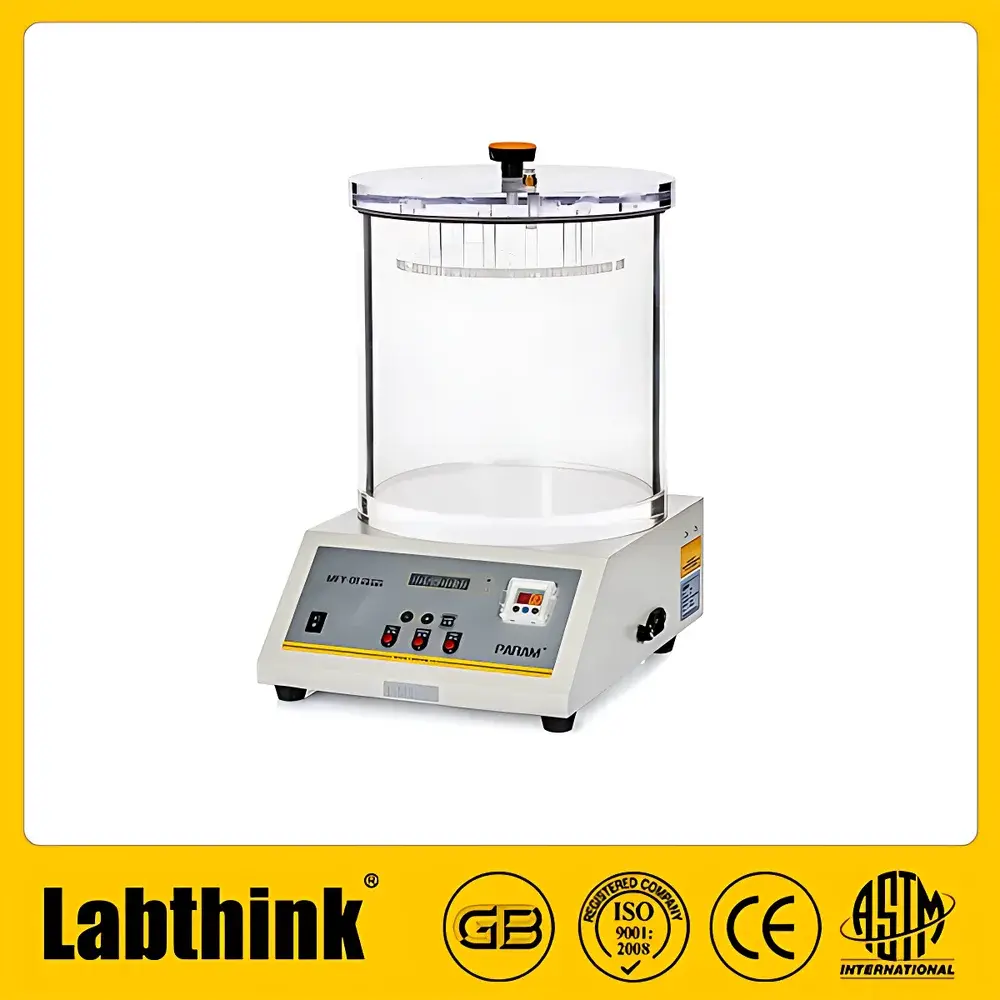

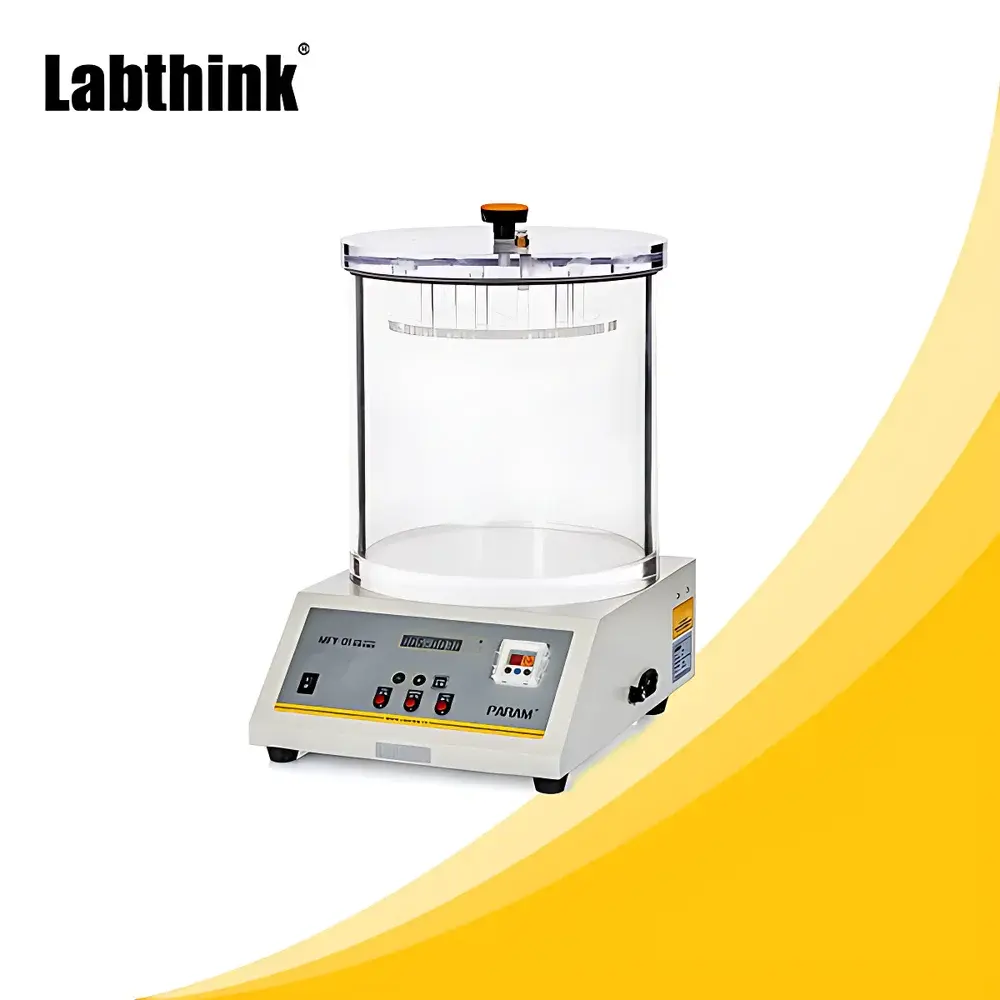

Labthink MFY-01 Seal Integrity Tester for Flexible Food Packaging and Retort Pouches
| Brand | Labthink |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MFY-01 |
| Price Range | USD 1,400 – 4,200 |
| Vacuum Range | 0 to –90 kPa (Class 1 Accuracy) |
| Standard Vacuum Chamber Dimensions | Φ270 mm × 210 mm (H) |
| Optional Chambers | Φ360 mm × 585 mm (H), Φ460 mm × 330 mm (H) |
| Air Supply Requirement | 0.7 MPa (user-provided) |
| Air Inlet | Φ6 mm polyurethane tubing |
| Overall Dimensions | 300 mm (L) × 380 mm (W) × 450 mm (H) |
| Power Supply | AC 220 V, 50 Hz |
| Net Weight | 12 kg |
| Compliant Standards | GB/T 15171, ASTM D3078 |
Overview
The Labthink MFY-01 Seal Integrity Tester is a benchtop vacuum decay-based instrument engineered for objective, repeatable assessment of package seal integrity across flexible and semi-rigid packaging formats. It operates on the principle of controlled vacuum application within a sealed water-submerged test chamber, enabling two complementary evaluation modes: (1) bubble emission detection—where leakage paths are identified by visible gas efflux from submerged specimens under differential pressure; and (2) deformation recovery analysis—where transient expansion of sealed packages under vacuum and subsequent shape restoration upon pressure release indicate structural resilience and absence of macro-leaks. This dual-mode methodology aligns with internationally recognized physical leak detection paradigms used in quality assurance laboratories for retort pouches, laminated sachets, blister packs, and thermoformed trays.
Key Features
- Class 1 vacuum accuracy (±1% FS) over a controllable range of 0 to –90 kPa, ensuring metrologically traceable pressure conditions per ISO/IEC 17025-aligned calibration practices.
- Modular vacuum chamber system with three standardized configurations—Φ270 × 210 mm (standard), Φ360 × 585 mm, and Φ460 × 330 mm—to accommodate diverse package geometries including stand-up pouches, pillow packs, and shallow trays.
- Robust stainless-steel and acrylic construction with IP54-rated electrical enclosure, designed for sustained operation in regulated manufacturing environments (e.g., food-grade cleanrooms, pharmaceutical secondary packaging lines).
- Integrated digital vacuum gauge with real-time pressure logging capability, supporting manual test parameter recording or optional RS232/USB data export for external LIMS integration.
- No consumables or reagents required—operation relies solely on user-supplied compressed air (0.7 MPa) and ambient tap water, minimizing total cost of ownership and environmental footprint.
Sample Compatibility & Compliance
The MFY-01 accommodates a broad spectrum of package types: flexible laminates (e.g., PET/AL/PE retort pouches), rigid plastic containers (HDPE jars, PP tubs), aluminum foil-lidded trays, and composite blister cards. It is routinely deployed post-distribution simulation—evaluating seal performance after ISTA 3A/3E-compliant drop, compression, or vibration testing. Regulatory alignment includes full conformance with GB/T 15171–1994 (“Method for Testing Seal Integrity of Flexible Package”) and ASTM D3078–22 (“Standard Test Method for Determining Leaks in Flexible Packaging by Bubble Emission”). While not inherently 21 CFR Part 11 compliant, its analog control architecture supports GLP/GMP documentation workflows when paired with validated SOPs and manual audit trails.
Software & Data Management
The MFY-01 operates via intuitive push-button controls with LED status indicators—no embedded software or operating system. All test parameters (target vacuum level, dwell time, observation duration) are manually set and recorded externally. For laboratories requiring electronic records, Labthink offers optional PC-based data acquisition modules (sold separately) that capture timestamped vacuum profiles and operator annotations, generating CSV-compatible logs suitable for FDA-submissible reports. Raw test evidence—including high-resolution video of bubble formation or dimensional change—is captured externally using calibrated industrial cameras, satisfying ALCOA+ data integrity principles when managed under controlled document procedures.
Applications
- Quality release testing of sterilized retort pouches in meat, seafood, and ready-to-eat meal production.
- Validation of heat-seal parameters during packaging line setup and changeover (e.g., jaw temperature, dwell time, pressure).
- Root cause analysis of seal failures following environmental stress exposure (e.g., thermal cycling, humidity aging).
- Supplier qualification audits for contract packaging organizations serving FDA-regulated food and medical device sectors.
- Supporting ISO 22000 and BRCGS Packaging Standard clause 4.9.3 (leak testing protocol validation).
FAQ
What types of packages can be tested on the MFY-01?
Flexible pouches (retort, stand-up, spouted), rigid plastic containers, foil-lidded trays, blister packs, and laminated tubes—provided they withstand immersion and differential pressure without catastrophic deformation.
Is compressed air supply included with the instrument?
No. A clean, oil-free compressed air source delivering 0.7 MPa at ≥10 L/min must be provided by the user via Φ6 mm polyurethane tubing.
Does the MFY-01 meet FDA or EU regulatory requirements for food contact packaging?
It satisfies applicable physical test method standards (ASTM D3078, GB/T 15171); however, regulatory acceptance depends on laboratory-specific validation, documented procedures, and adherence to GMP/GLP frameworks—not instrument certification alone.
Can test results be exported to LIMS or ERP systems?
Yes—via optional serial/USB interface modules that output timestamped vacuum curves and operator metadata in CSV format for direct ingestion into enterprise data platforms.
Are custom chamber sizes available?
Yes. Labthink provides engineering support for non-standard vacuum chamber dimensions, subject to mechanical feasibility review and lead-time extension.
