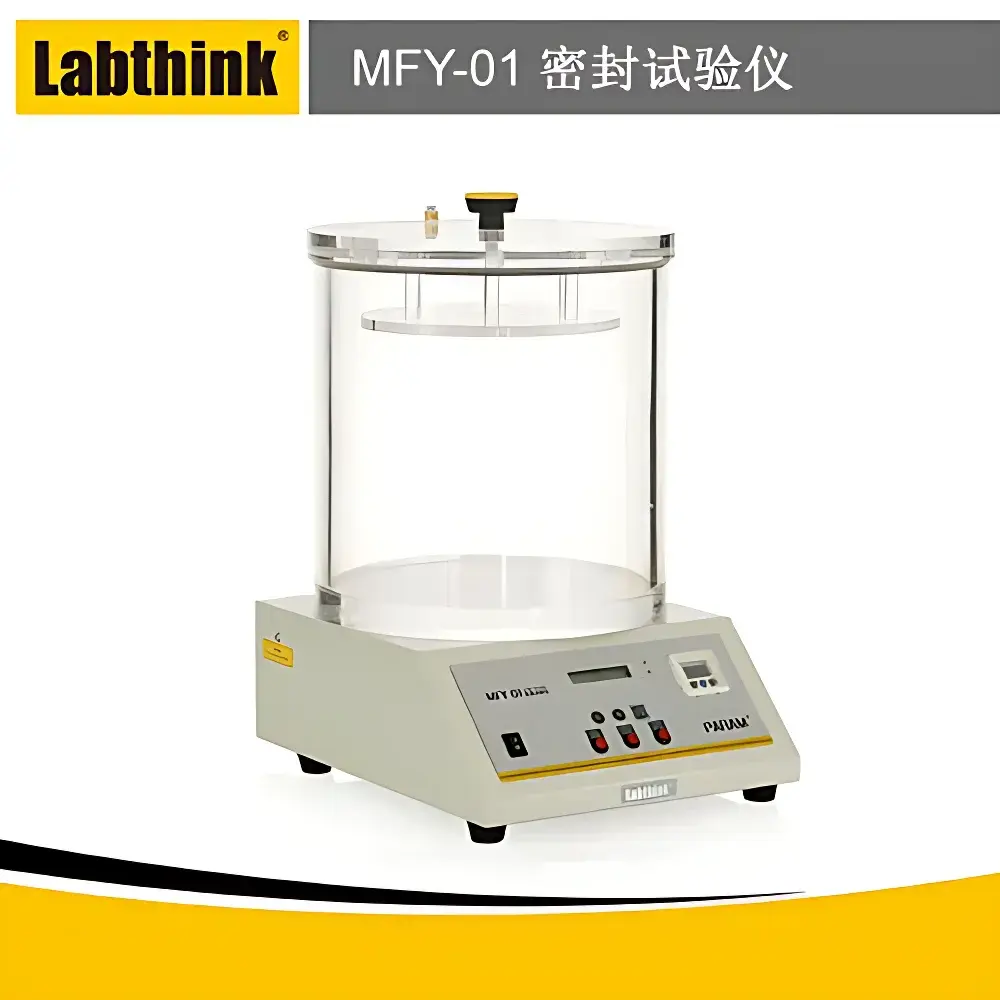

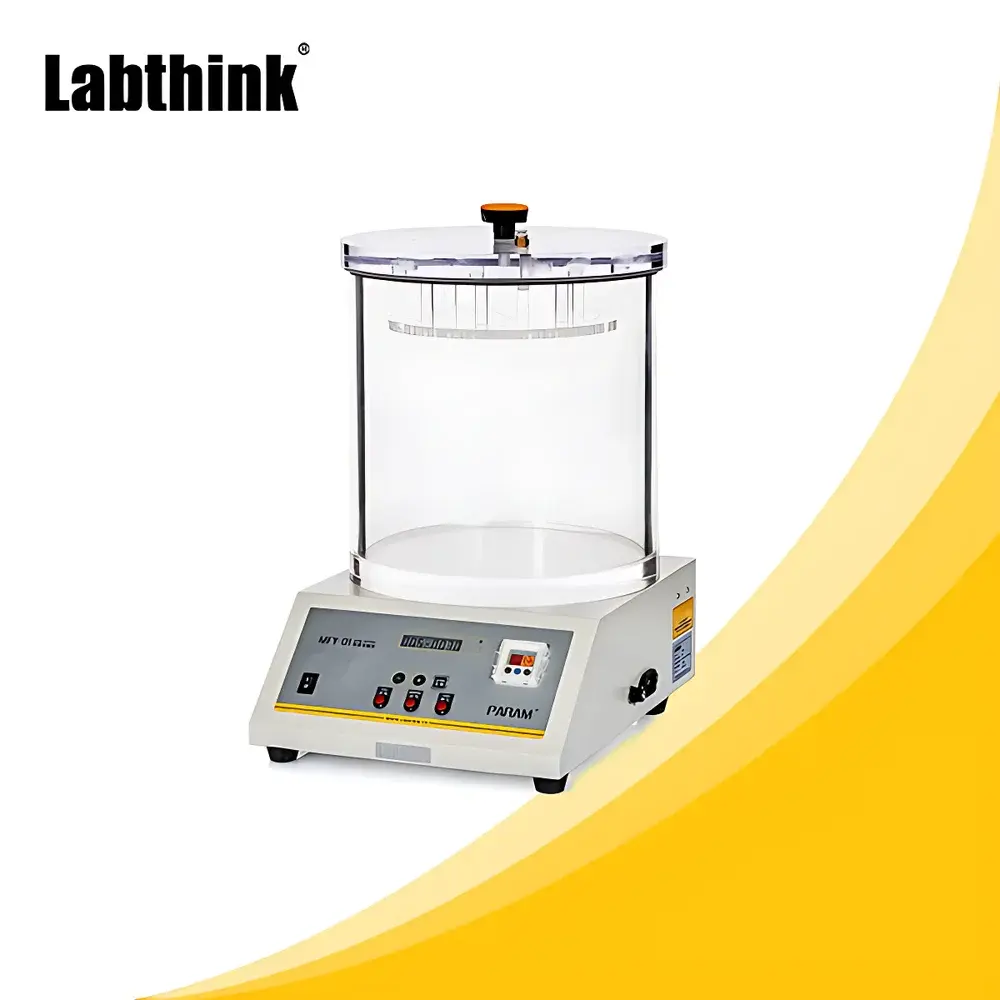

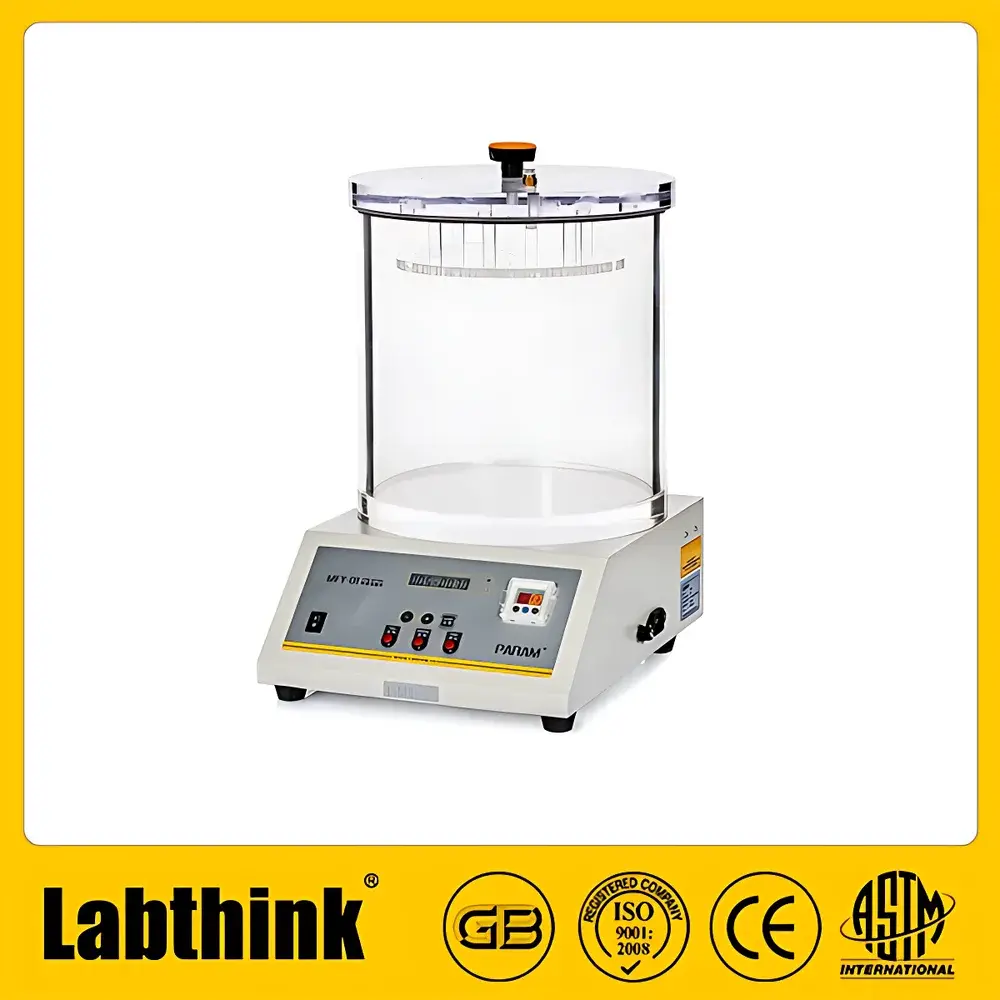

Labthink PARAM MFY-01 Seal Integrity Tester

Overview

The Labthink PARAM MFY-01 Seal Integrity Tester is a microprocessor-controlled vacuum decay-based instrumentation system engineered for objective, repeatable assessment of package seal integrity across regulated and non-regulated industries. It operates on the principle of controlled vacuum application within a sealed test chamber, inducing differential pressure across the specimen—typically rigid or semi-rigid containers such as cosmetic bottles, pharmaceutical vials, blister packs, tubes, cans, and flexible pouches. Two primary evaluation modes are supported: (1) bubble emission observation under submerged conditions (per ASTM D3078), where gas leakage manifests as visible bubbles escaping from defective seals; and (2) dimensional deformation analysis—monitoring expansion during vacuum application and recovery behavior upon venting—to infer structural integrity and elastic memory retention (per GB/T 15171). This dual-mode capability enables discrimination between gross leaks, micro-leaks, and material compliance anomalies without requiring tracer gases or destructive sampling.

Key Features

• Digital preset vacuum setpoint and dwell time control with ±1 kPa repeatability, ensuring metrological consistency across sequential tests.
• High-reliability pneumatic components sourced from globally recognized suppliers, integrated into a fail-safe air management architecture.
• Automatic pressure compensation circuitry maintains target vacuum level throughout test duration, compensating for minor chamber leakage or temperature-induced drift.
• Embedded firmware supports programmable auto-depressurization (reverse purge) and timed test termination, minimizing operator intervention and standardizing cycle execution.
• Intuitive human-machine interface featuring backlit LCD display and tactile PVC membrane keypad for rapid parameter entry, real-time status monitoring, and on-device result review.
• Modular vacuum chamber design with three standardized configurations (Φ270×210 mm, Φ360×585 mm, Φ460×330 mm H), all fabricated from corrosion-resistant acrylic with reinforced sealing gaskets and quick-clamp lid mechanism.

Sample Compatibility & Compliance

The MFY-01 accommodates diverse packaging formats including PET/HDPE cosmetic bottles, aluminum collapsible tubes, laminated foil pouches, thermoformed trays, and sterile barrier systems used in medical device packaging. Its methodology aligns with internationally accepted standards for non-destructive leak detection: GB/T 15171–2022 “Test method for seal integrity of flexible packages” and ASTM D3078–22 “Standard test method for determination of leaks in flexible packaging by bubble emission.” While not inherently compliant with ISO 11607–2 or ASTM F2338 (vacuum decay electronic detection), its operational protocol satisfies prerequisite physical verification steps required prior to quantitative helium leak testing or microbial challenge validation. The system’s mechanical construction and electrical safety conform to IEC 61010–1 for laboratory equipment, and its documentation framework supports GLP-aligned recordkeeping when paired with external audit-ready data export.

Software & Data Management

The instrument operates autonomously via embedded firmware; no external PC is required for basic operation. All test parameters—including vacuum setpoint, hold time, chamber ID, operator code, and timestamp—are stored internally with non-volatile memory retention (≥10,000 test records). Data export is facilitated via USB 2.0 port to CSV-formatted files compatible with LIMS, Excel, or statistical process control platforms. Optional Labthink Companion Software (sold separately) provides enhanced functionality: automated report generation per ISO/IEC 17025 templates, trend charting of vacuum decay profiles, user access level management (admin/operator), and electronic signature support aligned with FDA 21 CFR Part 11 requirements when deployed with validated IT infrastructure.

Applications

• Pre-shipment quality gate for cosmetic bottle lines—verifying cap torque efficacy, neck seal formation, and liner adhesion after filling and capping.
• Post-distribution simulation testing: evaluating seal robustness following ISTA 3A/3E-compliant drop, vibration, and compression stress protocols.
• Package development support: comparative evaluation of closure designs, material thickness variants, and sterilization-induced embrittlement effects on HDPE/PP containers.
• Regulatory submission preparation: generating empirical evidence for USP , ISO 15378, or MDR Annex I essential requirements related to container-closure integrity.
• In-process troubleshooting: isolating root causes of sterility failures or preservative efficacy loss by correlating leak incidence with specific production shifts or raw material lots.

FAQ

What types of packages can be tested on the MFY-01?
Rigid and semi-rigid containers (e.g., plastic/glass bottles, metal cans, tubes), flexible pouches, blister cards, and trays—provided they withstand applied vacuum without permanent deformation.
Is an external air compressor required?
Yes. A clean, oil-free compressed air supply at 0.7 MPa is mandatory; the unit accepts Φ6 mm polyurethane tubing and includes no integrated compressor.
Does the system meet FDA or EU regulatory requirements for pharmaceutical packaging?
It fulfills physical test methodology requirements referenced in FDA guidance and EU Annex 1, but formal qualification (IQ/OQ/PQ) and integration into a validated quality system remain the user’s responsibility.
Can test results be exported for audit purposes?
Yes—via USB to CSV files containing full metadata; optional software adds electronic signature, audit trail, and report templating compliant with 21 CFR Part 11 when properly configured.
Are custom chamber sizes available?
Yes. Labthink offers engineering consultation and fabrication of non-standard vacuum chambers to accommodate oversized or irregularly shaped specimens upon request.
