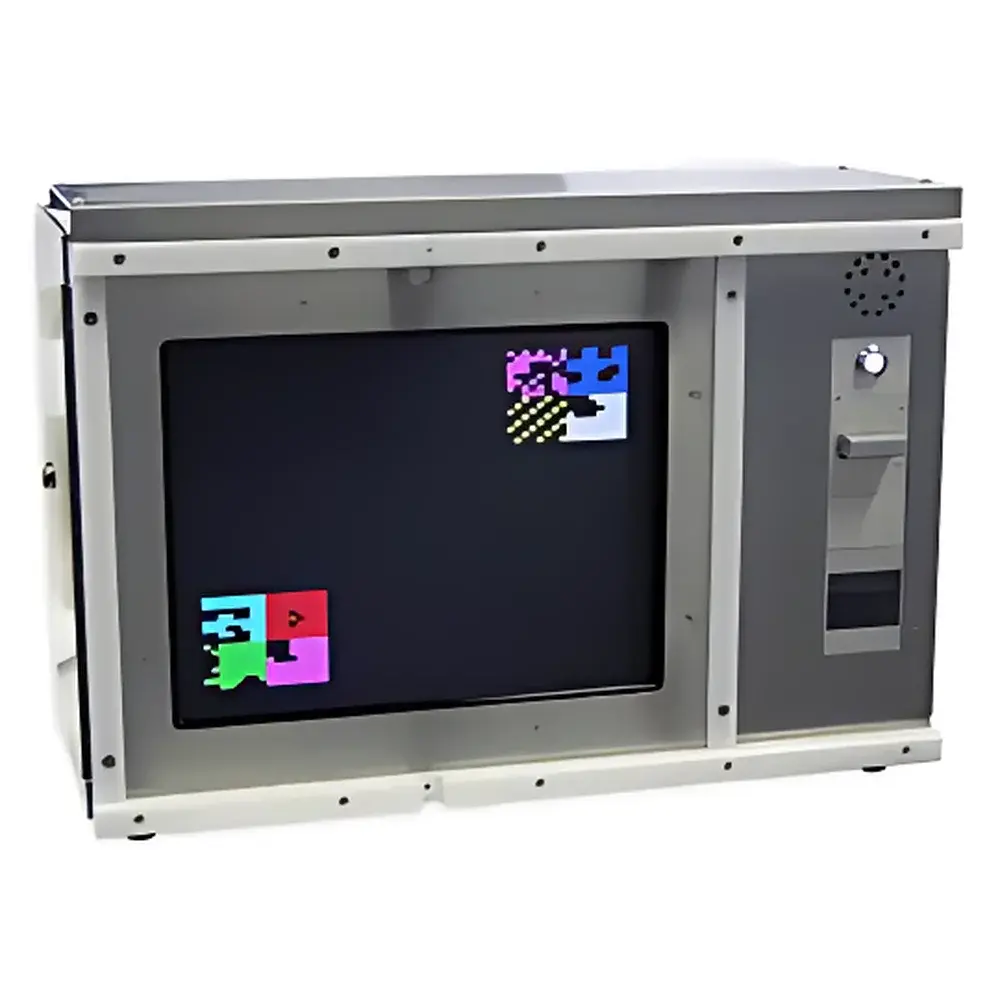

Lafayette CANTAB Primate Cognitive Testing System Model 80950*C

Overview

The Lafayette CANTAB Primate Cognitive Testing System (Model 80950*C) is a purpose-built, self-contained behavioral assessment platform engineered for standardized, high-fidelity cognitive evaluation in nonhuman primates. Based on the validated Cambridge Neuropsychological Test Automated Battery (CANTAB) paradigm, the system implements core neurocognitive constructs—including attentional set-shifting, working memory, stimulus-reward association, and response inhibition—through operant conditioning protocols grounded in reinforcement learning theory. Each station integrates a 1.6 GHz embedded processor, eliminating dependency on external controllers or daisy-chained cabling. This architecture ensures deterministic timing (<5 ms input latency), precise reward delivery synchronization, and autonomous execution of complex trial sequences—critical for longitudinal studies requiring inter-laboratory reproducibility. The system adheres to the structural and procedural conventions established by the University of Cambridge’s CANTAB development group and is routinely deployed in preclinical neuroscience, translational psychiatry, and CNS drug development programs compliant with FDA Guidance for Industry on Animal Models in Neuropharmacology.

Key Features

• Self-sufficient touchscreen station with industrial-grade 12.2-inch infrared capacitive LCD display (scratch-resistant tempered glass overlay)
• Integrated peristaltic pump calibrated to deliver liquid rewards at 0.203 mL/s with ±2% volumetric accuracy across 0.1–12.2 mL range
• High-sensitivity lick sensor with adjustable threshold detection (10–500 ms dwell time) for precise reward contingency enforcement
• Stainless-steel structural frame (ASTM A240 Type 304) with lockable hinged side panels, internal cooling fan (max. 28°C ambient stabilization), and integrated audio transducer for auditory cue presentation
• Modular reward delivery: supports both solid pellet dispensing (190 mg standard) and liquid reinforcement via interchangeable pump manifolds
• Embedded Whisker software engine enabling real-time experiment control, event logging, and TTL pulse generation for external device synchronization (e.g., electrophysiology rigs, eye trackers)
• Ethernet-based remote management (IPv4/IPv6) supporting simultaneous monitoring and intervention across up to 32 stations within a single subnet

Sample Compatibility & Compliance

The 80950*C system is validated for use with adult rhesus macaques (Macaca mulatta) and cynomolgus macaques (Macaca fascicularis) weighing 3–12 kg. Its ergonomic dimensions (57.2 × 39.4 × 30.5 cm W×H×D) and adjustable mounting brackets permit secure integration into standard primate testing cubicles or home-cage compatible enclosures. All hardware components meet IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) electromagnetic compatibility standards. Software operation complies with ALARA principles for animal welfare and supports audit trails, user-level access control, and electronic signature capture in alignment with 21 CFR Part 11 requirements for regulated GLP/GCP studies. Experimental protocols follow NIH Office of Laboratory Animal Welfare (OLAW) guidelines and are compatible with AAALAC-accredited facility reporting frameworks.

Software & Data Management

The system runs dual-layer firmware: the low-level Whisker runtime (v4.2+) handles millisecond-precise hardware I/O, while the CANTAB application layer (v7.1.5+) provides intuitive graphical configuration of test batteries—including ID/ED shift, DMS/DNMS, SWM, 5-CSRTT, PAL, and schedule-based reinforcement paradigms. All session data are stored in vendor-neutral HDF5 format with embedded metadata (animal ID, protocol version, calibration timestamps, environmental logs). Export modules support direct conversion to CSV, MATLAB .mat, and BIDS-compliant behavioral datasets. Integrated API allows programmatic control via Python (pywhisker library) or MATLAB Instrument Control Toolbox for closed-loop experimental designs.

Applications

• Frontostriatal circuit assessment via intra-dimensional/extra-dimensional set-shifting tasks
• Working memory load manipulation using variable-delay spatial recall paradigms
• Attentional vigilance quantification through 5-choice serial reaction time task parameters (correct latency, omission errors, premature responses)
• Associative learning kinetics measurement in paired-associates learning with probabilistic feedback
• Pharmacodynamic profiling of NMDA, dopaminergic, and cholinergic agents on cognitive flexibility endpoints
• Longitudinal tracking of age-related cognitive decline or neurodegenerative progression in primate models

FAQ

Does the system support both liquid and solid reward delivery in the same session?
Yes—hardware configuration allows concurrent or sequential use of the calibrated peristaltic pump (liquid) and pellet dispenser (190 mg), with independent timing control per trial phase.
Can experiment protocols be modified without recompiling firmware?
Yes—CANTAB task logic is defined in human-readable XML configuration files; changes require no firmware update and take effect immediately upon reload.
Is the touchscreen resistant to primate manipulation and cleaning agents?
The display features Gorilla Glass 3 overlay with IP65-rated ingress protection; compatible with 70% isopropyl alcohol and veterinary-grade disinfectants per manufacturer validation report RWD-80950-C-2023-04.
What network security protocols are implemented for remote access?
SSHv2 encrypted command-line interface, TLS 1.2-secured web dashboard, and role-based RBAC (Role-Based Access Control) with session timeout and failed-login lockout policies.
Are raw behavioral timestamps synchronized with external acquisition systems?
Yes—TTL output channels provide hardware-synced trigger pulses referenced to the system’s internal 10 MHz clock, traceable to NIST-standardized time sources via optional GPS-disciplined oscillator module.
