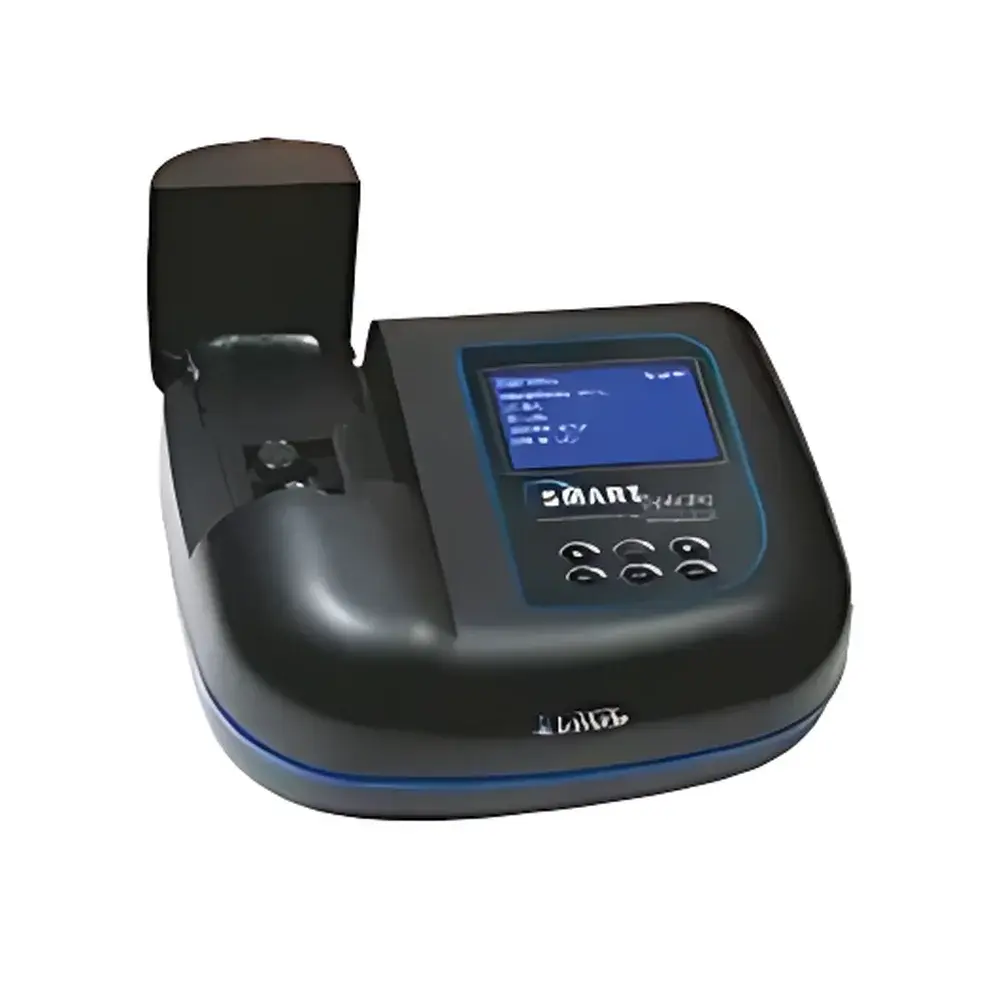

Lamotte SMART Advanced Portable Spectrophotometer

Overview

The Lamotte SMART Advanced Portable Spectrophotometer is a precision-engineered, single-beam visible-near UV spectrophotometer designed for field-deployable and laboratory-based water quality analysis. It operates on the principle of absorbance spectroscopy—measuring the attenuation of monochromatic light as it passes through a sample containing analyte-specific chromophores generated via standardized colorimetric reactions. With a spectral range spanning 350–1000 nm and optical resolution of 1 nm, the instrument supports quantitative determination across over 100 pre-programmed EPA- and ASTM-aligned methods—including chlorine species, heavy metals, nutrients, disinfection byproducts, and organic contaminants. Its modified Ebert optical architecture—featuring a 1200 lines/mm holographic grating and thermally stabilized quartz-halogen source—ensures high wavelength reproducibility and minimal drift under variable ambient conditions. Engineered for regulatory compliance in drinking water, wastewater, and environmental monitoring applications, the SMART delivers trace-level sensitivity (e.g., 0.001 mg/L Cd detection) while maintaining robustness for daily use in mobile labs, treatment plants, and third-party testing facilities.

Key Features

• Pre-loaded method library: 100+ validated, calibration-curve-based assays aligned with Standard Methods for the Examination of Water and Wastewater, EPA 100-series protocols, and ISO 7027 (turbidity), ISO 6779 (chlorine), and ASTM D1253 (residual chlorine).
• User-customizable calibration: Up to 25 user-defined curves supported; compatible with both factory-certified reagent kits and lab-prepared standards.
• Intelligent wavelength selection: Automatic wavelength assignment based on selected test method—eliminates manual scanning errors and accelerates workflow.
• Optimized optical enclosure: Integrated flip-top light shield ensures complete stray-light exclusion during measurement; prevents accidental misplacement of cuvettes and maintains photometric integrity.
• Modular sample handling: Accommodates 25 mm round vials (standard for chlorine, COD, and hardness), 10 mm square cuvettes (for low-volume nutrient assays), and COD vials (via included adapters).
• High-fidelity photometry: Photometric accuracy of ±0.005 A and noise <0.001 A at 0 A enable reliable quantification of low-absorbance samples—critical for ultra-low-level metal and oxidant analysis.
• Field-ready portability: Compact footprint (350 × 280 × 170 mm), integrated battery option, and ruggedized chassis support extended operation in non-climate-controlled environments (0–40 °C operating range).

Sample Compatibility & Compliance

The SMART spectrophotometer is validated for use with Lamotte’s full portfolio of EPA-compliant, lot-certified reagent systems—including tablet-based DPD chemistry for free/total chlorine, ozone, and chlorine dioxide; UDV (Unit-Dose Vial) formats for hardness, alkalinity, and phosphate; and mercury-free COD digestion kits compliant with ISO 15705 and EPA Method 410.1. All pre-programmed methods adhere to documented analytical performance criteria defined in USP , FDA 21 CFR Part 11 (when paired with Lamotte’s LASE software), and GLP/GMP data integrity requirements. The instrument meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (EN 61010-1). Cuvette compatibility includes standard 25 mm round vials (part #29653-10), 10 mm square cuvettes, and disposable COD vials—enabling seamless transition between routine screening and regulatory reporting workflows.

Software & Data Management

Data acquisition and export are managed via Lamotte’s LASE (Lamotte Analysis Software Environment), a Windows-based application supporting audit-trail-enabled data logging, method version control, and electronic signature capability compliant with FDA 21 CFR Part 11. Raw absorbance values, calculated concentrations, calibration curve parameters, operator ID, timestamp, and instrument metadata are stored locally on-device (1000-measurement capacity) and synchronizable via USB to secure network drives or LIMS platforms. Custom report templates can be generated in PDF or CSV format, including method references, uncertainty estimates (based on replicate standard deviation), and pass/fail flags against user-defined action limits. Firmware updates are delivered through verified digital signatures to ensure cryptographic integrity and traceability.

Applications

The SMART spectrophotometer serves as a primary analytical platform across multiple regulated domains: municipal drinking water compliance (e.g., chlorine residual, nitrate, fluoride per EPA 141.2 and 300.0); wastewater effluent monitoring (COD, ammonia, phosphorus per EPA 410.1, 350.1, and 365.1); industrial process water control (boiler feed, cooling tower, semiconductor rinse water); environmental site assessment (heavy metals, cyanide, sulfide in surface/groundwater per EPA 7196A, 7410B); and educational laboratory instruction in analytical chemistry and environmental science. Its dual-range COD capability (low-, standard-, and high-range, mercury-free options) supports both regulatory discharge reporting and process optimization in decentralized treatment units.

FAQ

Does the SMART spectrophotometer comply with EPA-approved methods for chlorine analysis?

Yes—pre-programmed DPD-based methods for free chlorine, total chlorine, and chlorine dioxide follow EPA Method 334.0 and Standard Methods 4500-Cl G.
Can custom calibration curves be validated for ISO/IEC 17025 accreditation?

Yes—user-defined curves support documentation of linearity (r² ≥ 0.999), LOD/LOQ verification, and intermediate precision assessment per ISO/IEC 17025:2017 Clause 7.7.
Is the instrument suitable for GLP-regulated laboratories?

Yes—when used with LASE software, it provides full audit trail, electronic signatures, and data immutability features required under OECD GLP Principles.
What is the expected lifetime of the halogen lamp, and is replacement user-serviceable?

The 12 V / 10 W quartz-halogen lamp is rated for ≥1000 hours; replacement is performed using Lamotte Service Kit #SMART-LAMP and requires no optical realignment.
How does the SMART handle turbid or colored samples that may interfere with absorbance readings?

The instrument supports built-in blank subtraction, zero-adjustment at multiple wavelengths, and optional correction algorithms for matrix-matched blanks—validated per Standard Methods 2540D for turbidity compensation.
