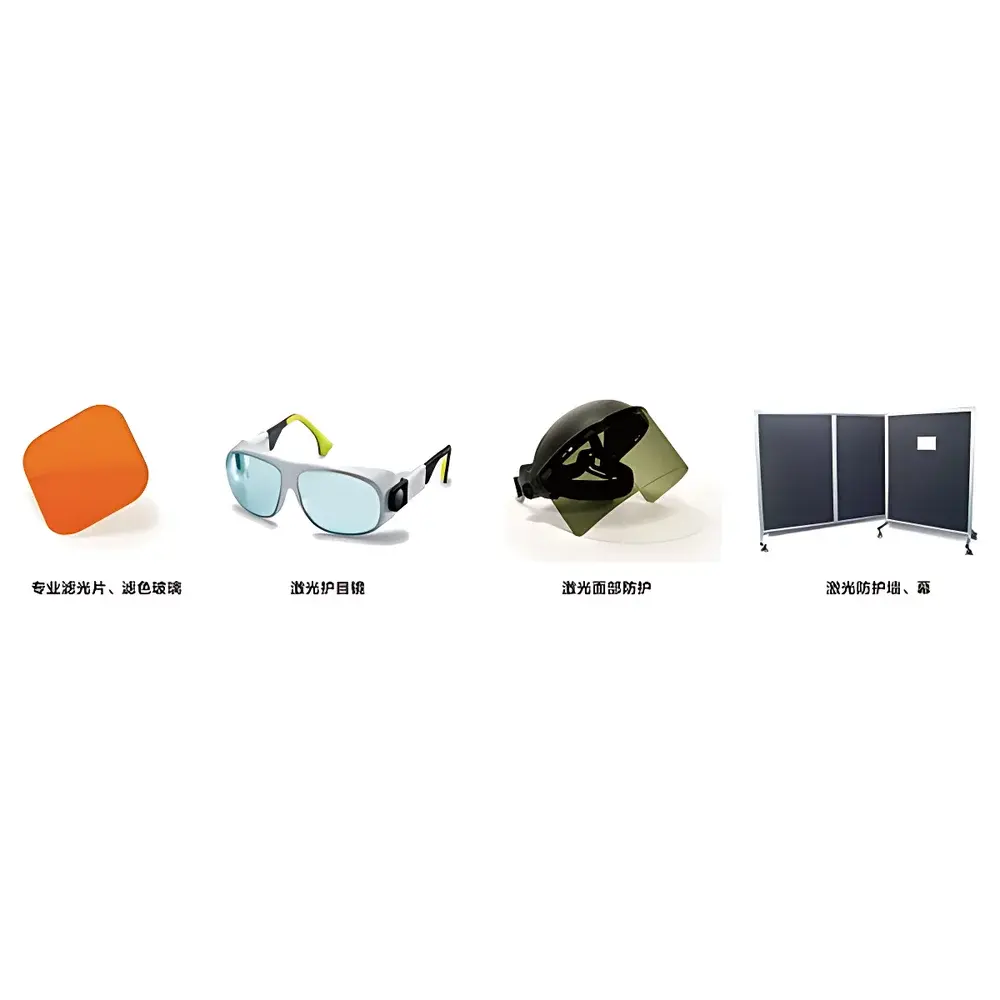

Laservision F01 Laser Safety Goggles
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | F01 |
| Price Range | USD 1,350 – 4,050 (based on exchange rate & configuration) |
| Component Category | Optical Safety Element |
Overview
The Laservision F01 Laser Safety Goggles are engineered for precision optical hazard mitigation in high-risk laser environments. Designed and certified in accordance with ANSI Z136.1–2022 (American National Standard for Safe Use of Lasers) and EN 207:2023 (European standard for personal eye protection against laser radiation), the F01 series provides wavelength-selective attenuation through dielectric interference filter technology integrated into polycarbonate substrates. Each goggle is calibrated to deliver an Optical Density (OD) of ≥9 at specified laser lines—enabling effective attenuation of up to 10⁹× beam intensity across continuous-wave (CW) and pulsed laser sources. The device operates on the principle of reflective spectral rejection: incident laser photons at designated wavelengths are reflected via multi-layer thin-film coatings, while non-hazardous visible light (typically 400–700 nm) is transmitted with >25% luminous transmittance—ensuring adequate situational awareness during operation.
Key Features
- Optical Density (OD) ≥9 at key industrial and research wavelengths including 1064 nm (Nd:YAG), 532 nm (frequency-doubled Nd:YAG), 10.6 µm (CO₂), and 193 nm (ArF excimer)
- Impact-resistant polycarbonate lenses meeting ANSI Z87.1–2020 high-velocity and high-mass impact requirements
- Ergonomic wraparound frame with adjustable temple arms and soft silicone nose bridge for extended wear stability
- Anti-fog and scratch-resistant hard coatings applied via plasma-enhanced chemical vapor deposition (PECVD)
- Compliant with FDA 21 CFR Part 1040.10/1040.11 for laser product safety labeling and performance verification
- CE-marked per EU Regulation 2016/425 (PPE Category III) with full technical documentation traceable to notified body testing reports
Sample Compatibility & Compliance
The F01 goggles are validated for use with Class 3B and Class 4 lasers across medical aesthetics (e.g., Q-switched tattoo removal systems), materials processing (fiber-delivered kW-class CW lasers), ultrafast science (Ti:sapphire oscillators/amplifiers), and defense-related directed-energy platforms. Each unit ships with a serialized compliance label indicating tested wavelengths, corresponding OD values, maximum permissible exposure (MPE) margins, and batch-specific calibration certificate issued by Laservision’s ISO/IEC 17025-accredited test laboratory. Documentation supports GLP/GMP-aligned audit trails and satisfies institutional laser safety officer (LSO) requirements under IEC 60825-1:2014 and UK HSE L27 guidelines.
Software & Data Management
While the F01 is a passive optical device, Laservision provides digital asset support via its LaserSafe Portal—a secure, cloud-hosted platform accessible to authorized distributors and end-user institutions. This portal delivers downloadable spectral attenuation curves (CSV/PDF), wavelength-specific MPE calculators, customizable LSO training modules, and version-controlled safety data sheets (SDS) compliant with GHS Rev. 10. All records maintain immutable timestamps and user-access logs to meet FDA 21 CFR Part 11 electronic record integrity criteria where integrated into enterprise safety management systems.
Applications
- Laser-based ophthalmic surgery (e.g., femtosecond LASIK platforms operating at 1030–1053 nm)
- Industrial laser cutting/welding stations utilizing multimode fiber lasers (1070 ± 10 nm)
- Academic ultrafast laboratories employing amplified Ti:sapphire systems (780–820 nm, <100 fs pulses)
- Nuclear fusion diagnostics using high-energy Nd:glass probe beams (1053 nm, ns–ps pulse durations)
- Defense R&D involving high-power diode-pumped solid-state (DPSS) and free-electron laser (FEL) testbeds
FAQ
What does OD ≥9 mean in practical terms?
An OD of 9 indicates that only 1 part in 1 billion (10⁻⁹) of incident laser power at the specified wavelength passes through the lens—sufficient to reduce a 10 W CW beam to <10 nW, well below retinal damage thresholds.
Can the F01 be used for multiple laser wavelengths simultaneously?
No—the F01 is wavelength-specific; multi-line protection requires either dual-band models (e.g., F01-1064/532) or layered goggle systems validated per ANSI Z136.5 for concurrent exposure scenarios.
How often should optical density verification be performed?
Annual retesting is recommended per ANSI Z136.1 Section 4.3.2.3; Laservision offers certified recalibration services with NIST-traceable spectroradiometric measurement at its Rochester, NY facility.
Is the F01 compatible with prescription inserts?
Yes—Laservision certifies compatibility with ANSI-compliant Rx carriers (e.g., UVEX S9900 series), provided insert mounting does not compromise frame seal integrity or lateral coverage.
Does the goggle meet military specification MIL-PRF-32432?
The F01 meets MIL-PRF-32432 Type II (laser-only) requirements when configured with optional ballistic-rated frames and tested per MIL-STD-810H Method 516.8 Shock.
