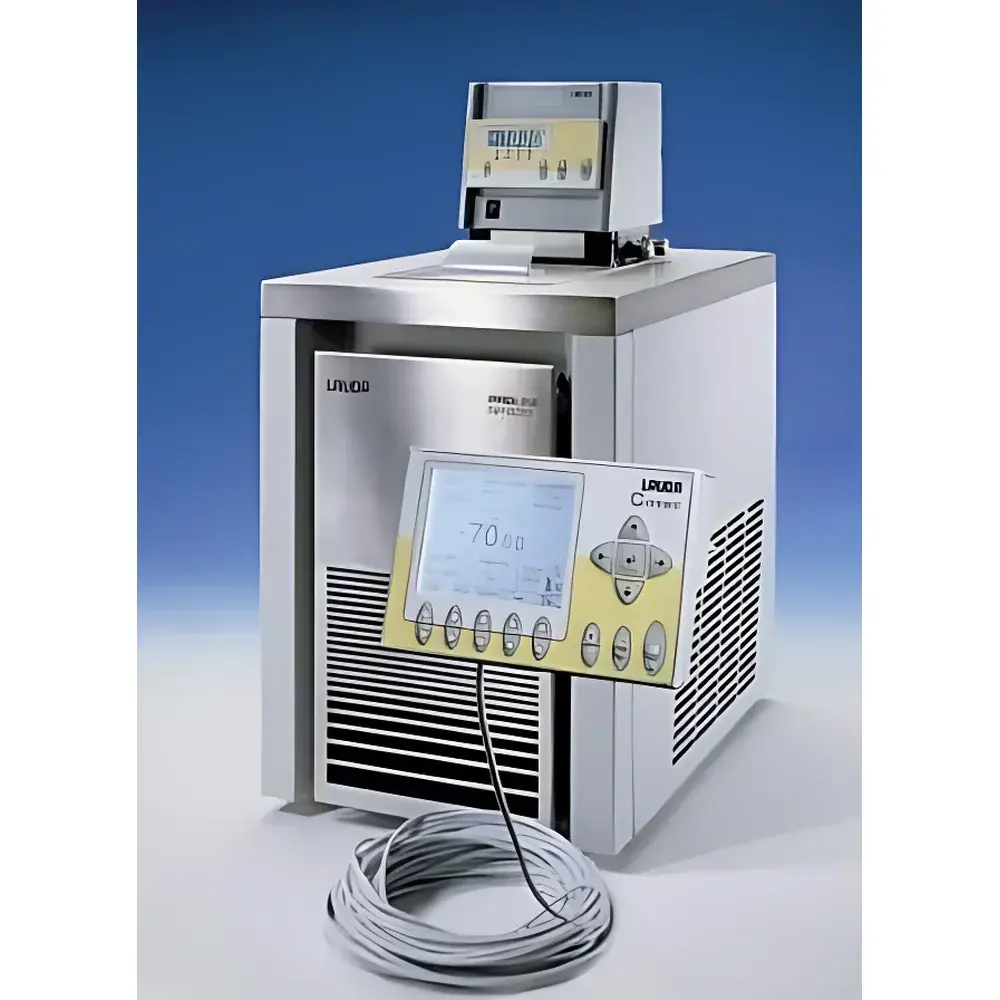

LAUDA Proline Advanced Circulating Temperature Control Bath

Overview

The LAUDA Proline Advanced Circulating Temperature Control Bath is a high-performance, laboratory-grade thermostatic system engineered for precision temperature control across an exceptionally wide operational range—from cryogenic conditions at -90 °C to high-temperature applications up to +200 °C. Designed and manufactured in Germany, the Proline series implements a dual-circulation architecture (pressure and suction) with fully independent flow paths, enabling stable thermal coupling to external reactors, analytical instruments (e.g., HPLC columns, viscometers, calorimeters), or custom process jackets. Its core thermodynamic architecture integrates three isolated heating elements, digitally regulated refrigeration via SmartCool™ bus-controlled compressor fan modulation, and real-time thermal load compensation—ensuring minimal overshoot, rapid setpoint recovery (<15 min from -80 °C to 25 °C), and long-term stability of ±0.01 °C (typical at 20 °C). Unlike conventional baths limited by thermal inertia or single-stage cooling, the Proline platform dynamically allocates refrigeration capacity based on bath load, ambient conditions, and external circuit resistance—making it suitable for GMP-compliant QC labs, pharmaceutical development suites, polymer processing R&D, and materials testing environments requiring traceable, auditable thermal control.

Key Features

• Triple independent heating elements with adaptive power distribution for uniform thermal field generation and reduced thermal stress on bath fluid
• SmartCool™ intelligent refrigeration management: bus-controlled variable-speed condenser fan enables up to 75% energy reduction versus fixed-speed systems without hardware modification
• 8-step programmable dual-pump system (pressure + suction), each with real-time speed monitoring and auto-compensation for backpressure or viscosity changes
• Dual external circulation ports (rear + side) supporting simultaneous connection to multiple devices or closed-loop process loops
• Integrated dual-level safety monitoring: capacitive bath level sensor + pump rotational speed verification—triggers visual/audible alarm and automatic shutdown if low-level condition is confirmed
• Modular expansion architecture with standardized plug-and-play slots for optional accessories including external PT100 input modules, Ethernet-based remote control interfaces, and GLP/GMP audit trail loggers
• Three-button intuitive interface with context-sensitive soft keys; all parameters—including setpoint ramp rates, hold times, and pump profiles—configured without menu nesting
• Multi-layer safety system compliant with EN 61010-1:2019, featuring overtemperature cutoff, dry-run protection, refrigerant pressure monitoring, and fault-code display with ISO-standard diagnostic codes

Sample Compatibility & Compliance

The Proline series supports a broad spectrum of heat transfer media—including water, water/glycol mixtures, silicone oils, and specialized low-temperature fluids—enabling compatibility with diverse sample types and reactor geometries. Its stainless-steel bath chamber (AISI 316L), chemically resistant seals, and corrosion-inhibiting fluid management system ensure longevity when operating with aggressive solvents or extended high-temperature exposure. All models are CE-marked and conform to IEC 61010-1 for electrical safety in laboratory environments. For regulated industries, optional firmware packages support 21 CFR Part 11-compliant electronic signatures, ALCOA+ data integrity protocols, and configurable audit trails—including operator ID, parameter change history, and calibration event logging. The system meets ASTM E2877-22 requirements for temperature uniformity verification in circulating baths and supports IQ/OQ documentation templates aligned with ISO/IEC 17025 and EU GMP Annex 15 guidelines.

Software & Data Management

LAUDA Proline units operate natively with LAUDA’s PC-based WinThermost software (Windows 10/11), providing full remote control, multi-device synchronization, and automated protocol execution. Data export is available in CSV, XML, and PDF formats—with timestamped metadata, measurement uncertainty annotations, and compliance-ready report headers. Optional LAUDA Connect cloud gateway enables secure TLS 1.3–encrypted remote access via web browser or mobile app, with role-based user permissions and centralized fleet monitoring. All internal logs adhere to GLP principles: immutable timestamps, write-once storage, and tamper-evident file hashing. When integrated with LIMS or ELN platforms via OPC UA or Modbus TCP, the Proline bath supplies real-time temperature, flow rate, refrigeration status, and error flags—enabling closed-loop process analytics and predictive maintenance alerts.

Applications

• Pharmaceutical synthesis: precise temperature staging during exothermic API crystallization and chiral resolution
• Materials science: controlled thermal cycling for polymer glass transition (T_g) analysis and rheological characterization of thermosets
• Quality control laboratories: calibration of temperature-sensitive sensors (RTDs, thermocouples) per ISO/IEC 17025 Clause 6.5
• Automotive R&D: thermal conditioning of battery electrolyte test cells under dynamic load profiles
• Biotechnology: maintaining constant temperature for enzyme kinetics assays and microfluidic chip operation
• Academic research: cryogenic reaction studies using liquid nitrogen-cooled heat transfer fluids in conjunction with external condensers

FAQ

What temperature stability can be achieved at extreme setpoints, e.g., -80 °C or +180 °C?
Stability remains within ±0.02 °C (typ.) across the full range; performance is validated per DIN 12876-1 and documented in factory calibration certificates.
Is external temperature feedback supported for cascade control?
Yes—optional external PT100 input allows direct integration into master-slave control loops with third-party instruments or PLCs.
Can the bath operate continuously at maximum temperature (200 °C) with external circulation?
Yes—thermal management system includes active vapor suppression, enhanced insulation, and continuous oil degradation monitoring to sustain uninterrupted operation.
How is refrigeration capacity scaled across different models (e.g., RP890 vs. RP1290)?
Refrigeration output is optimized per model’s target low-temperature limit and bath volume; all units maintain identical pressure/suction flow rates (25/23 L/min) and pump head specifications.
Does the system support automated calibration verification?
With optional LAUDA CaliCheck module, users can perform in-situ temperature uniformity and stability validation using up to four certified reference probes—generating ISO 17025–compliant reports.
