LAUDA Variocool Circulating Chiller

Overview

The LAUDA Variocool Circulating Chiller is a high-performance, German-engineered temperature control system designed for demanding laboratory and analytical applications requiring precise, stable, and reliable cooling—or combined cooling/heating—of external equipment. Based on vapor-compression refrigeration with optimized scroll or semi-hermetic compressors (depending on model), the Variocool series delivers consistent thermal management across a broad operational envelope. Its core architecture integrates intelligent PID-based temperature regulation, a robust stainless-steel reservoir, and a corrosion-resistant circulation loop compatible with water-glycol mixtures (up to 30 % v/v). Unlike basic immersion chillers, the Variocool operates as a closed-loop, pressurized circulation system—enabling uniform heat extraction from sensitive instruments such as HPLC columns, mass spectrometer ion sources, NMR probe pre-coolers, laser diodes, and vacuum cold traps. The system’s modular design supports scalability from benchtop integration (e.g., VC600) to centralized facility-level cooling (e.g., VC7000 with tower configuration), making it suitable for both single-instrument support and multi-point distribution networks.

Key Features

• Wide operating temperature range: standard –20 °C to +40 °C; extended to –20 °C to +80 °C when equipped with the optional electric heating module
• High-precision temperature stability of ±0.2 K at setpoint, achieved via dual-sensor feedback and adaptive algorithm control
• Intuitive 4.3-inch full-color TFT touchscreen interface with multilingual support (English, German, French, Spanish), real-time trend graphs, and event logging
• Standard USB port for firmware updates, data export (CSV), and configuration backup; optional Ethernet or RS485 interfaces available for LabNetwork integration
• Comprehensive alarm system with visual/audible alerts and relay outputs for external shutdown interlocks (e.g., pump failure, low level, overtemperature)
• Modular expansion capability: boost pump kit (for >3.2 bar static head), water-cooled condenser (for high-ambient environments), low-noise enclosure, and outdoor-rated housing

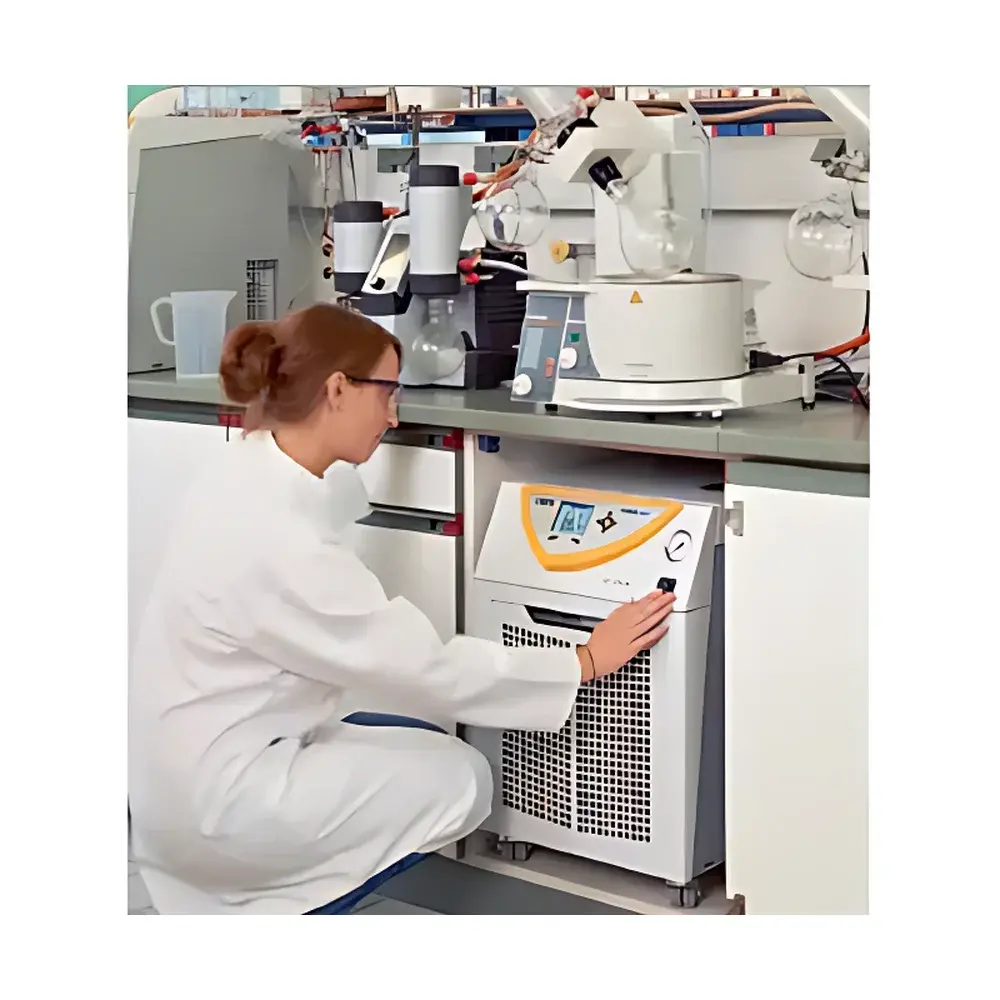

• Compact footprint with lockable castor wheels—designed for under-bench installation without compromising service access or thermal dissipation

Sample Compatibility & Compliance

The Variocool chiller is compatible with a wide range of laboratory equipment requiring active thermal regulation, including but not limited to: HPLC/UHPLC systems, GC detectors, ICP-MS sample introduction modules, X-ray diffractometers, electrophoresis apparatuses, and cryogenic condensers. All units comply with EU directives 2014/30/EU (EMC), 2014/35/EU (LVD), and 2011/65/EU (RoHS). Refrigerant selection adheres to F-Gas Regulation (EU) No. 517/2014, utilizing R-404A (VC600–VC5000) or R-513A (VC7000, low-GWP alternative). Units are CE-marked and meet IEC 61010-1 safety requirements for laboratory electrical equipment. For regulated environments, optional audit-trail-enabled software (LAUDA Link Pro) supports 21 CFR Part 11 compliance with electronic signatures, user access levels, and immutable operation logs.

Software & Data Management

LAUDA Link software provides remote monitoring and configuration via Windows-based desktop application or web browser (with optional LAN/WiFi adapter). It enables real-time parameter visualization, historical data export (time-stamped CSV), alarm history review, and scheduled start/stop profiles. The system stores up to 30 days of internal event logs (power cycles, alarms, setpoint changes) with timestamp and operator ID (when integrated with LDAP or local user database). For facilities operating under GLP or GMP frameworks, the optional LAUDA Link Pro package adds electronic signature validation, role-based permissions (Admin/Operator/Viewer), and automated report generation compliant with ISO/IEC 17025 documentation requirements.

Applications

• HPLC column oven and detector cooling to minimize baseline drift and improve retention time reproducibility
• Thermal stabilization of mass spectrometer source regions and collision cells to enhance signal-to-noise ratio
• Controlled condensation in rotary evaporators and vacuum manifolds using cold trap integration
• Temperature conditioning of optical benches, interferometers, and laser cavities requiring sub-0.5 K thermal uniformity
• Centralized cooling for multi-instrument labs—configured with manifold distribution and flow-balancing valves
• Process validation support in pharmaceutical QC labs, where chiller performance must be documented per USP Analytical Instrument Qualification guidelines

FAQ

What is the maximum allowable glycol concentration in the coolant circuit?
LAUDA recommends a maximum of 30 % (v/v) monoethylene glycol or propylene glycol in deionized water to maintain optimal heat transfer and prevent pump seal degradation.
Can the Variocool operate continuously at –20 °C ambient temperature?
Yes—models VC3000W, VC5000W, and VC7000 feature water-cooled condensers specifically engineered for stable operation in unconditioned environments down to –20 °C ambient.
Is flow rate adjustable independently of temperature setpoint?
Yes—via the integrated flow control module (optional), users can define minimum/maximum flow thresholds and enable automatic pump speed modulation based on system demand.
Does the system support dry-run protection?
All Variocool models include level sensors and pressure differential monitoring to automatically halt compressor operation if flow interruption or reservoir depletion is detected.
How often does the refrigerant require servicing or replacement?
Under normal operation and proper maintenance (annual filter dryer inspection, condenser coil cleaning), the sealed refrigeration circuit requires no scheduled refrigerant recharge over its 12-year design life.
