LC-02 Single-Crystal Orientation Instrument

Overview

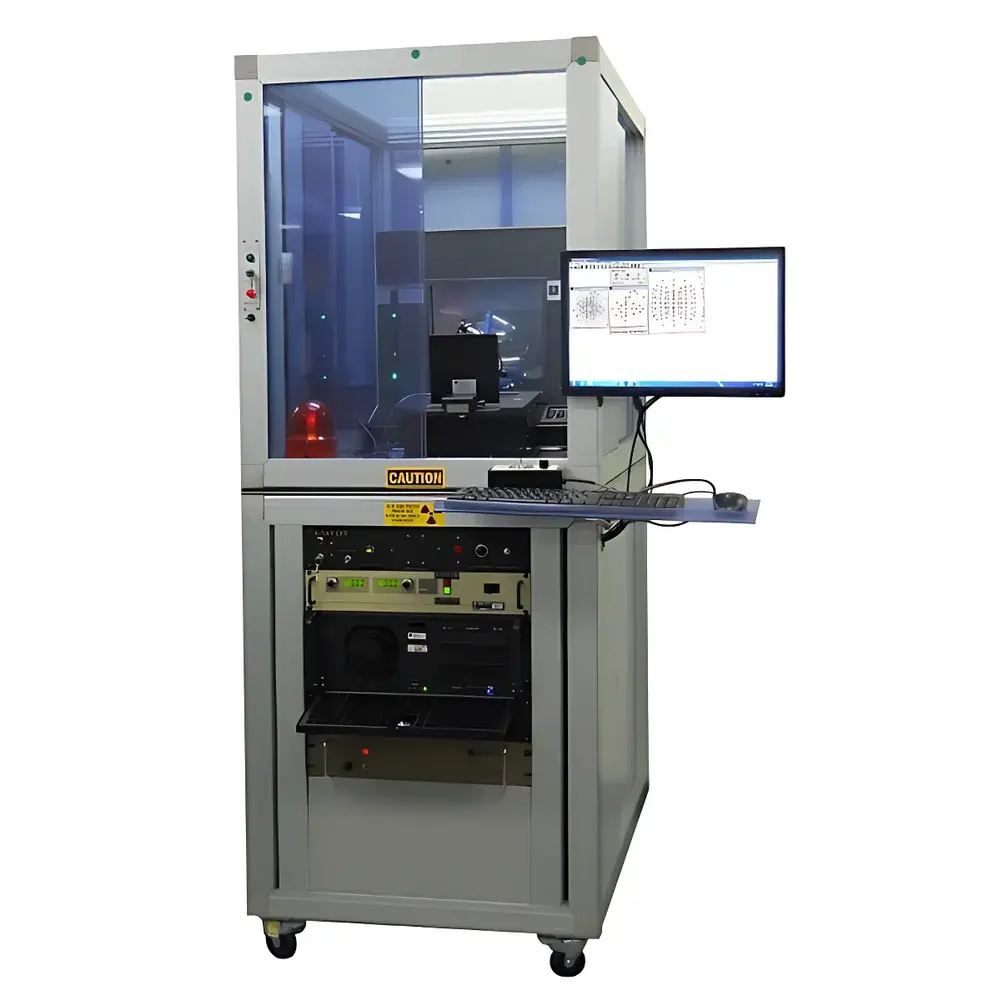

The LC-02 Single-Crystal Orientation Instrument is a high-precision, motorized X-ray diffraction-based orientation system engineered for rapid and repeatable crystallographic alignment of single-crystal materials. Utilizing Bragg’s law and monochromatic Cu-Kα (or optional Mo-Kα) X-ray radiation, the instrument determines the exact angular orientation of crystallographic planes relative to sample geometry by detecting diffraction peak positions in real time. Designed for integration into crystal growth, wafer slicing, and semiconductor substrate preparation workflows, the LC-02 delivers deterministic angular registration—enabling precise cut-angle definition for optical, piezoelectric, and photovoltaic substrates such as quartz, lithium niobate, sapphire, silicon carbide, and GaN. Its core architecture incorporates a fixed-anode sealed-tube X-ray source, a high-stability goniometric stage with three orthogonal rotational axes (χ, φ, ω), and a low-noise scintillation detector with pulse-height discrimination. The system operates in reflection (Bragg) geometry and supports both manual alignment verification and fully automated orientation mapping.

Key Features

• Sub-second orientation determination for standard crystalline samples — typical alignment cycle completes in ≤1.0 second per orientation point
• High-angular-resolution goniometer with step resolution of 0.001° and repeatability better than ±0.0025° (1σ)
• Motorized three-axis sample stage (χ, φ, ω) with programmable limits and homing precision <0.005°
• Integrated X-ray shielding compliant with ANSI N43.3 and IEC 61000-6-3 electromagnetic compatibility standards
• Thermally stabilized optical path and vibration-damped base plate for long-term measurement stability
• Modular design supporting optional upgrades: cryogenic sample holder (-196°C), vacuum chamber (<10⁻³ mbar), or laser auto-centering assist

Sample Compatibility & Compliance

The LC-02 accommodates samples ranging from 5 mm × 5 mm wafers to cylindrical boules up to Ø100 mm × 50 mm height, with maximum mass load of 1.2 kg on the main stage. Sample mounting utilizes kinematic V-groove clamps or custom-machined chucks compatible with industry-standard crystal holders (e.g., Bridgman, Czochralski, or Kyropoulos fixtures). All measurement protocols adhere to ASTM E975 (Standard Practice for X-ray Determination of Orientation of Single-Crystal Materials) and ISO 18529-2 (Crystallographic orientation measurement — Part 2: X-ray diffraction methods). System documentation includes full traceability to NIST-traceable angle calibration artifacts, and audit-ready electronic records support GLP and GMP environments per FDA 21 CFR Part 11 requirements when paired with validated software configuration.

Software & Data Management

Control and analysis are executed via the proprietary CrystalAlign™ v4.2 software suite, running on Windows 10/11 (64-bit) with TLS 1.2 encryption and role-based user access control. The interface provides real-time diffraction pattern visualization, automatic peak search using centroid-fitting algorithms, and lattice-parameter-constrained orientation matrix calculation (using standard reference files from ICDD PDF-4+ database). All raw detector counts, motor position logs, and metadata (operator ID, timestamp, environmental temperature/humidity) are stored in HDF5 format with SHA-256 checksum integrity verification. Export options include CSV, CIF, and XML schemas compatible with downstream CAD/CAM tools used in crystal slicing equipment (e.g., inner-diameter saws or wire saws). Audit trails record all parameter changes, report generations, and user logins for regulatory review.

Applications

• Pre-slicing orientation verification of ingots prior to wafer fabrication in compound semiconductor manufacturing
• Calibration of crystal growth furnace seed alignment for reduced dislocation density in epitaxial layers
• Quality assurance of optical-grade crystals (e.g., BBO, LBO, KDP) for nonlinear frequency conversion devices
• Research-scale determination of domain structure and twinning in ferroelectric and multiferroic oxides
• Teaching laboratories for hands-on instruction in X-ray crystallography, reciprocal space mapping, and Laue symmetry analysis

FAQ

What X-ray source options are available for the LC-02?
The standard configuration uses a 2.2 kW sealed-tube Cu-Kα source (λ = 1.5418 Å); optional Mo-Kα (λ = 0.7107 Å) and Cr-Kα (λ = 2.2909 Å) tubes are available for specific absorption-edge or lattice-spacing requirements.
Does the LC-02 support automated batch processing of multiple samples?
Yes — CrystalAlign™ includes scriptable batch mode with barcode-triggered sample identification and configurable pass/fail tolerance thresholds per orientation axis.
Is remote operation and monitoring supported?
Remote desktop access is permitted over secure LAN/VLAN; however, live X-ray emission requires local interlock verification and physical presence per radiation safety regulations.
Can the system be integrated with existing crystal growth or slicing automation platforms?
API-level integration is supported via TCP/IP socket protocol and OPC UA server module (optional add-on), enabling bidirectional data exchange with PLC-controlled furnaces or CNC slicing tools.
