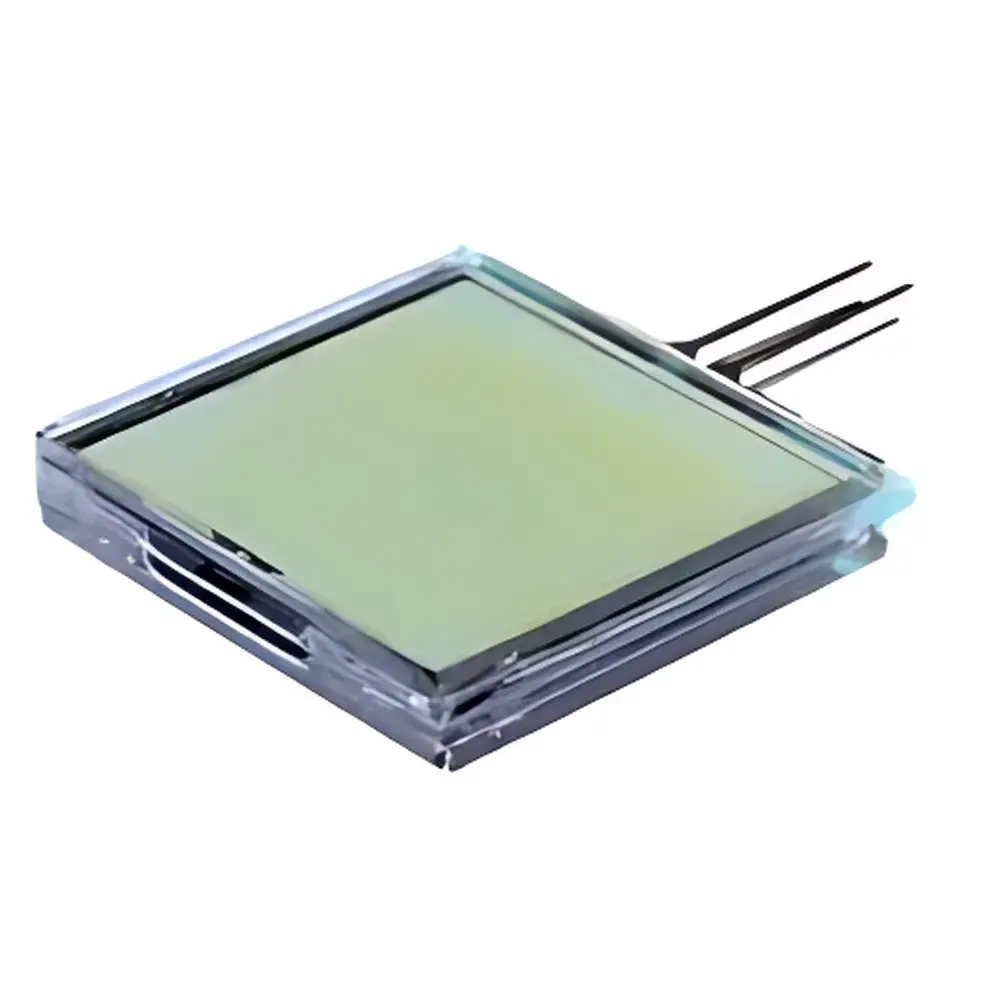

LC-TEC PolarSpeed-S High-Speed Liquid Crystal Optical Switch

Overview

The LC-Tec PolarSpeed-S is a solid-state, voltage-driven liquid crystal optical switch engineered for high-speed, non-mechanical beam gating in precision optical systems. Unlike electromechanical or MEMS-based alternatives, the PolarSpeed-S exploits the electrically tunable birefringence of aligned nematic liquid crystal layers to modulate polarization-dependent transmission. When integrated with a pair of crossed polarizers, the device functions as a fast, low-vibration optical shutter—enabling precise temporal control of light without moving parts. Its design targets applications demanding sub-100 µs switching fidelity, minimal wavefront distortion (<λ/10 RMS over Ø25 mm), and stable performance across visible to near-infrared spectra (400–1100 nm). The unit features broadband anti-reflection coatings on both input and output surfaces, reducing Fresnel losses and suppressing ghost reflections critical for interferometric and imaging setups.

Key Features

• Solid-state architecture with no mechanical actuators—eliminates wear, acoustic noise, and vibration-induced misalignment
• Sub-30 µs rise and fall times at 24 V drive voltage, enabling synchronization with high-frame-rate cameras and pulsed lasers
• Broad spectral coverage from 400 nm (violet) to 1100 nm (NIR), compatible with common laser lines including 405, 488, 532, 635, 780, and 1064 nm

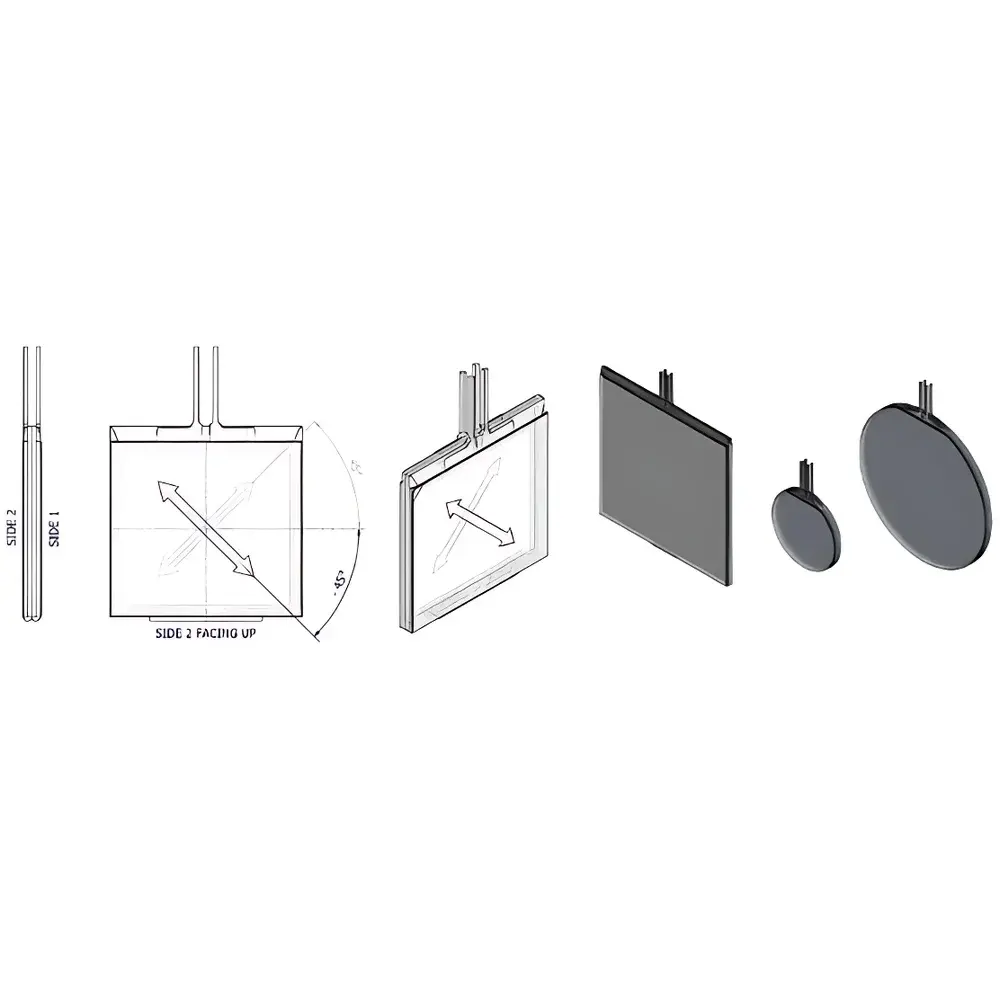

• Optimized aperture geometry: available in round (Ø25 mm) and square (25 × 25 mm) configurations with SM1-threaded mounting compatibility
• AR-coated surfaces deliver >99.5% per-surface transmission efficiency and reduce wavefront error to <λ/10 PV over full clear aperture
• Low power consumption (<150 mW static hold, <500 mW peak during transition) and passive thermal management suitable for embedded OEM integration

Sample Compatibility & Compliance

The PolarSpeed-S is designed for integration into optical paths carrying collimated or mildly convergent beams (f-number ≥ 8 recommended). It maintains consistent switching characteristics under continuous-wave illumination up to 2 W/cm² (at 532 nm, 10 s exposure). All variants comply with EU RoHS Directive 2011/65/EU and CE marking requirements under the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). The X-FOS(G2)-CE model meets additional conformity criteria for laboratory instrumentation under IEC 61326-1:2013 (EMC for measurement/control equipment). No special optical isolation or vacuum compatibility is required; standard operation is specified for ambient temperatures between 15 °C and 40 °C and relative humidity ≤ 70% non-condensing.

Software & Data Management

The PolarSpeed-S operates via TTL-compatible digital trigger input (5 V CMOS logic) and analog voltage control (0–24 V DC) for precise duty-cycle tuning. Optional evaluation kits include USB-controlled driver modules supporting LabVIEW™, Python (PyVISA), and MATLAB® interfaces. All drivers log timestamped switching events with microsecond resolution and support hardware-triggered acquisition synchronization—essential for GLP-compliant time-resolved experiments. Audit trails, configuration versioning, and user-access-level controls are implemented in accordance with FDA 21 CFR Part 11 guidelines when used in regulated QC/QA environments (e.g., laser safety interlock validation or medical imaging calibration workflows).

Applications

• High-speed 3D structured-light scanning: synchronized gating for phase-shift projection and depth-map reconstruction
• Time-gated fluorescence microscopy: rejection of out-of-focus background in confocal and light-sheet modalities
• Laser welding process monitoring: real-time blanking during electrode repositioning to prevent spatter-induced sensor saturation
• Adaptive eye protection systems: sub-50 µs response for automatic attenuation of hazardous pulsed laser exposure
• Industrial machine vision: precise exposure control for high-speed sorting, OCR, and defect detection under variable lighting
• Optical coherence tomography (OCT) reference arm modulation: path-length-encoded signal multiplexing without mechanical delay lines

FAQ

What is the maximum average optical power the PolarSpeed-S can handle without thermal degradation?
Continuous-wave irradiance up to 2 W/cm² is permitted at wavelengths between 400–700 nm for durations ≤10 seconds; derating to 1 W/cm² is recommended for indefinite operation.
Can the PolarSpeed-S be driven directly from a function generator?
Yes—provided the generator delivers clean 0–24 V analog output with ≤100 ns edge jitter and current capability ≥10 mA; external buffering is advised for long cable runs.
Is polarization sensitivity a limitation in unpolarized light applications?
The device requires linearly polarized input; use with unpolarized sources necessitates a preceding polarizer, which reduces total system throughput by ~50% but preserves contrast ratio and switching speed.
Does LC-Tec provide custom aperture sizes or spectral optimization?
Yes—OEM volume orders support tailored AR coatings (e.g., 1064 nm V-coating), elliptical apertures, and hermetically sealed variants for cleanroom or vacuum-compatible integration.
How does temperature affect switching speed and contrast ratio?
Within the rated 15–40 °C range, contrast ratio remains stable within ±5%; OFF time increases by ~0.3 µs/°C above 25 °C, while ON time shows negligible drift.
