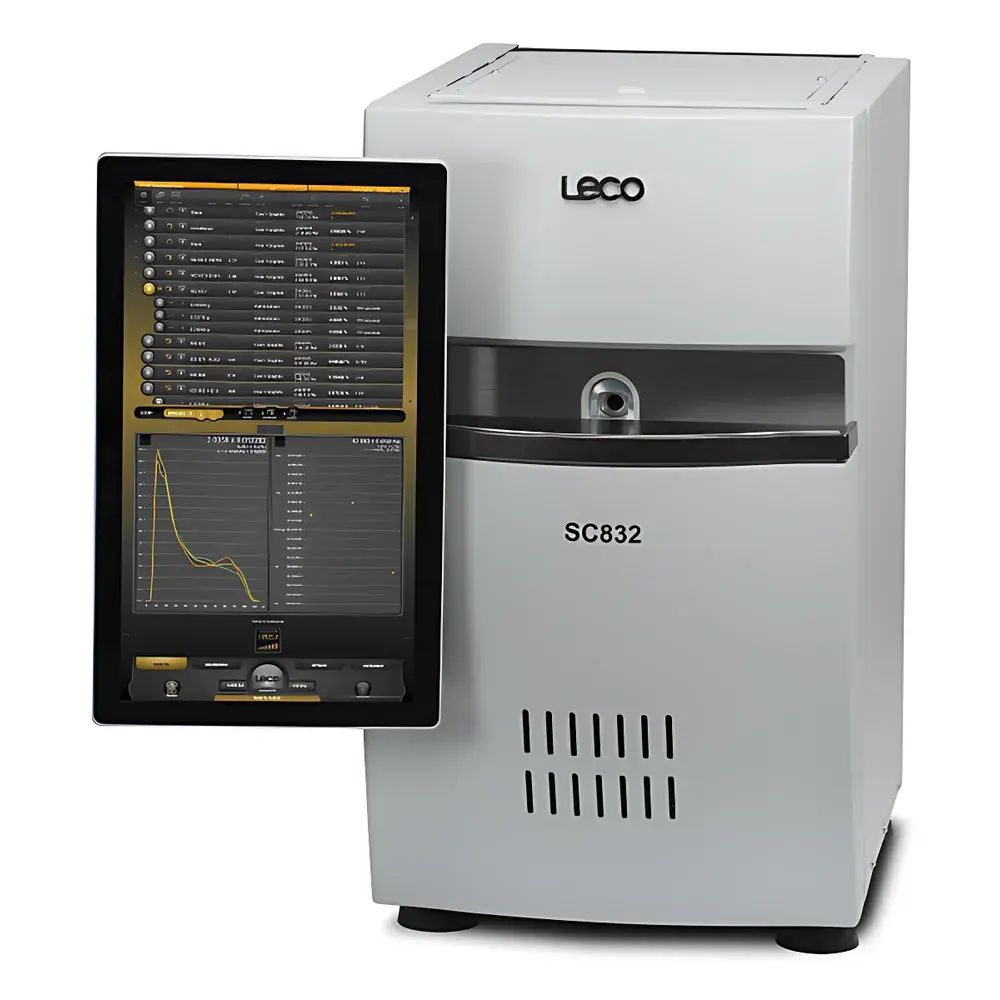

LECO SC832 Carbon and Sulfur Analyzer

Overview

The LECO SC832 Carbon and Sulfur Analyzer is a high-performance, dual-element combustion-based elemental analyzer engineered for precise quantification of total carbon (C) and total sulfur (S) in organic and inorganic solid materials. Utilizing high-temperature resistive furnace combustion followed by non-dispersive infrared (NDIR) detection, the SC832 operates on the fundamental principle that CO₂ and SO₂ gases—generated quantitatively upon complete oxidation of the sample—are measured via their characteristic infrared absorption bands at specific wavelengths (4.26 µm for CO₂; 7.35 µm for SO₂). The instrument achieves full compliance with ASTM E1019, ISO 15350, and USP , supporting regulated QC/QA environments in pharmaceuticals, polymers, catalysts, coal, coke, and environmental matrices. Its horizontal high-efficiency furnace reaches up to 1550 °C (optional HT mode), enabling complete combustion of refractory organics and carbon-rich matrices. Oxygen delivery via ceramic oxygen lance ensures stoichiometric oxidation directly above the sample crucible, minimizing incomplete combustion artifacts and maximizing recovery accuracy.

Key Features

• Integrated 100-position autosampler (optional) for unattended batch analysis, reducing manual intervention and improving throughput consistency
• Thermally stabilized, double-walled NDIR detector cells with active temperature control and thermal insulation—eliminating ambient drift and ensuring long-term baseline stability
• Dual-range sulfur detection cell (SC832DR configuration) extends dynamic range from trace-level (ppm) to high-concentration (wt%) sulfur without manual recalibration
• Front-access service architecture: dual reagent traps and rotameter flow controls housed behind hinged front panel; vacuum pump and heating elements feature quick-release couplings for tool-free maintenance
• 6-axis adjustable capacitive touchscreen interface with industrial-grade durability; supports glove-compatible operation and ergonomic positioning
• Modular high-temperature enhancement kit (HT Kit) available for extended thermal stability during prolonged high-load operation

Sample Compatibility & Compliance

The SC832 accommodates solid samples weighing 0.1–1.0 g (typical), including powders, granules, pellets, and pressed tablets. Sample containers include ceramic crucibles (graphite-impregnated or pure alumina) and proprietary low-carbon/sulfur metal trays. The system meets GLP/GMP data integrity requirements through Cornerstone® Software’s audit-trail-enabled workflow—supporting 21 CFR Part 11-compliant electronic signatures, user role-based access control, and immutable method/version history. All calibration protocols adhere to ISO/IEC 17025 validation frameworks, with documented uncertainty budgets traceable to NIST SRMs (e.g., NIST 2781, 2782, 1632c).

Software & Data Management

Cornerstone® Software serves as the unified analytical platform—deployed natively on the instrument’s embedded Windows OS—and provides full lifecycle control: method development, real-time diagnostics, spectral monitoring, calibration management, and customizable reporting. Batch grouping and auto-replicate statistical functions compute mean, SD, RSD, and confidence intervals per sample set. Optional Cornerstone® Mobile enables secure remote access (via TLS 1.2 encrypted connection) to live instrument status, pending queue, and historical results from iOS/Android tablets or desktop browsers. Data export conforms to ASTM E1382-compliant CSV/Excel formats and supports direct LIMS integration via ODBC or HL7 interfaces.

Applications

The SC832 delivers validated performance across diverse sectors: polymer quality control (e.g., polyolefin catalyst residue monitoring); pharmaceutical excipient certification (USP carbon content verification); metallurgical grade assessment (coke, ferroalloys, graphite electrodes); environmental solid waste screening (EPA Method 5050); and academic research in geochemistry and biomass characterization. Its robustness in handling heterogeneous organics—such as rubber compounds, activated carbon, and biochar—stems from adaptive combustion kinetics and optimized gas-phase transport dynamics within the IR cell manifold.

FAQ

What standards does the SC832 comply with for regulatory reporting?
ASTM E1019, ISO 15350, USP , and EPA Method 5050 are fully supported through pre-validated methods and documentation packages.
Can the SC832 analyze liquid or gel samples?
No—only solid or powder samples compatible with high-temperature combustion in inert crucibles are supported.
Is dual-range sulfur detection standard or optional?
Dual-range sulfur detection (SC832DR) is an optional configuration; base SC832 models feature single-range S detection optimized for routine ppm-to-percent applications.
How is calibration verified between runs?
Automated daily calibration verification using certified reference materials (CRMs) is configurable; drift correction algorithms apply real-time offset compensation based on blank and standard signal baselines.
Does Cornerstone® support multi-user permission tiers?
Yes—administrator, analyst, and viewer roles enforce separation of duties, with password policies, session timeouts, and encrypted local database storage.
