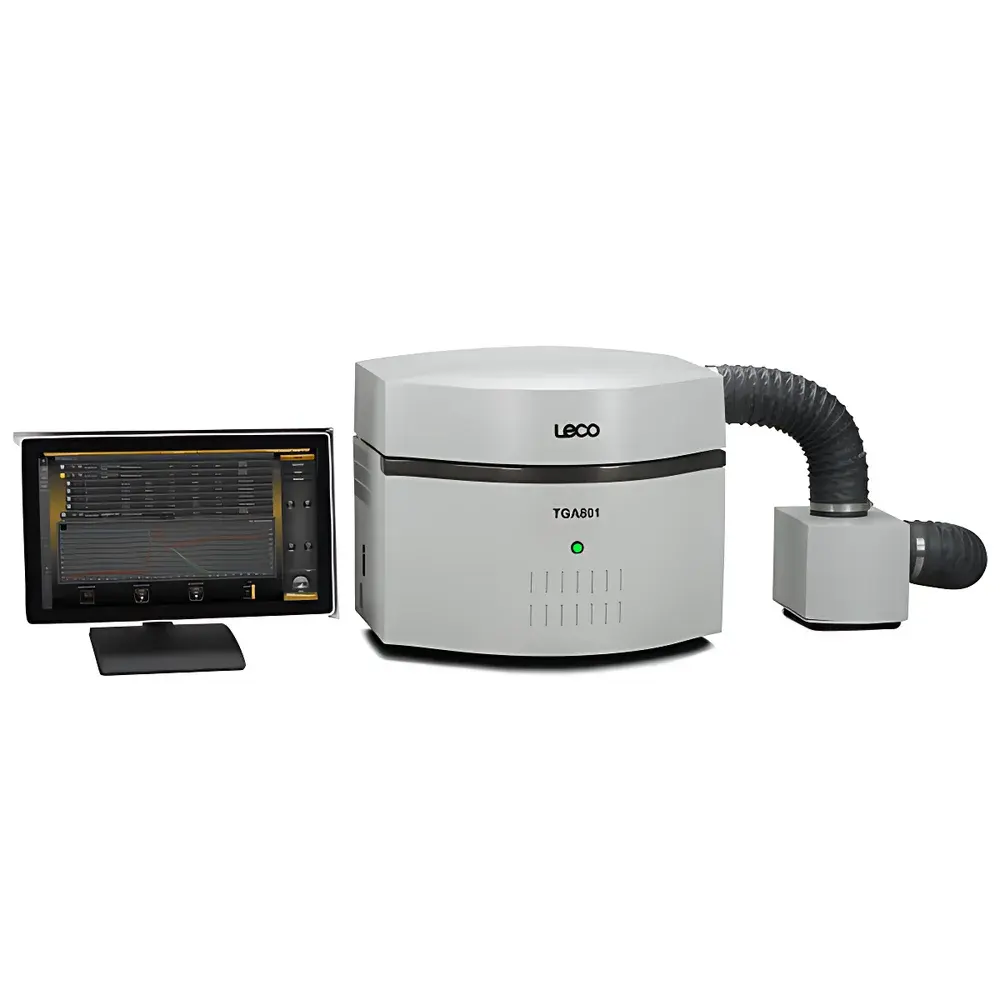

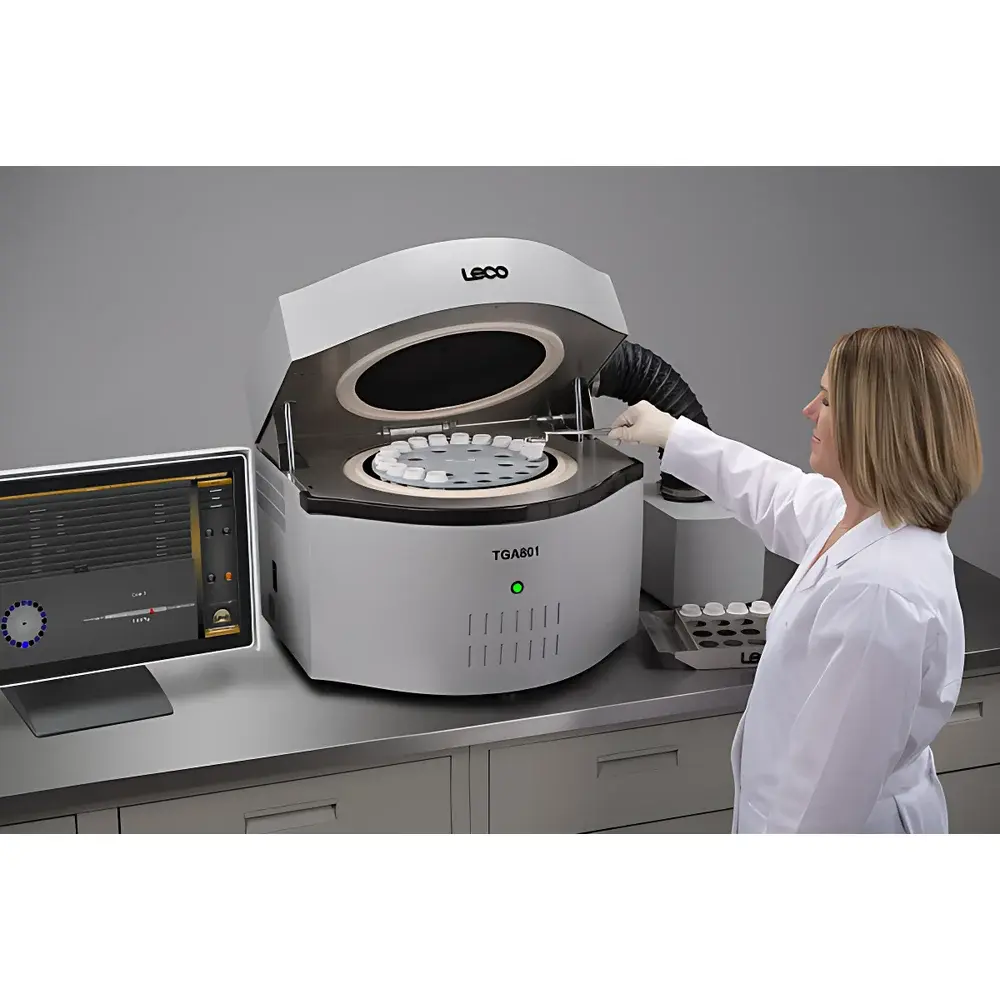

LECO TGA801 Thermogravimetric Analyzer

Overview

The LECO TGA801 Thermogravimetric Analyzer is a high-precision, microprocessor-controlled thermal analysis instrument engineered for quantitative measurement of mass change as a function of temperature or time under controlled atmospheric conditions. Based on the fundamental principle of thermogravimetry—where sample mass is continuously monitored during programmed thermal excursions—the TGA801 delivers high reproducibility and long-term stability essential for materials characterization in research, quality control, and regulatory environments. Its robust architecture integrates a high-sensitivity quartz crystal microbalance with a precisely regulated vertical furnace system, enabling accurate detection of subtle mass transitions associated with decomposition, oxidation, dehydration, volatilization, and filler content determination. Designed and manufactured in Saint Joseph, Michigan, USA, the TGA801 complies with core design and performance expectations outlined in ASTM E1131, ISO 11358, and USP <467> for residual solvent analysis.

Key Features

• Vertical furnace configuration with dual-zone temperature control ensures uniform thermal exposure and minimizes convection-induced buoyancy artifacts.
• High-resolution quartz suspension balance with 0.1 µg sensitivity and active drift compensation supports detection of sub-milligram mass changes across extended runs.
• Programmable heating and cooling rates up to 15 K/min, with precise isothermal hold capability, enabling both rapid screening and kinetic modeling (e.g., ASTM E698 activation energy calculations).
• Integrated gas handling system supporting up to three independent gas lines (inert, oxidative, reactive), with mass flow controllers calibrated per ISO 6145 for reproducible atmosphere switching.
• Modular furnace design allows field-replacement of crucibles and sensor assemblies without recalibration, minimizing downtime in high-throughput labs.
• Compliance-ready firmware architecture with audit trail logging, user access levels, and electronic signature support aligned with FDA 21 CFR Part 11 and GLP/GMP documentation requirements.

Sample Compatibility & Compliance

The TGA801 accommodates standard platinum, alumina, and ceramic crucibles (up to 100 µL capacity), supporting solid powders, granules, thin films, and pre-weighed polymer pellets. Sample mass range is optimized between 1 mg and 100 mg to maintain signal-to-noise ratio and thermal lag consistency. The system meets ISO/IEC 17025 calibration traceability requirements when operated with NIST-traceable reference materials (e.g., calcium oxalate monohydrate for step calibration, nickel for Curie point verification). All thermal profiles and mass derivative (DTG) outputs are exportable in ASTM E1641-compliant .tdf format for third-party kinetic analysis software integration.

Software & Data Management

ThermoGrav™ v4.2 software provides full instrument control, real-time data visualization, and automated report generation. It supports multi-step temperature programs with conditional triggers (e.g., initiate cooling upon reaching 5% mass loss), baseline correction algorithms (tangent, linear, polynomial), and derivative curve smoothing using Savitzky-Golay filters. Raw data files include embedded metadata (operator ID, instrument serial number, calibration date, gas composition), ensuring full ALCOA+ compliance (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Data export options include CSV, PDF, and XML formats compatible with LIMS and ELN platforms.

Applications

• Determination of organic/inorganic content in composites, catalysts, and battery electrode materials.
• Quantification of moisture, solvents, and volatile additives per ISO 293 and ASTM D7269.
• Thermal stability assessment of pharmaceutical excipients and active ingredients under ICH Q1A(R2) guidelines.
• Kinetic analysis of polymer degradation via Ozawa-Flynn-Wall and Kissinger methods.
• Residue ash content measurement in lubricants, fuels, and ceramics per ASTM D4124 and ISO 629.
• Decomposition onset temperature (T_onset) and maximum degradation rate (T_max) reporting for material safety data sheets (MSDS/SDS).

FAQ

What is the recommended calibration frequency for the TGA801?
Annual calibration using certified reference materials is recommended; however, daily verification with nickel (Curie point at 354 °C) and calcium oxalate is advised for routine QC.
Can the TGA801 be integrated into an automated sample changer?
Yes—optional 16-position autosampler (TGA-ASC16) is available with robotic arm interface and thermal equilibration validation per ASTM E2070.
Does the system support purge gas switching during a single run?
Yes—gas switching is programmable at user-defined temperatures or time points, with seamless transition and flow stabilization monitoring.
Is the balance protected during rapid cooling cycles?
Yes—the system employs active thermal shielding and dynamic suspension damping to prevent mechanical shock to the microbalance during high-rate cooling.
How does the TGA801 handle buoyancy corrections for different atmospheres?
Buoyancy compensation is applied automatically using user-input gas density values or preloaded tables for common gases (N₂, O₂, Ar, He, air) per ASTM E1131 Annex A1.
