LEI-TECH LK-WIFI2600 Wireless Portable Digital Microscope

Overview

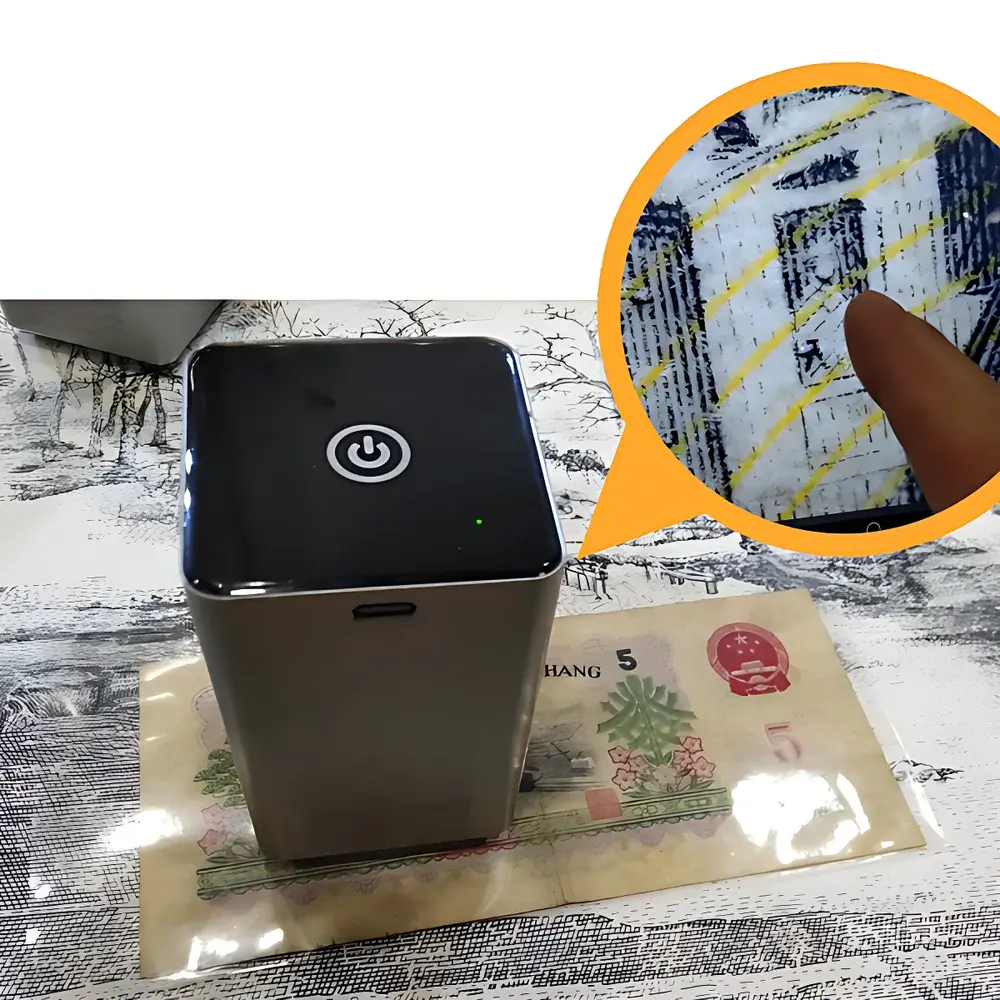

The LEI-TECH LK-WIFI2600 is a compact, battery-powered digital microscope engineered for field-deployable, high-fidelity microstructural observation and quantitative dimensional analysis. Unlike conventional benchtop optical microscopes requiring fixed power sources and wired connections, the LK-WIFI2600 employs a dual-mode Wi-Fi architecture—operating either as an independent access point or connecting seamlessly to existing local networks—to enable real-time wireless streaming of live video and still images directly to Android smartphones, tablets, or Windows PCs. Its core optical path integrates a six-element all-glass objective lens system coupled with a 1.3 MP progressive-scan CMOS sensor, delivering consistent contrast, minimal chromatic aberration, and stable resolution across its full 5× to 600× magnification range (calibrated at 17″ display size). Designed around the principles of portable metrology, it supports non-contact surface inspection, geometric feature quantification, and comparative morphology assessment without reliance on laboratory infrastructure.

Key Features

• Motorized precision focus drive with adaptive algorithmic stabilization—enabling one-touch autofocus and manual fine-tuning via touchscreen interface
• Triple-spectrum illumination module: adjustable white-light (2000K warm and 4000K neutral), 365 nm ultraviolet, and 850 nm near-infrared—optimized for fluorescence screening, counterfeit detection, and subsurface layer visualization
• Integrated micrometer-grade measurement suite: supports linear distance, angular deviation, polygonal area, parallel line spacing, crosshair alignment, grid-based proportional scaling, and dual-reference line analysis—all performed in real time with on-screen calibration
• USB-C universal interface for simultaneous charging, firmware updates, and tethered image export (when Wi-Fi is unavailable or restricted)
• Aluminum CNC-machined chassis—providing mechanical rigidity, EMI shielding, and thermal stability during extended operation
• On-device storage buffer and one-click JPEG/BMP capture—images and annotated measurement reports saved directly to mobile device internal memory or cloud-synced folders
• Multi-user collaborative viewing: up to four devices can simultaneously connect to the microscope’s hotspot for synchronized live feed and annotation sharing—ideal for remote technical support, training, or peer review

Sample Compatibility & Compliance

The LK-WIFI2600 accommodates a broad spectrum of non-encapsulated solid specimens—including printed circuit boards, textile fibers, ceramic glazes, coinage, forensic trace evidence, botanical epidermal layers, and dermatological surfaces—without requiring slide preparation or vacuum environments. Its working distance (8–35 mm, depending on magnification) allows safe examination of irregularly shaped or elevated objects. While not certified for ISO 17025-accredited metrology labs, the device supports traceable measurement workflows through embedded calibration protocols compatible with ASTM E29-23 (Standard Practice for Using Significant Digits in Test Data) and ISO 10360-1 (Geometrical Product Specifications). All firmware and measurement software comply with data integrity requirements aligned with GLP documentation practices, including timestamped audit logs and user-identifiable session records.

Software & Data Management

The companion Android application (LK-Measure Pro) provides a unified interface for live imaging, annotation, measurement, and report generation. It features encrypted local storage, EXIF metadata embedding (including magnification factor, illumination mode, and timestamp), and CSV-exportable measurement tables for downstream statistical analysis. No cloud upload is mandatory; all processing occurs on-device unless explicitly enabled by the user. The web-based viewer (accessible via Chrome/Edge on Windows) enables browser-based image review and basic annotation without app installation—supporting IT environments with strict mobile device management (MDM) policies. Firmware updates are delivered over-the-air (OTA) with SHA-256 signature verification to ensure integrity.

Applications

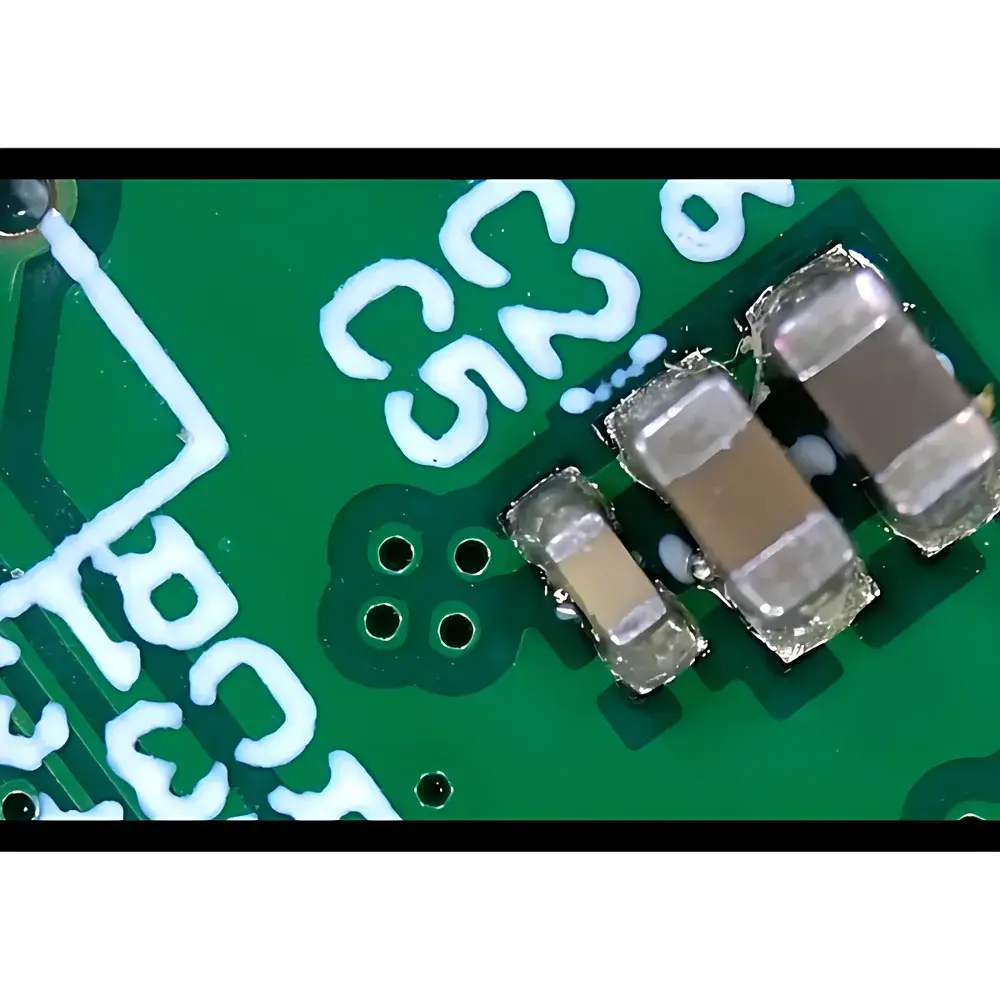

• Electronics manufacturing: solder joint inspection, PCB trace continuity verification, component defect mapping
• Textile quality control: fiber diameter distribution, weave density analysis, dye penetration uniformity assessment
• Cultural heritage documentation: pigment layer stratigraphy, ink corrosion evaluation, paper fiber degradation monitoring
• Forensic science: hair shaft morphology comparison, gunshot residue particle identification, document alteration detection
• Dermatology and trichology: follicular unit counting, scalp microcirculation observation, epidermal barrier integrity screening
• Educational laboratories: student-led microscopy modules with instant annotation sharing and instructor-led remote guidance
• Field service engineering: on-site failure root cause analysis with timestamped image archives and geotagged reporting

FAQ

Does the LK-WIFI2600 require a dedicated PC or laptop to operate?
No—it functions independently via Wi-Fi connection to any Android smartphone or tablet running OS 8.0 or later. A Windows PC can access the live feed through a standard web browser without installing additional drivers.
Is measurement data exportable in machine-readable formats?
Yes—CSV files containing coordinate positions, dimensional values, and metadata are generated per session and stored locally on the connected Android device.
Can the microscope be used under UV or IR illumination for fluorescence or subsurface imaging?
Yes—the integrated LED module includes selectable 365 nm UV and 850 nm IR channels, each with independent intensity control and thermal regulation to prevent sample heating.
What is the calibration basis for micrometer-level measurements?
Calibration uses a factory-verified reference scale visible within the field of view; users may perform secondary verification using NIST-traceable stage micrometers or certified gauge blocks.
Is the device suitable for GxP-regulated environments?
While not FDA 21 CFR Part 11 validated out-of-the-box, the audit trail functionality (user ID, timestamp, action log) and local data retention model support integration into validated QA/QC workflows when deployed with documented SOPs.
