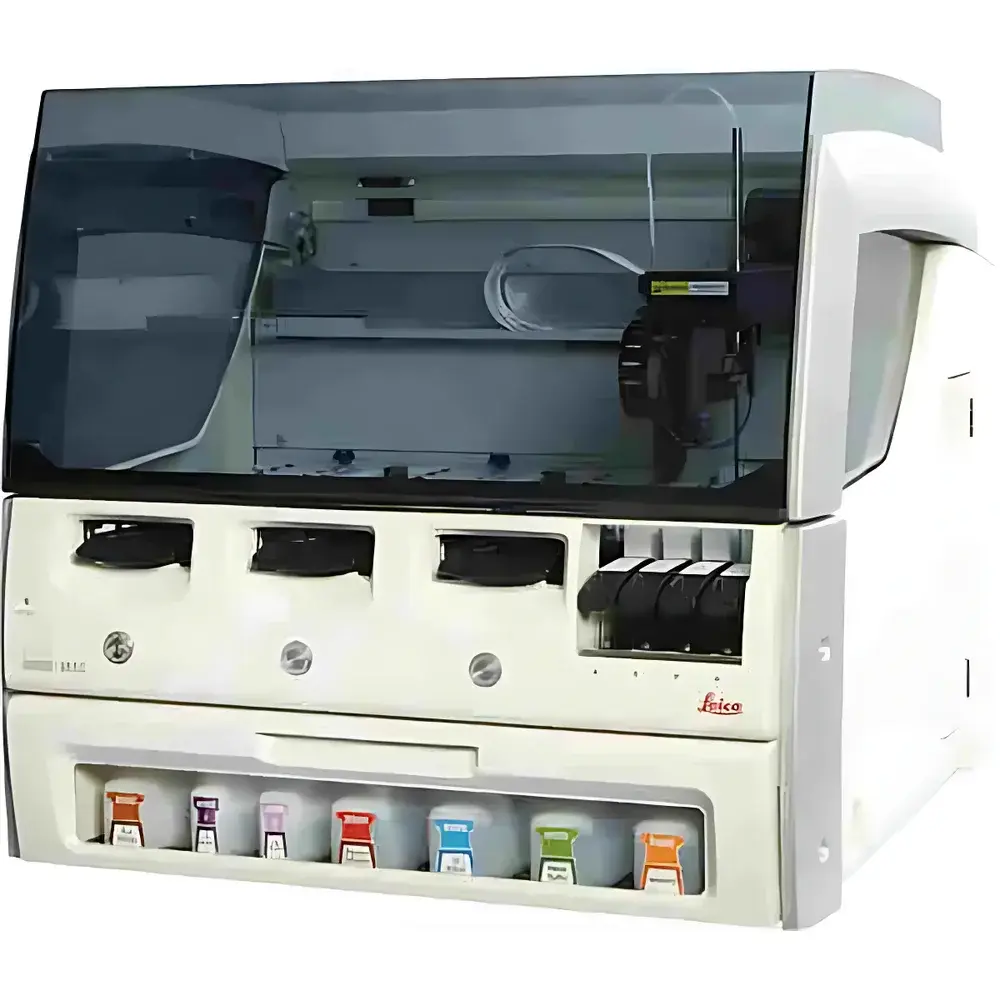

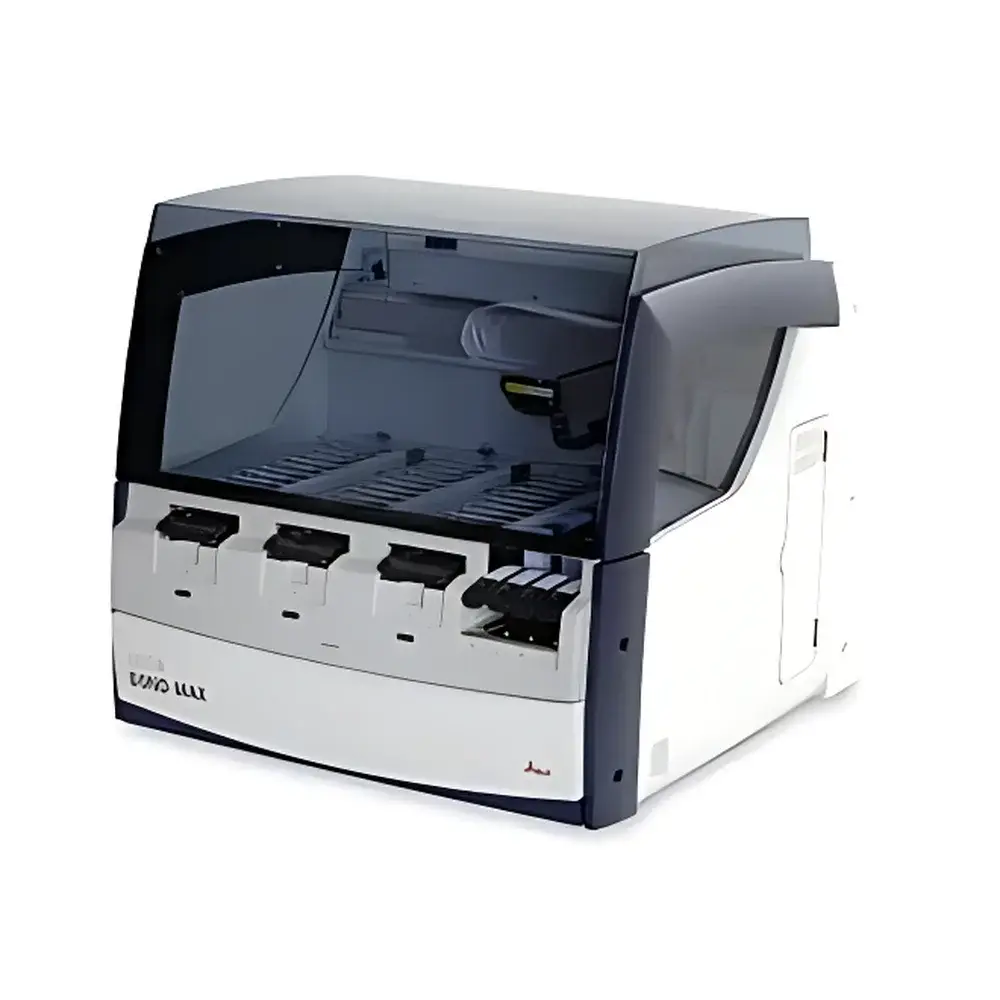

Leica BOND-MAX Fully Automated IHC and ISH Staining System

Overview

The Leica BOND-MAX is a fully automated, benchtop immunohistochemistry (IHC) and in situ hybridization (ISH) staining platform engineered for high-throughput, reproducible, and standardized tissue processing in clinical pathology and translational research laboratories. Unlike manual or semi-automated methods, the BOND-MAX implements a closed-system, temperature- and humidity-controlled staining environment coupled with proprietary BOND Covertile™ technology—a dynamic fluidic cover-slip system that maintains continuous tissue hydration and antigen integrity throughout all incubation, washing, and detection steps. This architecture minimizes edge effects, prevents section detachment (de-lamination), and ensures uniform reagent delivery across the entire tissue surface—critical for diagnostic-grade interpretation and quantitative image analysis. Designed to meet the operational demands of CAP-accredited and CLIA-certified labs, the system supports end-to-end workflow automation from deparaffinization through hematoxylin counterstaining, enabling consistent compliance with ISO 15189, CAP Checklist ANP.42700, and College of American Pathologists (CAP) IHC/ISH validation requirements.

Key Features

• Proprietary BOND Covertile™ technology: A real-time, fluidically sealed chamber that eliminates air exposure during staining—reducing tissue drying, curling, and non-specific background while preserving epitope conformation.
• Three independent slide racks: Enables concurrent processing of up to 48 slides (16 per rack), supporting flexible case-based loading, staggered start times, and uninterrupted throughput without workflow interruption.
• Pre-validated, ready-to-use BOND™ reagents: Antibody diluents, detection kits, and polymer-based detection systems are pre-formulated and lot-tested for stability and performance—eliminating manual titration, dilution errors, and inter-operator variability.
• Intuitive touchscreen interface with embedded protocol library: Includes >200 pre-optimized IHC and ISH protocols (e.g., ER, PR, HER2, ALK, PD-L1, HPV E6/E7 mRNA) compliant with ASCO/CAP guidelines and FDA-approved companion diagnostics.
• Modular expandability: Compatible with BOND-III modules and optional LIS integration via HL7 v2.x or ASTM E1384-compliant interfaces—supporting bidirectional data exchange (patient ID, specimen ID, stain protocol, QC flags) for audit-ready traceability under 21 CFR Part 11.

Sample Compatibility & Compliance

The BOND-MAX accommodates standard 1-mm-thick paraffin-embedded tissue sections mounted on charged or APES-coated glass slides (max. 33 × 40 mm). It supports routine FFPE blocks, decalcified bone specimens, and delicate cytology preparations (e.g., cell blocks). All protocols are validated per CAP IHC/ISH checklist requirements, including positive/negative controls, sensitivity verification (e.g., serial dilution testing), and inter-run precision assessment (CV ≤ 8% for H-score quantitation). The system’s thermal management subsystem maintains precise incubation temperatures (37–100 °C ±0.5 °C) across all steps, satisfying USP and ISO/IEC 17025 calibration traceability standards. Reagent consumption is optimized per slide, reducing waste and enabling full GLP/GMP documentation of reagent lot numbers, expiration dates, and usage logs.

Software & Data Management

BOND RX™ software (v6.2+) provides role-based user access control, electronic signature support, and comprehensive audit trails—including timestamped records of slide loading, protocol execution, reagent lot tracking, error alerts, and manual overrides. All data are stored locally in encrypted SQLite databases compliant with HIPAA security rules and exportable in CSV or XML format for LIMS integration. Optional BOND Connect™ cloud service enables remote system monitoring, predictive maintenance alerts, and firmware updates—without compromising network isolation or patient data sovereignty. Software validation packages include IQ/OQ/PQ documentation templates aligned with FDA 21 CFR Part 11 Annex 11 and ISO 13485:2016 requirements.

Applications

The BOND-MAX serves as a core platform in diagnostic histopathology labs for routine tumor profiling (e.g., breast cancer biomarkers, lymphoma panels), infectious disease detection (EBV, CMV, HPV), and molecular pathology workflows (DNA/RNA ISH for gene amplification, fusion transcripts, and viral load assessment). Its reproducibility supports digital pathology pipeline integration—ensuring consistent chromogen intensity and morphology preservation required for AI-assisted image analysis training and validation. Research applications include spatial transcriptomics sample prep, multiplexed IHC assay development, and preclinical biomarker qualification studies requiring strict inter-lab concordance.

FAQ

What validation documentation is provided for clinical use?
Leica supplies full IVD CE-marked protocol validation reports, CAP-compliant QC checklists, and installation/operational qualification (IQ/OQ) packages upon request.
Can the BOND-MAX process both IHC and ISH on the same run?
Yes—dual-modality protocols are supported via sequential reagent dispensing and temperature-programmed hybridization steps; however, separate racks are recommended for optimal cross-contamination control.
Is LIS connectivity included by default?
LIS interface hardware and HL7 configuration are optional add-ons; basic USB data export is standard.
How often does the Covertile module require maintenance?
The Covertile assembly is designed for ≥10,000 cycles; routine cleaning is performed automatically during daily startup, and preventive maintenance is scheduled every 6 months or 2,000 runs.
Does the system support custom antibody protocols?
Yes—users may create, save, and validate custom protocols using the BOND RX™ Advanced Editor, subject to internal lab validation per CAP ANP.42750 requirements.
