Leica Enersight Microscopic Image Analysis System

Overview

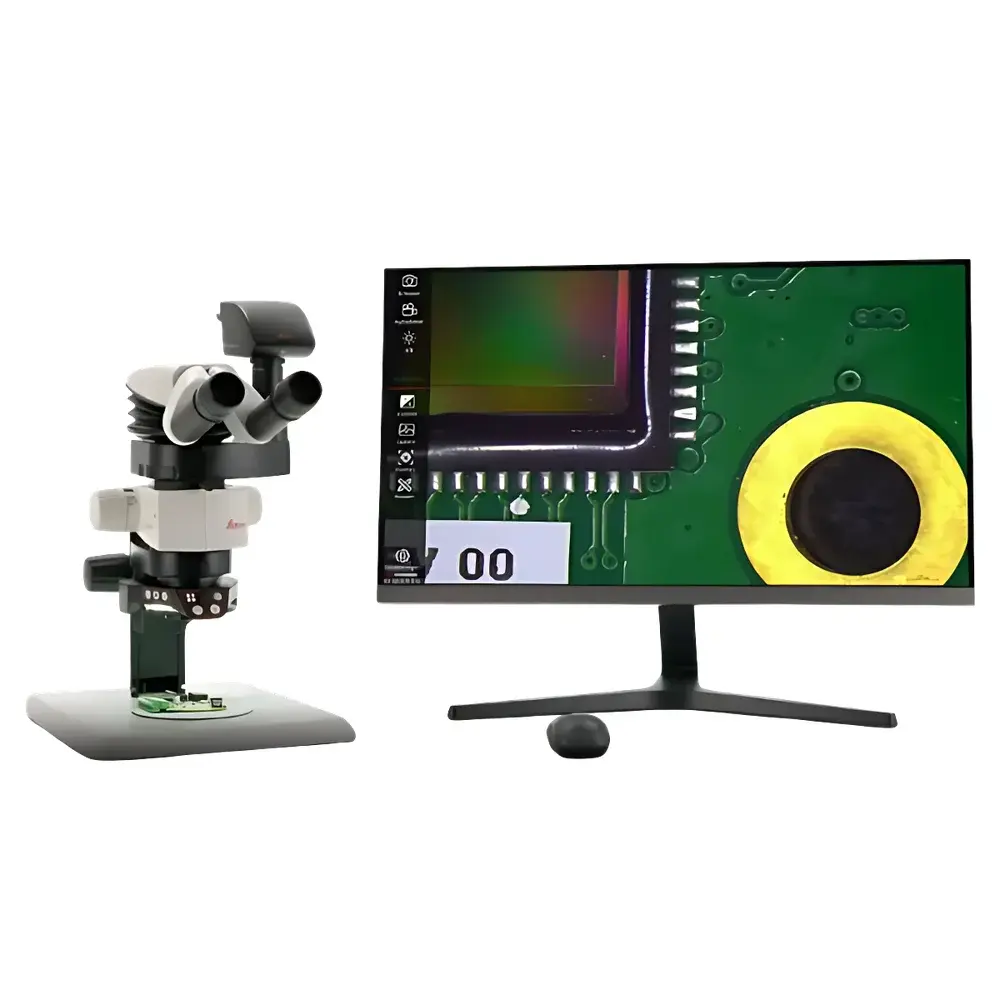

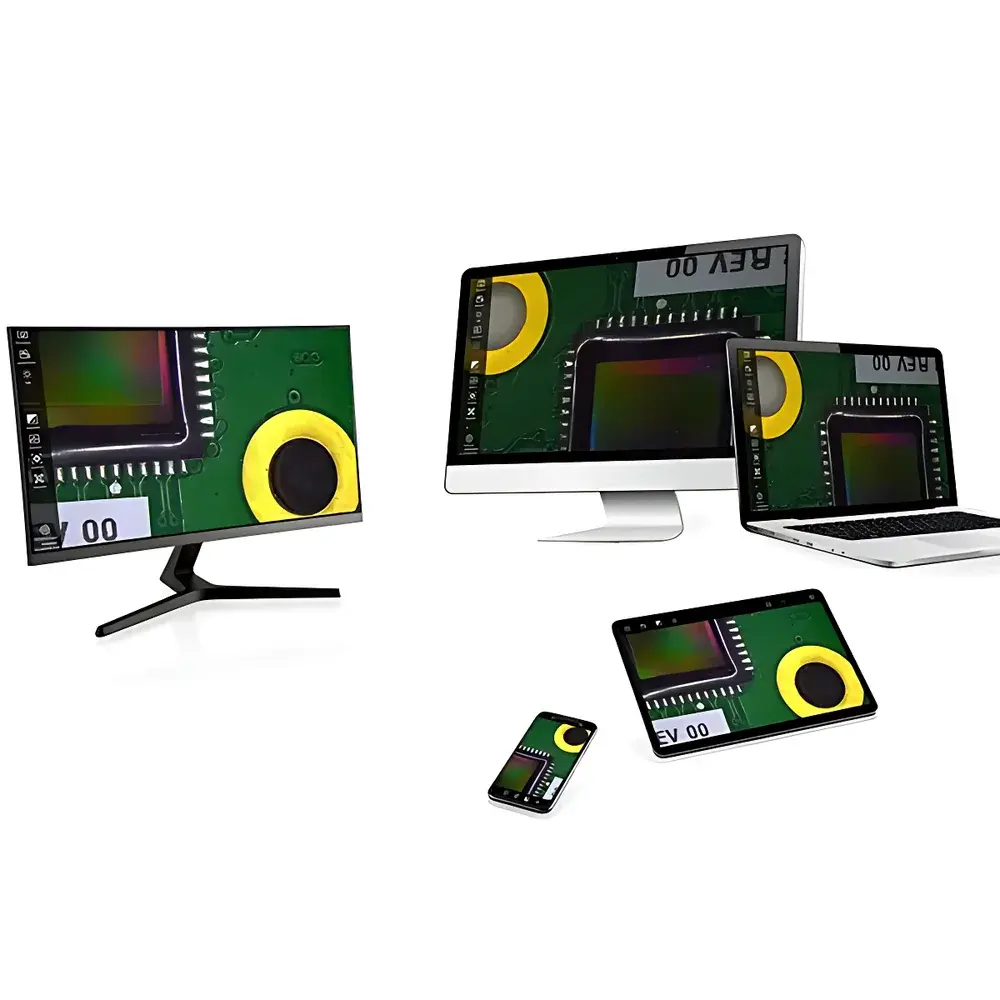

The Leica Enersight Microscopic Image Analysis System is a purpose-built, integrated hardware-software solution engineered for high-throughput visual inspection and quantitative image-based metrology in industrial quality control (QC) and failure analysis environments. Unlike conventional microscope imaging workflows that rely on disparate acquisition, annotation, and measurement tools, Enersight unifies real-time image capture, on-the-fly geometric measurement, reference-based pass/fail assessment, and structured data export within a single, deterministic software architecture—deployed directly on the microscope’s embedded touchscreen interface or optionally via external workstation integration. Its core optical imaging engine leverages Leica’s proprietary CMOS sensor calibration, dynamic exposure control, and hardware-accelerated HDR fusion to deliver consistent, reproducible image fidelity across highly reflective, semi-transparent, or topographically complex specimens—without requiring operator expertise in illumination tuning or post-capture correction.

Key Features

• Integrated touchscreen interface with context-aware UI: Functionality dynamically adapts to user role (e.g., operator, supervisor, QA engineer); non-essential tools are hidden by default to minimize cognitive load and reduce training time.
• Real-time dual-point and multi-feature measurement: Linear, angular, area, and distance measurements performed directly on live video feed; results auto-annotated and saved with timestamped metadata and raw image.
• Reference overlay comparison: Instant side-by-side or translucent superimposition of live image against stored golden standard or CAD-derived tolerance templates; automated deviation highlighting with configurable pass/fail thresholds.
• High Dynamic Range (HDR) acquisition: Single-shot multi-exposure fusion enables simultaneous capture of highlight and shadow detail—critical for metallurgical surfaces, coated substrates, or polymer composites with mixed reflectivity.
• Negative mode rendering: Pixel-level inversion for enhanced contrast in specimens with both transparent and specular regions (e.g., thin films, solder joints, biological membranes).
• Focus and exposure assistance: On-screen focus peaking indicators, real-time histogram visualization, and auto-adjusting white balance—reducing dependency on manual parameter optimization.
• Zero-footprint annotation: Text labels, arrows, callouts, and numbered defect markers applied directly to images; annotations persist across sessions and export formats.

Sample Compatibility & Compliance

Enersight supports routine inspection of metallic alloys, PCB assemblies, semiconductor wafers, medical device components, and precision-machined parts under brightfield, darkfield, and polarized light configurations compatible with Leica DMi8, DM4 M, and other modular upright/inverted microscope platforms. The system complies with ISO/IEC 17025 documentation requirements for test equipment traceability and supports audit-ready reporting per ISO 9001:2015 clause 8.5.2 (Identification and traceability). All measurement data—including timestamps, operator IDs, instrument configuration logs, and image provenance—is captured in immutable format to satisfy GLP/GMP data integrity expectations.

Software & Data Management

Enersight software operates natively on Windows 10 IoT Enterprise or Leica’s certified embedded OS variant. It generates standardized TIFF/PNG image files with embedded EXIF metadata and exports measurement reports in CSV, PDF/A-1b, and XML formats compliant with ASTM E2018-22 (Standard Guide for Digital Image Capture in Microscopy). Network storage integration supports SMB/CIFS protocols for automatic archiving to NAS or enterprise file servers. Email-based result distribution includes encrypted attachments and optional digital signature verification. No cloud dependency—data residency remains fully under customer control, meeting GDPR Article 32 and FDA 21 CFR Part 11 requirements when deployed with appropriate access controls and electronic signature modules.

Applications

• Automotive component dimensional verification (e.g., weld seam width, coating thickness, burr height)
• Electronics manufacturing: SMT solder joint inspection, BGA void analysis, trace width/spacing validation
• Medical device QC: Catheter surface defect mapping, stent strut uniformity assessment, implant finish evaluation
• Materials science: Grain boundary quantification, inclusion counting per ASTM E112, phase distribution analysis
• Academic and industrial failure analysis labs performing root cause investigation of fracture surfaces or corrosion patterns

FAQ

Does Enersight require a separate computer to operate?

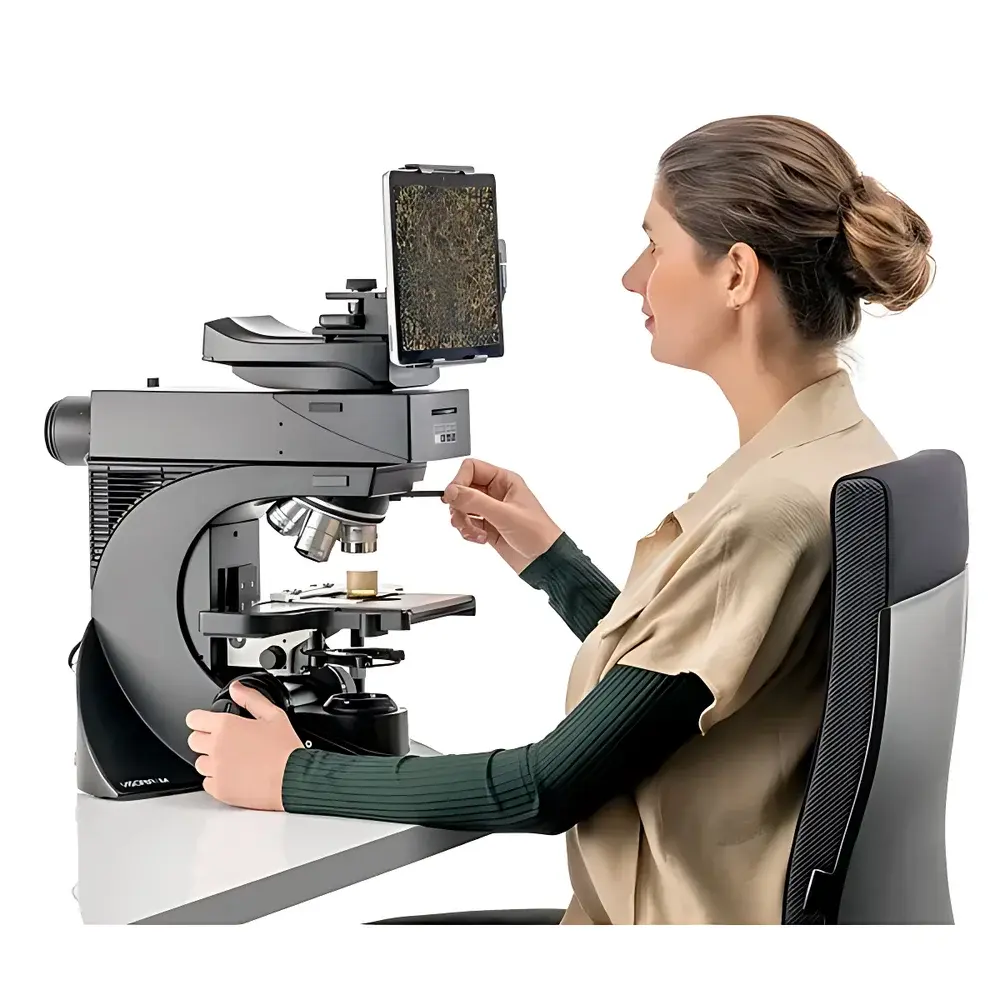

No—Enersight runs directly on the microscope’s integrated industrial touchscreen or an optional ruggedized panel PC; no external workstation is necessary for core inspection tasks.
Can measurement data be exported to LIMS or MES systems?

Yes—structured CSV and XML outputs include all required fields (sample ID, operator, timestamp, measurement values, pass/fail status) for seamless ingestion into LabVantage, Thermo Fisher SampleManager, or Siemens Opcenter.
Is calibration traceable to NIST or DAkkS standards?

All Leica-certified camera modules ship with factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt), with optional on-site recalibration services available through Leica Microsystems’ accredited service centers.
How is user access controlled across shifts or departments?

Role-based permissions are configured at installation: Operators may perform measurements but not modify reference templates; supervisors can approve/reject batches; QA managers retain full audit log access and report generation rights.
What microscope models are officially supported?

Enersight is validated for Leica DMi8, DM4 M, DM6 M, and DM2700 M platforms with Leica DMC6200 or DFC9000 GT cameras; third-party microscopes are not supported due to proprietary hardware synchronization requirements.
