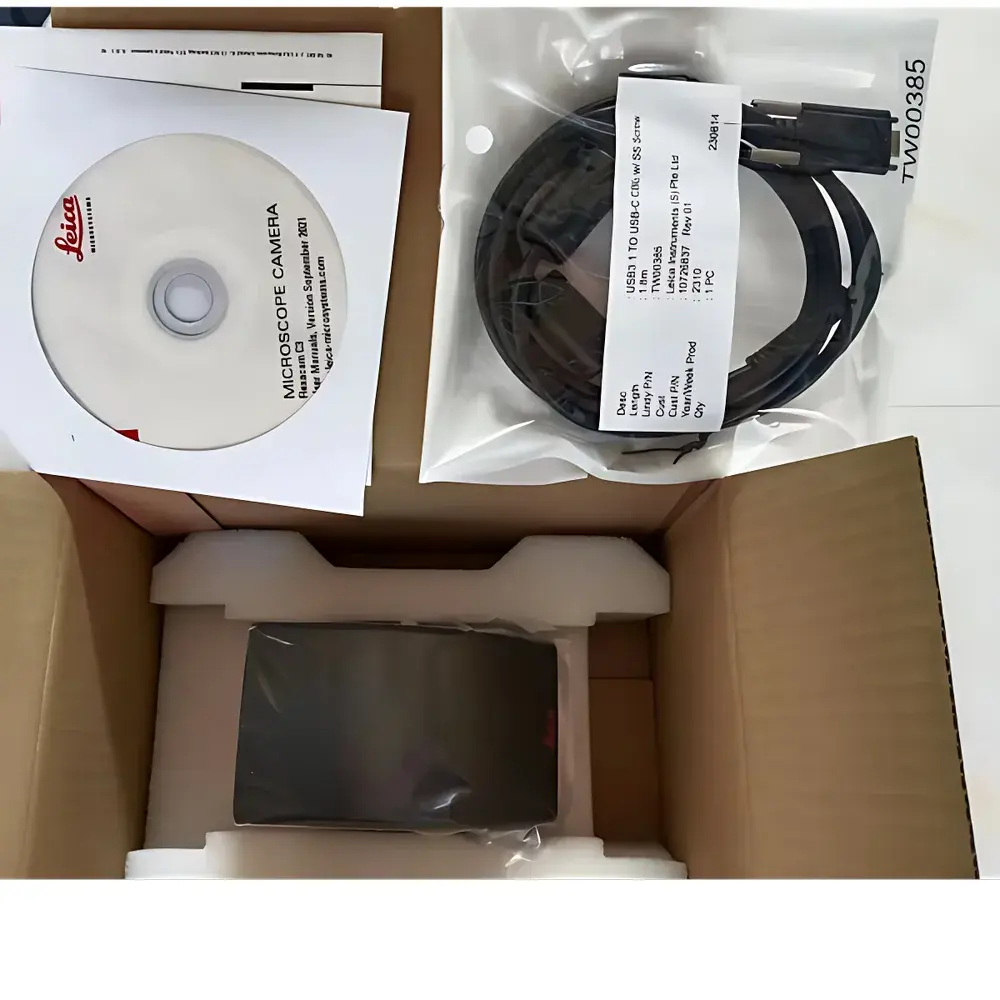

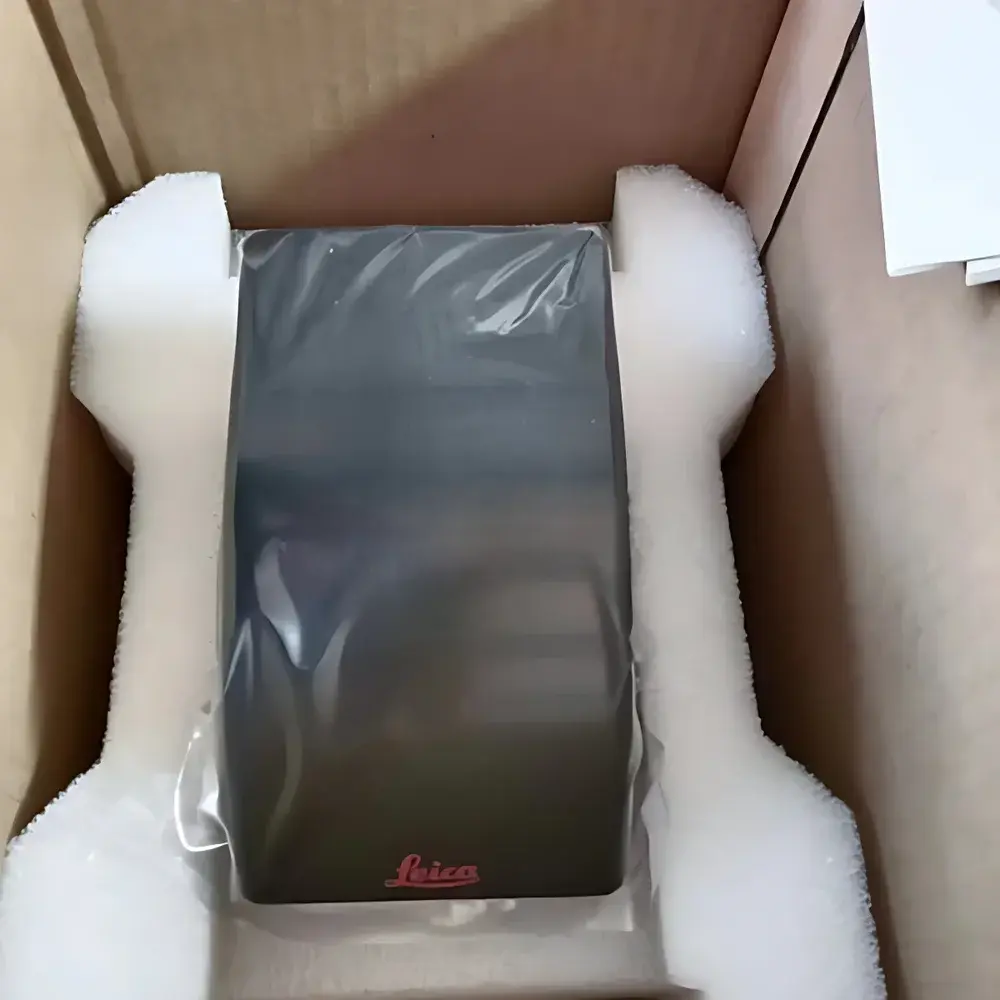

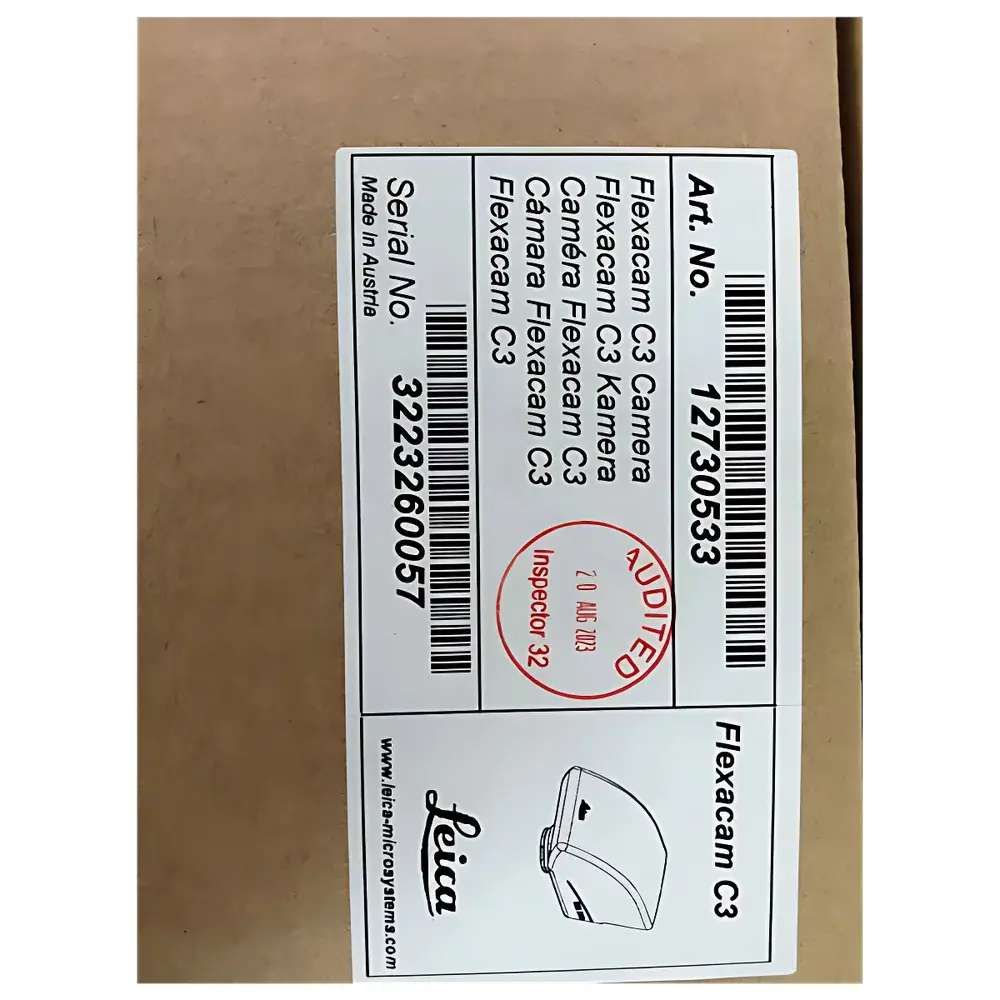

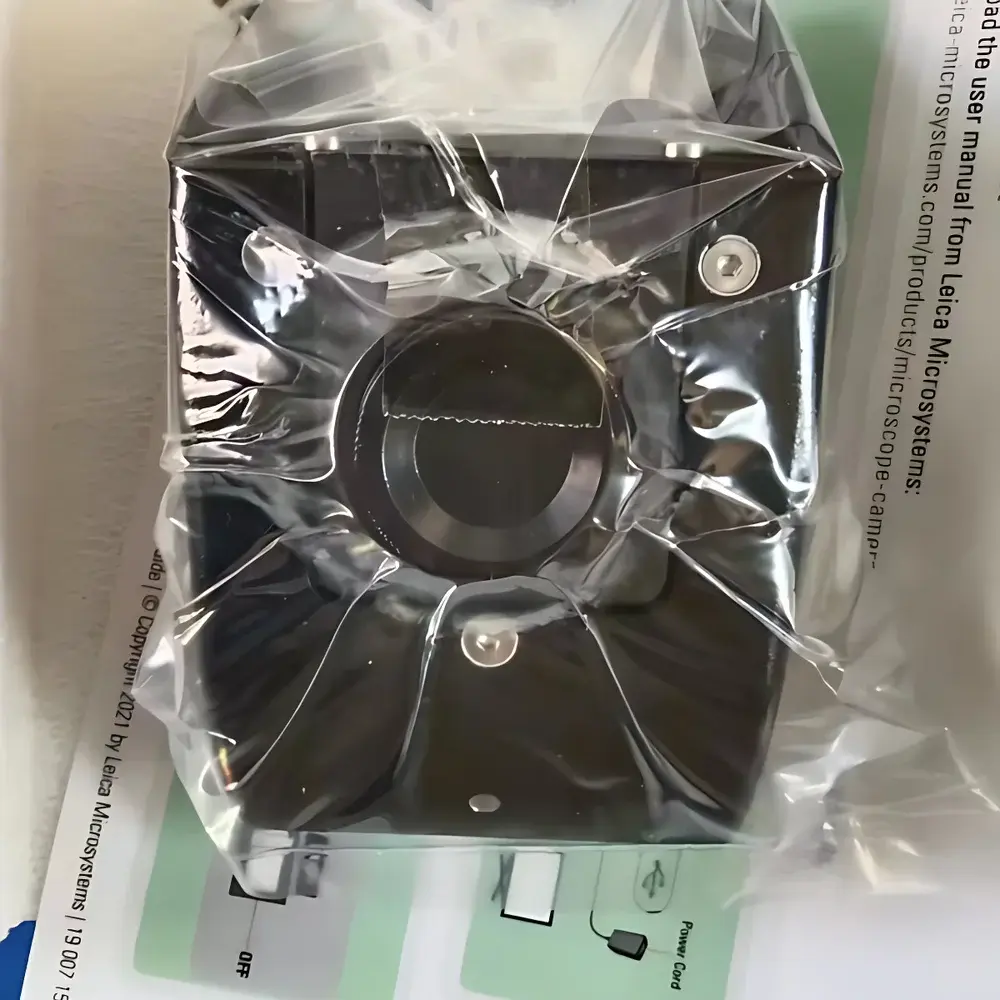

Leica Flexacam C3 Camera
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | Flexacam C3 Camera |
| Distribution Type | Authorized Distributor |
| Import Status | Imported |
| Price Range | USD 2,700 – 5,400 (based on EUR/USD exchange and typical import markup) |
Overview
The Leica Flexacam C3 Camera is a high-performance, modular digital imaging system engineered for seamless integration with Leica Microsystems’ upright and inverted light microscopes—including DMi8, DM6 B, and DM4 B platforms—as well as stereomicroscopes such as the M205 FA and Z16 APO. Designed in Wetzlar, Germany, the Flexacam C3 employs a 5.0-megapixel CMOS sensor with global shutter architecture to deliver low-noise, high-fidelity images with minimal motion blur—critical for time-lapse acquisition, live-cell observation, and precise morphometric analysis. Its optical path is optimized for color fidelity and signal-to-noise ratio across visible wavelengths (400–700 nm), supporting both brightfield, phase contrast, and fluorescence modalities without requiring external filter cubes or relay optics. The camera operates via USB 3.0 interface, enabling real-time streaming at up to 30 fps at full resolution, and is fully compatible with Leica Application Suite X (LAS X) software for quantitative image analysis, multi-channel overlay, and metadata-rich acquisition workflows.
Key Features
- 5.0 MP CMOS sensor with 2.4 µm pixel size and 12-bit dynamic range for balanced sensitivity and spatial resolution
- Global shutter design eliminates rolling shutter artifacts during rapid stage movement or vibration-prone environments
- Integrated hardware binning (2×2, 4×4) and region-of-interest (ROI) cropping to enhance frame rate and reduce data throughput
- Thermally stabilized sensor housing minimizes dark current drift over extended acquisitions (>30 min)
- USB 3.0 interface with zero-latency direct memory access (DMA) for deterministic timing and synchronization with external triggers (TTL-compatible)
- CE, FCC, and RoHS compliant; designed and manufactured under ISO 13485-certified quality management systems
Sample Compatibility & Compliance
The Flexacam C3 supports standard microscopy sample formats including glass slides (26 × 76 mm), petri dishes (35–100 mm), multi-well plates (6–96-well), and custom-mounted specimens on aluminum or steel stages. It is routinely deployed in regulated laboratory environments adhering to GLP (Good Laboratory Practice) and ISO/IEC 17025 requirements. Image metadata—including timestamp, objective magnification, exposure settings, and calibration parameters—is embedded in TIFF and JPEG files per EXIF 2.31 and DICOM Supplement 143 standards. When used with LAS X software, audit trails, user access logs, and electronic signatures comply with FDA 21 CFR Part 11 for regulated life science and materials research applications.
Software & Data Management
The Flexacam C3 is natively controlled through Leica Application Suite X (LAS X) v3.7+, which provides automated acquisition protocols, batch processing pipelines, and integrated measurement tools (e.g., particle counting, line profile intensity, area fraction analysis). Raw image data is stored in lossless TIFF format with embedded ICC color profiles and calibrated scale bars. LAS X supports export to HDF5 for interoperability with Python-based analysis frameworks (e.g., scikit-image, napari) and MATLAB. For enterprise deployment, LAS X Enterprise Edition enables centralized configuration management, role-based permissions, and integration with LIMS via RESTful API endpoints. All firmware updates are digitally signed and delivered through Leica’s secure update portal.
Applications
- Metallurgical and materials science: grain boundary analysis, inclusion quantification, coating thickness assessment on polished cross-sections
- Life sciences: routine histopathology documentation, zebrafish embryo staging, organoid morphology tracking
- Quality control in precision manufacturing: solder joint inspection, PCB trace continuity verification, polymer weld seam evaluation
- Academic teaching labs: standardized image capture for comparative microscopy exercises and digital slide archives
- Forensic document examination: ink differentiation, fiber morphology, and latent print enhancement under oblique illumination
FAQ
Is the Flexacam C3 compatible with non-Leica microscope stands?
No—the Flexacam C3 requires mechanical and electrical integration via Leica’s proprietary C-mount adapter and power/data interface; it is not designed for third-party stand compatibility.
Does the camera support hardware-triggered acquisition?
Yes—TTL-compatible trigger input allows synchronization with motorized stages, shutters, or environmental controllers for repeatable multi-position or multi-condition experiments.
What is the maximum sustained frame rate at full resolution?
30 fps at 2560 × 1920 pixels using USB 3.0 with LAS X in streaming mode; frame rate increases with ROI reduction or binning.
Can calibration data be exported for traceability in accredited labs?
Yes—pixel-to-micron calibration files (including uncertainty estimates per ISO 10110-5) are exportable as XML and can be embedded into acquisition metadata.
Is firmware update capability available remotely?
Firmware updates must be performed locally via LAS X software using authenticated credentials; no remote update functionality is implemented for security and regulatory compliance reasons.
