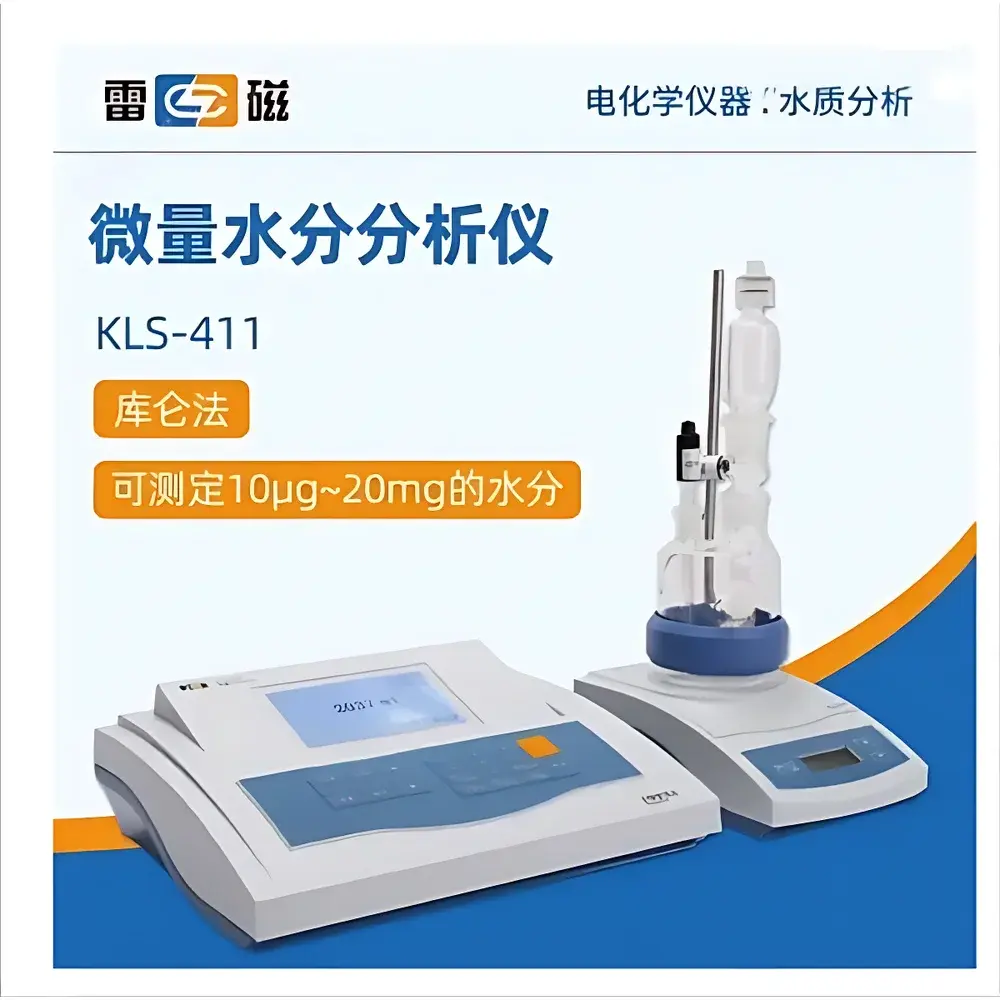

Leichi KLS-411 Coulometric Karl Fischer Moisture Analyzer

Overview

The Leichi KLS-411 Coulometric Karl Fischer Moisture Analyzer is a precision benchtop instrument engineered for trace-level water quantification in liquid samples containing 10 micrograms to 20 milligrams of moisture. It operates on the fundamental principle of coulometric Karl Fischer titration—where iodine is electrogenerated in situ at the anode of a dual-platinum electrode system housed within a sealed, membrane-separated titration cell. This architecture eliminates the need for volumetric reagent delivery and enables direct, stoichiometric determination of water content based on Faraday’s law. The KLS-411 is specifically optimized for applications demanding high sensitivity and reproducibility in low-moisture matrices, including organic solvents (e.g., acetonitrile, chloroform), petroleum fractions (e.g., transformer oil, lubricants), pharmaceutical excipients, and polymer precursors. Its coulometric design ensures minimal reagent consumption, consistent electrode response, and inherent immunity to drift associated with reagent degradation—making it suitable for regulated environments where measurement traceability and method robustness are critical.

Key Features

• Coulometric detection with membrane-enclosed dual-platinum electrode assembly, ensuring stable baseline and rapid endpoint discrimination
• Four selectable electrolysis current ranges (10/20/50/100 mA) to accommodate varying sample water load and matrix conductivity
• Integrated polarization current control with ±0.2 μA error tolerance, enabling precise maintenance of electrode activation potential
• Pre-validated, low-toxicity Leichi KF reagent formulation—odor-reduced, non-hygroscopic, and fully reusable across multiple analyses without recalibration
• No manual reagent standardization required; built-in algorithm compensates for background drift and cell capacitance effects
• Large backlit LCD display with English-language menu interface, supporting real-time current monitoring, titration curve visualization, and status diagnostics
• Onboard data management: stores up to 200 measurement records with timestamp, sample ID, water mass (μg), and calculated % w/w
• RS232 serial port compliant with standard printer protocols (ESC/P or PCL), enabling GLP-compliant hardcopy reporting

Sample Compatibility & Compliance

The KLS-411 demonstrates broad compatibility with non-aqueous, low-conductivity media commonly encountered in industrial QC and R&D laboratories. It is validated for use with Class I–III solvents per ASTM D6304 and ISO 8533, including but not limited to methanol-free systems. The membrane electrode configuration prevents contamination from viscous or particulate-laden samples such as crude oil distillates or silicone fluids. While not certified to IEC 61000-4 electromagnetic immunity standards, its analog signal conditioning circuitry incorporates galvanic isolation and RF filtering to ensure stable operation in shared lab environments. The instrument supports audit-ready workflows: all stored results include immutable metadata (date/time, operator ID if entered, electrode status flag), and the RS232 output can be interfaced with LIMS platforms supporting ASTM E1384 or ISO/IEC 17025 data integrity requirements.

Software & Data Management

Data handling is executed entirely onboard—no external PC or proprietary software is required for routine operation. Each measurement record includes raw coulomb count, calculated water mass (μg), normalized concentration (% w/w), relative standard deviation of replicate injections (if enabled), and system diagnostic flags (e.g., over-titration warning, cell dryness alert). Users may review, export via printer, or delete individual entries using password-protected administrative mode. Though the KLS-411 does not implement FDA 21 CFR Part 11 electronic signature controls natively, its deterministic measurement logic, fixed calibration constants, and non-volatile memory architecture align with ALCOA+ principles for data reliability. For laboratories requiring full electronic record compliance, the RS232 stream may be captured by validated third-party acquisition software meeting GMP Annex 11 criteria.

Applications

• Quality control of hygroscopic pharmaceutical intermediates (e.g., APIs, lyophilized powders) per USP <921>
• Moisture verification in lithium battery electrolytes and cathode slurries
• Trace water assessment in aviation turbine fuels (ASTM D6304 Method B)
• Stability-indicating testing of silicone-based medical device coatings
• Process monitoring of solvent recovery streams in fine chemical synthesis
• Research-grade hydration studies in ionic liquids and deep eutectic solvents

FAQ

Does the KLS-411 require daily reagent standardization?
No. The coulometric cell uses a fixed stoichiometric relationship (1 mole I₂ ≡ 1 mole H₂O), and the Leichi KF reagent is formulated to maintain consistent iodine generation efficiency across repeated use. System verification is performed via certified water standards (e.g., 1.00 mg/g Disodium Tartrate Dihydrate) at user-defined intervals.
Can the instrument measure samples with >1% water content?
It is not recommended. The KLS-411 is optimized for trace analysis (10 μg–20 mg absolute water). Samples exceeding ~1000 ppm may saturate the coulometric cell, leading to prolonged titration times and reduced accuracy. For higher concentrations, volumetric KF titrators (e.g., Leichi KF-1B) are advised.
Is the membrane electrode field-replaceable?
Yes. The electrode module is a user-serviceable component with standardized M4 mounting and PTFE-sealed electrical contacts. Replacement requires no recalibration—only a 15-minute cell equilibration period post-installation.
What safety certifications does the instrument carry?
The KLS-411 conforms to GB/T 25000.51–2016 (Chinese national standard for measurement instrument EMC and safety), and its power supply meets IEC 61010-1:2010 Class II insulation requirements. CE marking is not applicable as it is manufactured for domestic and select export markets under OEM distribution agreements.
