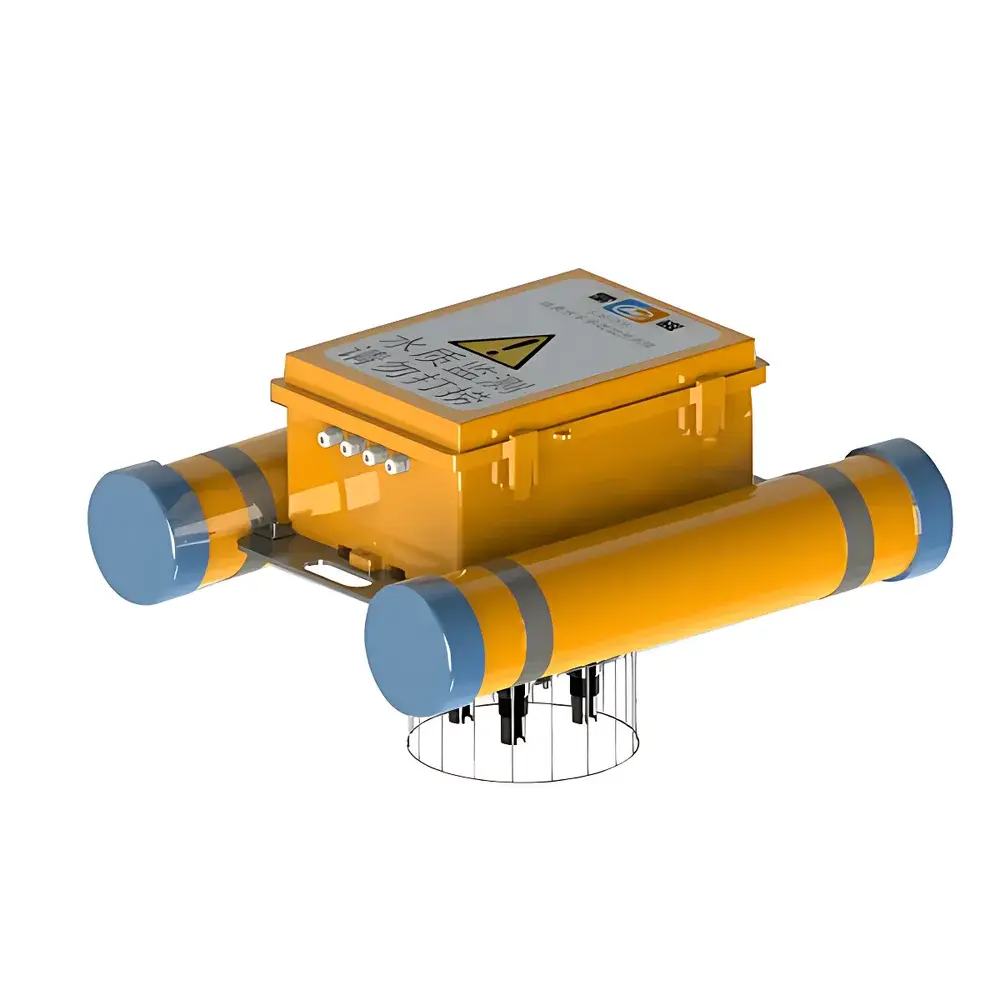

Leici SJG-205 Water Quality Monitoring Buoy

Overview

The Leici SJG-205 Water Quality Monitoring Buoy is an autonomous, multi-parameter in-situ sensing platform engineered for long-term, real-time surveillance of surface water bodies—including rivers, lakes, reservoirs, and estuaries. It operates on the principle of direct immersion-based electrochemical, optical, and physical sensor integration, enabling continuous acquisition of physicochemical and biological water quality indicators without sample extraction or laboratory intervention. The buoy’s modular architecture supports configurable sensor payloads aligned with site-specific regulatory requirements (e.g., China’s HJ 91.1–2019, EU WFD Annex V, or US EPA Method 160.1/160.2), and its embedded edge-processing unit performs on-board computation of derived indices—including Water Quality Index (WQI), Trophic State Index (TSI), and early-warning thresholds for anomalous parameter deviation. Designed for deployment in dynamic fluvial environments, the SJG-205 maintains operational stability under wave heights up to 0.8 m and current velocities ≤ 1.2 m/s, with a draft depth optimized for representative vertical profiling in shallow-to-moderate depth channels.

Key Features

• Modular sensor interface supporting hot-swappable probes for DO, pH, ORP, conductivity, salinity, turbidity, chlorophyll-a, phycocyanin (for cyanobacteria quantification), COD_UV, TOC_UV, NH₄⁺-N, NO₃⁻-N, and NO₂⁻-N—each calibrated per ISO 7027 (turbidity), ISO 5814 (DO), or ASTM D1293 (pH)
• Dual-power architecture: configurable operation via shore-based AC supply, rechargeable LiFePO₄ battery pack (rated for ≥ 6 months autonomy at 15-min sampling interval), or monocrystalline solar panel (≥ 20 W, IP67-rated, with MPPT charge controller)
• On-board GPS module compliant with NMEA 0183 v4.10, delivering positional accuracy ≤ 2.5 m CEP; automatic geofence violation alerting via SMS/email upon drift exceeding user-defined radius
• Intelligent sensor maintenance: ultrasonic or mechanical brush-based self-cleaning cycles triggered by turbidity or biofouling index thresholds; remote calibration validation using standard buffer solutions (pH 4.01/7.00/10.01, DO saturation points)
• Low-power wide-area wireless telemetry: dual-mode transmission via NB-IoT (Cat-NB1) and 4G LTE-M, with configurable reporting intervals (1 min to 24 h); encrypted payload (AES-128) transmitted to MQTT or HTTP(S) endpoints
• Lightweight polyethylene hull (≤ 42 kg dry weight, buoyancy reserve ≥ 120%), certified to GB/T 24001–2016 for marine environmental compatibility and UV resistance (IEC 60068-2-5)

Sample Compatibility & Compliance

The SJG-205 is validated for continuous monitoring in freshwater, brackish, and low-salinity estuarine systems (0–20 ppt). Sensor response characteristics adhere to ISO 5667-22 for field instrumentation performance verification. Data integrity meets GLP-aligned audit trail requirements: all configuration changes, calibration events, and firmware updates are timestamped, digitally signed, and stored locally for ≥ 180 days. Firmware supports optional 21 CFR Part 11-compliant electronic signatures when integrated with validated LIMS platforms. Regulatory alignment includes China’s “Technical Specifications for Online Monitoring System of Surface Water Quality” (HJ 915–2017) and supports export-ready documentation for CE marking (EN 61326-1:2013 EMC, EN 61000-6-2:2019 immunity).

Software & Data Management

Leici’s AquaView™ Cloud Platform (v3.2+) provides web-based visualization, statistical trend analysis (moving averages, seasonal decomposition), and automated anomaly detection using adaptive thresholding and PCA-based multivariate outlier identification. Raw sensor outputs are archived in HDF5 format with embedded metadata (CF-1.8 conventions). RESTful API enables bidirectional integration with SCADA, GIS (ArcGIS Online, QGIS Server), and enterprise data warehouses. Audit logs record all user actions—including remote calibration initiation, parameter reconfiguration, and alarm acknowledgment—with role-based access control (RBAC) and SSO support (SAML 2.0, OAuth 2.0).

Applications

• River basin management: longitudinal profiling of nutrient loading gradients and diurnal DO cycling
• Drinking water source protection: early detection of algal bloom precursors (chlorophyll-a + phycocyanin + nitrate co-occurrence patterns)
• Industrial effluent compliance monitoring: real-time tracking of COD_UV and NH₄⁺-N against discharge permit limits
• Climate-resilient infrastructure: integration with hydrological models for flood-driven contaminant transport forecasting
• Research-grade limnology: synchronized multi-buoy deployments enabling spatial interpolation of water quality fields (kriging, IDW)

FAQ

What communication protocols does the SJG-205 support for data transmission?

It natively supports MQTT over NB-IoT/LTE-M and HTTPS POST with TLS 1.2 encryption; Modbus TCP and RTU gateways are available as optional add-ons.
Can the buoy operate in tidal zones with salinity fluctuations above 20 ppt?

While calibrated for ≤20 ppt, optional titanium-housed conductivity and pH sensors (with extended range 0–45 ppt) are available for coastal applications.
Is remote firmware update capability included?

Yes—OTA updates are performed via signed binary packages with rollback protection and pre-update health verification.
How is sensor drift compensated during long-term deployment?

The system implements adaptive zero-point correction using reference electrode stability monitoring and periodic multi-point dynamic calibration triggered by user-defined schedules or event-based logic.
Does the platform support integration with third-party SCADA systems?

Yes—through standardized OPC UA server (compliant with IEC 62541) or custom JSON/XML mapping via AquaView™ middleware.
