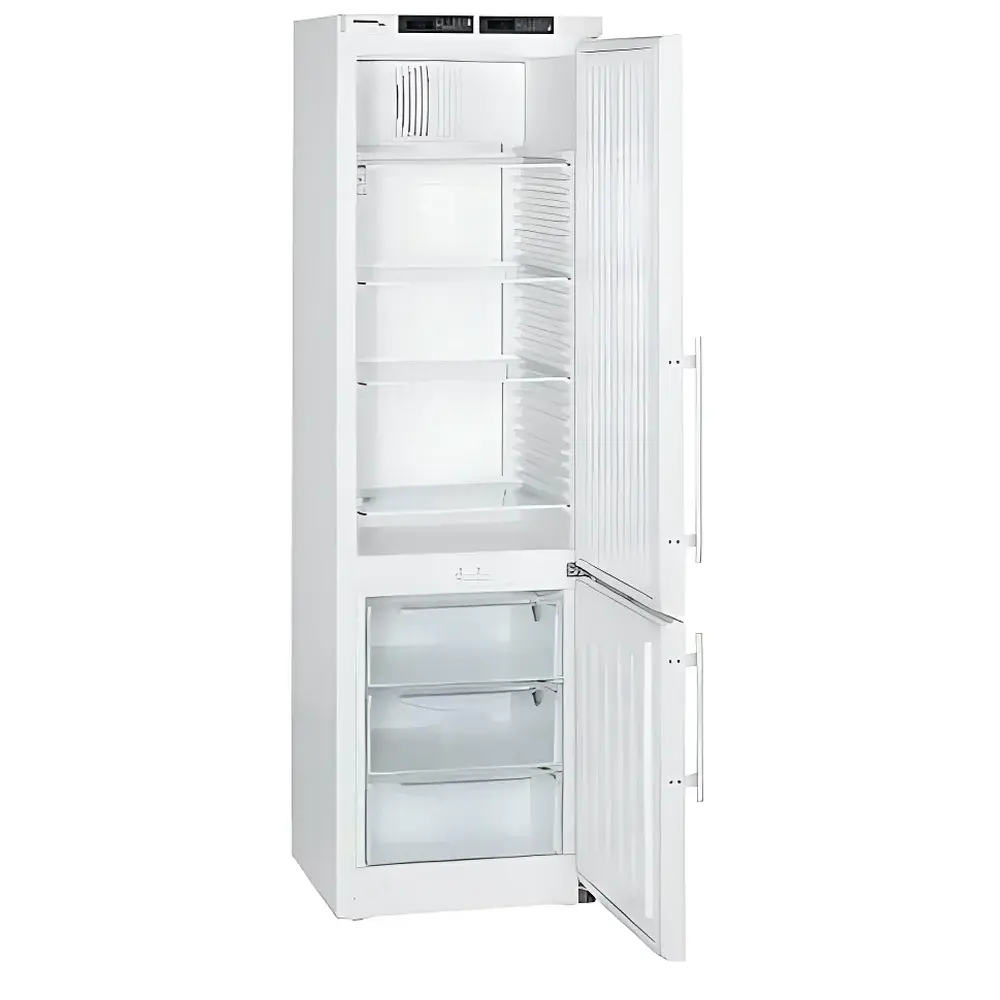

Liebherr LCexv 4010 Precision Explosion-Proof Laboratory Refrigerator-Freezer

Overview

The Liebherr LCexv 4010 is a CE-marked, ATEX-certified upright explosion-proof refrigerator-freezer engineered for safe, stable, and compliant storage of flammable liquids, volatile solvents, combustible powders, and temperature-sensitive reagents in regulated laboratory environments. Designed in accordance with Directive 2014/34/EU (ATEX 95), this dual-compartment unit features intrinsically safe electronic controls, spark-free construction, and certified component-level protection for use in Zone 2 (gas) and Zone 22 (dust) classified areas. Its dual-temperature architecture delivers independent, high-stability thermal control across two isolated chambers—refrigerator (+3 °C to +16 °C) and freezer (−11 °C to −30 °C)—with microprocessor-based PID regulation ensuring ±0.1 °C setpoint accuracy and uniformity ≤±1.0 °C throughout each compartment. Built in Austria using premium-grade stainless steel, reinforced glass shelves, and low-GWP R600a refrigerant, the LCexv 4010 meets stringent environmental, acoustic, and energy-efficiency benchmarks (≤1.5 kWh/24h), making it suitable for continuous operation in university core labs, pharmaceutical QC suites, chemical R&D facilities, and GLP-compliant analytical laboratories.

Key Features

• ATEX 95-certified design (Category 3G/3D, Zone 2/22) validated by notified body testing—no internal ignition sources, no sparking contacts, fully encapsulated electronics
• Dual independent PID temperature controllers with real-time digital display, 0.1 °C resolution, and programmable setpoints per chamber
• Comprehensive alarm system: audible/visual alerts for temperature deviation, door ajar, sensor fault, and power failure—with non-volatile memory storing the last three alarm events including timestamp, type, and duration
• RS485 Modbus RTU interface enabling centralized logging, remote supervision, and audit-ready temperature trend analysis for up to 20 units via third-party SCADA or LIMS platforms
• Optional external PT100 probe input for independent verification of chamber temperature—critical for 21 CFR Part 11–compliant validation protocols
• Energy-optimized vapor compression cycle with adaptive defrost management (auto/manual modes), low-noise compressors (<42 dB[A]), and climate-class SN-ST rating (operable at ambient up to +38 °C)
• Ergonomic design: reversible door hinge, stainless-steel pull handle, reinforced glass shelves (40 kg load capacity), and polymer freezer drawers (24 kg load capacity)

Sample Compatibility & Compliance

The LCexv 4010 supports long-term storage of Class I (flammable liquids), Class II (combustible dusts), and Class III (ignitable fibers/flyings) materials per NEC Article 500 and IEC 60079 standards. Its sealed, static-free interior prevents electrostatic discharge risks during handling of solvents such as acetone, ethanol, ether, and toluene. The unit complies with ISO 15190:2020 (laboratory safety), EN 61000-6-3 (EMC emissions), and EN 61000-6-2 (immunity). For regulated environments, its data logging capability—when integrated with time-stamped, user-access-controlled software—supports adherence to FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11 (computerized systems), and GLP/GMP temperature mapping requirements. All thermal performance data are traceable to national metrology institutes via factory calibration certificates.

Software & Data Management

While the LCexv 4010 operates autonomously via its embedded controller, its RS485 port enables seamless integration into enterprise-wide environmental monitoring systems (EMS). When connected to validated software platforms (e.g., Vaisala viewLinc, SensiML, or custom LabVIEW applications), users can configure automated alert thresholds, generate PDF reports with digital signatures, export CSV-formatted temperature curves, and maintain full audit trails—including operator ID, parameter changes, and alarm acknowledgments. Dry contact outputs support hardwired connections to building management systems (BMS) or emergency notification panels. No proprietary cloud service is required; all data remain on-premise unless explicitly configured otherwise—ensuring full IT governance and data sovereignty.

Applications

• Storage of flammable organic solvents and catalysts in synthetic chemistry and process development labs
• Secure containment of peroxide-forming reagents (e.g., diethyl ether, tetrahydrofuran) requiring strict thermal stability
• Stabilization of reference standards, certified reference materials (CRMs), and calibration solutions under ISO/IEC 17025 conditions
• Backup cold chain for biobanking workflows where secondary containment of cryopreserved samples is mandated
• Compliance-driven storage in pharmaceutical manufacturing cleanrooms (ISO Class 5–8) supporting USP , EP 2.1.7, and ICH Q5C guidelines
• Long-term archiving of forensic evidence, toxicology specimens, and environmental field samples requiring documented thermal history

FAQ

Is the LCexv 4010 certified for use in Zone 1 or Zone 21 hazardous locations?
No. It is certified exclusively for Zone 2 (gaseous atmospheres) and Zone 22 (combustible dust atmospheres) per ATEX 95 Directive 2014/34/EU, Category 3 equipment.
Can the unit be validated for IQ/OQ/PQ under GxP frameworks?
Yes. Its stable thermal performance, calibrated sensors, RS485 data export, and alarm event logging meet baseline requirements for installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) when executed per ASTM E2500 and ISPE Baseline Guide Vol. 5.
Does Liebherr provide factory calibration certificates with NIST-traceable documentation?
Yes. Each unit ships with a certificate of conformance and a temperature uniformity report generated during final factory testing at three load conditions (empty, 50% loaded, fully loaded), referenced to accredited metrology standards.
What is the expected service life and recommended maintenance interval?
Designed for ≥15 years of continuous operation, Liebherr recommends annual preventive maintenance—including condenser coil inspection, door gasket integrity check, and sensor verification—per the included technical manual and EN 61000-6-2 compliance schedule.
Is remote firmware update supported over RS485?
No. Firmware updates require local physical access using Liebherr’s authorized service toolset to preserve system integrity and regulatory compliance; no over-the-air (OTA) functionality is implemented.
